CN201717524U - Switch cabinet with electroscopic window - Google Patents

Abstract

The utility model belongs to the technical field of electric equipment, in particular to a switch cabinet. A switch cabinet with an electric inspection window, which includes a switch cabinet body, and an observation port is provided on the rear cabinet door of the switch cabinet body; its feature is that an electric inspection window is fixed at the observation port on the rear cabinet door; The window includes an electric test form, tempered glass, and a lock. There is a window in the middle of the front of the electric test form. The window communicates with the observation port. In the groove, the tempered glass seals the window, the left end of the tempered glass is fixedly connected with a first hasp, and the left end of the electroscope window is fixedly connected with a second hasp, and the first hasp and the second hasp are locked by a lock. The switchgear can be tested directly and has good safety.

Description

Switch cabinet with inspection window

technical field

The utility model belongs to the technical field of electric equipment, in particular to a switch cabinet.

Background technique

10KV closed switchgear (XGN2-10 type closed switchgear) has a closed observation window on the rear cabinet door, and the line cables and the grounding switch on the line side can be seen through this window.

The closed switch cabinet adopts the indirect electric inspection method, that is, "judging by the changes of the mechanical indication position of the equipment, electrical indication, live display device, instrument and various telemetry, remote signaling and other signals. , among the above criteria, except that the electrification display device can reflect whether the line is charged, other criteria cannot change correspondingly. That is to say: before pushing the grounding knife switch, there is only one criterion for whether the line is charged. "Single criterion "Electrical inspection" can not meet the requirements of safety regulations. If you open the rear cabinet door and directly inspect the electricity, it is simple and easy and does not require investment. Disadvantages: it does not meet the requirements of the "Safety Regulations", and it is easy to cause casualties.

When the high-voltage live indicator light is damaged and the line is charged (if the line is charged), the ground knife (charged ground knife) will burst at this time, the insulating sleeve will burst, the switchgear will explode, and the entire switchgear will be scrapped, which will cause: personal injury, equipment damage, Power outages for users and a large amount of capital investment. Therefore, reducing potential threats, ensuring the safety of operators and equipment, and solving the problem of single-criteria electrical inspection when the line is transferred from standby to maintenance have become urgent problems to be solved.

Contents of the invention

The purpose of the utility model is to provide a switch cabinet with an electric inspection window, which can be directly inspected and has good safety.

In order to achieve the above purpose, the technical solution adopted by the utility model is: a switch cabinet with an electroscope window, which includes a switch cabinet body, and an observation port is arranged on the rear cabinet door of the switch cabinet body; There is an electric inspection window fixed at the observation port; the electric inspection window includes an electric inspection window, tempered glass, and a lock. There is a tempered glass chute on the side, the tempered glass is inserted into the tempered glass chute, the tempered glass closes the window, the left end of the tempered glass is fixedly connected with the first hasp, and the left end of the electric test window is fixedly connected with the second hasp. The first hasp and the second hasp are locked together by a lock.

The electro-inspection form is made up of a panel, an inner slot plate and a bottom plate, and windows are arranged in the middle of the front of the panel and the bottom plate, and the inner slot plate is U-shaped, and the inner slot plate is located between the panel and the bottom plate; the panel, the inner slot plate , There are screw mounting holes on the bottom plate.

The beneficial effect of the utility model is: adopt the above structure, open the lock, slide the toughened glass to the right, the window is opened, and the electric test can be performed directly; compared with the cabinet door after opening, the window is smaller and the safety is better. The utility model retains the function of the observation window, which can be unlocked and pushed open during the electric test, and can be closed afterwards, which is more convenient. Adopt tempered glass, with explosion-proof function.

Description of drawings

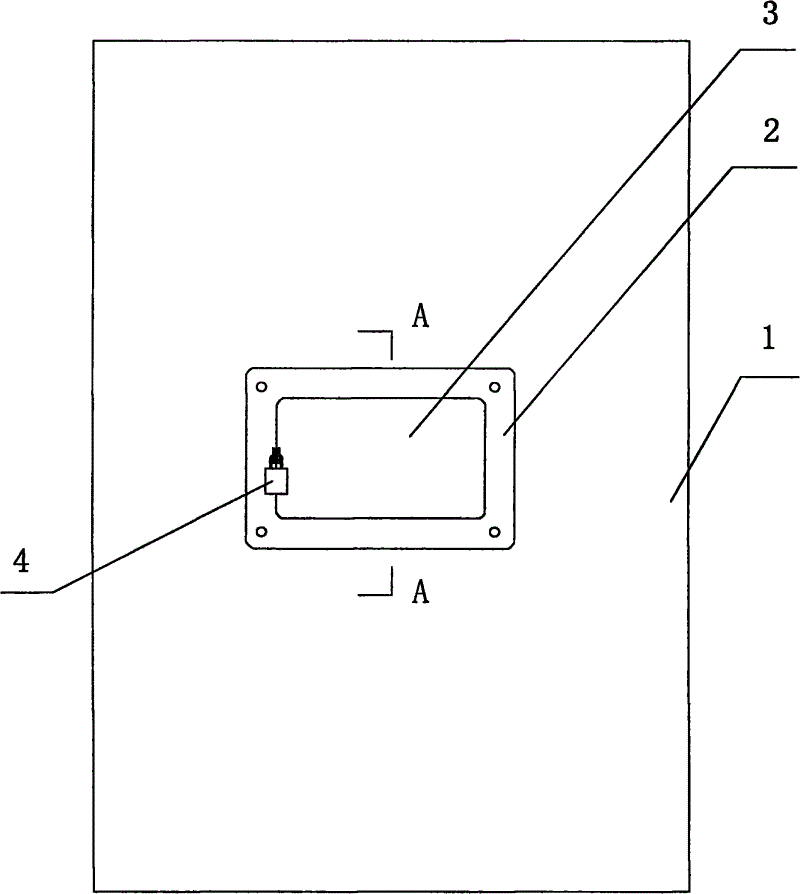

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the right view of the electroscope window in Fig. 1;

Fig. 3 is a sectional view along line A-A in Fig. 1;

Fig. 4 is the structural representation of toughened glass;

Fig. 5 is the structural representation of panel;

Fig. 6 is a schematic structural view of the inner groove plate;

In the figure: 1-switch cabinet, 2-electric test window, 3-tempered glass, 4-lock, 5-tempered glass chute, 6-first hasp, 7-panel, 8-window, 9-inner Slot plate, 10-observation port.

Detailed ways

As shown in Fig. 1, Fig. 2, Fig. 3, Fig. 4, Fig. 5, and Fig. 6, the switchgear with electroscope window includes a switchgear body 1, and the rear cabinet door of the switchgear body 1 is provided with an observation port 10 (Note: Glass is fixed at the original observation port to form a closed observation window); 10 observation ports on the rear cabinet door are fixed with electro-detection windows (the electro-detection windows are fixedly connected to the rear cabinet door by screws); The electro-test window includes an electro-test window 2, tempered glass 3, and a lock 4. A window 8 is provided in the middle of the front of the electro-test window 2, and the window 8 communicates with the observation port 10. The right side of the electro-test window 2 is provided with a toughened Glass chute 5, tempered glass 3 is inserted into tempered glass chute 5 (tempered glass 3 can slide in tempered glass chute 5, tempered glass 3 slides to the right, window 8 is opened), tempered glass 3 closes window 8, tempered glass 3 The left end of the glass 3 is fixedly connected with a first hasp 6 (fixed or bonded by screws, and the hasp is a stainless steel buckle as a push-pull handle), and the left end of the electroscope window 2 is fixedly connected with a second hasp. One hasp 6 and the second hasp are locked by lock 4 (lock 4 is five anti-blocking).

Described electrotest window 2 is made up of panel 7, inner groove plate 9, base plate, and the structure of base plate is identical with the structure of panel 7, and panel 7, the middle part of the front of base plate are all provided with window (length and width are 280mm * 160mm) , the inner groove plate 9 is U-shaped, the inner groove plate 9 is located between the panel 7 and the bottom plate, the inner width of the inner groove plate 9 is greater than the width of the window by 10-40mm, and the inner length of the inner groove plate 9 is 326mm; the panel 7, the inner groove Both the plate 9 and the base plate are provided with screw mounting holes (corresponding to the positions of the screw mounting holes). The materials of the panel 7, the inner groove plate 9 and the bottom plate are all rigid insulating boards, the thickness of the panel 7 and the bottom plate are both 8mm, and the length and width are 360mm×240mm; the thickness of the tempered glass 3 is 8mm, and the length and width are 306mm × 179mm; the thickness of the inner groove plate 9 is 10mm.

Claims (2)

1. A switchgear with an electro-detection window, which includes a switch cabinet body, and an observation port is provided on the rear cabinet door of the switch cabinet body; it is characterized in that: an electro-detection window is fixed at the observation port on the rear cabinet door; The electric test window includes the electric test form, tempered glass and lock. There is a window in the middle of the front of the electric test form, which communicates with the observation port. In the glass chute, tempered glass seals the window, the left end of the tempered glass is fixedly connected with the first hasp, and the left end of the electric test window is fixedly connected with the second hasp, and the first hasp and the second hasp are locked by a lock . 2. The switchgear with electro-detection window according to claim 1, characterized in that: the electro-detection window is composed of a panel, an inner groove plate, and a bottom plate, and windows are arranged in the middle of the front of the panel and the bottom plate, and the inner The slot plate is U-shaped, and the inner slot plate is located between the panel and the bottom plate; the panel, the inner slot plate, and the bottom plate are all provided with screw mounting holes.
