本实用新型公开了一种高安全性能轮胎，包括汽车轮胎，汽车轮胎为无内胎外胎，辅助橡胶内胎安装在无内胎的汽车轮胎内，其中，在汽车轮胎上安装有汽车轮胎气门芯，在汽车轮胎气门芯上安装有辅助车轮气门芯。当汽车轮胎冲气后压紧在汽车轮毂上。辅助橡胶内胎与外胎有相同的气压，辅助橡胶内胎充气后内胎直径稍少于外胎内径，截面也小于外胎内截面，正常行驶时内胎悬浮在外胎内，不承受重量，不起作用，也不和路面接触。当汽车轮胎爆裂或漏气时由辅助车轮支撑汽车。能有效防止在汽车行驶中轮胎突然爆裂时事故的发生保证汽车短距离低速行驶到路边，停车时轮胎漏气时能保证汽车短距离低速行驶到路边或修理厂，防止轮胎的损坏。
The utility model discloses a tire with high safety performance, which comprises a car tire. The car tire is a tubeless outer tire, and an auxiliary rubber inner tube is installed in the car tire without a tube. The auxiliary wheel valve core is installed on the tire valve core. When the car tire is inflated, it is compressed on the car hub. The auxiliary rubber inner tube has the same air pressure as the outer tire. After the auxiliary rubber inner tube is inflated, the diameter of the inner tube is slightly smaller than the inner diameter of the outer tire, and the cross-section is also smaller than the inner cross-section of the outer tire. When driving normally, the inner tube is suspended in the outer tire, does not bear weight, does not work, and is not compatible with the road surface touch. The auxiliary wheels support the car when a car tire blows out or loses air. It can effectively prevent accidents when the tires suddenly burst while the car is running, and ensure that the car drives to the side of the road at a short distance and at a low speed.
Description
Technical field:
The utility model relates to a kind of high safety performance tire, mainly is used on the various automobiles.
Background technology:
Automobile, aircraft tire blow-out under steam make it lose directivity and cause major accident.Automobile tire flat and can not moving when stopping, it is very inconvenient that many chaufeurs can not change tire.The high safety performance tire that energy short range low speed driving is installed at automobile, aircraft is necessary.
The utility model content:
In order to address the above problem, the purpose of this utility model is to provide a kind of high safety performance tire, can guarantee when the tire blow-out guarantees automobile short range low speed driving to roadside and parking in running car that automobile short range low speed driving is to the roadside or repair plant during tire flat.
For reaching above-mentioned purpose, the utility model adopts following technical scheme, a kind of high safety performance tire, comprise motor tire, motor tire is the inner tube free cover tire, and the auxiliary rubber inner tube of a tyre is installed in the tubeless motor tire, wherein, the motor tire valve inside is installed on motor tire, the auxiliary wheel valve inside is installed on the motor tire valve inside.
The beneficial effects of the utility model are: the utility model prevents the generation of accident when automobile generation tire blow-out, energy short range low speed driving is to curb parking, when stopping, can guarantee that automobile short range low speed driving to repair plant, prevents tire failure during tire flat.
Description of drawings:

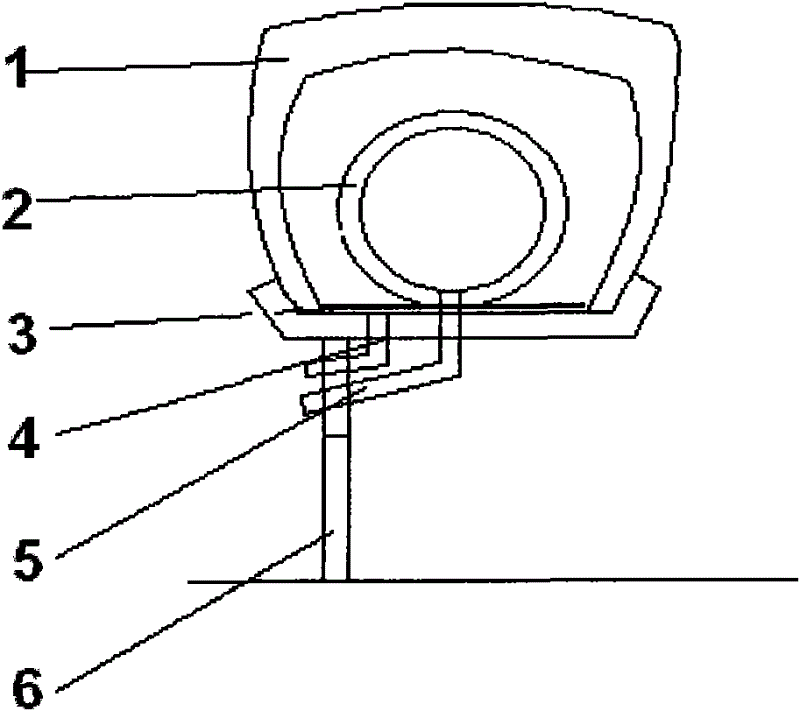

Fig. 1 is a structural representation of the present utility model.
Among the figure: 1 is motor tire, and 2 is the auxiliary rubber inner tube of a tyre, and 3 is rim strip, and 4 is at the motor tire valve inside, and 5 is the auxiliary wheel valve inside, and 6 is automotive hub.
The specific embodiment:
As shown in Figure 1, a kind of high safety performance tire, comprise motor tire 1, motor tire 1 is the inner tube free cover tire, the auxiliary rubber inner tube of a tyre 2 is installed in the tubeless motor tire 1, wherein, motor tire valve inside 4 is installed on motor tire 1, auxiliary wheel valve inside 5 is installed on motor tire valve inside 2.After motor tire 1 qi of chong channel ascending adversely, be pressed on the automotive hub 6.
In the utility model, the auxiliary rubber inner tube of a tyre 2 has identical air pressure with tubeless motor tire 1, the auxiliary rubber inner tube of a tyre 2 inflation back inner tube diameters are less than the cover tire internal diameter slightly, the cross section is also less than cross section in the cover tire, the inner tube of a tyre is suspended in the cover tire during cruising, do not bear weight, inoperative, the road surface contact of also getting along well.When motor tire explosion or gas leakage, support automobile by auxiliary wheel.The generation of accident guarantees automobile short range low speed driving to the roadside in the time of effectively preventing in running car tire blow-out, can guarantee during parking that automobile short range low speed driving to the roadside or repair plant, prevents tire failure during tire flat.
