Abstract

The utility model relates to the technical field of lighting decorative lamps, and in particular to an LED lawn lamp, which comprises an outer shell, which is composed of a base and a light-transmitting lampshade that are interlocked with each other, an aluminum base plate installed and fixed in the outer shell, an LED lamp welded and fixed on the aluminum base plate, and the LED lamp is electrically connected to the aluminum base plate; because an LED lamp with low power consumption and long service life is adopted as a lighting light source, compared with a lawn lamp adopting an energy-saving lamp tube as a lighting light source, the utility model has the characteristics of low power consumption and long service life.

Description

LED Lawn Light

Technical field:

The utility model relates to the technical field of lighting and decorative lamps, in particular to an LED lawn lamp.

Background technique:

On the lawns of public places such as squares, parks, and residential areas, lawn lights for lighting and decoration are generally installed. The traditional lawn lamp is mainly composed of a base, an energy-saving lamp installed on the base, and a glass lampshade. The glass lampshade is set on the periphery of the energy-saving lamp. However, this kind of lawn lamp that uses energy-saving lamps as the lighting source has large power consumption, high temperature, and short service life.

Utility model content:

The purpose of the utility model is to provide an LED lawn lamp with low power consumption and long service life aiming at the deficiencies in the prior art.

In order to achieve the above object, the technical solution adopted by the utility model is:

It includes a shell, which is composed of a base and a light-transmitting lampshade that are interlocked with each other. An aluminum substrate is installed and fixed in the casing, an LED lamp is welded and fixed on the aluminum substrate, and the LED lamp is electrically connected with the aluminum substrate.

A groove is formed on the top of the base, and a silicone glue layer is coated in the groove, and the bottom end of the light-transmitting lampshade is clamped and fixed in the groove of the base.

A slope is formed on the top of the light-transmitting lampshade.

The base is provided with a threading hole for placing wires.

The base is formed with a protruding fixing part, and the protruding fixing part is provided with a screw hole.

The light-transmitting lampshade is a milky white plastic shade.

The beneficial effects of the utility model are:

An LED lawn lamp provided by the utility model includes a shell, which is composed of a base and a light-transmitting lampshade that are interlocked with each other. An aluminum substrate is installed and fixed in the shell, and an LED lamp is welded and fixed on the aluminum substrate. The LED lamp and the aluminum substrate Electric connection; due to the use of LED lamps with low power consumption and long service life as the lighting source, the utility model has the advantages of low power consumption and long service life compared with the lawn lamp which uses energy-saving tubes as the lighting source. features.

Description of drawings:

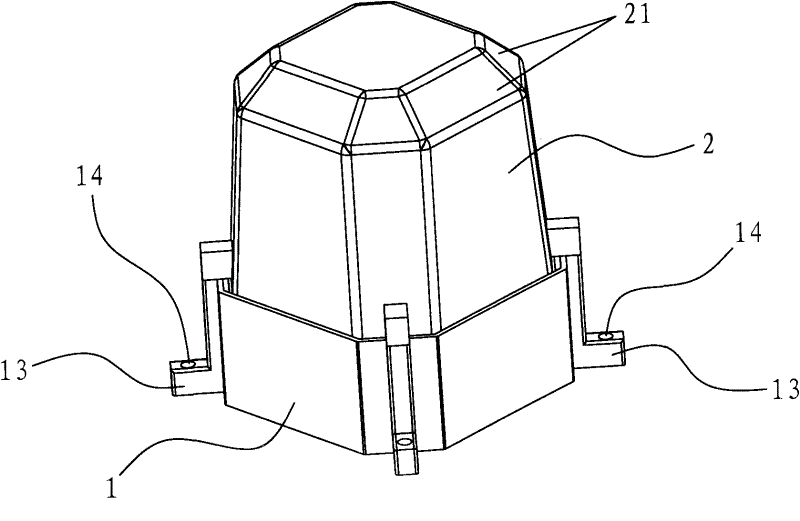

Fig. 1 is the structural representation of the utility model;

Fig. 2 is a schematic structural view of another perspective of the utility model;

Fig. 3 is an exploded schematic diagram of the utility model.

Reference signs:

1——base 11——groove

12——Wiring hole 13——Protruding fixed part

14——Screw hole 2——Translucent lampshade

21——Incline 3——Aluminum substrate

4 - LED lights

Detailed ways:

The utility model will be further described below in conjunction with the accompanying drawings. Please refer to FIGS. An aluminum substrate 3 is installed and fixed in the housing, and an LED lamp 4 is welded and fixed on the aluminum substrate 3. The LED lamp 4 is electrically connected to the aluminum substrate 3. More specifically, the aluminum substrate 3 is closely fixed in the base 1, The LED lamp 4 is welded upward on the aluminum substrate 3, and the base 1 is made of aluminum alloy, so the heat generated when the LED lamp 4 is working can be transferred to the base 1 through the aluminum substrate 3, and the base 1 rapidly Let it out. Of course, the aluminum substrate 3 is also provided with a control circuit for controlling the LED lamp 4 and supplying power to the LED lamp 4 .

In this embodiment, the top of the base 1 is provided with a groove 11, and the inside of the groove 11 is coated with a layer of silicone glue. The silicone glue layer can not only paste and fix the light-transmitting lampshade 2, but also play a waterproof role, especially for lawn lights installed outdoors, the silicone glue layer can prevent rainwater from penetrating into the shell.

The base 1 of this embodiment is provided with a threading hole 12 for placing wires, so that the aluminum substrate 3 can be connected to an external power source through wires to supply power to the LED lamp 4; Screw holes 14 are provided so that the entire lamp can be fixed by screws.

In this embodiment, the top of the light-transmitting lampshade 2 is formed with a slope 21, which can avoid water accumulation, thereby ensuring the light-transmitting effect of the light-transmitting lampshade 2; The light irradiated by the lampshade 2 has good lighting and decorative effects. Of course, the light-transmitting lampshade 2 can also be a cover body of other colors, not limited to the milky white selected in this embodiment. In this embodiment, the LED lamp 4 is a high-power LED, and the high-power LED has higher brightness. Of course, the utility model can weld the number of LED lamps 4 according to the needs of actual brightness during production, and the LED White light, warm white light, red light, green light or blue light LED can also be used for lamp 4, as long as it has better lighting and decorative effects.

The above is only a preferred embodiment of the utility model, so all equivalent changes or modifications made according to the structure, features and principles described in the utility model patent application scope are all included in the utility model patent application scope .

Claims (6)

1. LED Lawn lamp, it comprises shell, and shell is made up of the base (1) and the transparent lamp shade (2) of mutual fastening, it is characterized in that: be mounted with aluminium base (3) in the described shell, be welded with LED lamp (4) on the aluminium base (3), LED lamp (4) is electrically connected with aluminium base (3).

2. LED Lawn lamp according to claim 1 is characterized in that: the top of described base (1) offers groove (11), and groove is coated with the silica gel glue layer in (11), and the bottom of transparent lamp shade (2) is fixed in the groove (11) of base (1).

3. LED Lawn lamp according to claim 2 is characterized in that: the top of described transparent lamp shade (2) forms inclined-plane (21).

4. LED Lawn lamp according to claim 2 is characterized in that: described base (1) offers the through wires hole (12) that is used to place lead.

5. LED Lawn lamp according to claim 4 is characterized in that: described base (1) forms and protrudes fixed part (13), protrudes fixed part (13) and offers screw (14).

6. LED Lawn lamp according to claim 5 is characterized in that: described transparent lamp shade (2) is a milky plastics cover body.
