Abstract
The utility model discloses a motor mounting bracket (2), which includes a connecting part (21), a mounting part (22) and a supporting part (23) used for connecting the mounting part (22) with the connecting part (21), wherein the supporting part (23) has a sheet distortion body structure. In the utility model, the supporting part mounted on the mounting bracket is designed to be the sheet distortion body structure, so that the manufacturing process is simple; the ductility connecting strength of the supporting is increased; the structural strength of the whole motor mounting bracket can be increased by dispensing with the increase in the material thickness of the bracket or the auxiliary arrangement of strengthening ribs; the material consumption of the mounting bracket is reduced; and the structural cost is reduced.
Description
Technical field:
The utility model relates to a kind of motor mounting rack.
Background technology:
Most motor mounting racks directly are welded on the lateral wall of motor case, in order to guarantee its structural strength, conventionally all realize by the material thickness or the additional reinforcement that increase mounting bracket itself, there are the following problems: 1) consumable quantity of mounting bracket is more, cost is higher, and manufacturing process is complicated; 2) structural strength of mounting bracket is desirable not enough.
Summary of the invention:
The purpose of this utility model is to improve prior art above shortcomings part, and the consumable quantity that provide that a kind of manufacturing process is simple, structural strength is big, can reduce mounting bracket reduces the motor mounting rack of infrastructure cost.
The utility model is to be achieved by following technical scheme.
A kind of motor mounting rack comprises connecting portion, installation portion and is used for the support portion of connection portion, connecting portion, and the support portion is a sheet distortion body structure.
Above-mentioned described connecting portion directly is welded on the lateral wall of motor case.
Joint in connecting portion and support portion is provided with screw, the other end of connecting portion also is provided with projection, have through hole on the projection, screw is corresponding with lead to the hole site, connecting portion is close on the lateral wall of motor case, corresponding screw, through hole that the external application bolt passes on adjacent two connecting portion ends are locked together mounting bracket, thereby make the mounting bracket lock ring live motor case.
Above-mentioned described connecting portion is an arc body, and it is close on the lateral wall of motor case.
Above-mentioned described connecting portion and installation portion spatially stagger mutually, and are vertical relation.
Have installing hole on the above-mentioned described installation portion.
Above-mentioned described mounting bracket is distributed on the lateral wall of motor case.
Above-mentioned described mounting bracket is by the integrally manufactured moulding of low-carbon (LC) steel.
Above-mentioned described mounting bracket also is suitable for and is installed on the machine shaft.
The connecting portion of above-mentioned described mounting bracket directly is welded on the machine shaft or is welded on the axle sleeve of machine shaft outer wall, perhaps is locked together the back lock ring by bolt and lives machine shaft.
The beneficial effects of the utility model are: 1) support portion on the mounting bracket is designed to sheet distortion body structure, manufacturing process is simple, the toughness and the bonding strength of support portion have been increased, do not need just can make the structural strength of whole motor mounting rack obtain increasing by the material thickness or the additional reinforcement that increase mounting bracket itself, reduce the consumable quantity of mounting bracket, reduce infrastructure cost; 2) the installation connected mode of mounting bracket and motor case or machine shaft is various, and the variation that helps mounting bracket is used; 3) mounting bracket is by the integrally manufactured moulding of low-carbon (LC) steel, energy-conserving and environment-protective.
Description of drawings:
Fig. 1 is the mounting structure schematic diagram of first kind of execution mode of the present utility model.

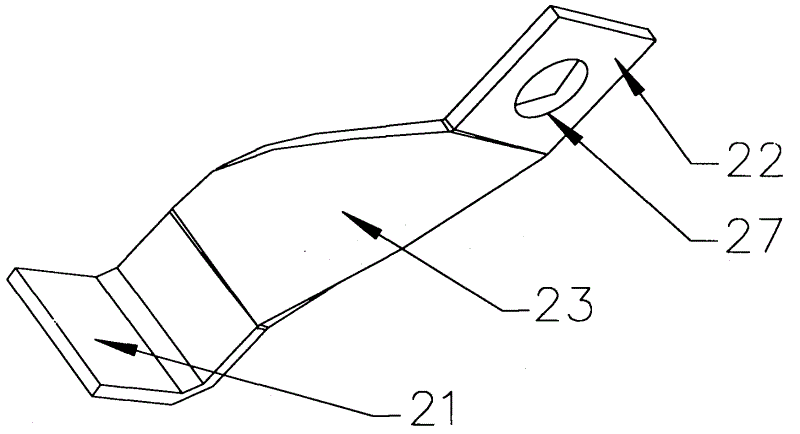

Fig. 2 is the stereogram of the mounting bracket of Fig. 1 correspondence.
Fig. 3 is the mounting structure schematic diagram of second kind of execution mode of the present utility model.
Fig. 4 is the stereogram of the mounting bracket of Fig. 3 correspondence.
Fig. 5 is the mounting structure schematic diagram of another kind of execution mode of the present utility model.
Fig. 6 is the A-A enlarged drawing among Fig. 5.
Embodiment:
Also in conjunction with the accompanying drawings the utility model is described in further detail below by specific embodiment.
Embodiment 1
As shown in Figure 1 and Figure 2, a kind of motor mounting rack 2 comprises connecting portion 21, installation portion 22 and is used for the support portion 23 of connection portion 22, connecting portion 21, and support portion 23 is sheet distortion body structures.
Wherein connecting portion 21 directly is welded on the lateral wall of motor case 1; Connecting portion 21 is arc bodies, and it is close on the lateral wall of motor case 1, and promptly the radius of curvature of connecting portion 21 is identical with the radius of curvature of motor case 1; Connecting portion 21 spatially staggers mutually with installation portion 22, and is vertical relation; Have installing hole 27 on the installation portion 22; Mounting bracket 2 is distributed on the lateral wall of motor case 1; Mounting bracket 2 is by the integrally manufactured moulding of low-carbon (LC) steel.
As shown in Figure 3, Figure 4, a kind of motor mounting rack 2 comprises connecting portion 21, installation portion 22 and is used for the support portion 23 of connection portion 22, connecting portion 21, and support portion 23 is sheet distortion body structures.
Wherein, joint in connecting portion 21 and support portion 23 is provided with screw 24, the other end of connecting portion 21 also is provided with projection 25, protruding determine has through hole 26 on 25, screw 24 is corresponding with through hole 26 positions, connecting portion 21 is close on the lateral wall of motor case 1, and corresponding screw 24, through hole 26 that external application bolt 28 passes on adjacent two connecting portion 21 ends are locked together mounting bracket 2, thereby make mounting bracket 2 lock rings live motor case 1; Connecting portion 21 is arc bodies, and it is close on the lateral wall of motor case 1, and promptly the radius of curvature of connecting portion 21 is identical with the radius of curvature of motor case 1; Connecting portion 21 spatially staggers mutually with installation portion 22, and is vertical relation; Have installing hole 27 on the installation portion 22; Mounting bracket 2 is distributed on the lateral wall of motor case 1; Mounting bracket 2 is by the integrally manufactured moulding of low-carbon (LC) steel.
By Fig. 5, Fig. 6 as can be known, the mounting bracket 2 described in embodiment 1 and the embodiment 2 also is suitable for and is installed on the machine shaft 10, and it is welded on the axle sleeve 11 of machine shaft 10 outer walls by its connecting portion 21.In addition, it also can directly be welded on the machine shaft or be locked together the back lock ring by bolt and live machine shaft.
Claims (10)
1. a motor mounting rack (2) comprises connecting portion (21), installation portion (22) and is used for the support portion (23) of connection portion (22), connecting portion (21) that it is characterized in that: support portion (23) are sheet distortion body structures.
2. a kind of motor mounting rack according to claim 1 is characterized in that: connecting portion (21) directly is welded on the lateral wall of motor case (1).
3. a kind of motor mounting rack according to claim 1, it is characterized in that: the joint in connecting portion (21) and support portion (23) is provided with screw (24), the other end of connecting portion (21) also is provided with projection (25), have through hole (26) on the projection (25), screw (24) is corresponding with through hole (26) position, connecting portion (21) is close on the lateral wall of motor case (1), the external application bolt passes the corresponding screw (24) on adjacent two connecting portions (21) end, through hole (26) is locked together mounting bracket (2), thereby makes mounting bracket (2) lock ring live motor case (1).
4. according to claim 2 or 3 described a kind of motor mounting racks, it is characterized in that: connecting portion (21) is an arc body, and it is close on the lateral wall of motor case (1).
5. a kind of motor mounting rack according to claim 4 is characterized in that: connecting portion (21) spatially staggers mutually with installation portion (22), and is vertical relation.
6. a kind of motor mounting rack according to claim 5 is characterized in that: have installing hole (27) on the installation portion (22).
7. a kind of motor mounting rack according to claim 6 is characterized in that: mounting bracket (2) is distributed on the motor case (1).
8. a kind of motor mounting rack according to claim 7 is characterized in that: mounting bracket (2) is by the integrally manufactured moulding of low-carbon (LC) steel.
9. a kind of motor mounting rack according to claim 1 is characterized in that: mounting bracket (2) also is suitable for and is installed on the machine shaft.
10. a kind of motor mounting rack according to claim 9, it is characterized in that: the connecting portion (21) of mounting bracket (2) directly is welded on the machine shaft or is welded on the axle sleeve of machine shaft outer wall, perhaps is locked together the back lock ring by bolt and lives machine shaft.
