Abstract
The utility model provides a telescopic metal rope net comprising metal ropes. The design key points are as follows: the metal ropes are provided with fasteners; the metal ropes are arranged coaxially and are clamped by the fasteners in a staggered manner to form a net shape. The telescopic metal rope net is convenient to store and transport, has good pulling elasticity and hard torsion and deformation, and is firm and durable.
Description
Technical field
The utility model relates to the net of forming with rope, line etc., the specifically wire netting of being made by metallic cable.
Background technology
Wire netting is generally used for interior decoration, outdoor security protection, the fowl pen is foster isolates.Because present wire netting generally is to twist to compile by the stainless steel wire welding or by metallic cable to form.The wire netting that is welded, it pulls and draws elasticity little, and is strict to cut lengths during use, in addition because it can only place or be rolled into big tubular placement in flakes, so be not easy to storage and transportation; Metallic cable is twisted to compile and is formed wire netting, draws elasticity better relatively though pull, its easy torsional deformation, and rope also forms dead folding easily with the stubborn position that connects of rope, so its poor durability.Moreover equally also there is the problem of storing in a warehouse and transporting of being not easy in it.
The utility model content
The purpose of this utility model will provide a kind of telescopic wire netting exactly, and it is convenient to storage, transportation, and it pulls and draw good springiness, is difficult for torsional deformation, sturdy and durable.
The purpose of this utility model realizes in the following manner:
Wire netting provided by the utility model includes metallic cable, and its design main points are that metallic cable is provided with the button card, and metallic cable and metallic cable are arranged in the same way, and constitute netted by the staggered clamping of buckle.
Like this wire netting of design includes the beneficial effect of following several respects:
(1) constitutes wire netting by the buckle connected mode, can effectively avoid twisting normal extremely the discounting of occurring of volume wire netting and resemble, improved the service life of wire netting.
(2) the buckle connected mode increases the contact-making surface of metallic cable connecting portion, can effectively prevent the mesh torsional deformation thus, and the body that also can effectively prevent to restrict simultaneously arbitrarily slides.
(3) wire netting of this structure can significantly reduce floor space thus with netting to flat compression when not using, and is convenient to storage and transportation
(4) the buckle connection makes the preparation of wire netting more efficient and convenient.
(5) solid durable.
Description of drawings

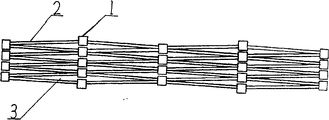

Fig. 1 is a structural representation of the present utility model.
Fig. 2 is the structural representation of the utility model compressive state.
Fig. 3 is that the local A-A of Fig. 1 is to structural representation.
Fig. 4 is the cross-sectional structure schematic diagram of metallic cable in the utility model.
The specific embodiment
The utility model includes metallic cable 2 as shown in Figure 1, and metallic cable 2 is provided with buckle 1, and metallic cable and metallic cable are arranged in the same way, and constitutes netted 3 by buckle 1 staggered clamping.When producing, can earlier two metallic cables 2 be placed in the buckle 1 mechanical then afterburning fastening buckle 1.The utility model can be as shown in Figure 2 when not using, to flat boil down to smaller size smaller.In order further to improve durability of the present utility model, described buckle 1 can be designed to bending or cylindrical shape (as shown in Figure 3) in the both sides, buckle 1 can firmly block metallic cable 2 thus.In order to improve durability of the present utility model, described metallic cable 2 can be designed to seven strands of six sides or multiply (as shown in Figure 4) equally, promptly makes six side gardens rope by seven strands.Because the metallic cable of seven bursts of structures of six sides, there is a strand occupy-place at its rope heart position, and is so its central void is little, not yielding and durable.
Claims (3)
1. a metal netting includes metallic cable (2), it is characterized in that metallic cable (2) is provided with buckle (1), and metallic cable (2) is arranged in the same way with metallic cable (2), and constitutes netted (3) by the staggered clamping of buckle (1).
2. metal netting according to claim 1 is characterized in that described buckle (1) is bending or cylindric in the both sides.
3. metal netting according to claim 1 and 2 is characterized in that described metallic cable (2) is seven strands of six sides.
