Abstract

新型幕墙结构，包括安装在主体结构上的石材龙骨、背栓式石材挂件和石材面板，其特征在于，所述石材龙骨利用化学锚栓安装在主体结构上，两者之间装设保温板，保温板固贴在主体结构表面，所述背栓式石材挂件利用螺栓固定在石材龙骨上，并与石材面板固接，石材龙骨表面粘贴一层防水铝板，所述相邻石材面板之间按照工况需求留有一定缝隙。本实用新型结构牢固，外形美观，可以保温防水，实现能源节约。

Figure 200920259688

The new curtain wall structure includes a stone keel installed on the main structure, a back-bolt stone pendant and a stone panel, which is characterized in that the stone keel is installed on the main structure with chemical anchor bolts, and an insulation board is installed between the two. The thermal insulation board is fixed on the surface of the main structure, the back-bolt stone pendant is fixed on the stone keel with bolts, and is fixedly connected with the stone panel, and a layer of waterproof aluminum plate is pasted on the surface of the stone keel, and the adjacent stone panels are separated according to the workmanship. There is a certain gap in the situation. The utility model has firm structure, beautiful appearance, heat preservation and waterproof, and realizes energy saving.

Figure 200920259688

Description

新型幕墙结构New Curtain Wall Structure

技术领域technical field

本实用新型涉及建筑幕墙结构，具体为一种新型的开放式石材幕墙结构。The utility model relates to a building curtain wall structure, in particular to a novel open stone curtain wall structure.

背景技术Background technique

目前，建筑幕墙已经进入广大应用于各种建筑物的外部装修，给建筑物带来美观的室外效果。然而，现有的石材幕墙一般延续原有的幕墙结构，幕墙结构简单，功能单一，而且石材板缝之间会涂抹硅酮密封胶，时间长了会污损石材，影响美观。At present, architectural curtain walls have been widely used in the exterior decoration of various buildings, bringing beautiful outdoor effects to buildings. However, the existing stone curtain wall generally continues the original curtain wall structure. The curtain wall has a simple structure and a single function, and silicone sealant is applied between the stone board joints. After a long time, the stone will be stained and affect the appearance.

实用新型内容Utility model content

本实用新型所解决的技术问题在于提供一种新型幕墙结构，以解决上述背景技术中的缺点。        The technical problem solved by the utility model is to provide a new curtain wall structure to solve the above-mentioned shortcomings in the background technology.

本实用新型所解决的技术问题采用以下技术方案来实现：The technical problem solved by the utility model adopts the following technical solutions to realize:

新型幕墙结构，包括安装在主体结构上的石材龙骨、背栓式石材挂件和石材面板，所述石材龙骨利用化学锚栓安装在主体结构上，石材龙骨与主体结构之间装设保温板，保温板粘贴在主体结构上，所述背栓式石材挂件利用螺栓固接在石材龙骨上，将石材面板与石材龙骨连接牢固，石材龙骨表面粘贴一层防水铝板，相邻石材面板之间留有缝隙，缝隙的大小按照工况需求计算得出。A new type of curtain wall structure, including a stone keel installed on the main structure, a back-bolt stone pendant and a stone panel. The stone keel is installed on the main structure with chemical anchor bolts. The board is pasted on the main structure, and the back-bolt stone pendant is fixed on the stone keel with bolts, and the stone panel and the stone keel are firmly connected. A layer of waterproof aluminum plate is pasted on the surface of the stone keel, and there is a gap between adjacent stone panels. , the size of the gap is calculated according to the requirements of the working conditions.

有益效果：本实用新型结构牢固，外形美观，可以保温防水，实现能源 节约。Beneficial effects: the utility model has firm structure, beautiful appearance, heat preservation and waterproof, and realizes energy saving.

附图说明Description of drawings

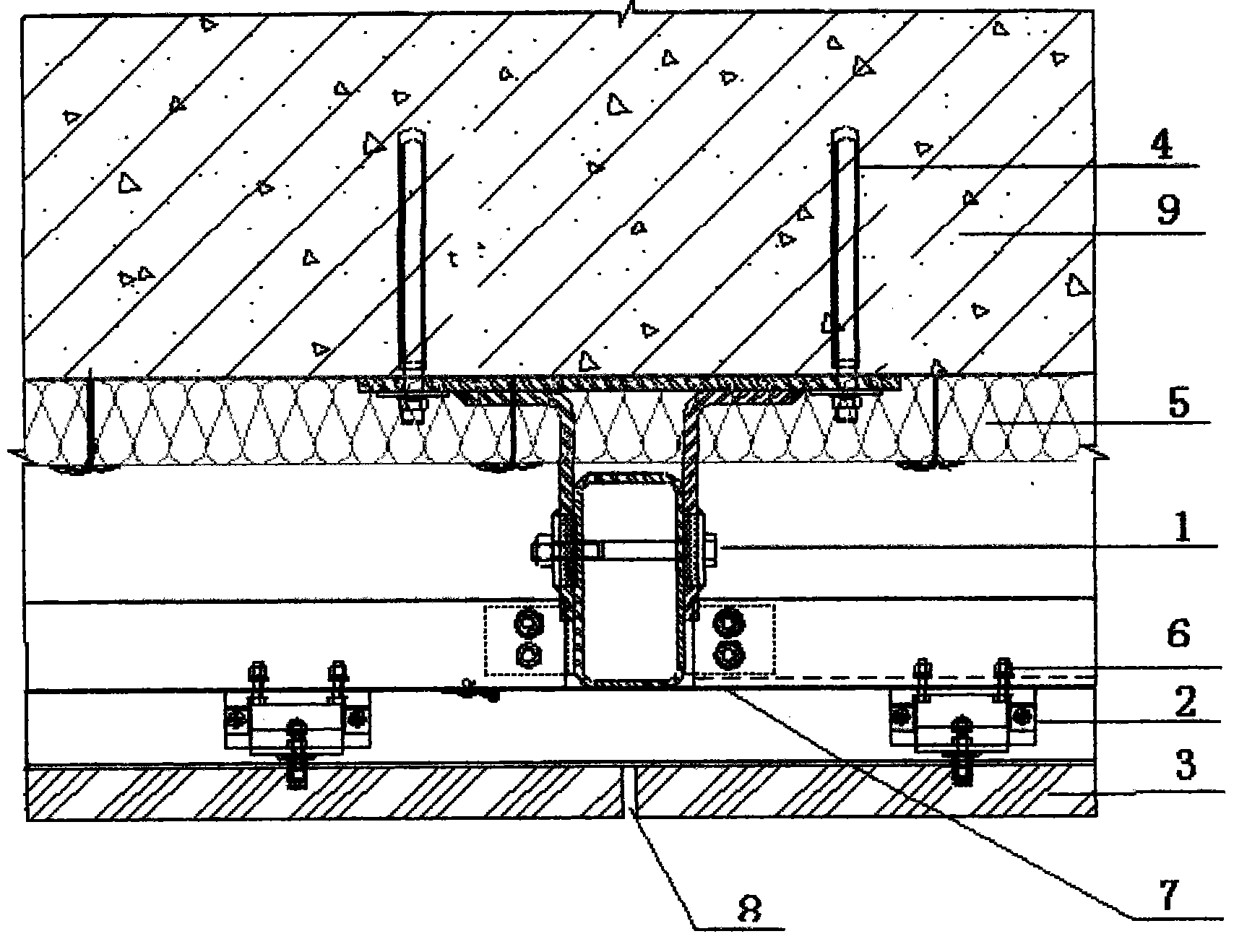

图1为本实用新型的结构示意图Fig. 1 is the structural representation of the utility model

图中：石材龙骨1背栓式石材挂件2石材面板3化学锚栓4保温板5螺栓6防水铝板7缝隙8主体结构9In the figure: stone keel 1 back bolt type stone pendant 2 stone panel 3 chemical anchor bolt 4 insulation board 5 bolt 6 waterproof aluminum plate 7 gap 8 main structure 9

具体实施方式Detailed ways

为了使本实用新型实现的技术手段、创作特征、达成目的与功效易于明白了解，下面结合具体图示，进一步阐述本实用新型。In order to make the technical means, creative features, goals and effects achieved by the utility model easy to understand, the utility model will be further elaborated below in conjunction with specific illustrations.

参见图1，新型幕墙结构，包括石材龙骨1、背栓式石材挂件2和石材面板3，石材龙骨1利用化学锚栓4安装在主体结构9上，石材龙骨1与主体结构9之间装设保温板5，保温板5粘贴在主体结构9表面，背栓式石材挂件2利用螺栓6固接在石材龙骨1上，并与石材面板3固接，石材龙骨1外表面粘贴一层防水铝板7，相邻石材面板3之间留有一定缝隙8，缝隙8的大小按照工况需求计算。Referring to Fig. 1, the new curtain wall structure includes a stone keel 1, a back-bolt type stone pendant 2 and a stone panel 3. The stone keel 1 is installed on the main structure 9 by using chemical anchor bolts 4, and the stone keel 1 and the main structure 9 are installed Insulation board 5, the insulation board 5 is pasted on the surface of the main structure 9, the back-bolt stone pendant 2 is fixed on the stone keel 1 with bolts 6, and fixed with the stone panel 3, and a layer of waterproof aluminum plate 7 is pasted on the outer surface of the stone keel 1 , There is a certain gap 8 between adjacent stone panels 3, and the size of the gap 8 is calculated according to the requirements of the working conditions.

以上显示和描述了本实用新型的基本原理和主要特征和本实用新型的优点。本行业的技术人员应该了解，本实用新型不受上述实施例的限制，上述实施例和说明书中描述的只是说明本实用新型的原理，在不脱离本实用新型精神和范围的前提下，本实用新型还会有各种变化和改进，这些变化和改进都落入要求保护的本实用新型范围内。本实用新型要求保护范围由所附的权利要求书及其等效物界定。The basic principles and main features of the present utility model and the advantages of the present utility model have been shown and described above. Those skilled in the art should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principle of the utility model. Without departing from the spirit and scope of the utility model, the utility model The new model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The scope of protection required by the utility model is defined by the appended claims and their equivalents.

Claims (1)

1. novel curtain wall structure, comprise the stone material keel, Back-bolt type hanging piece for stone and the stone panel that are installed on the agent structure, it is characterized in that, described stone material keel utilize chemical anchor bolts to be installed on the agent structure, install warming plate between the two, and warming plate sticks on the agent structure surface, described Back-bolt type hanging piece for stone utilizes bolt to be fixed on the stone material keel, affixed with stone panel, stone material keel external surface is pasted one deck waterproof aluminium sheet, leaves the slit between the adjacent stone panel.
