本实用新型公开了一种既能安装在墙体又能安装在工程控制柜体的太阳能热水器控制器。包括控制器壳体(1)、显示窗口(2)和功能按键(3)，且控制器壳体(1)背部具有两个对称的“凸”字形凹孔(4)，可利用凹孔(4)和挂板(7)安装于洗浴间墙壁上。所述的控制器壳体(1)两侧面分别具有两个长方形凹槽(5)和(6)，可利用扣件(9)安装于柜体上。
The utility model discloses a solar water heater controller which can be installed not only on a wall but also on an engineering control cabinet. It includes a controller housing (1), a display window (2) and function keys (3), and the back of the controller housing (1) has two symmetrical "convex"-shaped concave holes (4), which can be used to 4) and hanging plate (7) are installed on the bathroom wall. The two sides of the controller housing (1) have two rectangular grooves (5) and (6) respectively, which can be installed on the cabinet by using fasteners (9).
Description
Technical field
The utility model relates to a kind of controller, relates in particular to a kind of solar water heater controller.
Background technology
Through years of development, the solar heat water management techniques is increasingly mature, and all kinds of solar heat water controllers also emerge in an endless stream, and have also satisfied user's all kinds of different needs.General solar water heater controller mostly is installed on body of wall between bathing, adopts wall-hanging installation, or adopts Embedded installation, promptly at body of wall embedded box is set in advance, controller is installed in the embedded box again.Traditional controller can only be installed on body of wall, in the engineering hot-water heating system of the high-power output of demand, can't be installed on the control cabinet, carry out control corresponding output, and the controller that applies to solar heating engineering generally is fixed in the control cabinet, need carry out the design of specialty, and can only be installed on cabinet, can not be installed on body of wall.
Summary of the invention
The purpose of this utility model is intended to invent and a kind ofly can be installed in the solar water heater controller that body of wall can be installed in the Engineering Control cabinet again.
To achieve these goals, the technical solution of the utility model is: a kind of solar water heater controller with two kinds of mounting means, comprise controller housing (1), display window (2) and function button (3), and controller housing (1) back has " protruding " font shrinkage pool (4) of two symmetries, can utilize shrinkage pool (4) and link plate (7) to be installed between bathing on the wall.Described controller housing (1) two sides have two rectangular recess (5) and (6) respectively, can utilize fastener (9) to be installed on the cabinet.
Solar water heater controller of the present utility model can adopt the hanging installation of conventional wall, controller link plate (7) at first is installed on body of wall, link plate (7) has " protruding " font hook (8) of two symmetries, " protruding " font shrinkage pool (4) at controller back is hung on can realizes installation on the hook (8).The two sides of controller have two rectangular recess (5) and (6) respectively simultaneously, utilize fastener (9) just it to be installed on the cabinet.When controller is installed in cabinet, respectively fastener (9) is placed in rectangular recess (5), (6), utilize screw that controller is fixed in cabinet.More than She Ji solar water heater controller can either be installed in body of wall, can be installed on the solar heating engineering switch board again, realizes the installation of dual mode.
Description of drawings

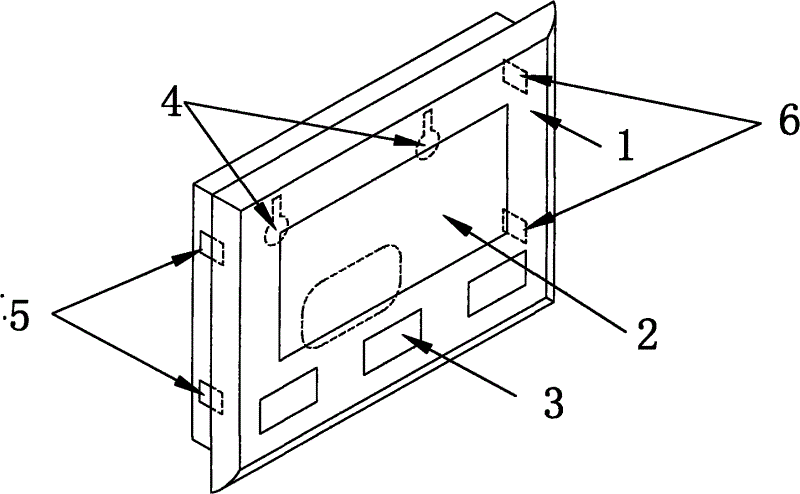

Fig. 1 is a solar water heater controller contour structures schematic diagram of the present utility model.
Fig. 2 is installed on the schematic diagram of body of wall for solar water heater controller of the present utility model.
Fig. 3 is installed on the schematic diagram of cabinet for solar water heater controller of the present utility model.
The specific embodiment
As shown in Figure 1, solar water heater controller of the present utility model has " protruding " font groove of symmetry at its back, and has two rectangular recess respectively in its two sides.As shown in Figure 2, when solar water heater controller of the present utility model is installed in body of wall, at first at body of wall link plate is installed, link plate has the convex shape hook of two symmetries, controller " protruding " font groove is behind hung into hook just controller can be installed on body of wall.As shown in Figure 3, when solar water heater controller of the present utility model is installed in cabinet,, and controller is embedded the perforate of cabinet as long as on the switch board panel, offer the hole of corresponding size.When controller designed, the area of controller protecgulum utilized the controller protecgulum to touch cabinet greater than bonnet, and fastener is placed the groove location of controller side, and tighten the screws can be installed on cabinet with controller.
The design's utility model solar water heater controller has two kinds of mounting means, can be installed in the body of wall in bathroom, can cooperate the engineering collecting system to use again, is installed on the cabinet of switch board.Controller of the present utility model can satisfy the demand of domestic water, can satisfy the heat collecting engineering water demand again, and purposes is more extensive.
Claims (2)
1. solar water heater controller with two kinds of mounting means, comprise controller housing (1), display window (2) and function button (3), it is characterized in that: " protruding " font shrinkage pool (4) that above-mentioned housing (1) back with solar water heater controller of two kinds of mounting means has two symmetries, can utilize shrinkage pool (4) and link plate (7) to be installed between bathing on the wall.
2. the solar water heater controller with two kinds of mounting means according to claim 1 is characterized in that: described controller housing (1) two sides have two rectangular recess (5) and (6) respectively, can utilize fastener (9) to be installed on the cabinet.
