CN201638516U

CN201638516U - An outdoor bulletin board

Info

Publication number: CN201638516U
Application number: CN2010201738424U
Authority: CN
Inventors: 李映
Original assignee: Individual
Current assignee: Individual
Priority date: 2010-04-27
Filing date: 2010-04-27
Publication date: 2010-11-17
Anticipated expiration: 2020-04-27

Abstract

The utility model discloses an outdoor publicity column, which comprises a column, a frame, a publicity board, a solar panel and a lighting lamp. The frame is perpendicular to and fixedly connected to the side of the column. A storage battery is fixed inside, the solar panel is connected to the battery circuit, the lighting lamp is fixed on the middle and upper part of the column, and a control switch is also provided in the middle of the outer surface of the column. The storage battery, control switch and lighting lamp are connected in series to form a closed loop. The utility model has a simple structure and can be used for newspaper posting, advertisement publicity, public information dissemination, etc. when installed outdoors, and can be used for lighting at night according to the electric energy stored during the day, saving the trouble of connecting to the mains and saving electric energy , reduce the cost of electricity for urban construction, and bring convenience to people's lives.

Description

An outdoor bulletin board

技术领域technical field

本实用新型涉及一种户外宣传栏，尤其涉及一种设置在户外，用于报纸张贴、广告宣传、公共信息传播等面向公众传播信息的宣传栏。The utility model relates to an outdoor publicity column, in particular to a publicity column arranged outdoors for disseminating information to the public such as newspaper posting, advertisement publicity, and public information dissemination.

背景技术Background technique

目前，投入使用的宣传栏都是独立的平面式结构，整个栏板处在同一个平面上，实际使用中，这种结构形式视觉呆板，栏板的有效使用面积不能得到发挥。另外，这些宣传栏要在夜晚使用就必须连接市电，给城市道路建设的供电系统带来极大的负担。At present, the bulletin boards put into use are all independent planar structures, and the whole boards are on the same plane. In actual use, this structural form is visually dull, and the effective use area of the boards cannot be utilized. In addition, these bulletin boards must be connected to the mains power supply if they are used at night, which brings a great burden to the power supply system of urban road construction.

实用新型内容Utility model content

针对上述现有技术的不足之处，本实用新型提供一种设置在户外，用于报纸张贴、广告宣传、公共信息传播等的户外宣传栏，能有效的解决上述现有技术存在的问题。Aiming at the shortcomings of the above-mentioned prior art, the utility model provides an outdoor bulletin board for newspaper posting, advertisement publicity, public information dissemination, etc., which can effectively solve the above-mentioned problems in the prior art.

为了实现上述目的，本实用新型采用的技术方案是：公开一种户外宣传栏，其包括立柱、架框、宣传板、太阳能板和照明灯，架框与立柱的侧面垂直且固连，所述太阳能板设于立柱的顶部，在立柱的内部固定一蓄电池，太阳能板与蓄电池电路相连，照明灯固定于立柱的中上部，在立柱外表面的中部还设有控制开关，所述蓄电池、控制开关以及照明灯串联连接，形成闭合回路。In order to achieve the above purpose, the technical solution adopted by the utility model is: disclose an outdoor publicity column, which includes a column, a frame, a publicity board, a solar panel and a lighting lamp, and the frame is perpendicular to and fixedly connected to the side of the column. The solar panel is arranged on the top of the column, and a storage battery is fixed inside the column, the solar panel is connected to the battery circuit, the lighting lamp is fixed on the middle and upper part of the column, and a control switch is also provided in the middle of the outer surface of the column. And the lighting lamps are connected in series to form a closed loop.

作为优选，在架框的正上方还设有与立柱垂直且固连的遮雨板。As a preference, a rain shield perpendicular to the column and fixedly connected is also provided directly above the frame.

作为优选，宣传板通过夹子夹持于架框上。Preferably, the publicity board is clamped on the frame by clips.

更进一步地，所述架框为四个。Furthermore, there are four frames.

与现有技术相比，该实用新型带来的有益效果为：该实用新型结构简单，设置在户外时，能用于报纸张贴、广告宣传、公共信息传播等，而且在夜晚的时候可根据白天利用太阳能板转化存储的电能进行照明，避免了宣传栏连通市电的麻烦，也节约了电能，减轻城市建设用电成本，给人们的生活带来了便利。Compared with the prior art, the beneficial effects brought by the utility model are: the utility model has a simple structure, and when installed outdoors, it can be used for newspaper posting, advertisement promotion, public information dissemination, etc. The use of solar panels to transform and store electric energy for lighting avoids the trouble of connecting the billboards to the mains, saves electric energy, reduces the cost of electricity for urban construction, and brings convenience to people's lives.

附图说明Description of drawings

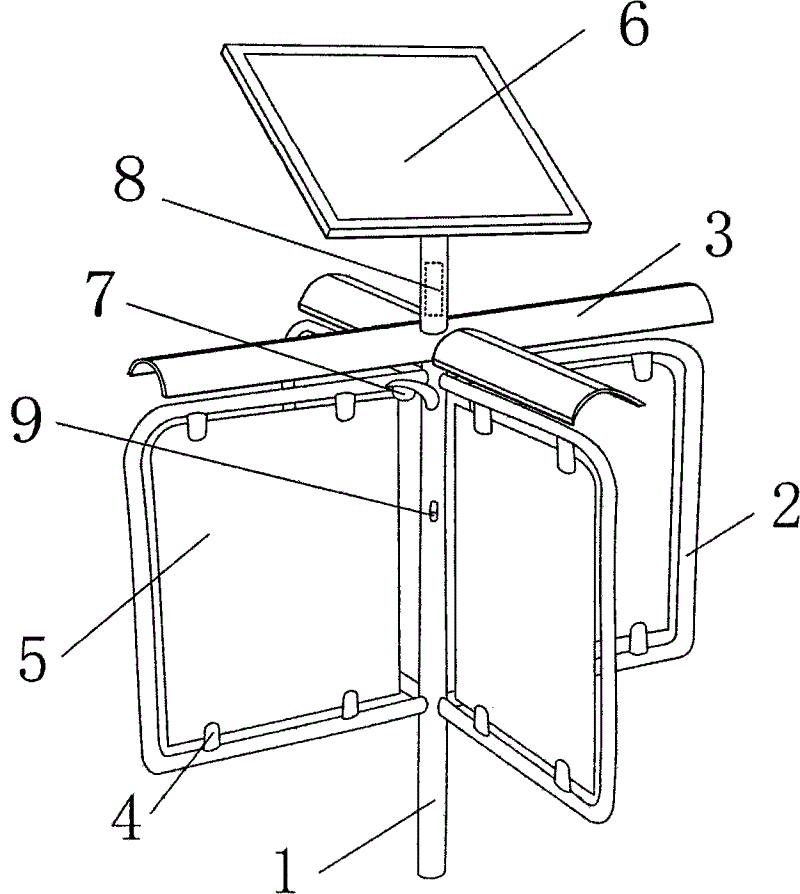

图1为本实用新型实施例的立体结构示意图。Fig. 1 is a three-dimensional structural schematic diagram of an embodiment of the utility model.

具体实施方式Detailed ways

下面结合附图及具体实施例对本实用新型作进一步的详细说明。Below in conjunction with accompanying drawing and specific embodiment the utility model is described in further detail.

如图1所示，作为本实用新型的一种实施例，该户外宣传栏包括立柱1、架框2、宣传板5、太阳能板6和照明灯7，架框2与立柱1的侧面垂直且固连，在架框2的正上方还设有与立柱1垂直且固连的遮雨板3。宣传板5通过夹子4夹持于架框2上，所述架框2为四个，四个架框2成90度分布在立柱1的四方，形成一个十字形的整体结构，这样的结构能有效提高占用空间的利用率。所述太阳能板6设于立柱1的顶部，在立柱1的内部固定一蓄电池8，太阳能板6与蓄电池8电路相连。照明灯7固定于立柱1的中上部，在立柱1外表面的中部还设有控制开关9，所述蓄电池8、控制开关9以及照明灯7串联连接，形成闭合回路。As shown in Figure 1, as an embodiment of the present utility model, the outdoor billboard includes a column 1, a frame 2, a publicity board 5, a solar panel 6 and a lighting lamp 7, and the frame 2 is perpendicular to the side of the column 1 and Fixed connection, directly above the frame 2 is also provided with a rain shield 3 perpendicular to the column 1 and fixedly connected. The publicity board 5 is clamped on the frame 2 by the clip 4, and the frame 2 is four, and the four frames 2 are distributed in the four sides of the column 1 at 90 degrees, forming a cross-shaped overall structure. Such a structure can Effectively improve the utilization of occupied space. The solar panel 6 is arranged on the top of the column 1, and a battery 8 is fixed inside the column 1, and the solar panel 6 is connected with the battery 8 in circuit. The lighting lamp 7 is fixed on the middle and upper part of the column 1, and a control switch 9 is also arranged on the middle part of the outer surface of the column 1. The storage battery 8, the control switch 9 and the lighting lamp 7 are connected in series to form a closed circuit.

白天，太阳光照射在太阳能板6上，太阳能板6将太阳能转换成电能存储在蓄电池8中，当夜晚能见度低的时候可通过控制开关9将整个电路闭合，使得照明灯7实现照明功能，方便人们在夜晚观看宣传栏上的内容。During the day, sunlight shines on the solar panel 6, and the solar panel 6 converts solar energy into electrical energy and stores it in the storage battery 8. When the visibility is low at night, the entire circuit can be closed by the control switch 9, so that the lighting lamp 7 can realize the lighting function, which is convenient. People watch the content on the bulletin board at night.

Claims

1. outdoor publicity hurdle, comprise column (1), frame-saw (2) and publicity board (5), the lateral vertical of frame-saw (2) and column (1) and being connected, it is characterized in that: also comprise solar panels (6) and illuminating lamp (7), described solar panels (6) are located at the top of column (1), internal fixation one accumulator (8) at column (1), solar panels (6) link to each other with accumulator (8) circuit, illuminating lamp (7) is fixed in the middle and upper part of column (1), middle part at column (1) outside surface also is provided with gauge tap (9), described accumulator (8), gauge tap (9) and illuminating lamp (7) are connected in series, and form the closed-loop path.

2. a kind of outdoor publicity according to claim 1 hurdle is characterized in that: also be provided with rain visor (3) vertical with column (1) and that be connected directly over frame-saw (2).

3. a kind of outdoor publicity according to claim 1 hurdle is characterized in that: publicity board (5) is held on the frame-saw (2) by clip (4).

4. a kind of outdoor publicity according to claim 3 hurdle is characterized in that: described frame-saw (2) is four.
