CN201635290U - Natural ultra-thin stone light-weight thermal insulation and energy-saving decorative board - Google Patents
Natural ultra-thin stone light-weight thermal insulation and energy-saving decorative board Download PDFInfo
- Publication number
- CN201635290U CN201635290U CN2009200938505U CN200920093850U CN201635290U CN 201635290 U CN201635290 U CN 201635290U CN 2009200938505 U CN2009200938505 U CN 2009200938505U CN 200920093850 U CN200920093850 U CN 200920093850U CN 201635290 U CN201635290 U CN 201635290U
- Authority
- CN
- China
- Prior art keywords
- layer
- energy
- backing
- thin stone
- ultra
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 238000009413 insulation Methods 0.000 title claims abstract description 35
- 239000004575 stone Substances 0.000 title claims abstract description 21
- 229920002635 polyurethane Polymers 0.000 claims abstract description 6
- 239000004814 polyurethane Substances 0.000 claims abstract description 6
- 238000000465 moulding Methods 0.000 claims abstract description 5
- 239000000835 fiber Substances 0.000 claims abstract description 4
- 239000010438 granite Substances 0.000 claims abstract description 4
- 239000004579 marble Substances 0.000 claims abstract description 4
- 239000004570 mortar (masonry) Substances 0.000 claims abstract description 4
- 229920000642 polymer Polymers 0.000 claims abstract description 4
- 230000007704 transition Effects 0.000 claims abstract description 4
- 239000002131 composite material Substances 0.000 claims description 4
- 239000003292 glue Substances 0.000 claims 1
- 239000000203 mixture Substances 0.000 claims 1
- 239000010410 layer Substances 0.000 abstract description 21
- 239000000463 material Substances 0.000 abstract description 11
- 238000005034 decoration Methods 0.000 abstract description 3
- 238000009434 installation Methods 0.000 abstract description 2
- 230000002035 prolonged effect Effects 0.000 abstract description 2
- 239000002344 surface layer Substances 0.000 abstract description 2
- 238000004026 adhesive bonding Methods 0.000 abstract 1
- 150000001875 compounds Chemical class 0.000 abstract 1
- 239000012774 insulation material Substances 0.000 abstract 1
- 238000010276 construction Methods 0.000 description 8
- 238000004134 energy conservation Methods 0.000 description 6
- 238000000034 method Methods 0.000 description 5
- 238000005253 cladding Methods 0.000 description 2
- 238000005516 engineering process Methods 0.000 description 2
- 238000004321 preservation Methods 0.000 description 2
- 230000001681 protective effect Effects 0.000 description 2
- 239000002699 waste material Substances 0.000 description 2
- 229910000831 Steel Inorganic materials 0.000 description 1
- 238000010521 absorption reaction Methods 0.000 description 1
- 239000000853 adhesive Substances 0.000 description 1
- 230000001070 adhesive effect Effects 0.000 description 1
- 238000010923 batch production Methods 0.000 description 1
- 230000000295 complement effect Effects 0.000 description 1
- 230000009977 dual effect Effects 0.000 description 1
- 230000002349 favourable effect Effects 0.000 description 1
- 229910010272 inorganic material Inorganic materials 0.000 description 1
- 239000011147 inorganic material Substances 0.000 description 1
- 239000011810 insulating material Substances 0.000 description 1
- 238000004519 manufacturing process Methods 0.000 description 1
- 239000011368 organic material Substances 0.000 description 1
- 230000002265 prevention Effects 0.000 description 1
- 239000011435 rock Substances 0.000 description 1
- 230000035939 shock Effects 0.000 description 1
- 239000010959 steel Substances 0.000 description 1
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 description 1
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02A—TECHNOLOGIES FOR ADAPTATION TO CLIMATE CHANGE
- Y02A30/00—Adapting or protecting infrastructure or their operation
- Y02A30/24—Structural elements or technologies for improving thermal insulation
- Y02A30/244—Structural elements or technologies for improving thermal insulation using natural or recycled building materials, e.g. straw, wool, clay or used tires
Landscapes
- Finishing Walls (AREA)
Abstract
本实用新型属于建筑装饰材料，具体涉及一种天然超薄石材轻质保温节能装饰板。本实用新型采用轻质的超薄石材作为面层与保温层在工厂复合成型，主要由背衬，保温层，饰面层三部分构成：背衬由碱性纤维网和专用聚合物砂浆组成，为过渡层，保温层可以选择聚氨脂(或挤塑板)，饰面层采用天然花岗石(或大理石)加工而成的超薄石材背衬、保温层与饰面层之间在工厂经过排尺，抹胶与挤压复合成型，组装一次完成。解决了保温材料与装饰材料一体化安装要求，节约资源，安装便捷，使用方便，同时防水、防火、延长了其使用寿命。实现了装饰板与墙体的相容连接，且完全满足了节能65％的要求。
The utility model belongs to building decoration materials, in particular to a natural ultra-thin stone light-weight thermal insulation and energy-saving decorative board. The utility model uses lightweight ultra-thin stone as the surface layer and the insulation layer to be compounded in the factory. It is mainly composed of a backing, an insulation layer and a facing layer. The backing is composed of alkaline fiber net and special polymer mortar. As the transition layer, polyurethane (or extruded board) can be selected for the insulation layer, and the facing layer is made of ultra-thin stone backing processed from natural granite (or marble). After arranging the dimensions, gluing and extruding compound molding, the assembly is completed at one time. It solves the requirements for the integrated installation of thermal insulation materials and decorative materials, saves resources, is convenient to install, and is easy to use. At the same time, it is waterproof and fireproof, and its service life is prolonged. The compatible connection between the decorative board and the wall is realized, and the requirement of 65% energy saving is fully met.
Description
Technical field
The utility model belongs to building and ornament materials, is specifically related to a kind of natural superthin stone light thermal-insulation energy-saving decorated sheet
Background technology
Along with the mankind to resource-effective requirement, and China carries out the enforcement of building energy conservation 65% Policy Conditions, how to save and improves the rock material resource utilization rate; the protection environment; for building provides safety economy energy-conservation external wall decorative material, and realize batch production production, become the problem that people very pay close attention to.In the traditional handicraft, when adopting stone material to make decoration, basic way is that paste on the heat preservation construction surface outside, or does cladding, its construction is numerous and diverse, waste of manpower, material resources, need the secondary construction operation to finish, the operation mutual restriction exists human factor to cause construction quality to be affected before and after causing.
Summary of the invention
The purpose of this utility model provides a kind of natural superthin stone light thermal-insulation energy-saving decorated sheet
The superthin stone that the utility model adopts lightweight as surface layer and insulation layer in factory's composite molding, assembled on site is once finished, and has solved the integrated installation requirement of heat insulating material and ornament materials, economizes on resources, it is convenient to install, and has satisfied energy-conservation 65% requirement fully.The utility model is generally square or rectangle sheet material, mainly by backing, insulation layer, finish coat three parts constitute: backing is made up of alkaline fiber net and special polymer mortar, be transition zone, insulation layer can be selected polyurethane (or extruded sheet), the superthin stone that finish coat adopts natural granite (or marble) to process.Insulation layer is that organic material and body of wall can't directly bond, and the backing transition zone is that inorganic material constitutes, and has flexible and compatiblely, realizes the flexible bonding of embedding mutually with insulation layer, the insulation layer finish coat that bonds again outward.Arrange chi in factory's process between backing, insulation layer and the finish coat, daub and extruding composite molding.Realized that decorative panel is connected with the compatible of body of wall, and auxilliary structural member.Simultaneously, backing has also played protective effect to insulation layer, waterproof, fire prevention, has prolonged its application life.Insulation layer mainly is to satisfy the thermal insulation requirement, and thickness will be looked concrete building heat preserving requirements of saving energy and determine.The natural superthin stone of finish coat is according to different regions, the body of wall character of different buildings, and its density water absorption rate etc. will satisfy the related request of outer insulation.
The utility model major advantage:
1, lightweight: weight≤20kg;
2, energy-conservation: as can to satisfy different regions fully, energy-conservation 65% requirement;
3, save steel: this process using adhesive method construction, auxilliary dedicated hanging part;
4, stone material utilization rate height: increase operation rate more than 45% the favorable environment protection;
5, shock resistance, fire line are good, because the technology uniqueness, and lightweight (only be cladding 1/5), insulation layer is subjected to dual platen protection, and its fireproof performance, anti-seismic performance are superior.
6, construction is convenient: energy-conservation, insulation, decorate disposable finishing; 7, save transport power greatly, reduce building waste.
Description of drawings

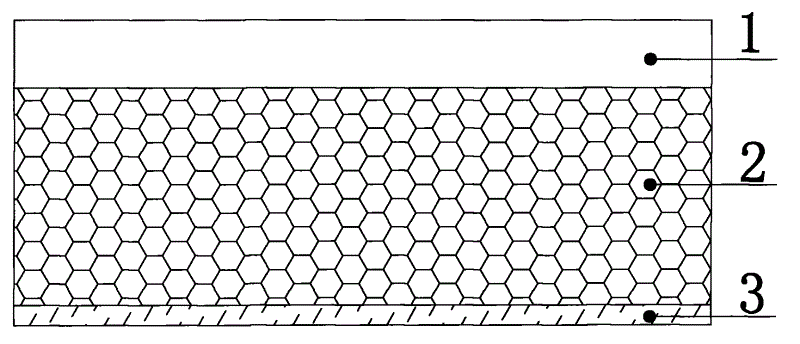

Accompanying drawing 1 is natural superthin stone light thermal-insulation energy-saving decorated sheet side-looking structural representation;
Accompanying drawing 2 is natural superthin stone light thermal-insulation energy-saving decorated sheet perspective view.
The specific embodiment
[0014] the utility model mainly is made of three parts: backing 1 is made of alkaline fiber net and polymer mortar; thickness 2-10mm its role is to connect and protective effect, connects insulation layer 2 and body of wall; make insulation layer 2 and body of wall reach flexibility and be complementary, realize friendly, safe connection.Insulation layer 2 adopts extruded sheet or polyurethanes, and extruded sheet weight is greater than 20kg in every square metre, and polyurethane weight is greater than 30kg, and the thickness of the two will be looked concrete building heat preserving requirements of saving energy and determine.Its thickness range is at 20mm-100mm.Finish coat 3 adopts the superthin stone of pure natural granite (or marble) processing, thickness is at 5-8mm, weight is not more than 20kg, optimum thickness 5-6mm adopts the stone material of natural output, the dalle that processing is composited, the beautiful naturally decoration texture that had both kept lithotome, greatly reduce load again, the drawback that is produced when eliminating the construction of dry-hanging and insulation layer, the target that stone curtain wall and heat preservation construction are expected is perfectly implemented.In the process row of factory chi, daub, extruding, the bonding composite molding has realized that decorative panel is connected with the compatible of body of wall, and forms separate unit between backing 1 insulation layer 2 and the finish coat 3.The wide 100-900mm of each separate unit, long 600-1200mm.
Claims (3)
