Abstract
本实用新型公开了一种捕蚊灯，属于捕杀蚊子的器械，包括底座、照明组件，以及设于底座及照明组件之间的灭蚊器组件、设于照明组件上端的诱蚊采卵捕捉器组件，所述灭蚊器组件包括表面设有通孔的空心筒体，所述空心筒体内设有可转动的叶片，所述诱蚊采卵捕捉器组件包括捕捉器筒体、设于捕捉器筒体上的捕捉器浮子、设于捕捉器浮子上的上盖，所述捕捉器浮子下端设有不锈钢网；本实用新型将诱杀成年蚊子与幼虫结合起来，并可以给路人提供照明，结构紧凑，灭蚊效率高。
The utility model discloses a mosquito catching lamp, which belongs to a device for catching and killing mosquitoes, and comprises a base, a lighting assembly, a mosquito killer assembly arranged between the base and the lighting assembly, and a mosquito trap and an egg catcher arranged at the upper end of the lighting assembly Assemblies, the mosquito killer assembly includes a hollow cylinder with through holes on the surface, and rotatable blades are arranged in the hollow cylinder, and the mosquito and egg trap assembly includes a catcher cylinder, which is arranged on the catcher The catcher float on the cylinder, the upper cover arranged on the catcher float, the lower end of the catcher float is provided with a stainless steel net; the utility model combines the trapping and killing of adult mosquitoes and larvae, and can provide lighting for passers-by, with a compact structure , High efficiency in killing mosquitoes.
Description
Technical field
The utility model belongs to a kind of apparatus of catching and killing mosquito, is specifically related to a kind of multifunctional mosquito trapping lamp.
Background technology
Mosquito spreads disease germs easily, the healthy of people constituted a threat to, so people abhors, and finds out the whole bag of tricks and eliminate mosquito, and as mosquito trap, it utilizes the phototaxis of mosquito and to the susceptibility of wavelength, after mosquito is attracted, uses high-voltage electric shock.Yet by high-voltage electric shock, need to install increasing apparatus, structure is comparatively complicated, and cost cost height, and function singleness can only be trapped and killed the mosquito that grows up, and for the adult mosquito worm's ovum of output, can't trap.Particularly in some garden districts,, grow mosquito easily, depend the adult mosquito of trapping alone and be difficult to effect a radical cure insect pest because plants burst out in profusion.If can the mosquito egg-laying period just with its control, treat that it is not grown to just it to be killed before the adult, will improve greatly and catch mosquito efficient.
The utility model content
The purpose of this utility model is to provide a kind of and will traps and kills grow up mosquito and larva and combine, and can provide multifunctional mosquito trapping lamp illumination, compact conformation to passerby.
For achieving the above object, the technical solution adopted in the utility model is: a kind of mosquito killing lamp, comprise base, light fixture, also comprise the mosquito-killing unit assembly of being located between base and the light fixture, be located at the mosquito that lures of light fixture upper end and adopt the ovum plane trap assemblies, described mosquito-killing unit assembly comprises that the surface is provided with the hollow cylindrical shell of through hole, be provided with rotatable blade in the described hollow cylindrical shell, describedly lure mosquito to adopt the ovum plane trap assemblies to comprise the catcher cylindrical shell, be located at the catcher float on the catcher cylindrical shell, be located at the loam cake on the catcher float, described catcher float lower end is provided with stainless (steel) wire.
More excellent, described light fixture comprises lampshade and lamp cover, is provided with pcb board and LED lamp band between described lampshade and the lamp cover, described lampshade is fixed on an end of mosquito-killing unit assembly.
More excellent, the upper end of described lamp cover is fixed with the catcher cylindrical shell, fixes by cage knob between described loam cake and the lamp cover.
And, the external electric wire that can connect blade and light fixture that connects of described hollow cylinder.
The beneficial effects of the utility model: light fixture has the function for passerby's illumination, the then further saves energy of pcb board that adopts and LED lamp band, blade in the mosquito-killing unit assembly can attract near the mosquito it and kill, luring mosquito to adopt the stainless (steel) wire that the ovum plane trap assemblies then is attracted to mosquito on the catcher float lays eggs, worm's ovum is fallen into the catcher cylindrical shell growth that is filled with water, and treats that it grows up to behind the larva owing to can not fly out and strangled in the catcher cylindrical shell by stainless (steel) wire.It is one that the utility model is catched and killed the function collection with illumination functions and larva, adult, compact conformation.Kill mosquito efficient height.
Description of drawings
Fig. 1 is an overall structure schematic diagram of the present utility model;

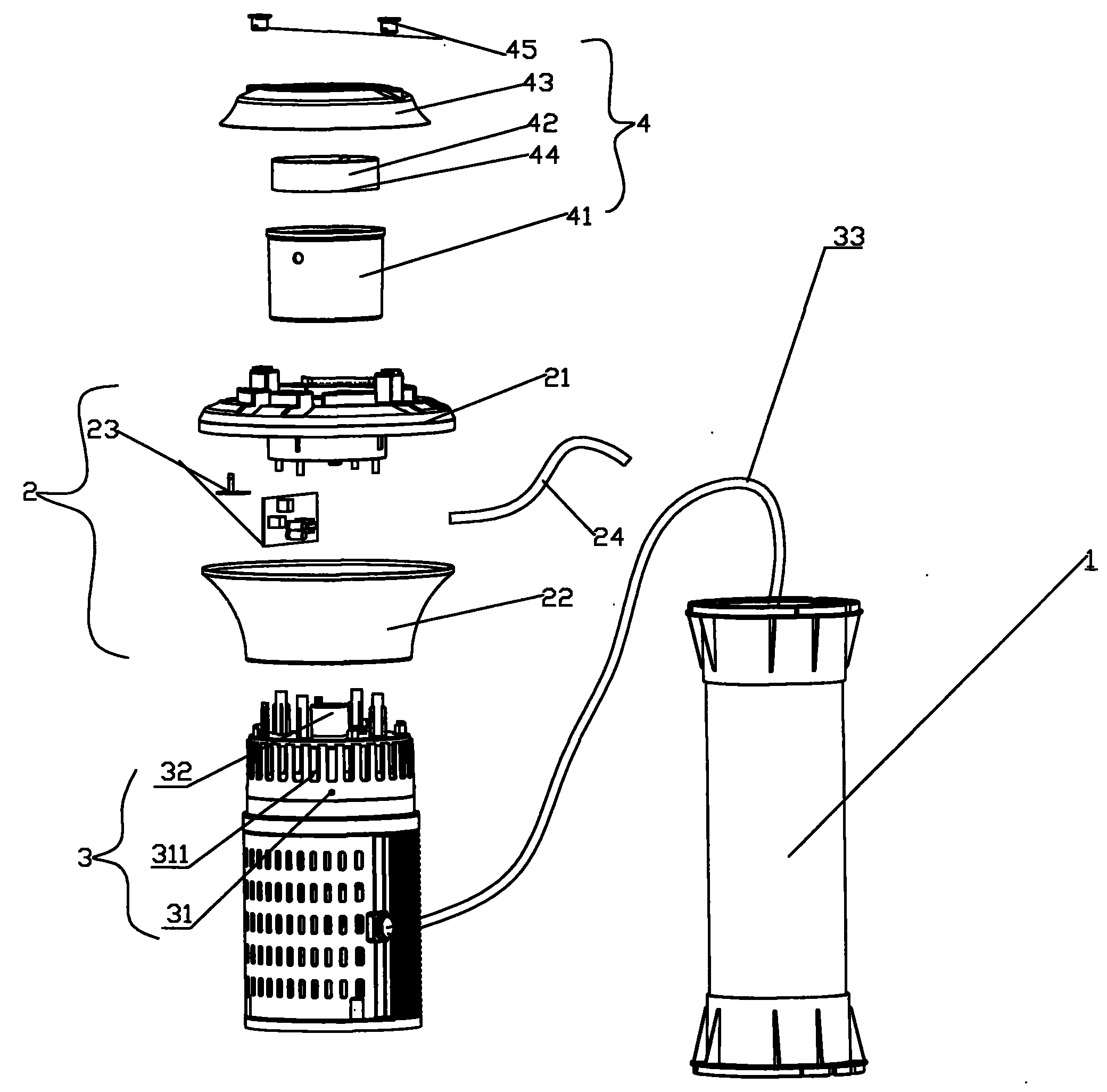

Fig. 2 is an exploded perspective view of the present utility model;
Fig. 3 is a cutaway view of the present utility model.
Among the figure: 1, base; 2, light fixture; 21, lamp cover; 22, lampshade; 23, pcb board; 24, LED lamp band; 3, mosquito-killing unit assembly; 31, hollow cylindrical shell; 311, through hole; 32, blade; 33, electric wire; 4, lure mosquito to adopt the ovum plane trap assemblies; 41, catcher cylindrical shell; 42, catcher float; 43, loam cake; 44, stainless (steel) wire; 45, cage knob.
Embodiment
The utility model is described in further detail below in conjunction with drawings and Examples.
As shown in Figure 1, 2, 3, the utility model discloses a kind of mosquito killing lamp, by base 1, light fixture 2, mosquito-killing unit assembly 3, lure mosquito to adopt ovum plane trap assemblies 4 to constitute.Wherein mosquito-killing unit assembly 3 is located between base 1 and the light fixture 2, lures mosquito to adopt the upper end that ovum plane trap assemblies 4 is located at light fixture 2, and light fixture 2 comprises lamp cover 21, lampshade 22, pcb board 23, LED lamp band 24.
Mosquito-killing unit assembly 3 comprises that the surface is provided with the hollow cylindrical shell 31 of through hole 311, be provided with rotatable blade 32 in the hollow cylindrical shell 31, blade 32 is communicated with the electric wire 33 outside the hollow cylindrical shell 31, connect 32 rotations of external power source driven vane by electric wire 33, an end of hollow cylindrical shell 31 and light fixture 2 interior lampshades 22 are connected.Blade 32 energising back high speed rotating in the mosquito-killing unit assembly 3 make hollow cylindrical shell 31 internal gas pressures reduce, near the mosquito-killing unit assembly 3 mosquito is gone from through hole 311 inspirations on hollow cylindrical shell 31 surfaces, and it is killed by the blade that rotating 32, treat that the mosquito corpse in the hollow cylindrical shell 31 is fully loaded, take mosquito-killing unit assembly 3 apart and it can be cleared up.
Luring mosquito to adopt ovum plane trap assemblies 4 comprises the catcher cylindrical shell 41 of being located at lamp cover 21 upper ends, is located at catcher float 42 on the catcher cylindrical shell 41, is located at the loam cake 43 on the catcher float 42, fixing by cage knob 45 between loam cake 43 and the lamp cover 21, catcher float 42 lower ends are provided with stainless (steel) wire 44.Luring mosquito to adopt ovum plane trap assemblies 4 lays eggs the stainless (steel) wire 44 that mosquito is attracted on the catcher float 42, worm's ovum is fallen into 41 growths of the catcher cylindrical shell that is filled with water, treats that it grows up to behind the larva owing to can not fly out and strangled in catcher cylindrical shell 41 by stainless (steel) wire 44.
Base 1 of the present utility model is with mosquito-killing unit assembly 3 and lure mosquito to adopt ovum plane trap assemblies 4 to be fixed up, connecting external power source by hollow cylindrical shell 31 outer electric wires 33 is that lamp assembly 2 and mosquito-killing unit assembly 3 interior blades 32 are powered, it is one that illumination functions and larva, adult are catched and killed the function collection, compact conformation, kill mosquito efficient height can be widely used in the place that garden district etc. grows mosquito easily.
Above-described only is preferred implementation of the present utility model; should be pointed out that for the person of ordinary skill of the art, under the prerequisite that does not break away from the utility model creation design; can also make some distortion and improvement, these all belong to protection domain of the present utility model.
Claims (4)
1. mosquito killing lamp, comprise base, light fixture, it is characterized in that: the mosquito that lures of also comprise the mosquito-killing unit assembly be located between base and the light fixture, being located at the light fixture upper end is adopted the ovum plane trap assemblies, described mosquito-killing unit assembly comprises that the surface is provided with the hollow cylindrical shell of through hole, be provided with rotatable blade in the described hollow cylindrical shell, describedly lure mosquito to adopt the ovum plane trap assemblies to comprise the catcher cylindrical shell, be located at catcher float on the catcher cylindrical shell, be located at the loam cake on the catcher float, described catcher float lower end is provided with stainless (steel) wire.
2. mosquito killing lamp as claimed in claim 1 is characterized in that: described light fixture comprises lampshade and lamp cover, is provided with pcb board and LED lamp band between described lampshade and the lamp cover, and described lampshade is fixed on an end of mosquito-killing unit assembly.
3. mosquito killing lamp as claimed in claim 2 is characterized in that: the upper end of described lamp cover is fixed with the catcher cylindrical shell, fixes by cage knob between described loam cake and the lamp cover.
4. mosquito killing lamp as claimed in claim 1 is characterized in that: the external electric wire that can connect blade and light fixture that connects of described hollow cylinder.
