CN201630130U

CN201630130U - Fish tank

Info

Publication number: CN201630130U
Application number: CN2010201033796U
Authority: CN
Inventors: 赵晓昂
Original assignee: Individual
Current assignee: Individual
Priority date: 2010-01-29
Filing date: 2010-01-29
Publication date: 2010-11-17
Anticipated expiration: 2020-01-29

Abstract

A fish tank comprises a rectangular box body and a cylinder body. Drawers are arranged inside the box body, and vertical plates are fixed vertically on both sides of the box body, and horizontal plates are fixed on the top of the vertical plates. There is a rectangular groove on the surface, the area of the groove is the same as that of the bottom surface of the cylinder body, there are symmetrical bumps on both sides of the groove, and a lighting bulb is arranged on the surface of the groove, and the bulb is connected in series with the battery and the switch ; The top of the cylinder body is movably connected to the cover body. When in use, the drawer inside the box is convenient for people to store items; between the two vertical plates on the top of the box is convenient for people to place books; the cylinder can be placed in the groove on the surface of the horizontal plate; the cover on the top of the cylinder can prevent The fish that people raise inside the tank jump out of the tank. The utility model has the advantages of simple structure, convenient use, etc., endows the fish tank with new functions, and is more convenient for people to use.

Description

Fish jar

Technical field the utility model relates to a kind of apparatus of cultured fishes, especially a kind of fish jar.

The existing fish jar of background technology is varied, but its function singleness, can not satisfy people's use needs, and for example: existing fish jar is not easy to people and puts books, and existing fish jar do not have the function of storing, has brought inconvenience for people's use.

The summary of the invention the purpose of this utility model has overcome above-mentioned said deficiency, and a kind of fish jar is provided, and is used to solve existing fish jar function singleness, can not satisfy the problem of people's use needs.

For achieving the above object, the utility model fish jar, comprise rectangle box body and cylinder body, be provided with drawer in the inside of box body, and at the vertical affixed riser of dual-side of box body, and at the affixed transverse slat in the top of riser, surface at transverse slat is provided with rectangular recess, and the area of groove is identical with the area of cylinder body bottom surface, is provided with symmetrical projection at the dual-side of groove, and be provided with lighting bulb on the surface of groove, and bulb is connected with battery, switch; Top at cylinder body flexibly connects lid.

After adopting said structure, during use, the drawer of box body inside is convenient to people and is stored article; Be convenient to people between box body end face two risers and put books; Cylinder body can be placed in the groove on transverse slat surface; The lid on cylinder body top can prevent fish that people raise in the cylinder interior cylinder body of jumping out.

The utility model has the advantages that: simple in structure, easy to use, given fish jar new function, convenient people use.

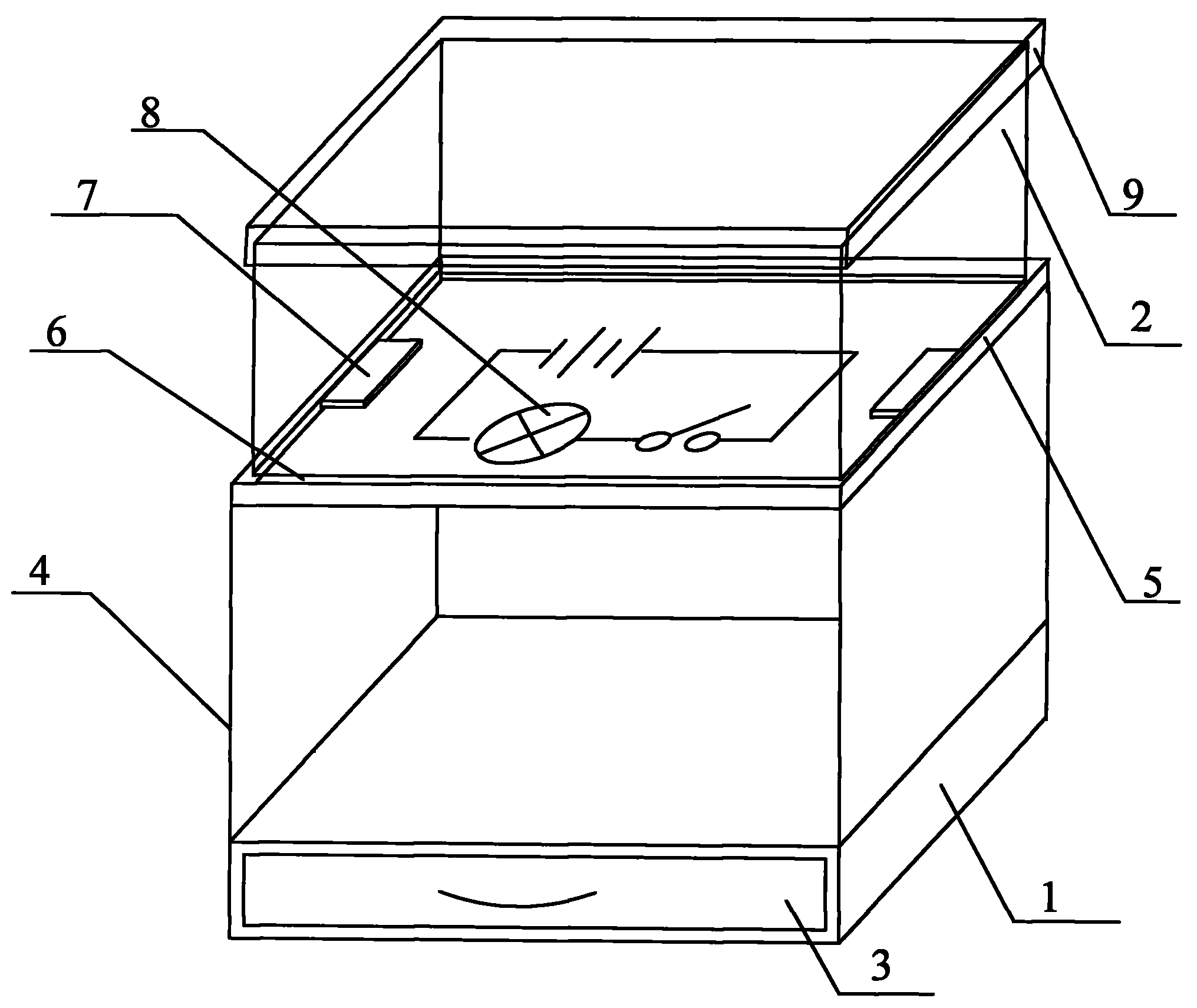

Description of drawings Fig. 1 is a schematic perspective view of the present utility model.

Embodiment is in the schematic perspective view of fish jar shown in Figure 1, comprise rectangle box body 1 and cylinder body 2, be provided with drawer 3 in the inside of box body, and at the vertical affixed riser 4 of dual-side of box body, and on the top of riser affixed transverse slat 5, be provided with rectangular recess 6 on the surface of transverse slat, the area of groove is identical with the area of cylinder body bottom surface, dual-side at groove is provided with symmetrical projection 7, and is provided with lighting bulb 8 on the surface of groove, and bulb is connected with battery, switch; Top at cylinder body flexibly connects lid 9.During use, be convenient to people in the drawer of box body inside and store the articles for use of raising fish; People also can be placed in books between box surface two risers; The projection of groove dual-side is arranged on the place, centre position of groove dual-side, and with the bottom surface maintenance certain distance of groove, when insufficient light, people can enable the lighting bulb of groove surfaces, both have been convenient for people to view and admire the fish of cylinder interior, can strengthen sight again; The lid on cylinder body top can prevent the fish of the cylinder interior cylinder body of jumping out.

Claims

1. A fish tank, comprising a rectangular box body and a cylinder body, is characterized in that: a drawer is arranged inside the box body, vertically affixed vertical plates are fixed on both sides of the box body, and a horizontal plate is affixed to the top of the vertical plate A rectangular groove is provided on the surface of the horizontal plate, the area of the groove is the same as that of the bottom surface of the cylinder body, symmetrical protrusions are arranged on both sides of the groove, and lighting bulbs are arranged on the surface of the groove, and The bulb is connected in series with the battery and the switch; the top of the cylinder is movably connected with the cover.
