CN201629593U - Mining flameproof charger - Google Patents

Abstract

The utility model provides a mine explosion-proof charger, which comprises a casing, a control room is arranged at the upper end of one side of the casing, a first instrument observation hole and a second instrument observation hole are set on the front side wall of the control room, and the casing An inspection door is installed on one side of the control room, a transformer is installed in the casing and the lower part of the control room, a partition is installed in the control room, a primary terminal is installed on the upper part of the partition, a control line terminal is installed on the partition and the lower part of the primary terminal, and the bottom of the transformer is installed The moving wheel and the four corners of the transformer are connected with the shell bottom plate by bolts. In the utility model, connecting terminals are arranged on the partition of the control room so that all electrical components in the controller are connected through the connecting terminals, and the connecting terminals can be set according to the explosion-proof requirements, which further improves the explosion-proof performance of the charger. A moving wheel is set at the end, the transformer can be moved to the outside of the charger housing for maintenance, which makes the maintenance simple and fast without damaging the transformer.

Description

Mine explosion-proof charger

technical field

The utility model relates to equipment used in mining mines, which is a mine explosion-proof charger.

Background technique

The chargers used in mines have very high requirements for explosion protection, as well as high requirements for corrosion resistance and pressure resistance. The mine explosion-proof charger designed by the applicant has been continuously improved since 2004, and various performances have been greatly improved at present. After several years of use, it is found that these mining explosion-proof chargers still have the following deficiencies: the electrical components in the control room where the circuit is installed do not meet the explosion-proof requirements, and accidents are likely to occur during use; since the charger needs to be repaired after a period of use, its important Component transformers are prone to damage during maintenance, causing greater losses to users and affecting maintenance time.

Contents of the invention

The purpose of this utility model is to provide a kind of explosion-proof charging machine for mining, which solves the deficiencies of the prior art, thereby improving the explosion-proof performance and maintenance quality of the charging machine.

In order to achieve the above object, the utility model realizes the following technical proposals: mine explosion-proof charger includes a housing, a control room is set on the upper end of one side of the housing, and a first instrument observation hole and a second instrument observation hole are set on the front side wall of the control room. Instrument observation hole, one side of the housing is installed with an inspection door, a transformer is installed in the housing and the lower part of the control room, a partition is installed in the control room, a primary terminal is installed on the upper part of the partition, and a control line wiring is installed on the partition and the lower part of the primary terminal Terminals, moving wheels are installed at the bottom of the transformer, and the four corners of the transformer are connected with the bottom plate of the housing by bolts. The two outer sides of the bottom of the transformer in the length direction are installed with movable frames, and the length of the movable frame is equal to the length of the transformer. There are 3 primary terminals and 5 control terminals. A protective cover is installed outside the top of the casing, and the control room is arranged on the upper surface of the protective cover. The upper end of the control room is provided with an instrument chamber cover and a wiring chamber cover, and the first small cable entry room, the second small cable entry room and the third small cable entry room are arranged side by side on the rear side wall of the control room.

The utility model has the advantages that: on the partition plate of the control room, connecting terminals are set so that all electrical components in the controller are connected through the connecting terminals, and the connecting terminals can be set according to the explosion-proof requirements, so that the explosion-proof performance of the charger is further improved. A moving wheel is set at the bottom of the transformer, and the bottom plate set at the bottom of the transformer is connected with the bottom plate of the charger casing by bolts, so that when the transformer is being maintained, the transformer can be moved outside the charger casing for maintenance only by breaking off the bolts , so that the maintenance is simple and fast, without damaging the transformer.

Description of drawings

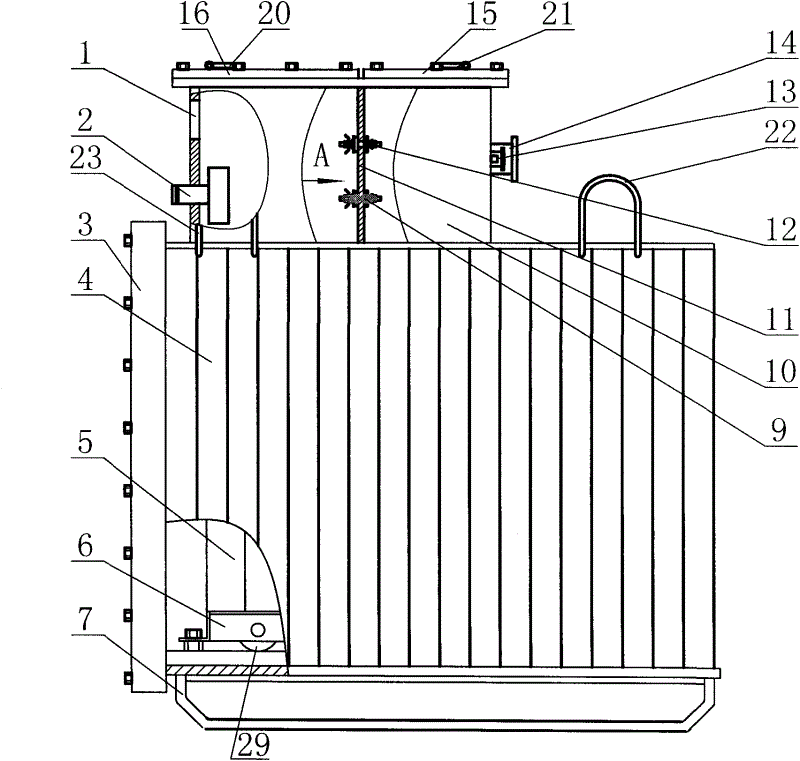

Accompanying drawing 1 is a structural schematic diagram of the present utility model; Accompanying drawing 2 is a top view structural schematic diagram of accompanying drawing 1; Accompanying drawing 3 is a left view structural schematic diagram of accompanying drawing 1; Fig. 5 is a schematic diagram of the B-B sectional structure in Fig. 4 .

Detailed ways

With reference to the accompanying drawings, the utility model is described in detail.

4 in the figure is a housing, the upper end of one side of the housing 4 is provided with a control room 10, the first instrument observation hole 1 and the second instrument observation hole 17 are provided on the front side wall of the control room 10, and one side of the housing 4 is installed and maintained. Door 3, transformer 5 is installed in the housing 4 and the lower part of the control room 10, and a partition 11 is installed in the control room 10. The partition 11 divides the control room 10 into two chambers, and the primary terminal 12 is installed on the top of the partition 11. The control line terminal 9 is installed on the partition 11 and the lower part of the primary terminal 12. These terminals have all reached the explosion-proof requirements. The test shows that no safety accidents will occur within the service life. For the convenience of maintenance, the bottom of the transformer 5 is installed and moved Wheel 29, four corners of transformer 5 adopt bolts to be connected with housing 4 base plates.

In order to further facilitate maintenance without damaging the transformer, movable frames 6 are installed on the two outer sides of the bottom length direction of the transformer 5, and the length of the movable frame 6 is equal to the length of the transformer 5.

The further preferred scheme of the utility model is: there are 3 primary connection terminals 12, and 5 control line connection terminals 9.

In order to prevent damage to the charger caused by sudden falling objects in the working environment, the utility model installs a protective cover 28 outside the top of the casing 4 , and the control room 10 is arranged on the upper surface of the protective cover 28 , between the protective cover 28 and the casing 4 Set the gap and act as a buffer. At the same time, the protective cover 28 can also prevent liquids such as oil and water from corroding the surface of the charger.

A further solution of the utility model is: the upper end of the control room 10 is provided with an instrument cavity cover 16 and a wiring cavity cover 15, and the first small cable lead-in chamber 27, the second small cable lead-in chamber 26 and the Three small cable lead-in chambers 13, this structure can improve the irregular arrangement of existing cables, and can further improve the explosion-proof performance of the charger.

The circuit control principle and electrical components adopted by the utility model are all known technologies.

In the figure, 2 is an adjustment button, 7 is a first support column, 8 is a second support column, 14 is a large cable lead-in room, 18 is a hinge, 19 is a hinge, 20 is a handle, 21 is a handle, and 22 is a push handle. 23 is pushing hands, 24 is pushing hands, and 25 is pushing hands.

Claims (5)

1. mine explosion-suppression charger, comprise housing (4), the upper end of housing (4) one sides is provided with control room (10), offer first instrument inspection hole (1) and second instrument inspection hole (17) on the front side wall in control room (10), one side of housing (4) is installed access door (3), in housing (4), transformer (5) is installed in bottom, control room (10), it is characterized in that: dividing plate (11) is installed in control room (10), primary connection terminal (12) is installed on dividing plate (11) top, on dividing plate (11), control line binding post (9) is installed in primary connection terminal (12) bottom, transformer (5) bottom is installed and is moved wheel (29), and (5) four angles of transformer adopt bolt to be connected with housing (4) base plate.

2. mine explosion-suppression charger according to claim 1 is characterized in that: movable stand (6), the equal in length of the length of movable stand (6) and transformer (5) are installed in two outsides of transformer (5) bottom lengths direction.

3. mine explosion-suppression charger according to claim 1 is characterized in that: primary connection terminal (12) is 3, and control line binding post (9) is 5.

4. mine explosion-suppression charger according to claim 1 is characterized in that: shell (4) top outer is installed protective cover (28), and control room (10) are arranged on protective cover (28) upper surface.

5. mine explosion-suppression charger according to claim 1, it is characterized in that: control room (10) upper end is provided with instrument chamber lid (16) and wire connection cavity lid (15), is set up in parallel first mini-cable introducing chamber (27), second mini-cable introducing chamber (26) and the 3rd mini-cable on the rear wall of control room (10) and introduces chamber (13).
