Abstract
The utility model discloses a fixed solar generator which includes a solar panel component, a mounting bracket installing the solar panel component, a front bracing piece and a back bracing piece; the mounting bracket is fixedly connected with the ground through the front bracing piece and the back bracing piece; the back bracing piece includes a back end bottom pin and a back end heightening piece which are connected in an inserting way; the top part of the back end heightening piece is hinged with the mounting bracket; the lower part of the back end heightening piece is provided with at least one adjusting hole; the back end bottom pin is uniformly provided with locating holes which are matched from top to bottom; and the back end bottom pin and the locating holes are fixedly connected by bolts. The fixed solar generator can regularly adjust the angle of the solar generator according to the illuminating angle of sunlight at different areas in different seasons, which improves the utilization rate of solar energies.
Description
Technical field
The utility model relates to a kind of device of solar generating, is specifically related to a kind of fixed device of solar generating, belongs to application of solar.
Background technology
At present, each state is all in the active development regenerative resource, solar photovoltaic technology relies on the outstanding role aspect outlying areas without electricity of solution and alleviation urban energy anxiety, has become worldwide research focus, and the photovoltaic industry of China is just with annual speed development more than 30%.
Device of solar generating is the key equipment of whole photovoltaic power generation technology, mainly contain tracking mode Blast Furnace Top Gas Recovery Turbine Unit (TRT) and stationary power generation device at present, thereby the former can follow the tracks of solar motion by the adjusting device angle and improve system's generating efficiency, but numerous, the complex structure of its parts, thereby price is higher, generally is applicable to large-scale application scenario; And latter's cost is lower, is applicable to small-scale application.
Existing fixed formula device of solar generating comprises solar cell panel assembly, mounting bracket, front support rod and the back support rod of solar cell panel assembly is installed, and described mounting bracket is fixedlyed connected with ground by the back and front supporting bar.
Yet, because the length of the back and front supporting bar of above-mentioned device of solar generating is all fixed, promptly general angle steel or the channel-section steel that adopts regular length, thereby this device of solar generating just can not be regulated the angle of solar components after installation, and because the angle of solar light irradiation on the solar components surface during Various Seasonal is that great changes have taken place, thereby making that whole device is lower to solar energy utilization rate, its generating efficiency is limited.
Summary of the invention
The purpose of this utility model provides a kind of adjustable fixed device of solar generating, to improve its solar energy utilization ratio.
To achieve the above object of the invention, the technical solution adopted in the utility model is: a kind of fixed device of solar generating, comprise solar cell panel assembly, the mounting bracket of solar cell panel assembly is installed, front support rod and back support rod, before described mounting bracket passes through, back support rod is fixedlyed connected with ground, described back support rod comprises that the rear end footing and the rear end of grafting increase part, it is hinged that the top and the mounting bracket of part increased in described rear end, its underpart is provided with at least one adjustment hole, be evenly equipped with the location hole of cooperation on the footing of rear end from top to bottom, both are bolted to connection.
Further technical scheme, described front support rod comprises that the front end footing and the front end of grafting increase part, it is hinged that described front end is increased the top and the mounting bracket of part, its underpart is provided with at least one adjustment hole, be evenly equipped with the location hole of cooperation on the described front end footing from top to bottom, both are bolted to connection.
Above, described mounting bracket is fixedlyed connected with ground by the back and front supporting bar, can certainly fixedly connected with the roof, device of solar generating is installed on the roof perhaps some other common installation occasion.The through hole that is equipped with cooperation on the part is increased in described rear end footing and rear end, and be bolted to connection, the rear end is increased a plurality of adjustment holes is set on the part, thereby realized that rear end footing and rear end increase the relative adjustment between the part, i.e. angle of regulating solar components by the length of regulating back support rod is to improve its solar energy utilization ratio; Similarly, front support rod also can adopt this structure, with the adjustable-angle scope of further increase solar components.The quantity and the spacing of the adjustment hole on the described front and back ends footing are provided with according to actual conditions.
In the technique scheme, also be provided with inclined support bar between described mounting bracket and the back support rod, described inclined support bar comprises upper support bar and lower support bar, and both are threaded by turn buckle, the top and the mounting bracket of upper support bar are hinged, and the bottom and the back support rod of lower support bar are hinged.Inclined support bar has the supporting role of firm reinforcement, after regulating angle, with turn buckle up and down two support bars screw and get final product, this structure has been strengthened the wind resistance of whole device greatly.Certainly, inclined support bar also can be located between mounting bracket and the front support rod.
Further technical scheme, the rear end of described back support rod is increased part and is provided with the sign angle.Regulate with convenient.
In the technique scheme, the bottom of described back and front supporting bar all is fixedly connected with crab-bolt.
Further technical scheme also is provided with second rear end and increases part on the described back support rod, and the one end is increased part with the rear end and is connected, and the other end is connected with the rear end footing.This structure is equivalent to prolong the rear end and increases part, has further increased the adjusting angle scope of device; Certainly, front support rod also can adopt similar structure.
Because the technique scheme utilization, the advantage that the utility model compared with prior art has is:
1, the utility model is designed to comprise that with back support rod rear end footing and rear end increase the two-part sub-assembly of part, realize relative adjustment by adjustment hole and bolt between the two, the angle of regulating solar components by the length of regulating back support rod, thereby can be according to different regions Various Seasonal irradiation of sunlight angle, the angle of periodic adjustment device of solar generating has improved its solar energy utilization ratio; Front support rod also can adopt identical structure further to increase its adjustable-angle scope.
2, the utility model is provided with inclined support bar between mounting bracket and back support rod, has further promoted the support strength and the wind resistance of device, and the maximum wind velocity that this device can bear is 140Km/h.
3, the utility model is simple in structure, be convenient to produce and install, and cost is lower, is suitable for applying.
Description of drawings
Fig. 1 is the stereogram of the utility model embodiment one;
Fig. 2 is the rearview of the utility model embodiment one;

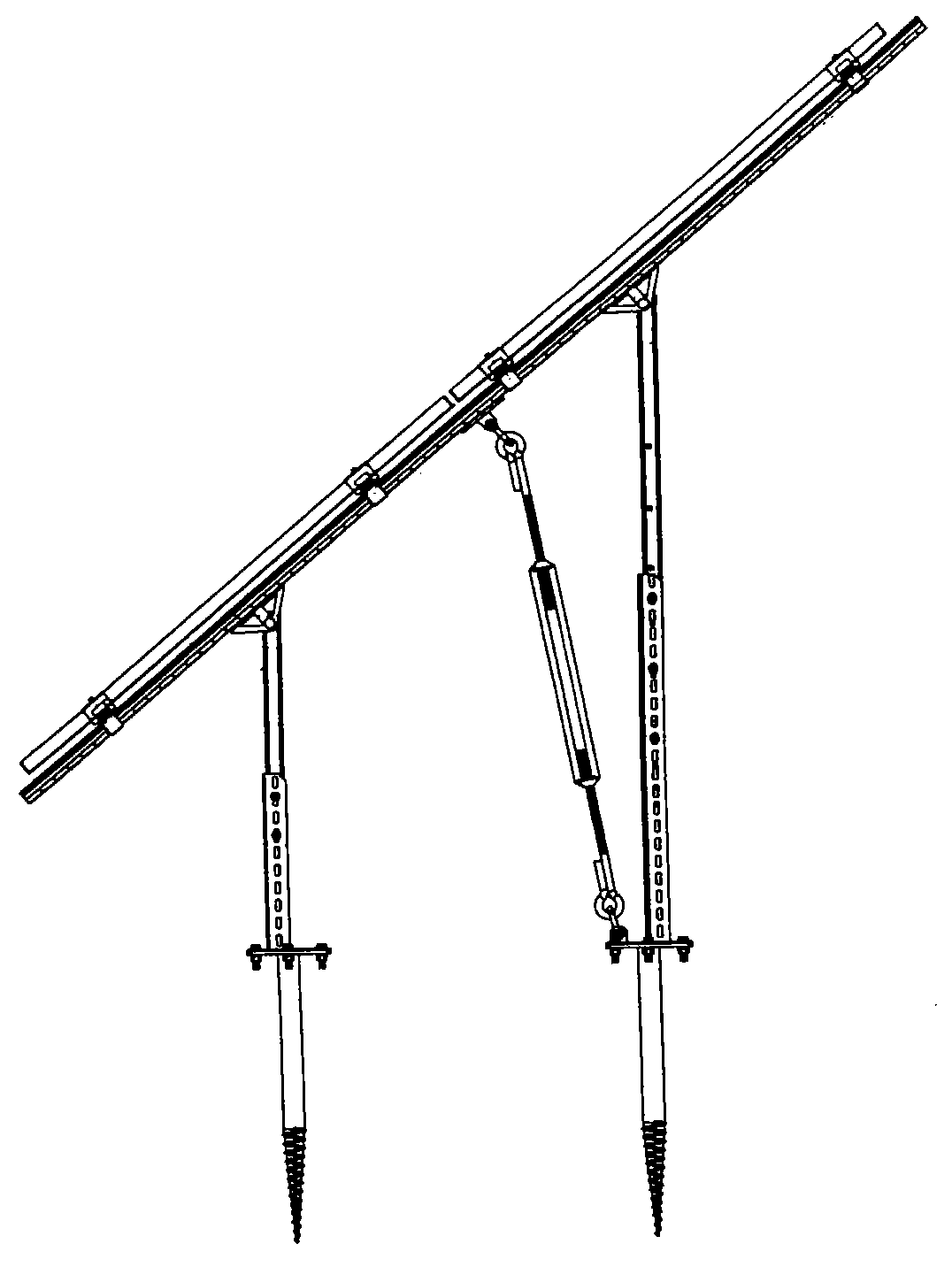

Fig. 3 is the end view of the utility model embodiment one;
Fig. 4 is the C portion enlarged drawing of Fig. 1;
Fig. 5 is the B portion enlarged drawing of Fig. 1;
Fig. 6 is the stereogram of the utility model embodiment two;
Fig. 7 is the rearview of the utility model embodiment two;
Fig. 8 is the end view of the utility model embodiment two;
Fig. 9 is the A portion enlarged drawing of Fig. 6.
Wherein: 1, solar cell panel assembly; 2, mounting bracket; 3, front end footing; 4, front end is increased part; 51,52, adjustment hole; 61,62, location hole; 71,72, bolt; 8, rear end footing; 9, part is increased in the rear end; 10, upper support bar; 11, lower support bar; 12, turn buckle.
Embodiment
Below in conjunction with drawings and Examples the utility model is further described:
Embodiment one
Shown in Fig. 1～5, a kind of fixed device of solar generating, the mounting bracket 2, front support rod and the back support rod that comprise solar cell panel assembly 1, installation solar cell panel assembly, described mounting bracket is fixedlyed connected with ground by the back and front supporting bar, described front support rod comprises that the front end footing 3 of grafting and front end increase part 4, it is hinged that described front end is increased the top and the mounting bracket 2 of part 4, its underpart is provided with at least one adjustment hole 51, be evenly equipped with the location hole 61 of cooperation on the described front end footing 3 from top to bottom, both are fixedly connected by bolt 71; Described back support rod comprises that the rear end footing 8 of grafting and rear end increase part 9, it is hinged that the top and the mounting bracket 2 of part 9 increased in described rear end, its underpart is provided with at least one adjustment hole 52, is evenly equipped with the location hole 62 of cooperation on the footing of rear end from top to bottom, and both are fixedly connected by bolt 72.
In the technique scheme, also be provided with inclined support bar between described mounting bracket 2 and the front support rod, described inclined support bar comprises upper support bar 10 and lower support bar 11, both are threaded by turn buckle 12, the top of upper support bar 10 and mounting bracket 2 are hinged, and the bottom and the front support rod of lower support bar 11 are hinged.The rear end of described back support rod is increased part 9 and is provided with the sign angle.
Above, described mounting bracket is fixedlyed connected with ground by the back and front supporting bar, can certainly fixedly connected with the roof, device of solar generating is installed on the roof perhaps some other common installation occasion.The through hole that is equipped with cooperation on the part is increased in described rear end footing and rear end, and be bolted to connection, be evenly equipped with location hole on the footing of rear end from top to bottom, thereby realized that rear end footing and rear end increase the relative adjustment between the part, i.e. angle of regulating solar components by the length of regulating back support rod is to improve its solar energy utilization ratio; Similarly, front support rod also is this structure, with the adjustable-angle scope of further increase solar components.Quantity and spacing that described front and back ends is increased the adjustment hole on the part are provided with according to actual conditions.
The device of solar generating of present embodiment is compared with existing fixed formula device of solar generating, and under equal conditions, its solar energy utilization ratio can improve about 5%.
Embodiment two
Shown in Fig. 6～9, a kind of fixed device of solar generating, the mounting bracket, front support rod and the back support rod that comprise solar cell panel assembly, installation solar cell panel assembly, described mounting bracket is fixedlyed connected with ground by the back and front supporting bar, described front support rod comprises that the front end footing and the front end of grafting increase part, it is hinged that described front end is increased the top and the mounting bracket of part, its underpart is provided with at least one adjustment hole, be evenly equipped with the location hole of cooperation on the described front end footing from top to bottom, both are bolted to connection; Described back support rod comprises that the rear end footing and the rear end of grafting increase part, it is hinged that the top and the mounting bracket of part increased in described rear end, its underpart is provided with at least one adjustment hole, is evenly equipped with the location hole of cooperation on the footing of rear end from top to bottom, and both are bolted to connection.
In the technique scheme, also be provided with inclined support bar between described mounting bracket and the back support rod, described inclined support bar comprises upper support bar and lower support bar, and both are threaded by turn buckle, the top and the mounting bracket of upper support bar are hinged, and the bottom and the back support rod of lower support bar are hinged.The rear end of described back support rod is increased part and is provided with the sign angle.The bottom of described back and front supporting bar all is fixedly connected with crab-bolt.
Above, described mounting bracket is fixedlyed connected with ground by the back and front supporting bar, can certainly fixedly connected with the roof, device of solar generating is installed on the roof perhaps some other common installation occasion.The through hole that is equipped with cooperation on the part is increased in described rear end footing and rear end, and be bolted to connection, be evenly equipped with location hole on the footing of rear end from top to bottom, thereby realized that rear end footing and rear end increase the relative adjustment between the part, i.e. angle of regulating solar components by the length of regulating back support rod is to improve its solar energy utilization ratio; Similarly, front support rod also is this structure, with the adjustable-angle scope of further increase solar components.Quantity and spacing that described front and back ends is increased the adjustment hole on the part are provided with according to actual conditions.Present embodiment is applicable to the area that latitude is lower, is adapted at regulating in the smaller angle scope.
The device of solar generating of present embodiment is compared with existing fixed formula device of solar generating, and under equal conditions, its solar energy utilization ratio can improve about 5%.
Embodiment three
A kind of fixed device of solar generating, the mounting bracket, front support rod and the back support rod that comprise solar cell panel assembly, installation solar cell panel assembly, described mounting bracket is fixedlyed connected with ground by the back and front supporting bar, described back support rod comprises that the rear end footing and the rear end of grafting increase part, it is hinged that the top and the mounting bracket of part increased in described rear end, its underpart is provided with at least one adjustment hole, be evenly equipped with the location hole of cooperation on the footing of rear end from top to bottom, both are bolted to connection.
Also be provided with inclined support bar between described mounting bracket and the back support rod, described inclined support bar comprises upper support bar and lower support bar, and both are threaded by turn buckle, and the top and the mounting bracket of upper support bar are hinged, and the bottom and the back support rod of lower support bar are hinged.
The bottom of described back and front supporting bar all is fixedly connected with crab-bolt.
Also be provided with second rear end on the described back support rod and increase part, the one end is increased part with the rear end and is connected, and the other end is connected with the rear end footing.This structure is equivalent to prolong the rear end and increases part, has further increased the adjusting angle scope of device.
The difference of present embodiment and embodiment two is: the height of the front end footing of present embodiment immobilizes, and the length that only needs the adjusting rear end to increase part realizes angular adjustment.Present embodiment is applicable to the area that latitude is higher, is adapted at than regulating in the polarizers of big angle scope.
Compare with traditional fixed device of solar generating, under equal conditions, its solar energy utilization ratio can improve about 5%.
Claims (6)
1. fixed device of solar generating, comprise solar cell panel assembly (1), the mounting bracket (2) of solar cell panel assembly is installed, front support rod and back support rod, before described mounting bracket passes through, back support rod is fixedlyed connected with ground, it is characterized in that: described back support rod comprises that the rear end footing (8) of grafting and rear end increase part (9), it is hinged that the top and the mounting bracket (2) of part (9) increased in described rear end, its underpart is provided with at least one adjustment hole (52), be evenly equipped with the location hole (62) of cooperation on the footing of rear end from top to bottom, both are fixedly connected by bolt (72).
2. fixed device of solar generating according to claim 1, it is characterized in that: described front support rod comprises that the front end footing (3) of grafting and front end increase part (4), it is hinged that described front end is increased the top and the mounting bracket (2) of part (4), its underpart is provided with at least one adjustment hole (51), be evenly equipped with the location hole (61) of cooperation on the described front end footing (3) from top to bottom, both are fixedly connected by bolt (71).
3. fixed device of solar generating according to claim 1, it is characterized in that: also be provided with inclined support bar between described mounting bracket (2) and the back support rod, described inclined support bar comprises upper support bar (10) and lower support bar (11), both are threaded by turn buckle (12), the top of upper support bar (10) and mounting bracket (2) are hinged, and the bottom and the back support rod of lower support bar (11) are hinged.
4. fixed device of solar generating according to claim 1 is characterized in that: the rear end of described back support rod is increased part (9) and is provided with the sign angle.
5. fixed device of solar generating according to claim 1 is characterized in that: the bottom of described back and front supporting bar all is fixedly connected with crab-bolt.
6. fixed device of solar generating according to claim 1 is characterized in that: also be provided with second rear end on the described back support rod and increase part, the one end is increased part with the rear end and is connected, and the other end is connected with the rear end footing.
