Abstract

An active infrared monitoring energy-saving street lamp and an energy-saving street lamp system relate to the lighting field. The active infrared monitoring energy-saving street lamp includes a light-emitting device, a street lamp pole, and a street lamp control system. The street lamp control system includes a traffic induction sensor system. The traffic induction sensor system is connected to a signal processing system, and the signal processing system is connected to a light-emitting device switch control module. When pedestrians or vehicles on the road are within the sensing range of the traffic sensing sensor system, the traffic sensing sensor system responds, and the light-emitting device lights up to provide road lighting for pedestrians or vehicles. The energy-saving street lamp system includes the traffic induction sensor system arranged between the two adjacent active infrared monitoring energy-saving street lamps, and the two adjacent street lamps share a traffic induction sensor system.

Description

Active Infrared Monitoring Energy Saving Street Light

technical field

The utility model relates to the lighting field, in particular to a street lamp.

Background technique

Not only the number of street lamps is huge, but also the power of a single street lamp is large and the lighting time is very long. Street lamps consume a huge amount of electricity in the grid, which brings a huge burden to the grid power supply. In order to reduce the energy consumption of street lamps and reduce the burden on the power grid, some road sections have begun to use LED street lamps, thus achieving a certain energy-saving effect.

In order to further reduce the burden of street lamps on the power grid, solar LED street lamps are used in some road sections. Use solar panels to power LED chips to achieve lighting effects. In the case of relatively sunny weather, the electric energy provided by the solar panel can even provide all the electric energy for the LED chips to illuminate at night. However, in the case of bad weather, such as continuous cloudy and rainy days, the electric energy generated by the solar panel cannot fully meet the electric energy required by the LED chip for lighting at night.

In other words, the existing solar LED street lights will still cause a certain load on the power grid. It is necessary to further reduce the load caused by street lamps on the grid.

Utility model content

The purpose of the utility model is to provide an active infrared monitoring energy-saving street lamp to solve the above technical problems.

The purpose of the utility model is also to provide an energy-saving street lamp system composed of active infrared monitoring energy-saving street lamps.

The utility model can be realized by adopting the following technical solutions:

The active infrared monitoring energy-saving street lamp includes a light-emitting device, a street light pole for supporting the light-emitting device, and a street light control system, which is characterized in that the street light control system includes a traffic sensor for sensing the status of pedestrians or vehicles on the road system, a signal processing system, the traffic induction sensor system is connected to the signal processing system, the signal processing system is connected to a light-emitting device switch control module that controls the light-emitting state of the light-emitting device, and the light-emitting device switch control module is connected to the the light-emitting device;

The traffic sensing sensor system includes an active infrared sensor system.

When pedestrians or vehicles on the road are within the sensing range of the traffic sensing sensor system, the traffic sensing sensor system responds and sends a corresponding signal to the signal processing system, and the signal processing system sends a signal to the The switch control module of the light emitting device sends a control signal, and the switch control module of the light emitting device controls the lighting of the light emitting device, so as to provide road lighting for pedestrians or vehicles. Active infrared sensor system for sensing pedestrians or vehicles on the road. When a pedestrian or vehicle on the road is within the sensing range of the active infrared sensor system, the active infrared sensor system responds and sends a corresponding signal to the signal processing system, and the signal processing system sends a signal to the signal processing system according to the received signal. The switch control module of the light emitting device sends a control signal, and the switch control module of the light emitting device controls the lighting of the light emitting device, so as to provide road lighting for pedestrians or vehicles.

Generally, the active infrared sensor system can better monitor pedestrians or vehicles within 10m, and has a larger monitoring area. It can be used alone or in conjunction with the through-beam laser sensor system to achieve a more comprehensive monitoring effect.

The traffic sensing sensor system also includes a through-beam laser sensor system, the through-beam laser sensor system includes a laser emitting device and a laser receiving device, and the laser emitting device and the laser receiving device are respectively located on the road sides. The through-beam laser sensor system can monitor wider roads, and can monitor roads with a width greater than 100m.

When pedestrians or vehicles on the road pass through the sensing range of the through-beam laser sensor system, that is, when the laser signal emitted by the laser emitting device to the laser receiving device is blocked, the signal processing system switches the control module to the light emitting device Sending a control signal, the light-emitting device switch control module controls the light-emitting device to light up, so as to provide road lighting for pedestrians or vehicles.

The laser on the laser emitting device can be an infrared laser to avoid visual interference.

The laser emitting device is provided with a frequency modulation module for frequency modulation of the laser signal, and the laser receiving device is provided with a signal processing module corresponding to the frequency modulation module. The anti-interference ability is enhanced by frequency modulation of the laser signal.

A photosensitive cover is arranged on the photosensitive element on the laser receiving device. The photosensitive area of the photosensitive element is increased through the photosensitive cover, so as to reduce the matching accuracy requirements of the laser emitting device and the laser receiving device on the installation position. The photosensitive cover diverges the laser signal, so that the laser signal irradiated on the photosensitive cover can radiate to the surroundings, so as to irradiate the photosensitive surface of the photosensitive element to realize light sensing.

The through-beam laser sensor system is located in front of the lamp post. In order to light up the light-emitting device a certain distance before pedestrians or vehicles arrive at the lamp pole, road lighting can be provided as early as possible.

The signal processing system has a time-delay module, which controls the light-emitting device to continue to emit light for a period of time after the light-emitting device is turned on, so as to provide continuous road lighting for pedestrians or vehicles.

The active infrared monitoring energy-saving street lamp also includes a power supply system, the power supply system includes a solar power supply system, and the solar power supply system includes a solar panel and a storage battery, and the solar panel is connected to the storage battery. The storage battery is used to store the electric energy generated by the solar panel and provide power for the active infrared monitoring energy-saving street lamp.

The power supply system of the active infrared monitoring energy-saving street lamp also includes a wind power generation system. To ensure that the power can be provided in rainy and windy weather.

The power supply system also includes a grid power supply system, and also includes a power supply system management module, the power supply system management module is respectively connected to the grid power supply system and the solar power supply system; when the battery power is lower than a set value , switch to power supply through the grid power supply system.

When the electric quantity of the storage battery is higher than a set value, switch to supply power through the solar power supply system.

The light emitting device adopts LED to further save energy.

The street lamp control system also includes a photosensitive element for sensing the intensity of external light. When the external light is strong, the street lamp control system turns off the traffic sensing sensor system. And limit the lighting of the light emitting device to save energy, but it is not absolutely not allowed to light up the light emitting device.

In order to further save energy and realize humanized control of street lamps, the utility model provides an energy-saving street lamp system.

The energy-saving street lamp system includes an adjacent street lamp control system, and the adjacent street lamp control system is respectively connected to the street lamp control systems of two adjacent active infrared monitoring energy-saving street lamps; In between, the two street lamp control systems are provided with the traffic sensing sensor system;

When the first active infrared monitoring energy-saving street lamp is on and the second street lamp is off, the traffic sensor between the first active infrared monitoring energy-saving street lamp and the second active infrared monitoring energy-saving street lamp When the sensor system senses pedestrians or vehicles, the adjacent street lamp control system controls the second active infrared monitoring energy-saving street lamp to turn on, and delays the turn-on state, and the first active infrared monitoring energy-saving street lamp does not need to be delayed again .

In this way, the first active infrared monitoring energy-saving street lamp passed by pedestrians or vehicles will be extinguished first, so as to reduce energy consumption.

The traffic induction sensor system arranged between the two adjacent active infrared monitoring energy-saving street lamps may be two independent traffic induction sensor systems. Two independent traffic sensing sensor systems belong to the two street lamp control systems respectively.

The traffic induction sensor system arranged between the two adjacent active infrared monitoring energy-saving street lamps can also be a combination of the first active infrared monitoring energy-saving street lamp and the second active infrared monitoring energy-saving street lamp. The traffic sensing sensor system commonly used for monitoring energy-saving street lamps. in order to save resources.

Description of drawings

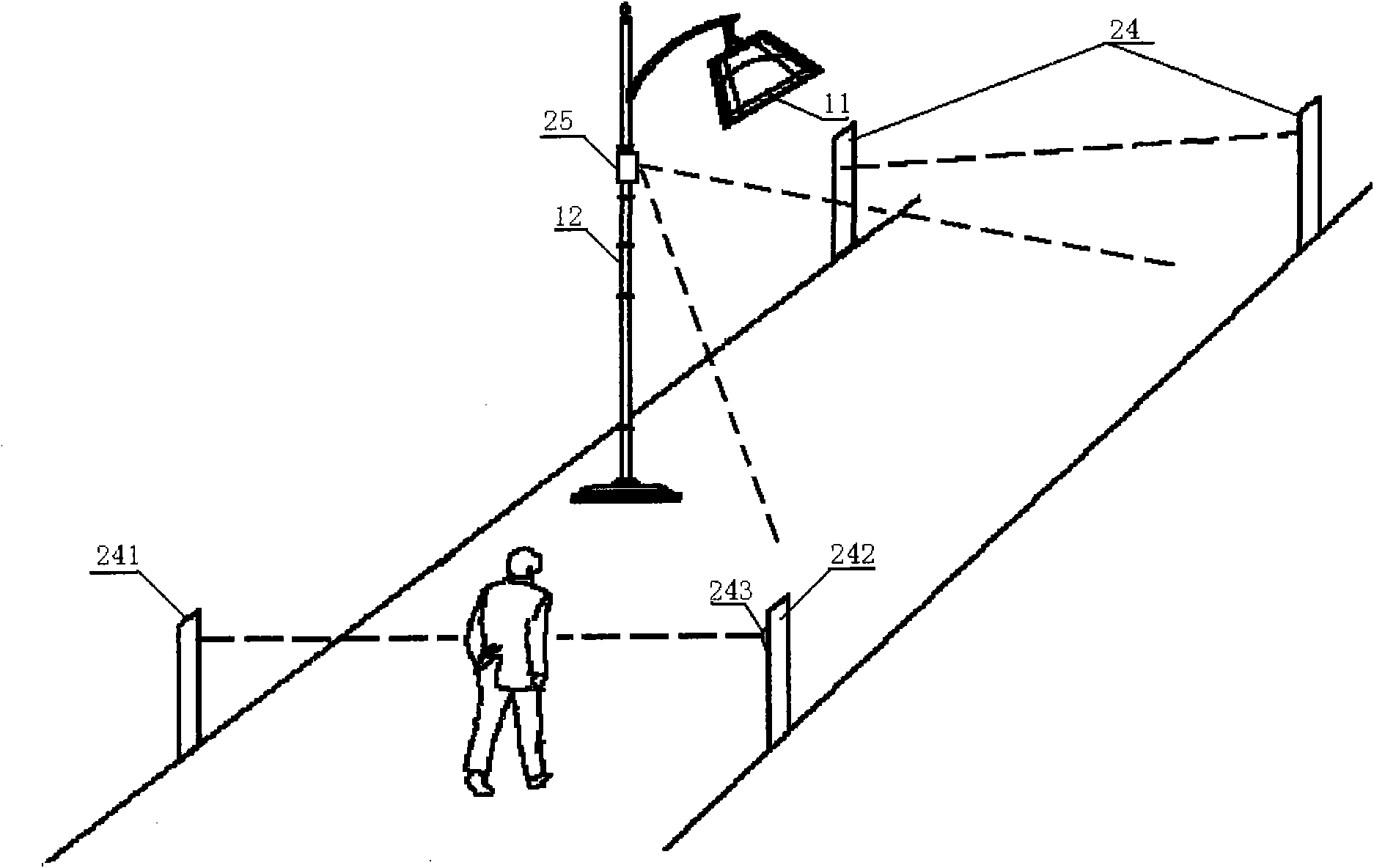

Fig. 1 is the overall structural representation of the utility model;

Fig. 2 is a circuit diagram of an active infrared monitoring energy-saving street lamp;

Fig. 3 is a circuit diagram of the energy-saving street lamp system.

Detailed ways

In order to understand the technical means, creative features, purpose and effect of the utility model, the utility model is further explained below in conjunction with specific illustrations.

Referring to FIG. 1 and FIG. 2 , the active infrared monitoring energy-saving street lamp includes a light-emitting device 11 , a street light pole 12 for supporting the light-emitting device 11 , and a street light control system 2 . The street lamp control system 2 includes a traffic sensing sensor system 21 and a signal processing system 22 for sensing pedestrians or vehicles on the road. The traffic sensing sensor system 21 is connected to the signal processing system 22 , the signal processing system 22 is connected to a light emitting device switch control module 23 which controls the light emitting state of the light emitting device 11 , and the light emitting device switch control module 23 is connected to the light emitting device 11 . The light emitting device 11 may adopt a light emitting LED so as to save energy.

When a pedestrian or vehicle on the road is within the sensing range of the traffic sensing sensor system 21, the traffic sensing sensor system 21 responds and sends a corresponding signal to the signal processing system 22, and the signal processing system 22 switches and controls the light emitting device according to the received signal. The module 23 sends a control signal, and the light-emitting device switch control module 23 controls the light-emitting device 11 to light up, thereby providing road lighting for pedestrians or vehicles.

The traffic sensing sensor system 21 also includes an active infrared sensor system 25 for sensing pedestrians or vehicles on the road. When a pedestrian or vehicle on the road is within the sensing range of the active infrared sensor system 25, the active infrared sensor system 25 responds and sends a corresponding signal to the signal processing system 22, and the signal processing system 22 sends a signal to the light emitting device according to the received signal. The switch control module 23 sends a control signal, and the light-emitting device switch control module 23 controls the light-emitting device 11 to light up, thereby providing road lighting for pedestrians or vehicles. Generally, the active infrared sensor system 25 can better monitor pedestrians or vehicles within 10m, and has a larger monitoring area.

Referring to FIG. 1 , the traffic sensing sensor system 21 includes a through-beam laser sensor system 24 . The traffic sensing sensor system 21 may only have the through-beam laser sensor system 24, and other sensor systems may also be provided. The through-beam laser sensor system 24 includes a laser emitting device 241 and a laser receiving device 242 . The laser emitting device 241 and the laser receiving device 242 are respectively located on both sides of the monitored road 3 . Using the through-beam laser sensor system 24 can monitor wider roads, and can monitor roads with a width greater than 100m. The through-beam laser sensor system 24 can be used alone, and can also be used in conjunction with the active infrared sensor system 25 to achieve a more comprehensive monitoring effect.

The through-beam laser sensor system 24 is located in front of the light pole 12 . In order to light up the light-emitting device 11 a certain distance before pedestrians or vehicles reach the lamppost 12, and provide road lighting as early as possible. The signal processing system 22 has a time-delay module, and after the light-emitting device 11 is turned on, it controls the light-emitting device 11 to continue to emit light for a period of time, so as to provide continuous road lighting for pedestrians or vehicles.

When pedestrians or vehicles on the road pass through the sensing range of the through-beam laser sensor system 24, that is, when the laser signal emitted by the laser emitting device 241 to the laser receiving device 242 is blocked, the signal processing system 22 sends a signal to the light emitting device switch control module 23. control signal, the light emitting device switch control module 23 controls the light emitting device 11 to light up, thereby providing road lighting for pedestrians or vehicles. The laser on the laser emitting device 241 may be an infrared laser to avoid visual interference and enhance anti-interference capability. The laser emitting device 241 is provided with an oscillating circuit, the signal output end of the oscillating circuit is connected to the laser, so that the laser signal generated by the laser is an oscillating (flickering) laser signal, and the laser receiving device 242 is provided with a signal processing module corresponding to the oscillating circuit . Anti-jamming capabilities are further enhanced by using an oscillating (blinking) laser signal.

The oscillating circuit can also have a frequency modulation function, and the anti-interference ability can be further enhanced by frequency modulation of the laser signal.

The photosensitive element on the laser receiving device 242 is provided with a photosensitive cover 243 . The photosensitive area of the photosensitive element is increased through the photosensitive cover 243 , so as to reduce the matching accuracy requirements of the laser emitting device 241 and the laser receiving device 242 at the installation positions. The photosensitive cover 243 diverges the laser signal, so that the laser signal irradiated on the photosensitive cover 243 can radiate to the surroundings, so as to irradiate the photosensitive surface of the photosensitive element to realize light sensing.

Referring to FIG. 2 , the active infrared monitoring energy-saving street lamp also includes a power supply system 4 . The power supply system 4 includes a solar power supply system. The solar power supply system includes a solar panel 41 and a battery 42 . The storage battery 42 is used to store the electric energy generated by the solar panel 41 and supply power for the active infrared monitoring energy-saving street lamp.

The power supply system 4 also includes a grid power supply system 5 and a power supply system management module 6, which is respectively connected to the grid power supply system 5 and the battery 42 of the solar power supply system. When the power of the storage battery 42 is lower than a set value, the power supply is switched to the grid power supply system 5 . When the power of the storage battery 42 is higher than a set value (the set value may be different from the above set value), the power supply is switched to the solar power supply system.

The power supply system 4 also includes a wind power generation system, and the wind power generation system is also connected to the power supply system management module 6 to provide electric energy for active infrared monitoring energy-saving street lamps.

The street lamp control system 2 also includes a photosensitive element for sensing the intensity of external light. When the external light is strong, the street lamp control system 2 turns off the traffic sensing sensor system 21 . And limit the lighting of the photosensitive element to save energy, but it is not absolutely not allowed to light the light-emitting device. The light emitting device should be able to be turned on under other control conditions with higher priority.

Referring to Fig. 3, in order to further save energy and realize humanized control of street lamps, the utility model provides an energy-saving street lamp system.

The energy-saving street lamp system includes an adjacent street lamp control system 7, and the adjacent street lamp control system 7 is respectively connected to the street lamp control system 2' and the street lamp control system 2" of two adjacent active infrared monitoring energy-saving street lamps. Between the active infrared monitoring energy-saving street lamps, the street lamp control system 2' and the street lamp control system 2" are provided with a traffic induction sensor system. The traffic induction sensor system arranged between two adjacent active infrared monitoring energy-saving street lamps may be two independent traffic induction sensor systems. They respectively belong to the street lamp control system 2' and the street lamp control system 2".

The traffic induction sensor system arranged between two adjacent active infrared monitoring energy-saving street lamps may also be a shared sensor system between the first active infrared monitoring energy-saving street lamp and the second active infrared monitoring energy-saving street lamp. The traffic sensing sensor system 26, that is, the traffic sensing sensor system 26 is the common traffic sensing sensor system 26 of two adjacent street lamps. It belongs to the street lamp control system 2' and the street lamp control system 2" at the same time. In order to save resources.

When the first active infrared monitoring energy-saving street lamp is on and the second street lamp is off, the traffic induction sensor system between the first active infrared monitoring energy-saving street lamp and the second active infrared monitoring energy-saving street lamp 26 When pedestrians or vehicles are sensed, the adjacent street lamp control system 7 controls the second active infrared monitoring energy-saving street lamp to turn on, and delays the opening state, and the first active infrared monitoring energy-saving street lamp does not need to be delayed again. hour. In this way, the first active infrared monitoring energy-saving street lamp passed by pedestrians or vehicles will be extinguished first, so as to reduce energy consumption.

The above shows and describes the basic principles and main features of the utility model and the advantages of the utility model. Those skilled in the industry should understand that the utility model is not limited by the above-mentioned method of use. The above-mentioned method of use and the description in the instructions only refer to the principle of the utility model, and it is practical without departing from the spirit and scope of the utility model. The new utility model will also have various changes and improvements, and these changes and improvements all fall within the scope of the utility model for protection. The scope of protection for the utility model is defined by the appended claims and their equivalents.

Claims (10)

1. active infra-red is monitored the light pole that energy-conserving road lamp comprises luminescent device, is used to support luminescent device, also comprise a street lamp control system, it is characterized in that, described street lamp control system comprises that one is used to respond to traffic responsive sensing system, a signal processing system of pedestrian on the road or vehicle condition, described traffic responsive sensing system connects described signal processing system, described signal processing system connects the luminescent device switch control module of the described luminescent device luminance of a control, and described luminescent device switch control module connects described luminescent device;

Described traffic responsive sensing system comprises the active infra-red sensing system.

2. active infra-red monitoring energy-conserving road lamp according to claim 1, it is characterized in that, described traffic responsive sensing system also comprises the correlation laser sensor system, described correlation laser sensor system comprises a laser beam emitting device and a laser receiver, described laser beam emitting device and described laser receiver lay respectively at described road both sides, and described signal processing system has time delay module.

3. active infra-red monitoring energy-conserving road lamp according to claim 2 is characterized in that the laser instrument on the described laser beam emitting device adopts infrared laser.

4. active infra-red monitoring energy-conserving road lamp according to claim 3 is characterized in that described laser beam emitting device is provided with the frequency modulation module, and laser signal is carried out frequency modulation, and described laser receiver is provided with and the corresponding signal processing module of described frequency modulation module.

5. active infra-red monitoring energy-conserving road lamp according to claim 2 is characterized in that the light-sensitive element on the described laser receiver is provided with the sensitization cover.

6. active infra-red monitoring energy-conserving road lamp according to claim 2 is characterized in that described correlation laser sensor system is positioned at described light pole the place ahead.

7. active infra-red monitoring energy-conserving road lamp according to claim 1 is characterized in that described street lamp control system comprises that also one is used to respond to the light-sensitive element of ambient light line strength.

8. active infra-red monitoring energy-conserving road lamp according to claim 1 is characterized in that, described active infra-red monitoring energy-conserving road lamp also comprises a power-supply system, also comprises a wind generator system.

9. according to claim 1,2 or 8 described active infra-red monitoring energy-conserving road lamps, it is characterized in that, described active infra-red monitoring energy-conserving road lamp also comprises a power-supply system, described power-supply system comprises a solar electric power supply system, described solar electric power supply system comprises a solar panel, a battery, and solar panel connects battery.

10. active infra-red monitoring energy-conserving road lamp according to claim 9, it is characterized in that, described power-supply system also comprises a mains supply system, also comprise an electric power system administration module, described electric power system administration module connects described mains supply system and described solar electric power supply system respectively; Be lower than when setting value at described accumulator electric-quantity, switch to the power supply by described mains supply system, described luminescent device adopts LED.
