Abstract
A multi-hole one-step processing device of a motorcycle steering column connecting plate is characterized in that a power shaft (35) of a prime motor is sleeved on the upper portion of a drive shaft (19); the lower portion of the drive shaft (19) is provided with a drive gear (20) which is simultaneously engaged with two intermediate gears (21); each of the two intermediate gears (21) is simultaneously engaged with two drill spindle gears; each of the two drill spindle gears is respectively fixedly sleeved on respective drill spindle; all drill spindles penetrate through a guide sleeve board (6) under the same; the guide sleeve board (6) is installed on a guide column (2) through a guide sleeve; and a feed shaft (34) of the prime motor is fixed onto an upper board of the prime motor body through a connecting sleeve (12) and a screw. A plurality of drill spindles are driven by the drive shaft to rotate synchronously, and the feed shaft pushes the connecting sleeve and the whole device to move downwards, accordingly the multi-hole one-step processing device realizes multi-hole simultaneous processing, and working efficiency is greatly improved. Besides, by means of one-step claming, installation error is reduced, processing accuracy is high, and the cost is low.
Description
Technical field
The utility model relates to a kind of cutting apparatus, particularly relates to a kind of time processing device to a plurality of bottom outlets of direction column of motorcycle connecting plate and screw.
Background technology
As everyone knows, direction column of motorcycle is the vitals of motorcycle, and a plurality of screws that are used to clamp damper or installing component are arranged on its connecting plate.The accuracy of manufacture of these screws is directly connected to the quality of motorcycle, and its working (machining) efficiency directly has influence on the manufacturing cost of direction post again.Traditional processing method is: use the drill jig clamping work pieces, and hole ground auger in a hole on drilling machine, hole of every brill need be moved a drill jig or repeat and be clamped once, not only makes the precision of connecting plate be difficult to guarantee that production efficiency is low, and manufacturing cost is also high.
The utility model content
The purpose of this utility model is to provide a kind of production efficiency height, and good processing accuracy can be carried out direction column of motorcycle connecting plate porous time processing device by the power on the motive power machine.
The purpose of this utility model can reach by following technical measures.A kind of direction column of motorcycle connecting plate porous time processing device, have a driving shaft, driving gear is equipped with in this driving shaft bottom, and this driving gear meshes with two idle wheels simultaneously, each idle wheel simultaneously and two auger spindle gears engaged, each auger spindle gear is solidly set on respectively on separately the auger spindle; All auger spindles pass the guiding cage plate of below, and this guiding cage plate is installed on the lead by fairlead, and this lead lower end is fixed on the pedestal.
Line shaft is installed on described driving shaft top, this line shaft is in bearing is installed in feed shaft, after the body upper plate is passed in described driving shaft bottom driving gear is installed, described body upper plate is installed on the body that is made of upper mounting plate, upper backup pad, lower installation board and lower supporting plate, and is fixed on the described guiding cage plate by the straight pin that passes this body; The central shaft two ends of described idle wheel are installed in respectively on upper mounting plate and the lower installation board; The upper end of described auger spindle is installed on the upper mounting plate, and auger spindle bottom and driving gear are positioned at body.
The utility model drives driving gear, idle wheel and auger spindle gear and rotates by using line shaft on the motive power machine (as drilling machine etc.), realizes that many auger spindles and drill bit rotate synchronously; The feed shaft promotion integral body of using on the motive power machine moves down along lead, and guarantees that by guiding mechanism auger spindle its axis under the effect of cutting force can not be offset; Thereby the realization primary feed is finished the purpose that porous is processed simultaneously.
Described feed shaft is installed in the upper end of coupling sleeve through latch, and this coupling sleeve lower end is fixed on the described body upper plate through screw.Being convenient to feed shaft drive body and transmission mechanism moves down.
Described driving shaft is up big and down small step axle, and this driving shaft and described line shaft mating part are tapered.Install firmly, cutting flexibly.
End cap is installed as axial limiting in the lower installation board bottom surface of described idle wheel central shaft correspondence.
Through liner plate cover plate is installed in described guiding cage plate bottom surface, and by being bolted on the guiding cage plate; Described auger spindle passes liner plate and cover plate, and the auger spindle lower end is that drill bit is installed head, and this installs the diameter of diameter greater than other position of auger spindle, is drilled with axial hole and radial hole on the installation head of auger spindle lower end.On the installation head of auger spindle, not only can adorn drill bit to realize boring, also can adorn screw tap, to realize tapping.
The utility model compared with prior art because under motive power machine driving shaft drove, many auger spindles rotated synchronously, the feed shaft of motive power machine promotes coupling sleeve and installs integral body to move down simultaneously, the realization porous is processed simultaneously, therefore, has greatly improved operating efficiency.Owing to only need a clamping, reduced the alignment error that the conventional art multiple clamping is brought, and, guaranteed product quality because the setting of guiding mechanism has greatly improved machining accuracy, reduced manufacturing cost.
Description of drawings
Below in conjunction with accompanying drawing specific embodiment of the utility model is further described.
Fig. 1 is a general structure schematic diagram of the present utility model;

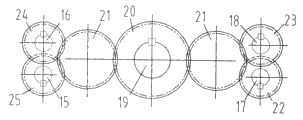

Fig. 2 is a gear drive fundamental diagram of the present utility model.
Among Fig. 1, Fig. 2,1 is template, and 2 is lead, 3 is fairlead, and 4 is cover plate, and 5 is liner plate, 6 are the guiding cage plate, and 7 is lower supporting plate, and 8 is lower installation board, 9 is upper backup pad, and 10 is upper mounting plate, and 11 is the body upper plate, 12 is coupling sleeve, and 13 is latch, and 14 is end cap, 15,16,17,18 be auger spindle, 19 is driving shaft, and 20 is driving gear, 21 is idle wheel, and 22,23,24,25 are the auger spindle gear, and 26 is packing ring, 27,28,29 is lining, and 30 is drill bit, and 31 is anchor clamps, 32 is workpiece, and 33 is pedestal, and 34 is feed shaft, 35 is line shaft, and 36 is straight pin.
The specific embodiment
See also Fig. 1, Fig. 2, a kind of direction column of motorcycle connecting plate porous time processing device be mainly by lead 2, fairlead 3, cover plate 4, liner plate 5, guiding cage plate 6 is lower carrier plate 7, lower installation board 8, upper backup pad 9, upper mounting plate 10, body upper plate 11, connect 12, latch 13, end cap 14, auger spindle 15,16,17,18, driving shaft 19, driving gear 20, idle wheel 21, auger spindle gear 22,23,24,25, packing ring 26, lining 27,2829, straight pin 36 is formed, and this processing unit (plant) top is connected with line shaft 35 with feed shaft 34 in the motive power machine, and motive power machine medium power axle 35 is in bearing is installed in feed shaft 34, feed shaft 34 is installed in the upper end of coupling sleeve 12 through latch 13, and these coupling sleeve 12 lower ends are fixed on the described body upper plate 11 through nail.Place worker 32 and anchor clamps 31 below auger spindle 15,16,17,18, anchor clamps 31 are installed on the pedestal 33.
Can further see from Fig. 1: described driving shaft 19 bottoms are passed body upper plate 11 backs driving gear 20 are installed, described body upper plate 11 is installed on the body that is made of upper mounting plate 10, upper backup pad 9, lower installation board 8 and lower supporting plate 7, described upper mounting plate 10, upper backup pad 9, lower installation board 8 and lower supporting plate 7 link to each other from top to bottom successively, and be fixed on the described guiding cage plate 6 by the straight pin 36 that passes this body, form a chamber, above-mentioned driving gear 20, idle wheel 21, auger spindle gear 22,23,24,25 all is positioned at this chamber.Screw in the chamber, packing ring 26, lining 27～29, end cap 14 are as axial limiting.The central shaft two ends of described idle wheel 21 are installed in respectively on upper mounting plate 10 and the lower installation board 8; End cap 14 is installed as axial limiting in lower installation board 8 bottom surfaces of described idle wheel 21 central shaft correspondences.The upper end of described auger spindle 17,18,16,15 is installed on the upper mounting plate 10, and the auger spindle lower end is all passed guiding cage plate 6, liner plate 5 and cover plate 4 successively.Through liner plate 5 cover plate 4 is installed in described guiding cage plate 6 bottom surfaces, and by being bolted on the guiding cage plate 6.Described auger spindle 17,18,16,15 lower ends are that drill bit is installed head, and this installs the diameter of a diameter greater than other position of auger spindle, is drilled with axial hole and radial hole on the installation head of auger spindle lower end.When drill bit 30, can be holed in auger spindle the time by screws clamp, when screw tap in auger spindle the time, can be carried out tapping by screws clamp.
According to the above-mentioned direction column of motorcycle connecting plate porous time processing device that assembles, be to work like this: after earlier workpiece 32 usefulness anchor clamps 31 location being clamped, open prime mover, the line shaft 35 of motive power machine begins rotation and drives driving shaft 19 and driving gear 20 rotations, rotate simultaneously with the idle wheel 21 driving auger spindle gears 22,23,24,25 and the auger spindle 17,18,16,15 of its engagement, because in auger spindle, drill bit is rotation synchronously also by screws clamp for drill bit 30; Meanwhile, prime mover feed system drives feed shaft 34 and moves down and promote coupling sleeve 12 and install integral body to move down, and begins boring.When hole drill arrived certain depth, the control system that matches was with it ordered about prime mover feed shaft 34 and is returned initial point, finishes time processing, and circulates with this.Above-mentioned motive power machine is a drilling machine, also can be other lathes.
Claims (6)
1. direction column of motorcycle connecting plate porous time processing device, it is characterized in that: have a driving shaft (19), driving gear (20) is equipped with in this driving shaft (19) bottom, this driving gear (20) meshes with two idle wheels (21) simultaneously, each idle wheel (21) simultaneously and two auger spindle gears (22,23 or 24,25) engagement, each auger spindle gear (22,23,24,25) is solidly set on respectively on separately the auger spindle (17 or 18 or 16 or 15); All auger spindles (17,18,16,15) pass the guiding cage plate (6) of below, and this guiding cage plate (6) is installed on the lead (2) by fairlead (3), and this lead (2) lower end is fixed on the pedestal (1).
2. want 1 described direction column of motorcycle connecting plate porous time processing device according to right, it is characterized in that: line shaft (35) is installed on described driving shaft (19) top, this line shaft (35) is in bearing is installed in feed shaft (34), described driving shaft (19) bottom is passed body upper plate (11) back driving gear (20) is installed, described body upper plate (11) is installed on the body that is made of upper mounting plate (10), upper backup pad (9), lower installation board (8) and lower supporting plate (7), and is fixed on the described guiding cage plate (6) by the straight pin (36) that passes this body; The central shaft two ends of described idle wheel (21) are installed in respectively on upper mounting plate (10) and the lower installation board (8); The upper end of described auger spindle (17,18,16,15) is installed on the upper mounting plate (10).
3. want 2 described direction column of motorcycle connecting plate porous time processing devices according to right, it is characterized in that: described feed shaft (34) is installed in the upper end of coupling sleeve (12) through latch (13), and this coupling sleeve (12) lower end is fixed on the described body upper plate (11) through screw.
4. want 1 or 2 described direction column of motorcycle connecting plate porous time processing devices according to right, it is characterized in that: described driving shaft (19) is up big and down small step axle, and this driving shaft (19) is tapered with described line shaft (35) mating part.
5. want 2 described direction column of motorcycle connecting plate porous time processing devices according to right, it is characterized in that: end cap (14) is installed in lower installation board (8) bottom surface of described idle wheel (21) central shaft correspondence as axial limiting.
6. want 1 or 2 described direction column of motorcycle connecting plate porous time processing devices according to right, it is characterized in that: through liner plate (5) cover plate (4) is installed in described guiding cage plate (6) bottom surface, and by being bolted on the guiding cage plate (6); Described auger spindle (17,18,16,15) lower end is all passed guiding cage plate (6), liner plate (5) and cover plate (4) successively, and the auger spindle lower end is that drill bit is installed head, this installs the diameter of a diameter greater than other position of auger spindle, is drilled with axial hole and radial hole on the installation head of auger spindle lower end.
