本实用新型公开了一种立式组合水罐，其至少包括有两立式水罐，水罐顶部设有一进水口，底部设有一出水口，于进水口一侧设有一可使该水罐与其相邻的水罐相连接的连接管，且该连接管上设有一入水口，水罐罐壁上设有一液位控制器，该液位控制器分别与所述进水口、出水口及入水口处的阀门开关相连；本实用新型设计合理，设有液位控制器，能自动给水罐补水、排水，有效防止水罐水位过高溢出或过低等现象；采用连接管连接相邻的水罐，且该连接管设有入水口，可同时从进水口与入水口注入液体，节省工作时间，如需生产不同产品或混入其它液体时，可直接从进水口注入其它液体，操作方便、效率高且保证了产品的质量，从而增强了企业竞争力，利于发展。
The utility model discloses a vertical combined water tank, which at least includes two vertical water tanks, a water inlet is arranged on the top of the water tank, a water outlet is arranged on the bottom, and a water outlet is arranged on the side of the water inlet to connect the water tank with the water tank. A connecting pipe connected to adjacent water tanks, and the connecting pipe is provided with a water inlet, and a liquid level controller is provided on the wall of the water tank, and the liquid level controller is connected with the water inlet, water outlet and water inlet respectively. The valve switch at the place is connected; the utility model has a reasonable design and is equipped with a liquid level controller, which can automatically replenish water and drain water to the water tank, effectively preventing the water level of the water tank from being too high, overflowing or too low; the connecting pipe is used to connect adjacent water tanks , and the connecting pipe is equipped with a water inlet, which can inject liquid from the water inlet and the water inlet at the same time, saving working time. If you need to produce different products or mix other liquids, you can directly inject other liquids from the water inlet, which is convenient and efficient. And ensure the quality of the product, thereby enhancing the competitiveness of enterprises, conducive to development.
Description
Technical field
The utility model relates to tank, is specifically related to a kind of Vertical Combination water pot.
Background technology
Traditional combination water pot, its function dullness can only store a kind of liquid, and water inlet is slow, and production efficiency is low; If in the time of need sneaking into other liquid, its troublesome poeration, step is various, after needing to import a liquid earlier, import another liquid again, waste time and energy, labour intensity is big, and be difficult to guarantee that liquid can mix equably, have influence on the quality of product, be unfavorable for market competition, and present water pot is difficult to control the water level in it, be prone to that water level is too high to be overflowed or water level is crossed situation such as low influence uses and occurred, it easily is inconvenient using.
The utility model content
The purpose of this utility model is, at the existing above-mentioned deficiency of existing combination water pot, provide a kind of rational in infrastructure, simple to operate, function many and can guarantee the Vertical Combination water pot of product design and water level easy to control.
For achieving the above object, technical scheme provided by the utility model is:
A kind of Vertical Combination water pot, it includes two standing vessels at least, described water pot top is provided with a water inlet, the bottom is provided with a water outlet, be provided with the connection pipe that a water pot that this water pot is adjacent is connected in described water inlet one side, and this connection pipe is provided with a water inlet, and described water pot tank skin is provided with a fluid level controller, and this fluid level controller links to each other with the valve switch at described water inlet, water outlet and water inlet place respectively.
Described water pot is three, is " one " font and arranges.
Described water pot is three, is triangularly arranged.
The radius of described water inlet is greater than the radius of going into import.
The radius of described water inlet is greater than the radius of water outlet.
The beneficial effects of the utility model are: the utility model design is ingenious, rational in infrastructure, adopt connection pipe to connect adjacent water pot, and this connection pipe is provided with water inlet, can inject liquid from water inlet and water inlet simultaneously, save work-hours, when producing different product or sneaking into other liquid, can inject other liquid from direct water inlet as need, easy to operate, the production efficiency height, owing to be to inject different liquids simultaneously, the liquid mixing degree of uniformity is improved greatly, guarantee the quality of product, thereby strengthened enterprise competitiveness, be beneficial to development; In addition, also be provided with fluid level controller, have functions such as control water pot draining and excessive low water level protection, realized giving water pot moisturizing, draining, and prevent effectively that the water pot water level is too high and overflow or phenomenon such as low excessively, guarantee normally to use.
Below in conjunction with accompanying drawing and embodiment, the utility model is further specified.
Description of drawings

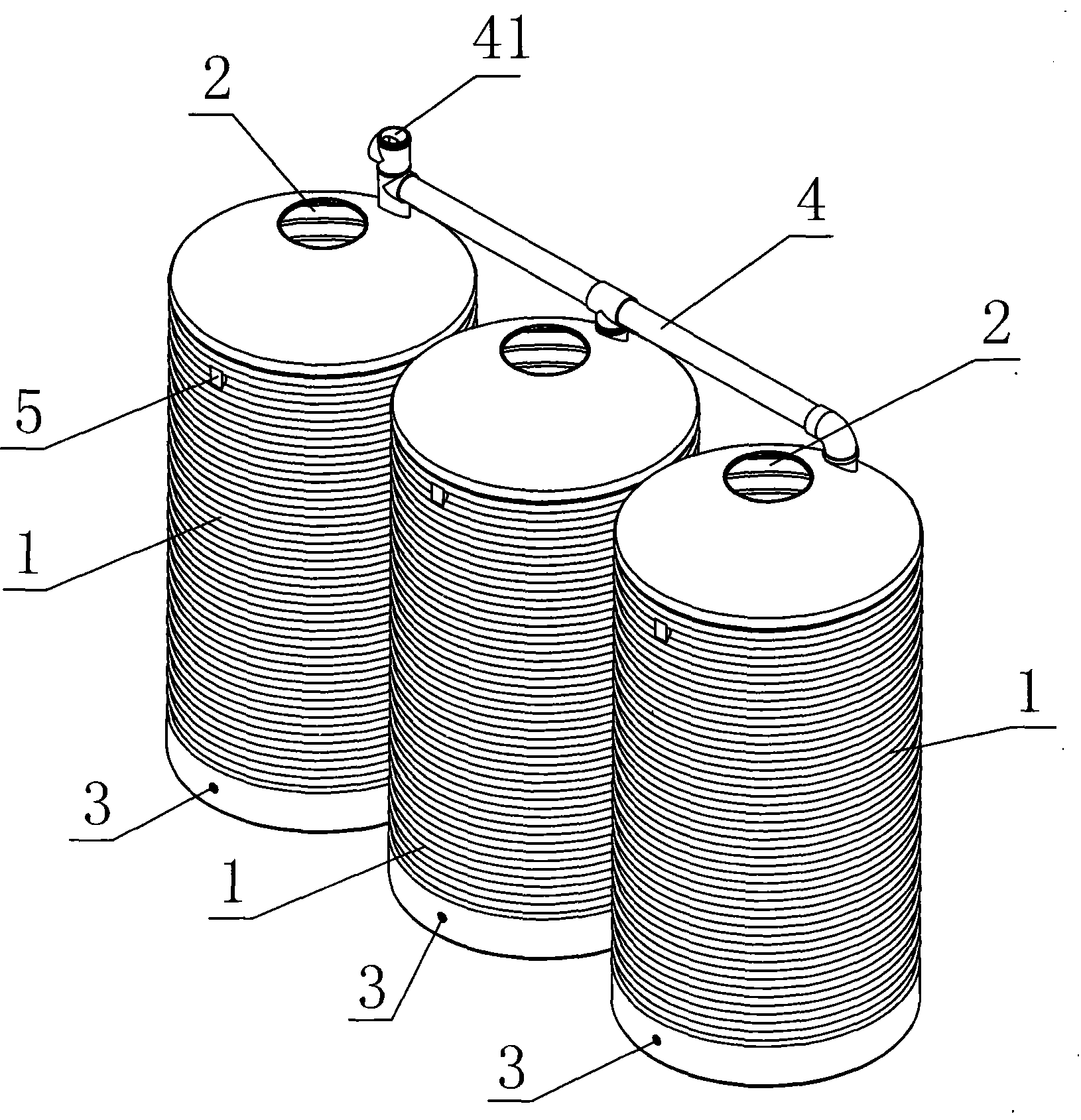

Fig. 1 is a perspective view of the present utility model;
Fig. 2 is the main TV structure scheme drawing of Fig. 1;
Fig. 3 is the plan structure scheme drawing of Fig. 1.
The specific embodiment
Referring to Fig. 1, Fig. 2 and Fig. 3, present embodiment provides a kind of Vertical Combination water pot, it includes three standing vessels 1, be arranged into " one " font, among other embodiment, the quantity that can set water pot 1 by kind and each hybrid parameter of required mixing material, and this water pot 1 can be arranged in triangle or other shape, to satisfy the demand in each place.Water pot 1 top is provided with a water inlet 2, the bottom is provided with a water outlet 3, be provided with the connection pipe 4 that a water pot 1 that this water pot 1 is adjacent is connected in described water inlet 2 one sides, and this connection pipe 4 is provided with a water inlet 41, can inject liquid from water inlet 2 and water inlet 41 simultaneously, save work-hours, when producing different product or sneaking into other liquid, can inject other liquid from direct water inlet 2 as need, easy to operate, the production efficiency height, owing to be to inject different liquids simultaneously, the liquid mixing degree of uniformity is improved greatly, guarantee the quality of product, thereby strengthened enterprise competitiveness, be beneficial to development; The radius of water inlet 2 is greater than the radius of going into import 41 simultaneously, and the radius of water inlet 41 is greater than the radius of water outlet 3, and reasonable in design is beneficial to production.
When using the utility model, can inject liquid from water inlet 2 and water inlet 41 simultaneously; When producing different product or sneaking into other liquid, can also can inject different liquid from directly injecting other liquid from water inlet 2 to each water pot 1 as need, easy to operate, enhance productivity greatly; In addition, owing to be to inject different liquids simultaneously, the mixture homogeneity of each liquid is improved greatly, thereby improve the quality of product, strengthened enterprise competitiveness, be beneficial to development.
As described in the utility model the foregoing description, adopt structure same or analogous and other tank of obtaining, all in the utility model protection domain with it.
Claims (5)
1. Vertical Combination water pot, it is characterized in that, it includes two standing vessels at least, described water pot top is provided with a water inlet, the bottom is provided with a water outlet, be provided with the connection pipe that a water pot that this water pot is adjacent is connected in described water inlet one side, and this connection pipe is provided with a water inlet, described water pot tank skin is provided with a fluid level controller, and this fluid level controller links to each other with the valve switch at described water inlet, water outlet and water inlet place respectively.
2. Vertical Combination water pot according to claim 1 is characterized in that: described water pot is three, is " one " font and arranges.
3. Vertical Combination water pot according to claim 1 is characterized in that: described water pot is three, is triangularly arranged.
4. Vertical Combination water pot according to claim 1 is characterized in that: the radius of described water inlet is greater than the radius of going into import.
5. Vertical Combination water pot according to claim 1 is characterized in that: the radius of described water inlet is greater than the radius of water outlet.
