Abstract

A multifunctional body-building equipment on a wall is composed of three parts of a main body body-building equipment steel frame, a movement platform and inserting components connected with the movement platform. The shape of the body-building equipment main body steel frame is a sheet-like structure, is fixedly installed on the wall, and is butted with the mobile movement platform to form a multifunctional body-building equipment. The steel frame of the main body body-building equipment is composed of a main body steel frame, a pulley, a spring bow, an upward pulling flat pipe, a strip-shaped eye which is arranged in the middle of the steel frame upright post and is provided for the upward pulling flat pipe to move upwards and downwards, a parallel bar frame round pipe, a chin-up handle frame, a downward pulling device pulley supporting frame, a downward pulling device hanging hook, a long pipe downward pulling device, a steel frame with hole slots, a round pipe with a bearing, a telescopic square pipe, a fixed pin, a spring bow upper fixing plate, a spring bow lower fixing plate, an idle spring bow fixing plate, a chest clamp mobile handle frame, steel wire rope stay wire, a handle with a rubber sleeve, a shaft roller with a sponge sleeve, a draw ring, a massage wheel, a waist vibrator and the like. Since characteristics of various body-building equipments can be combined, structure design of body-building equipment is optimized, and the multifunctional body-building equipment has small volume, saves occupied area, simple structure and complete function.

Description

Multi-gym on the wall

Technical field

The utility model relates to a kind of multi-gym, and volume is little, and function is complete, and it is wide to be fit to crowd's scope, belongs to the body-building apparatus technical field.

Background technology

Existing market multigym kind is a lot, be subjected to very much the consumer blue or green ignorant, begin to enter ordinary people family gradually, but the complete body-building apparatus of the little function of volume also seldom, especially promptly be with the barbell function, the fitness equipment that has simultaneously other tens motor functions does not again have, people need take exercise respectively on multiple fitness equipment, must purchase many cover fitness equipments if want multiple exercise, floor space is big, and is indoor can't holding, just very inconvenient in small-sized recreation room and family, and cost an arm and a leg, be difficult to realize.

Summary of the invention

In order to address the above problem, the purpose of this utility model is to provide a kind of multi-gym, by optimizing structure, be equipped with multiple connector with agent structure and be combined into the body-building apparatus that can be fit to multiple motion mode, simple in structure, multiple functional, with low cost, floor space is little, and especially the fitness equipment body frame in the agent structure separates with motion platform, and the fitness equipment body frame is fixed does not have floor space on the wall, motion platform also can arbitrarily be placed Anywhere when giving up doing exercise, reduced floor space more, it is wide to be suitable for crowd's scope, is particularly suitable for using in small-sized recreation room and the family.

The technical scheme that its technical problem that solves the utility model adopts is: multi-gym, it is made up of main body fitness equipment steelframe and the connected connector three parts of motion platform.Fitness equipment main body steelframe shape slabbing structure is fixedly installed on the wall, and docks the composition multi-gym with the motion platform of activity.The steelframe of main body fitness equipment is by the main body steelframe, pulley, spring bow, on draw flat tube, the rectangular eye that draws flat tube to move up and down on having in the middle of the steel frame column, parallel bars frame pipe, the chin-up handle frame, the pull-down unit pulley bracket, the pull-down unit hook, the long tube pull-down unit, channel-section steel frame with holes, tape spool holds pipe, scalable square tube, fixing pin, the spring bow upper mounted plate, the spring bow bottom plate, idle spring bow fixed head, folder chest flexible handle frame, the steel wire rope backguy, band gum cover handle, band sponge sleeve rod, draw ring, massage wheels, the waist electromagnetic shaker, sway one's hips and rotate station pin dish, can on turn over seat, the stent-type backrest, rubber blanket constitutes.Motion platform by the motion platform plate, long tiltedly draw support, can roll over entirely and partly turn up foreleg, door assembly with hinge and glass in right hand and left travel(l)ing rest, be connected pivot pin, dumbbell hanger, dumbbell, extension spring bow, be with sponge sleeve rod to constitute.The main body steelframe is that steel pipe is welded into frame structure, main body steelframe upper end is equipped with the chin-up handle, the top front end is equipped with the pull-down unit pulley bracket, pull-down unit pulley bracket front end is equipped with pulley, 5 pulleys are housed on end floor beam on the main body steelframe, all be wound with the steel wire rope backguy on the pulley, steel wire rope backguy rear end all with on draw flat tube to be connected, front end is connected with folder chest flexible handle frame with draw ring respectively, the centre is provided with a steel wire rope backguy, removably connect with the long tube pull-down unit by pulley on the pull-down unit pulley bracket and pull-down unit hook.It is fixedly connected by fixing pin that two scalable square tubes are housed at the entablature two ends of main body steelframe, also is welded with channel-section steel frame axle bed up and down on two edge columns of main body steelframe, links mobilizable channel-section steel frame with holes.Respectively be welded with a parallel bars frame pipe in main body steelframe both sides.Folder chest flexible handle frame also is installed in main body steelframe front, band gum cover handle and band sponge sleeve rod are equipped with in folder chest flexible handle frame both sides, on the column of folder chest flexible handle frame and main body steelframe a pulley is arranged respectively, be fixed with rubber blanket between the crossbeam of folder chest flexible handle frame and main body steelframe.The rectangular eye that draws flat tube to move up and down on having in the middle of the steel frame column is fixed at main body steelframe middle part the stent-type backrest is housed on the wall, on draw flat tube in stent-type backrest back, operation up and down in the rectangular eye of flat tube both sides in the middle of steel frame column.On body frame sill below the backrest, be equipped with can on turn over seat.The crossbeam both sides of main body steelframe bottom and on draw a plurality of spring bows respectively be housed between the transverse tube, each spring bow is hung in the upper end and is welded in the circular hole of the extension spring bow upper mounted plate that draws the flat tube below, the lower end of spring bow hangs over and is welded on the main body steelframe, on the hook of the spring bow bottom plate on the sill, on the spring bow bottom plate, be provided with idle spring bow fixed head hook.On the column of main body steelframe left side, be welded with the support of waist electromagnetic shaker, the waist electromagnetic shaker is housed on the support.Being equipped with on the column of main body steelframe right side can the left side massage wheels support that turn 90 degrees, and massage wheels is housed on the support, the right side column bottommost, be connected with can about movable swaying one's hips rotate station pin dish.On main body steelframe, upper and lower crossbeam, be welded with sieve bolt eye that is installed on the metope.Motion platform and main body steelframe are splits, motion platform is a hollow-core construction, the rear portion supporting leg is fixed, anterior supporting leg can be turned up entirely and partly turn up, motion platform tiltedly draws support to fixedly connected with the front leg strut screw by long, the motion platform front end is connected with band sponge sleeve rod with steel wire rope, be placed with a pair of dumbbell in the motion platform rear end lower by the dumbbell hanger, the motion platform rear end also is provided with the door assembly with hinge and glass in right hand and left travel(l)ing rest, its upper end is connected on the motion platform hinge axis, fixedly connected with the motion platform back leg with the connection pivot pin that can transfer in the lower end, door assembly with hinge and glass in right hand and left travel(l)ing rest lower end also is provided with band sponge sleeve rod, band sponge sleeve rod center fixed has the steel wire rope backguy, and the steel wire rope backguy other end passes through pulley, the extension spring bow is connected with motion platform foreleg root.The connector that is connected with motion platform with main body fitness equipment steelframe has: bend pipe pull-down unit, singlehanded draw ring, band hook portable plate, dihedral steel body support frame, twoly shoulder formula handle frame, the flat chest expander support of top hydrothorax, cervical traction suspension member, barbell step tread plate, be stuck in band sponges cover support, sandbag, internal organs on the both shoulders crouch support support, massage wheels.Hydrothorax flat chest expander support in top is to be interconnected and formed by band sponge top plastron, parallel double tube, the handle base of two-tube band nylon jacket, pulling force handle, clamp, movable supporting legs, supporting leg transverse tube.The cervical traction suspension member is to be interconnected and formed by link, bail connecting line, bail, buckle.The band sponges cover support that is stuck on the both shoulders is to be welded to each other and to be formed by dogging shoulder bend pipe, pulling force handle, pillar, lanyard circle.The connector that is connected with the main body fitness equipment patches with motion platform with the main body fitness equipment respectively and is connected.

The beneficial effects of the utility model are: multi-gym is owing to combine various body-building apparatus characteristics, optimize the body-building apparatus structural design, it is little to make it have a volume, save floor space, simple in structure, multiple functional, main body fitness equipment and motion platform can directly be finished 17 body-building functions and take exercise, can increase by 21 kinds again after connecting 14 kinds of connectors respectively, amounting to 38 kinds of body-building functions takes exercise, and price is cheap, body-building, function of bodybuilding that allowing just has in the gymnasium are more pressed close to the common people and are reached everybody health, are particularly suitable for small-sized unit and family and use.

Description of drawings

Below in conjunction with drawings and Examples the utility model is further specified

Fig. 1 be on the utility model wall multi-gym face structural representation.

Fig. 2 is the side-looking structural representation of Fig. 1.

Fig. 3 is the side-looking structural representation of motion platform.

Fig. 4 is a band hook portable plate.

Fig. 5 is a dihedral steel body support frame.

Fig. 6 is an internal organs support for sleeping in support

Fig. 7 is a parallel bars formula handle frame stereogram.

Fig. 8 is singlehanded draw ring.

Fig. 9 is a sandbag

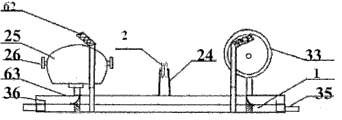

Figure 10 is the waist electromagnetic shaker of Fig. 1 and the rotation station pin dish plan structure schematic diagram that sways one's hips.

Figure 11 is the cervical traction suspension member.

Figure 12 is the flat chest expander support of top hydrothorax.

Figure 13 is the band sponges cover support front view that is stuck on the both shoulders.

Figure 14 is the band sponges cover bracket side view on the both shoulders of being stuck in of Figure 13.

Figure 15 step tread plate bottom view

Figure 16 tape spool holds pipe

Figure 17 is the bend pipe pull-down unit.

Figure 18 step tread plate side view

Figure 19 is the side view of the internal organs support for sleeping in support of Fig. 6

Figure 20 is the vertical view of motion platform

Figure 21 is special-purpose foam pad

Number in the figure

1, main body steelframe 2, pulley 3, spring bow 4, on draw flat tube 5, long tube pull-down unit 6, bend pipe pull-down unit 7, draw ring 8, folder chest flexible handle frame 9, steel wire rope backguy 10, band gum cover handle 11, band sponge sleeve rod 12, motion platform 13, dumbbell 14, length is tiltedly drawn pole 15, long tension spring bow 16, pull-down unit hook 17, door assembly with hinge and glass in right hand and left travel(l)ing rest 18, band hook portable plate 19, dumbbell hanger 20, rubber blanket 21, handle 22 below the platform, parallel bars frame intubate 23, both hands draw ring 24, pull-down unit pulley bracket 25, waist electromagnetic shaker 26, electromagnetic shaker camshaft 27, dihedral steel body support frame 28, spring bow upper mounted plate 29, spring bow bottom plate 30, idle spring bow fixed support 31, sandbag 32, connect pivot pin 33, sway one's hips and rotate station pin dish 34, parallel bars formula handle frame 35, scalable square tube 36, fixing pin 37, the flat chest expander support 38 of top hydrothorax, band sponge top plastron 39, parallel double tube 40, the handle base 41 of two-tube band nylon jacket, pulling force handle 42, movable supporting legs 43, supporting leg transverse tube 44, clamp 45, cervical traction suspension member 46, link 47, bail 48, buckle 49, bail connecting line 50, be stuck in the band sponges cover support 51 on the both shoulders, lanyard circle 52, pillar 53, pulling force handrail 54, dogging shoulder bend pipe 55, can on turn over seat 56, backrest 57, back bracket 58, the fixing eye 59 of gong bolt, massage wheels support axle bed 60, the adjustable angle massage wheels 61 that turn 90 degrees, channel-section steel 62 with holes, chin-up handle frame 63, channel-section steel frame 64, angle type support clamp 65, tape spool holds pipe 66, support support 67 crouches at the mansion, step tread plate 68, band hook portable plate clamp 69, motion platform back leg 70, the foreleg 71 that motion platform can partly be turned up, on draw flat tube lower spring 72, tape spool holds pipe bearing 73, can on turn over seat axle 74, on draw flat tube stroke long strip type eye 75, chin-up handle frame fixed head 76, adjust height pin eye 77, channel-section steel frame axle 78, waist electromagnetic shaker support 79, sponge foam pad 80, eye 81 in the middle of the foam pad, the long strut fixation nail 82 that tiltedly draws, the platform foreleg

The specific embodiment

Embodiment 1

See also Fig. 1 to Figure 21, the multi-gym on the wall, it is made up of main body fitness equipment steelframe and the connected connector three parts of motion platform.Main body fitness equipment steelframe be by main body steelframe, pulley, spring bow, on draw flat tube, pull-down unit hook, long tube pull-down unit, folder chest flexible handle frame, steel wire rope backguy, band gum cover handle, band sponge sleeve rod, waist electromagnetic shaker, sway one's hips and rotate station pin dish, parallel bars frame pipe, chin-up handle frame, pull-down unit pulley bracket, channel-section steel frame with holes, massage wheels, scalable square tube, fixing pin, support backrest, can on turn over seat, spring bow upper mounted plate, spring bow bottom plate, idle spring bow fixed head, draw ring, rubber blanket, the fixing eye of Luo bolt and constitute.Motion platform is by motion platform plate, dumbbell hanger, dumbbell, band sponge sleeve rod, longly tiltedly draw support, can turn up foreleg, extension spring bow, door assembly with hinge and glass in right hand and left travel(l)ing rest, connect pivot pin and constitute.Main body steelframe (1) is to be welded into frame structure by steel pipe, main body steelframe (1) upper end is equipped with chin-up handle (62), the top front end is equipped with pull-down unit pulley bracket (24), pull-down unit pulley bracket (24) front end is equipped with pulley (2), upward on the end floor beam 5 pulleys (2) are housed at main body steelframe (1), all be wound with steel wire rope backguy (9) on the pulley (2), steel wire rope backguy (9) rear end all with on draw flat tube (4) to be connected, front end is connected with folder chest flexible handle frame (8) with draw ring (23) respectively, the centre is provided with a steel wire rope backguy (9), removably connects with long tube pull-down unit (5) by pulley (2) on the pull-down unit pulley bracket (24) and pull-down unit hook (16).At the entablature two ends of main body steelframe (1), it is fixedly connected by fixing pin (36) that two scalable square tubes (35) are housed.On two edge columns of main body steelframe (1), also be welded with channel-section steel frame (63) axle bed up and down, link mobilizable channel-section steel frame with holes (63).Channel-section steel frame with holes (63) is upwards mentioned separately, turn 90 degrees forward then to fall to being stuck in the shell, two channel-section steels with holes (61) are the phase counterpart, mouthful in the pipe (65) that two ends have bearing just can be housed, pipe (65) two ends be fixed with steel wire rope backguy (9) with on draw flat tube (4) directly to be connected.Respectively be welded with a parallel bars frame circle intubate (22) in main body steelframe (1) both sides.Folder chest flexible handle frame (8) also is installed in main body steelframe (1) front, band gum cover handle (10) and band sponge sleeve rod (11) are equipped with in folder chest flexible handle frame both sides, on the column of folder chest flexible handle frame (8) and main body steelframe (1) pulley (2) is arranged respectively, be fixed with rubber blanket (20) between the crossbeam of folder chest flexible handle frame (8) and main body steelframe (1).At main body steelframe (1) middle part the support backrest (56) that is installed on the metope is arranged.The below of support backrest (56) the sill middle part be equipped with can on turn over seat (55), being provided with in the middle part of main body steelframe (1) draws flat tube (4) to move up and down in support backrest (56) back, on draw the rectangular operation up and down in the eyes that the flat tube two ends pass in the centre of steelframe (1) column tube, last drawing row's 12 spring bows (3) respectively are housed below flat tube (4) two ends, each spring bow (3) upper end is hung in the circular hole that is welded on the spring bow upper mounted plate (28) that draws flat tube (4) below, the lower end of spring bow (3) hangs on the hook that is welded on the spring bow bottom plate (29) on main body steelframe (1) sill, is provided with idle spring bow fixed head (30) hook on spring bow bottom plate (29) in addition.Below main body steelframe (1) left side channel-section steel with holes (61), the support of waist electromagnetic shaker (25) is installed, waist electromagnetic shaker (25) is housed on the support.The massage wheels of 90 degree that can turn left is housed at the middle part of main body steelframe (1) right side column square steel, and the bottommost chain of right side column square steel is connected to mobilizable swaying one's hips and rotates station pin dish (33).Main body steelframe (1) is separated with motion platform (12), motion platform (12) is a hollow-core construction, the back leg of motion platform (12) and landing slab are the screw fixed installations, motion platform (12) plate is fixedlyed connected by hook with foreleg by the long support (14) that tiltedly draws, foreleg also can partly be turned up and turn up entirely, motion platform (12) front end is connected with band sponge sleeve rod (11) with steel wire rope, be placed with a pair of dumbbell (13) in motion platform (12) rear end lower by dumbbell hanger (19), motion platform (12) rear end also is provided with door assembly with hinge and glass in right hand and left travel(l)ing rest (17), its upper end is linked on the connecting axle of motion platform (12) rear end, the lower end is connected with motion platform (12) back leg with connecting pivot pin (32), door assembly with hinge and glass in right hand and left travel(l)ing rest (17) lower end also is provided with band sponge sleeve rod (11), band sponge sleeve rod (11) center fixed has steel wire rope backguy (9), and steel wire rope backguy (9) other end is by pulley (2), extension spring bow (3) is connected with motion platform (12) foreleg root.

Embodiment 2

See also Fig. 1, Fig. 2, Fig. 8, Fig. 9, Figure 11, Figure 17, with embodiment 1, long tube pull-down unit (5) is taken off from pull-down unit hook (16), bend pipe pull-down unit (6), singlehanded draw ring (7), sandbag (31), cervical traction suspension member (45) are hung on the hook (16) according to the exercise demand.

Embodiment 3

See also Fig. 1, Fig. 2, Fig. 7, with embodiment 1, will two shoulder formula handle frame (34) two ends and insert the two of main body steelframe (1) both sides and shouldering in the frame circle intubate (22).

Embodiment 4

See also Fig. 1, Fig. 2, Fig. 4, with embodiment 1, will tiltedly hang on the staple at support backrest (56) two ends with the hook that hook portable plate (18) is gone up front end, also can tiltedly hang on door assembly with hinge and glass in right hand and left travel(l)ing rest (17) axle of motion platform (12) rear end.

Embodiment 5

See also Fig. 1, Fig. 2, Fig. 5, with embodiment 1, with the hook of dihedral steel body support frame (27) hang on door assembly with hinge and glass in right hand and left travel(l)ing rest (17) axle, the other end firmly becomes one by the shaft lock of pin with band sponge sleeve rod (11).

Embodiment 6

See also Fig. 1, Fig. 2, figure (13), with embodiment 1, with the band sponges cover support (50) that is stuck on the both shoulders, the lanyard circle (51) of front hangs up steel wire rope (9), the pulley (2) below seat (55) is connected on the pull-down unit hook (16).

Embodiment 7

See also Fig. 1, Fig. 2, Figure 12, with embodiment 1, the clamp (44) on the flat chest expander support of top hydrothorax (37) is stuck on the gim peg at backrest (56) two ends, bottom, put down movable supporting legs (42), supporting leg transverse tube (43) falls to the ground.

Embodiment 8

See also Fig. 1, Fig. 2, Figure 15, Figure 16, with embodiment 1, will shoulder the clamp on the bell step tread plate (67), the tape spool that snaps in the channel-section steel with holes (61) holds on the pipe (65).

Embodiment 9

See also Fig. 1, Fig. 2, Figure 16, Figure 18, be stuck on door assembly with hinge and glass in right hand and left travel(l)ing rest (17) axle or be stuck in tape spool with embodiment 1, with special-purpose foam pad and hold on the pipe (65).

Use is: after main body fitness equipment steelframe was fixed on the metope, the connector that is connected with motion platform with the main body fitness equipment is complete can to carry out following 38 body-building function exercise activities.

1, " sitting posture chest expander folder chest (butterfly folder chest) " earlier can on turn over seat face (55) and put down, above being sitting in, the people leans against on the support backrest (56), stress on both hands and press from both sides chest flexible handle frame (8) band gum cover handle (10), wrist abuts against on the band sponge sleeve rod (11), draw to front button and to do the action of folder chest, folder chest flexible handle frame (8) is by steel wire rope (9), pulley (2) draws flat tube (4) on driving, pulling spring (3), dynamics is adjustable to and is fit to oneself, increase and decrease spring (3) exactly, idle spring hangs on the hook of idle spring bow, finishes the action of sitting posture chest expander folder chest.

2, " standing posture chest expander folder chest " people faces or stands back to fitness equipment, stresses on both hands draw ring (23), and ventrad is detained repeatedly and pulled into the action of standing posture folder chest.

3, " drop-down behind sitting posture chest expander throat, the neck " earlier can on turn over seat face (55) and put down, above the people was sitting in, it was drop-down to stress on both hands long tube pull-down unit (5), drew flat tube (4) by steel wire rope (9), pulley (2) on driving, pulling spring (3) is finished drop-down action behind throat, the neck.

4, " the standing posture chest expander is tiltedly drop-down " taken long tube pull-down unit (5) earlier from pull-down unit hook (16), changes bend pipe pull-down unit (6), and the people stands in the face of before the fitness equipment, and both hands are held bend pipe pull-down unit (6) handle, and ventrad threshes drop-down action.

5, " the standing posture single armed inwardly draws training " taken long tube pull-down unit (5) earlier from pull-down unit hook (16), changes singlehanded draw ring (7), and the people stands in the face of before the fitness equipment body frame, and one hand is held handle (7), and curved boom inwardly draws, and finishes and draws training in the single armed.

6, " sitting ground stay cord (level is rowed the boat) " hangs over long steel wire rope (9) on the pull-down unit hook (16) earlier, by can on turn over pulley (2) below the seat (55) and turn over and hang on the bend pipe pull-down unit (6), the people rides on the sandbag (31) in the face of fitness equipment, pull to the front, finish and sit ground stay cord action.

7, " sitting posture internal organs portion flesh song is stretched training " hangs over long steel wire rope (9) on the pull-down unit hook (16) earlier, pulley below seat (2), the other end hangs up on the band sponges cover support (50) that is stuck on the both shoulders, the people is sitting on the sandbag (31) back to fitness equipment, the band sponges cover support (50) that is stuck on the both shoulders is stuck on the both shoulders, and both hands are held pulling force handrail (53) and are bent forward and finish the waist song and stretch action.

8, " training of level frame top chest chest expander " earlier the clamp on the flat chest expander support of top hydrothorax (37) is stuck on the support backrest lower end, put down movable supporting legs (42), long steel wire rope (9), be suspended on the handle base (40) of two-tube band nylon jacket, the other end by can on turn over pulley (2) under the seat (55) and be suspended on the pull-down unit hook (16), the people is sitting on the sandbag (31), both hands are held pulling force handle (41), pull to the front, finish top chest chest expander training.

9, " gantry frame type thruster row the boat push away chest training " gantry frame type thruster is rowed the boat and is pushed away the chest training: gantry frame type sitting posture thruster (58) 30 centimeters of pull-ups forward, be transferred to the position of withstanding portal frame on the pipe (65) that tape spool is held and block with pin, gantry frame type sitting posture thruster (58) is tiltedly propped can not return, pipe is put into the pipe shelves, portable plate (18) upper end is hung on body frame (1) central sill, on the pipe of lower end, the people is sitting on the motion platform (12), low back leans against on the portable plate (18), the handle (73) that both hands are held on the gantry frame type sitting posture chest expander pushes away forward, finishes the thruster training of rowing the boat.

10, " chin-up " people faces or back to fitness equipment, extends upwardly and hold chin-up support (62) handle, and shank bends up backward, moves up and down to finish the chin-up action.

11, " training of parallel bars formula both arms flesh " parallel bars formula handle frame (34) is inserted in the parallel bars frame garden intubate (22) of fitness equipment body frame (1), both hands are held the parallel bars handle, with arm strength health are moved up and down.

12, " waist vibrating function " hangs over the belt on the waist vibrator (25) on the electromagnetic shaker camshaft (26), is enclosed within on the low back then to be close to, and starts the vibration of power switch waistband, finishes the waist vibration.

13, " massage wheeled shank massage " mentioned a left side with the massage wheels (60) on the column of fitness equipment body frame (1) right side and turn 90 degrees to put down and be stuck in the shell, and the people stands with one foot to the knee, and other one leg is placed on the massage wheels back pulling of going forward, and finishes the shank massage.

14, " the stand-type function of turning " will sway one's hips and rotate station leg dish (33) and be put on the ground, and above the people stood in, both hands were held on the steel frame column, and upper body is motionless, turns about the lower part of the body and finishes the action that sways one's hips back and forth.

15, " adjustable height leg pressing " elder generation rotates 90 degree forward separately with the channel-section steel frame (63) on both sides, tape spool is held pipe (65) again and is placed in the channel-section steel (61), is fixed on the adjustable up and down relevant position with pin (64).It is preceding that the single leg of people stands in fitness equipment body frame (1), and being placed on the another heel on the pipe (65) forward, the mansion body carries out the leg pressing action.

16, " step on waist and step on the back of the body " and 90 degree are put up at gantry propped entirely, a people lies on the landing slab (12), and another people steps on the back of the body, waist to two arm framves on a portal frame that gets up.

17, " warming up before the instruction has the nitrogen training with the up/down steps formula " blocks portable plate (18) on the internal organs support for sleeping in support (66), and parallel motion platform (12) side that is placed on becomes step, and people's up/down steps is done aerobic training.

18, " dynamics adjustable cervical spine traction function ": many and few with spring bow (3) quantity, adjust needed traction dynamics, idle spring bow (3) is suspended on the idle spring bow fixed head (30), link (46) on the cervical traction suspension member (45) is hung on the pull-down unit hook (16), open the buckle (48) on the bail (47) that connects by 3 bail connecting lines (49), the people labour contractor that standing puts in the bail (47), buckle buckle (48), slowly down be sitting in can on turn on the seat (55), finish the cervical traction function.

19, " sandbag training " sandbag (31) is hung on the pull-down unit hook (16), do and hit the sandbag action.

20, " barbell crouch to push away chest or barbell is narrow pushes away " is earlier with the channel-section steel frame (63) on both sides pull-up 90 degree forward separately, tape spool being held pipe (65) is placed in the channel-section steel (61) again, be fixed on the adjustable up and down relevant position with pin (64), the steel wire rope (9) at pipe (65) two ends directly hung over draw on the flat tube (4), become T-shaped to be placed in the middle of the fitness equipment body frame (1) with steelframe motion platform (12).The people lies on platform (12) plate, and both hands are held pipe (65) and upwards promoted, and drives push-and-pull flat tube (4) and pulling spring (3), finishes pushing away the chest action.

21, " the reclining type barbell pushes away chest, barbell is narrow pushes away " elder generation is with the channel-section steel frame (63) on both sides, rotate 90 degree separately forward, tape spool being held pipe (65) is placed in the channel-section steel (61) again, be fixed on the adjustable up and down relevant position with pin (64), the steel wire rope (9) at pipe (65) two ends directly hung over draw on the flat tube (4), it is middle to become T-shaped to be placed on fitness equipment body frame (1) motion platform (12), the hook of portable plate (18) is tiltedly hung on the pipe (93) in the pipe retaining (91) of two edge columns, the other end of portable plate (18) is placed on the motion platform (12).The people reclines on portable plate (18), and both hands are held tape spool and held pipe (65) and upwards push away chest, finishes the action of barbell cant chest.

22, " barbell is elected behind sitting posture throat, the neck " rotates 90 degree forward separately with the channel-section steel frame (63) on both sides earlier, and the steel wire rope (9) that the interior tape spool of channel-section steel (63) is held pipe (65) directly hangs over and draws on the flat tube (4).The people be sitting in can on turn over and make the throat barbell on the seat (55) and elect, or be sitting on the landing slab (12) back to fitness equipment and do back press, both hands are held pipe (65) and are upwards lifted, and draw flat tube (4) in the drive, finish barbell and elect action.

23, " tiltedly the sitting posture barbell pushes away chest " rotates 90 degree forward separately with the channel-section steel frame (63) on both sides earlier, tape spool being held pipe (65) is placed in the channel-section steel (61) again, be fixed on the adjustable up and down relevant position with pin (64), the steel wire rope (9) at pipe (65) two ends directly hung over draw on the flat tube (4), it is middle to become T-shaped to be placed on fitness equipment body frame (1) motion platform (12), the hook of portable plate (18) is tiltedly hung on the fixed axis on both sides, backrest (56) plate upper end, portable plate (18) lower end is placed on the motion platform (12).The people leans to and is sitting on the portable plate (18), and both hands are held pipe (65) and upwards pushed away, and finishes the action of barbell cant chest.

24, " barbell weight lifting " tape spool is held pipe (65) adjust to and be fit to own going up and elect height and position and hang up steel wire rope, people's fitness equipment both feet difference dorsad opens and stands under the pipe, the movement work is made at two hand ordinary grip pipe two ends.

25, " hard draw " rotates 90 degree forward separately with the channel-section steel frame (63) on both sides earlier, tape spool being held pipe (65) is placed in the channel-section steel (61) again, be placed on fixing the doing on the hard draw relevant position of pin (64), the steel wire rope (9) at pipe (65) two ends directly hung over draw on the flat tube (4).With portable plate (18) be stuck in the mansion crouch be placed on the fitness equipment body frame on the support support (66) before, the people stands in portable plate (18) and goes up to squatting down, the both hands palm catches barbell pipe (65) directly to stand up downwards, draws flat tube (4) and pulling spring (3) in the drive, finishes the hard draw action.

26, " barbell deep-knee-bend " rotates 90 degree forward separately with the channel-section steel frame (63) on both sides earlier, tape spool being held pipe (65) is placed in the channel-section steel (61) again, be fixed on the adjustable up and down relevant position with pin (64), the steel wire rope (9) at pipe (65) two ends directly hung over draw on the flat tube (4), the people squats and has resisted pipe (65) to stand with shoulder down at pipe (65), finishes the deep-knee-bend action.

27, " barbell is curved to be lifted " elder generation rotates 90 degree forward separately with the channel-section steel frame (63) on both sides, two channel-section steels with holes (61) are the phase counterpart, the pipe that the two ends tape spool is held (65) is placed in the channel-section steel (61) again, adjust highly suitable curved the act by channel-section steel 61 with holes, on the fixing relevant position of pin (64), the steel wire rope (9) at pipe (65) two ends is directly hung over draw on the flat tube (4) again.The people is sitting on the landing slab (12) in the face of the fitness equipment body frame, and the both hands palm is upwards held the upwards curved act of barbell pipe (65), drives push-and-pull flat tube (4) and pulling spring (3) then, finishes the curved movement of barbell and does.

28, " before the shank, side, post-tensioning function " steel wire rope backguy (9) pass can on turn over pulley (2) under the seat, the rear end hangs up singlehanded draw ring (7), with the channel-section steel frame (63) on both sides pull-up 90 degree forward separately, tape spool being held pipe (65) is placed in the channel-section steel (61) again, be fixed on the adjustable up and down relevant position with pin (64), the people just, side, anti-, face stand on the ground, a footmuff is on singlehanded draw ring (7), both hands are held tape spool and are held pipe (65), forward, backward or the side lift, finish shank and lift pulling and do.

29, " formula of lying leg song is stretched and pedaled barbell exercising " is stuck in tape spool to step tread plate (67) and holds on the pipe (65), the foreleg of motion platform plate (12) (70) is turned up half, the rear end becomes T-shaped in the middle of being placed on fitness equipment body frame (1), the people lies on oblique motion platform (12) plate upside down, both hands are held the handle (21) below the motion platform, both legs are pedaled step tread plate (67) song and are stretched, and finish the leg song and stretch and pedal barbell exercising.

30, " sit-ups fully " sit-ups fully: the people is sitting in the rear end of landing slab (12), the position of two leg knee nests is placed on the axle of travel(l)ing rest (17), two tiptoes catch on the axle rod (11) that is installed in door assembly with hinge and glass in right hand and left travel(l)ing rest (17) lower end band sponges cover, lie in motion platform (12) then and upward health is stood up again, finish complete sit-ups action with the strength of tiptoe.

31, " formula that lies low sit-ups " earlier will be with the hook of hook portable plate (18), hang on door assembly with hinge and glass in right hand and left travel(l)ing rest (17) axle, the people lies on the portable plate, the band sponge axle rod (11) of landing slab front is taken above the portable plate, catch on the band sponge sleeve rod (11) with double-legged point, extended legs with thighs is with the strength that tiptoe catches on, and health is sat up and then lies down, and the formula sit-ups action that lies low is finished in motion repeatedly.

32, " the complete sit-ups of reclining type " motion platform plate (12) foreleg is packed up, landing slab becomes the height skewback, the people lies on the height inclined-plane motion platform (12) upside down, the position of two leg knee nests is placed on the axle of travel(l)ing rest (17), two tiptoes catch on the axle rod (11) that is installed in door assembly with hinge and glass in right hand and left travel(l)ing rest (17) lower end band sponges cover, and firmly health sits up and finished the full sit-ups of reclining type.

33, " sitting posture, the formula of lying shank song are stretched " is with door assembly with hinge and glass in right hand and left travel(l)ing rest (17) lower end, transfer to the pivot pin (32) that is connected on the following leg of motion platform (12), the people is sitting in motion platform (12) rear end and catches on the band sponge sleeve rod (11) that is installed in door assembly with hinge and glass in right hand and left travel(l)ing rest (17) lower end with two tiptoes, by steel wire rope (9), drive extension spring bow (15) below the motion platform (12) by pulley (2) again, finish sitting posture, the formula that lies low shank song stretches action.

34, " prostrate shank song is stretched " earlier will be with the hook of hook portable plate (18), hang on door assembly with hinge and glass in right hand and left travel(l)ing rest (17) axle, again with triangle steel body support frame (27), be stuck on door assembly with hinge and glass in right hand and left travel(l)ing rest (17) axle, and pin by pin with lower end (17) and to become one, the people is prostrate on band hook portable plate (18), is installed in band sponge sleeve rod (11) on the dihedral steel body support frame (27) with heel lift, finishes prostrate shank song and stretches action.

35, " sitting posture dumbbell flying bird, dumbbell elect " people directly be sitting in can on turn on the seat (55), lean against hand-held dumbbell (13) on the support backrest, finish that dumbbell is elected, the action of dumbbell flying bird.

36, " tiltedly sitting posture dumbbell flying bird, dumbbell elect " tape spool held pipe (65) be placed on the adjustment height pin eye (76) higher in the channel-section steel frame (63), band hanger plate (18) is tiltedly hung over tape spool to be held on the pipe (65), band hanger plate (18) tiltedly is placed on the motion platform (12), people's bipod is put on the ground, tiltedly be sitting on the landing slab (12), hand-held dumbbell (13) is finished oblique sitting posture dumbbell flying bird, dumbbell election action.

37, " backstroke dumbbell flying bird, dumbbell are elected " people's bipod is put on the ground, and flat the facing upward of health lies on the motion platform (12), and both hands are held dumbbell (13), finishes and elects action on dumbbell flying bird, the dumbbell.

38, " reclining type dumbbell flying bird, dumbbell are elected " will be with hook portable plate (18) to hang on door assembly with hinge and glass in right hand and left travel(l)ing rest (17) axle, band hook portable plate (18) tiltedly is placed on the motion platform (12), people's bipod is put on the ground, recline on landing slab (12), hand-held dumbbell (13) is finished dumbbell flying bird, dumbbell election action.

39, " prostrate dumbbell flying bird " people is prostrate on motion platform (12), and both hands are held dumbbell (13), finishes the action of dumbbell flying bird.

40, " one arm dumbbell of bending rows the boat, the bending and stretching of the arms behind of bending " single leg is kneeled on motion platform (12), and one hand is held dumbbell (13), can left and right exchange bends to finish the one arm dumbbell bending and stretching of the arms action behind of rowing the boat, bend.

41, " inversion push-up " people mansion body is downward, both feet is placed on landing slab (12) upward becomes T-shaped with landing slab, and both hands are held mansion support for sleeping in support (66), do the curved boom action up and down, finishes inversion push-up campaign.

42, " N kind posture sexual intercourse bed function " spouses utilizes tape spool on the fitness equipment steelframe (1) to hold the sexual intercourse action that door assembly with hinge and glass in right hand and left travel(l)ing rest (17) axle, portable plate (18), special-purpose foam pad (68) on pipe 65 and landing slab (12) and the landing slab can be made multiple posture, and even is the position and the sensation of the unprecedented mistake of ordinary person.(DVD dish specialize function presentation is arranged)

43, " tiltedly body motion " earlier the pull-up of channel-section steel frame is come, tape spool is held pipe puts into groove, portable plate is leaned to hang over tape spool and hold on the pipe, the people leans to do on portable plate and leans to action.

44, " handstand " pull-up of channel-section steel frame is come, the people leans against on the fitness equipment platform plate, tape spool is held pipe put into groove adjustment and be fit to height, the downward both hands of bending over are held the pipe on both sides, head stands upside down downwards.

Claims (1)

1. the multi-gym on the wall, it is made up of main body fitness equipment steelframe, motion platform and connected connector three parts; It is characterized in that: main body fitness equipment steelframe shape slabbing structure, be fixedly installed on the wall, and with the motion platform of the activity composition multi-gym that connects; Main body fitness equipment steelframe be by main body steelframe, scalable square tube, fixing pin, draw ring, chin-up handle frame, pull-down unit pulley bracket, pulley, pull-down unit hook, steel wire rope backguy, long tube pull-down unit, on draw flat tube, spring bow, the upper and lower fixed hook plate of spring bow, idle spring bow hook support, folder chest flexible handle frame, rubber blanket, band gum cover handle, channel-section steel frame with holes, parallel bars frame circle intubate, waist electromagnetic shaker, waist torsional disk, massage wheels, support backrest, can on turn over seat, the bolting eye constitutes; Motion platform is by motion platform plate, dumbbell hanger, dumbbell, band sponge sleeve rod, longly tiltedly draw support, can turn up foreleg, spring bow, the upper and lower fixed hook plate of spring bow, idle spring bow hook support, door assembly with hinge and glass in right hand and left travel(l)ing rest, connect pivot pin and constitute; Main body steelframe (1) is to be welded into frame structure by steel pipe, main body steelframe (1) upper end is equipped with chin-up handle (62), upper end is equipped with pull-down unit pulley bracket (24) front end pulley (2) is housed, all be wound with steel wire rope backguy (9) on the pulley (2), steel wire rope backguy (9) rear end all with on draw flat tube (4) to be connected; On two edge columns of main body steelframe (1), also be welded with channel-section steel frame (63) axle bed (77) up and down, link mobilizable channel-section steel frame with holes (63), channel-section steel frame with holes (63) is upwards mentioned, turn 90 degrees forward separately then to fall to being stuck in the shell, two channel-section steels with holes (61) are the phase counterpart, mouthful in the pipe (65) that two ends have bearing just can be housed, pipe (65) two ends be fixed with steel wire rope backguy (9) with on draw flat tube (4) directly to link; Respectively be welded with a parallel bars frame circle intubate (22) in main body steelframe (1) both sides; Folder chest flexible handle frame (8) also is installed in main body steelframe (1) front; By back bracket (57), the support backrest (56) that is installed on the metope is arranged at main body steelframe (1) middle part; The below of support backrest (56) end floor beam middle part down be equipped with can on turn over seat (55); Being provided with in the middle part of main body steelframe (1) draws flat tube (4) to move up and down in support backrest (56) back, on draw the flat tube two ends to be passed in strip eye (74) lining to move up and down in the centre of steelframe (1) column tube, operation bottommost in the eyes is equipped with the whereabouts of drawing flat tube (4) in the little spring supporting; A plurality of spring bows (3) respectively are housed last drawing below flat tube (4) two ends; At the middle part of main body steelframe (1) left side column, the support of waist massage vibrator (25) is installed, waist massage vibrator (25) is housed on the support; The massage wheels (60) of rotatable 90 degree is housed at the middle part of main body steelframe (1) right side column; Bottommost chain at column is connected to mobilizable rotating disk that sways one's hips (33); The main structure slabbing shape of main body fitness equipment steelframe (1) is fixed on the wall with expansion bolt; Main body steelframe (1) is separated with motion platform (12), independently motion platform (12) is a hollow-core construction, the back leg of motion platform (12) and landing slab are the screw fixed installations, motion platform (12) plate is fixedlyed connected by hook with the foreleg that can turn up (70) by the long support (14) that tiltedly draws, foreleg (70) can partly be turned up and turn up entirely, motion platform (12) rear end also is provided with door assembly with hinge and glass in right hand and left travel(l)ing rest (17), links with motion platform (12) foreleg root by pulley (2), extension spring bow (3) by steel wire rope backguy (9) front end.
