Abstract

A mosquito killing lamp, comprising a lamp body, an insect storage room and a fan arranged between the lamp body and the insect storage room, there is a gap between the lamp body and the fan for mosquitoes to enter, and a luminous body is arranged on the lower end of the lamp body, and the storage The surrounding wall or bottom wall of the insect room is provided with ventilation holes that mosquitoes cannot pass through. It is characterized in that the upper end of the insect storage room is directly facing the lower end of the fan. A cover is provided on the cover, and at least one fan is opened when it is in working condition. one-way air intake door. Compared with the prior art, the utility model has the advantages that mosquitoes enter the air inlet of the fan under the attraction of light, and are sucked into the fan under the strong suction of the fan, then pass through the one-way air inlet door, and finally enter the insect storage. The chamber is collected, and the one-way air intake door greatly reduces the possibility of mosquitoes escaping and improves the mosquito killing effect.

Description

Mosquito Killer

technical field

The utility model relates to a mosquito killing device, in particular to a mosquito killing lamp.

Background technique

The common methods of killing mosquitoes include drug fumigation, spraying liquid medicine and high-voltage power grid slapping. The methods of drug fumigation and spraying liquid medicine to kill mosquitoes will cause certain pollution to the environment and have certain negative effects on the human body. However, high-voltage power grid slapping is more difficult to deal with mosquito corpses. It is inconvenient and poses a safety hazard to children.

Based on this, the appearance of mosquito killer lamp has solved the problem of environmental pollution and safety well, and mosquito is concentrated processing, comparatively convenient, as application number is 03115470.0 Chinese invention application publication " mosquito killer lamp " (public number is CN1430887A) , the application consists of lampshades, lighting lamps, black light tubes, insect traps, and insect storage rooms. It uses black light tubes with a spectrum of 365-420um to lure mosquitoes, and then sucks the mosquitoes into the insect storage room to dehydrate and die. Or the mosquitoes are directly killed by the fan blades and then fall into the insect storage room, and the insect corpses are removed at any time. It is a safe, effective, clean and hygienic mosquito killing device.

But above-mentioned disclosed mosquito killing lamp, structure is complicated, and assembly is not convenient enough, and the mosquito that does not kill is easy to escape from mosquito killing lamp, and mosquito killing efficiency is not high.

Utility model content

The technical problem to be solved by the utility model is to provide a mosquito killer lamp which has a simple structure and is difficult for mosquitoes to escape in view of the above-mentioned technical status quo.

The technical scheme adopted by the utility model to solve the above-mentioned technical problems is: a mosquito killing lamp, comprising a lamp body, an insect storage room and a fan arranged between the lamp body and the insect storage room, and a mosquito feeding lamp is provided between the lamp body and the fan. Into the gap, the lower end of the lamp body is provided with a luminous body, and the surrounding wall or bottom wall of the insect storage room is provided with ventilation holes that mosquitoes cannot pass through. It is characterized in that the upper end of the insect storage room is provided with a cover plate facing the lower end of the fan. , the cover plate is provided with at least one one-way air inlet door which is opened when the fan is in working condition.

A diversion groove is formed on the cover plate, and the one-way air inlet door is hinged on one side of the diversion groove. Smooth ventilation can be guaranteed to collect mosquitoes as much as possible into the insect storage room.

The outer wall of the blower is covered with a cylindrical shell, and the inner wall of the shell has protrusions. Correspondingly, one side of the upper end of the insect storage room is provided with an L-shaped bayonet for the protrusions to snap fit. The structure is simple and reasonable, and the assembly is convenient and quick.

To further improve assembly efficiency, the upper end of the insect storage chamber is extended upwards with a protruding ring that can be embedded in the inner wall of the housing, and the bayonet is opened on the protruding ring, and the protruding ring The upper end of the insect storage room has an annular limiting part for the bottom of the shell.

The protruding ring and the insect storage chamber are integrally formed by plastic. Easy to produce.

The assembly between the lamp body and the fan can be connected in the following way: the lower end of the lamp body is provided with a connecting column extending downward, and correspondingly, the shell is provided with screw holes for connecting and assembling the connecting column.

The top outer wall of the lamp body is provided with a hook. It can be hung on the wall or carried by fingers.

Compared with the prior art, the utility model has the advantages that mosquitoes enter the air inlet of the fan under the attraction of light, and are sucked into the fan under the strong suction of the fan, then pass through the one-way air inlet door, and finally enter the insect storage. The chamber is collected, and the one-way air inlet door greatly reduces the possibility of mosquitoes escaping and improves the mosquito killing effect; at the same time, the overall structure is simple and easy to assemble.

Description of drawings

Fig. 1 is a schematic diagram of the structure of the embodiment.

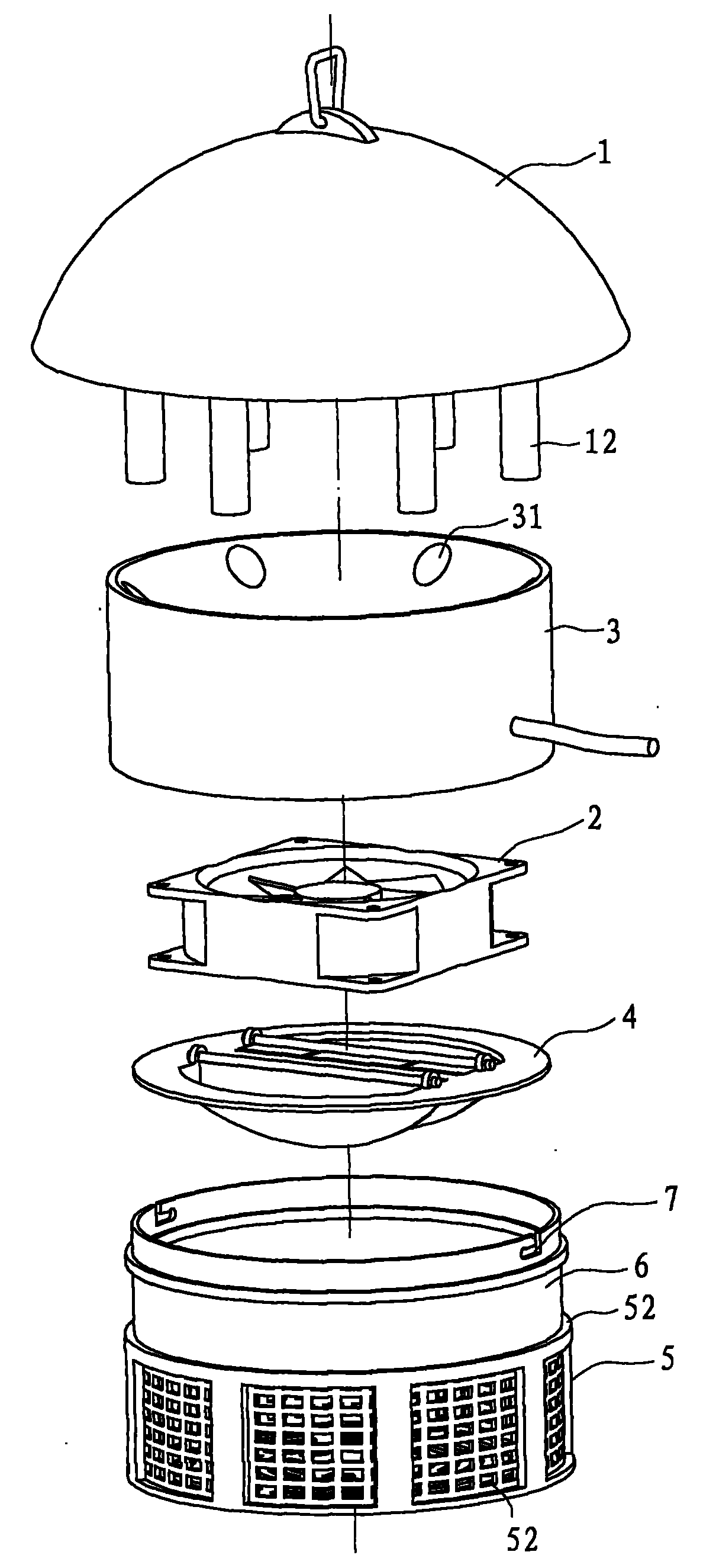

FIG. 2 is an exploded assembly diagram of FIG. 1 .

Figure 3 is a state diagram when the one-way damper is closed.

Fig. 4 is a state diagram when the one-way damper is opened.

FIG. 5 is a structural schematic diagram of another viewing angle of the housing in FIG. 2 .

Detailed ways

The utility model is described in further detail below in conjunction with the accompanying drawings.

As shown in Figures 1 and 2, the mosquito killer lamp includes a lamp body 1, an insect storage room 5 and a blower fan 2 arranged between the lamp body 1 and the insect storage room 5, and there is a window between the lamp body 1 and the blower fan 2 for mosquitoes to enter. The outer wall of the top of the lamp body 1 is provided with a hook 11, which can be hung on the wall or carried by fingers. The lower end of the lamp body 1 is provided with a luminous body (not shown in the figure). There are ventilation holes (not shown in the figure) that mosquitoes cannot pass through. The ventilation holes can ensure that the wind energy of the fan can be discharged into the insect storage room smoothly, and play the role of pressure relief. The side wall is provided with an observation hole 51, so that you can see whether the mosquitoes are full or not. , which is convenient for timely processing.

As shown in FIG. 5 , the outer wall of the blower fan 2 is provided with a cylindrical casing 3 , and the inner wall of the casing 3 has convex grains 32 . Correspondingly, one side of the upper end of the insect storage room 5 is provided with an L-shaped snap-fitting clip for the convex grains 32 . Mouth 7. The upper end of the insect storage chamber 5 extends upwards and is provided with a protruding ring 6 that can be embedded in the inner wall of the housing 3, and the bayonet 7 is opened on the protruding ring 6, and the protruding ring 6 and the upper end of the insect storage chamber 5 have a The bottom annular stopper 52. The protruding ring 6 and the insect storage chamber 5 are integrally formed by plastics.

The lower end of the lamp body 1 is provided with four connecting columns 12 extending downward, and correspondingly, the shell 3 is provided with screw holes 31 for connecting and assembling the connecting columns 12 .

The upper end of the insect storage chamber 5 is provided with a cover plate 4 facing the air outlet of the blower fan 2, and a pair of one-way air inlet doors 8 are symmetrically arranged on the cover plate 4. A diversion groove 41 is formed on the cover plate 8 , and the one-way air inlet door 8 is hinged on one side of the diversion groove 41 .

As shown in FIG. 3 , when the fan 2 is not working, the one-way air inlet door 8 is in a closed state due to gravity. As shown in Figure 4, after energizing, the illuminant emits light, the blower fan 2 works, and the one-way air inlet door 8 is in an open state due to the effect of wind force, and mosquitoes just enter the insect storage chamber 5 continuously.

Claims (7)

1. A mosquito killing lamp, comprising a lamp body, an insect storage room and a blower fan arranged between the lamp body and the insect storage room, there is a gap between the lamp body and the blower fan for mosquitoes to come in, and the lower end of the lamp body is provided with a luminous body , the surrounding wall or bottom wall of the insect storage room is provided with ventilation holes that mosquitoes cannot pass through, and it is characterized in that the upper end of the insect storage room is provided with a cover plate facing the lower end of the fan, and at least one fan is set on the cover in working condition The one-way air intake door opened. 2. The mosquito killer lamp according to claim 1, characterized in that a diversion groove is formed on the cover plate, and the one-way air inlet door is hinged to one side of the diversion groove. 3. The mosquito killer lamp according to claim 1, characterized in that the outer wall of the fan is covered with a cylindrical shell, the inner wall of the shell has convex grains, and correspondingly, the upper end of the insect storage room is provided with a L-shaped bayonet for snap-fitting of convex grains. 4. The mosquito killing lamp according to claim 3, characterized in that the upper end of the insect storage chamber is extended upwards with a protruding ring that can be embedded in the inner wall of the housing, and the bayonet is opened on the inner wall of the shell. On the protruding ring, and the protruding ring and the upper end of the insect storage room have an annular stopper for the bottom of the housing. 5. The mosquito killer lamp according to claim 4, characterized in that the protruding ring and the insect storage chamber are integrally formed of plastic. 6 . The mosquito killer lamp according to claim 3 , wherein the lower end of the lamp body is provided with a connecting column extending downward, and correspondingly, the shell is provided with screw holes for connecting and assembling the connecting column. 6 . 7. The mosquito killing lamp according to any one of claims 1 to 6, characterized in that the top outer wall of the lamp body is provided with a hook.
