Abstract

The utility model relates to the technical field of daily necessities, and particularly refers to a pull-tab for hanging products such as keys and mobile phones. It includes a hanging buckle, a wire collection part, and a pull line connected between the hanging buckle and the wire collection part. A molding is attached to the wire collection part, and the molding and the wire collection part are detachably connected. The utility model is not only structurally simple and easy to implement, but also can effectively improve the overall visual beauty of the pull-tab and increase the fun of the pull-tab; the molding can be detached to meet the fashion requirements of users.

Description

an easy-to-pull button

Technical field:

The utility model relates to the technical field of daily necessities, in particular to an easy-pull buckle for hanging keys, mobile phones and other products.

Background technique:

As is known, the easy-to-pull buckle includes a hanging buckle, a take-up part and a pull wire connected between the hanging buckle and the take-up part. The hanging buckle is used to hang keys, mobile phones and other products; the pull wire is retractable so that users can use keys and mobile phones Hanging objects such as hanging objects, when not in use, the pull wire is automatically retracted into the wire section through the winding mechanism (such as a coil spring, etc.) in the wire take-up part, so that the user can store and carry the hanging objects. In the prior art, the wire take-up part is a cured plastic shell, which has a single and rigid shape and lacks fashion aesthetics.

In view of the deficiencies of the above-mentioned conventional easy-to-pull fasteners, the applicant has developed a novel and fashionable easy-to-pull fastener with the spirit of research, innovation and excellence, using his professional vision and professional knowledge.

Utility model content:

The purpose of the utility model is to provide a simple and novel structure, increase the practicality and interest of the product, change the shape, and improve the visual aesthetics of the easy-to-pull button.

In order to achieve the above object, the utility model adopts the following technical solutions:

An easy-to-pull buckle, including a hanging buckle, a wire take-up part and a pull wire connected between the hanging buckle and the wire take-up part, a molding body is attached to the wire taking part, and the molding body and the wire taking part are detachable connect.

The take-up part is movably embedded in the inner cavity of the molded body.

The take-up part is provided with a hook or a back clip; when the hook is designed, the hook passes through the modeling body; when the back clip is designed, the back clip protrudes from the back side of the modeling body.

The front side of the take-up part is completely covered by the modeling body.

The utility model adds a molded body to the take-up part of the easy-pull button, and the connection between the molded body and the take-up part is detachable; The overall visual beauty adds fun to the easy-to-pull buttons. The modeling body is detachable and replaceable to meet the user's fashion requirements.

Description of drawings:

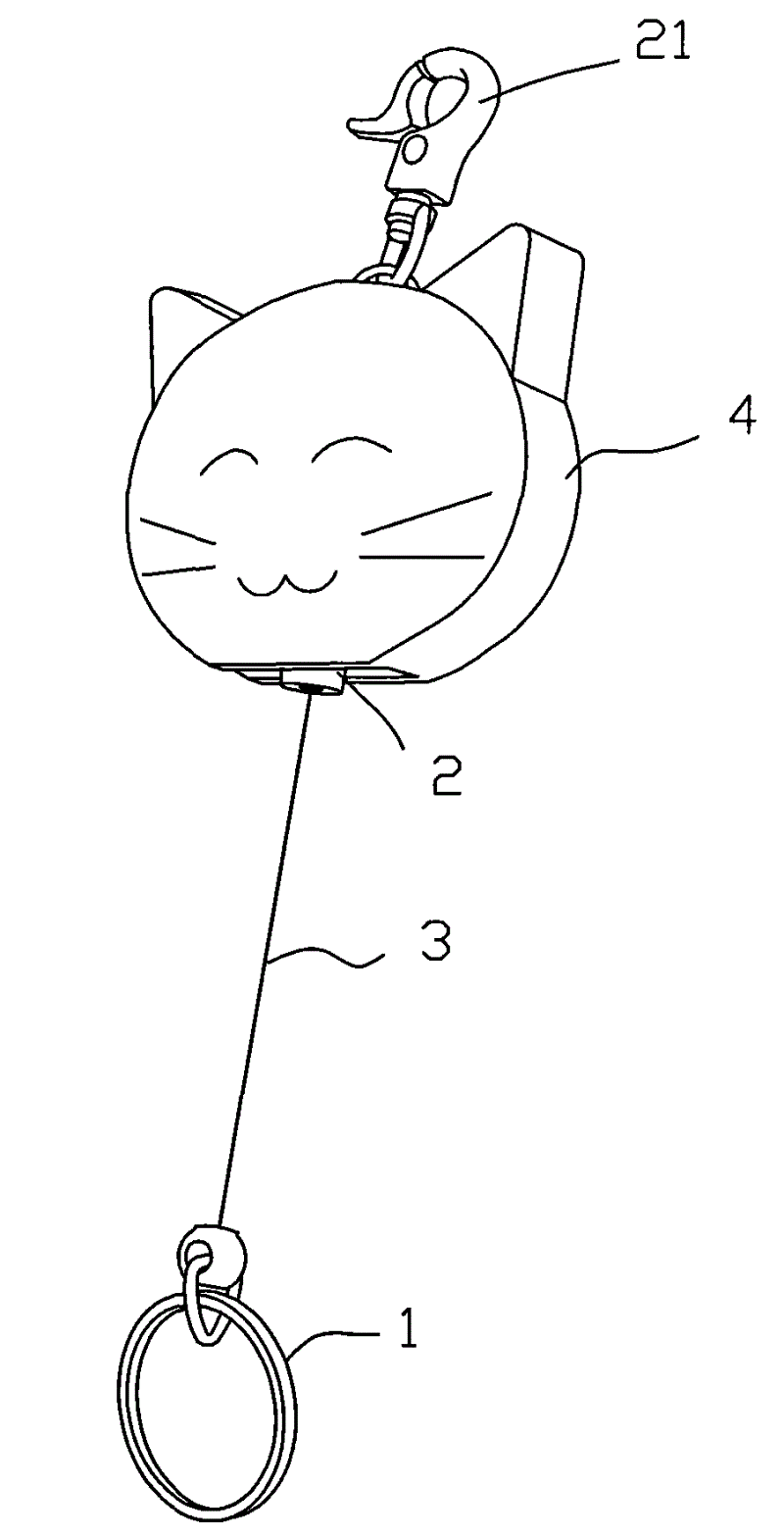

Accompanying drawing 1 is the outline structure schematic diagram of one embodiment of the utility model;

Accompanying drawing 2 is the structural decomposition diagram of Fig. 1;

Accompanying drawing 3 is the structural implementation schematic diagram of Fig. 1;

Accompanying drawing 4 is the outline structure schematic diagram of its second embodiment of the utility model;

Accompanying drawing 5 is the exploded schematic view of the structure of Fig. 4.

Detailed ways:

In order to enable the review committee to have a further understanding of the purpose, features and functions of the present utility model, the preferred embodiments are hereby given in detail with the accompanying drawings as follows:

Please refer to Figures 1 to 5, which are structural schematic diagrams of preferred embodiments of the present invention. The utility model relates to an easy-to-pull buckle, which includes a hanging buckle 1, a wire take-up part 2 and a hook connected to the hanging buckle and The backguy 3 between the take-up parts is attached to the take-up part 2 with a molded body 4, the molded body 4 and the take-up part 2 are detachably connected, and the fronts of the take-up part 2 are all covered with the molded body 4 Covering, thereby displaying in the shape of the modeling body 4, obtains a fashionable and novel visual aesthetic feeling. The molding body 4 is removably connected with the wire take-up part 2, so the molding body 4 can be replaced as required to obtain various easy-to-pull button shapes to meet the fashion requirements of users.

As shown in Figures 1, 2, 4, and 5, in this embodiment, the wire take-up part 2 is movably embedded in the internal cavity 41 of the molding body 4, and the size and shape of the internal cavity 41 are consistent with the shape of the wire take-up part 2. The body 4 is made of soft rubber molding, which has a good hand feeling and low production cost. It can be designed as an animal shape, a cartoon shape or a portrait shape, and of course it can also be designed as other flowers and plants. On the take-up part 2, various shapes of easy-to-pull buttons are changed to add fun to the easy-to-pull buttons. Users can choose the shape body 4 according to their own preferences, and wrap it on the take-up part 2 of the easy-pull button to form a whole, that is, to obtain the shape of the easy-pull button that they like, and improve the function of the easy-pull button without changing the function of the easy-pull button. Its visual aesthetic feeling; Modeling body 4 front is shape modeling, and some advertisement publicity designs etc. can be done on the back side, increase its use effect.

As shown in Figures 1 and 2, a hook 21 is provided on the take-up part 2 of the easy-to-pull button, and the user's clothing is hung on the hook 21. ; During assembly, the hook 21 passes through the upper opening of the molding body 4, and the hook 1 protrudes from the lower opening. As shown in Figure 3, when in use, after hanging keys, mobile phones and other products on the buckle 1, the hanging object can be used by extending the pull wire 3 without removing the easy-to-pull buckle from the user's clothing. Quite convenient; when not in use, the pull wire 3 is retracted to tighten the hanging objects, which is convenient for storage and carrying. The backguy 3 is always connected to the buckle 1, and also serves as a reminder to prevent users from forgetting to take away products such as keys and mobile phones.

Shown in Figures 4 and 5, the take-up part 2 is provided with a back clip 22, and during assembly, the back clip 22 protrudes on the back side of the molding body 4, and at this moment, the back side of the molding body 4 can be a fully open shape (Fig. 5), or partially open, to meet the use of the back clip 22 protruding. When in use, the back clip 22 is clamped on the user's clothing, the modeling body 4 plays a decorative role, and the work of the easy-to-pull button is consistent with the above, so it will not be repeated here.

Of course, the above embodiments are only preferred implementation modes of the present utility model, and are not intended to limit the implementation scope of the present utility model. Therefore, all equivalent changes or modifications made according to the principles of the present utility model should be covered by the utility model. within the scope of protection.

Claims (4)

1. easy-to-draw button, comprise buckle (1), wire collecting part (2) and be connected in buckle and wire collecting part between backguy (3), it is characterized in that: going up an additional molding body (4) in wire collecting part (2), is removable transsexual the connection between molding body (4) and the wire collecting part (2).

2. a kind of easy-to-draw button according to claim 1 is characterized in that: wire collecting part (2) activity is embedded within the molding body (4) in the die cavity (41).

3. a kind of easy-to-draw button according to claim 1 and 2 is characterized in that: wire collecting part (2) is provided with hook (21) or back splint (22); During the hook design, hook (21) passes from molding body (4); And back splint when design, the protruding dorsal part that is exposed at molding body (4) of back splint (22).

4. a kind of easy-to-draw button according to claim 1 and 2 is characterized in that: the front of wire collecting part (2) is all coated by molding body (4).
