Abstract

The utility model relates to a movable feed system comprising an I-shaped base, wherein, a longitudinal groove is arranged in the base, a screw rod is arranged in the longitudinal groove, one end of the screw rod is arranged in the base, the other end thereof is connected with a motor through the base, a slide plate matched with the base is arranged on the base, the slide plate is inverted-U-shaped, the bottoms of the two ends of the slide plate are connected with two nut seats respectively through nuts, one end of a nut seat and one end of the other nut seat are arranged respectively in grooves formed at the two ends of the base, a moving block is arranged between the screw rod and the slide plate, and a circular arc groove matched with the screw rod is arranged at the lower part of the moving block. The feed system has the advantages of simple structure and stable operation, can be used for processing large workpieces and can save manufacturing cost.

Description

The packaged type feed system
Technical field:
The utility model relates to a kind of feed system, particularly a kind of packaged type feed system.
Background technology:
In a lot of industries such as harbour machinery, there are many large-scale workpieces need carry out machineds such as bore hole, and workpiece itself is because overweight excessive, common floor type boring machine can't be processed this, must make large-scale boring processing tool, boring row and unit head satisfy the processing needs of such workpiece, thereby make the feed arrangement that feed system provides whole boring machine, can drive the mobile device of doing of boring cutter and so on, existing feed system all is fixing, immovable, so just bring a lot of inconvenience to the feeding device, cause a lot of workpiece can't normal process, need the boring machine of the different strokes of replacing etc., processing technology is loaded down with trivial details.
Summary of the invention:
The purpose of this utility model is in order to overcome above deficiency, provide a kind of simple in structure, operate steadily, can be used for the machining large workpiece, the packaged type feed system that saves production cost.
The purpose of this utility model is achieved through the following technical solutions: a kind of packaged type feed system, comprise base, base is " worker " font, in base, be provided with cannelure, be provided with screw mandrel in the cannelure, one end of screw mandrel places base, the other end passes base and is connected with motor, base is provided with the slide plate that matches with base, slide plate is " door " font, and the bottom, two ends of slide plate all is connected with nut seat by nut, the groove that an end of two nut seats places the base two ends to be provided with respectively, and between screw mandrel and slide plate, be provided with movable block, and be provided with the arc groove that is complementary with screw mandrel in the bottom of movable block.
The utility model compared with prior art has the following advantages: be fixed on the slide plate power is first-class, rotation drive movable block by screw mandrel moves, thereby drive moving of slide plate, the realization system moves, and the bottom, two ends at slide plate is connected with nut seat by nut, has guaranteed operating steadily of entire system, and this packaged type feed system is not only simple in structure, can be used for the machining large workpiece, thereby saved production cost.
Description of drawings:

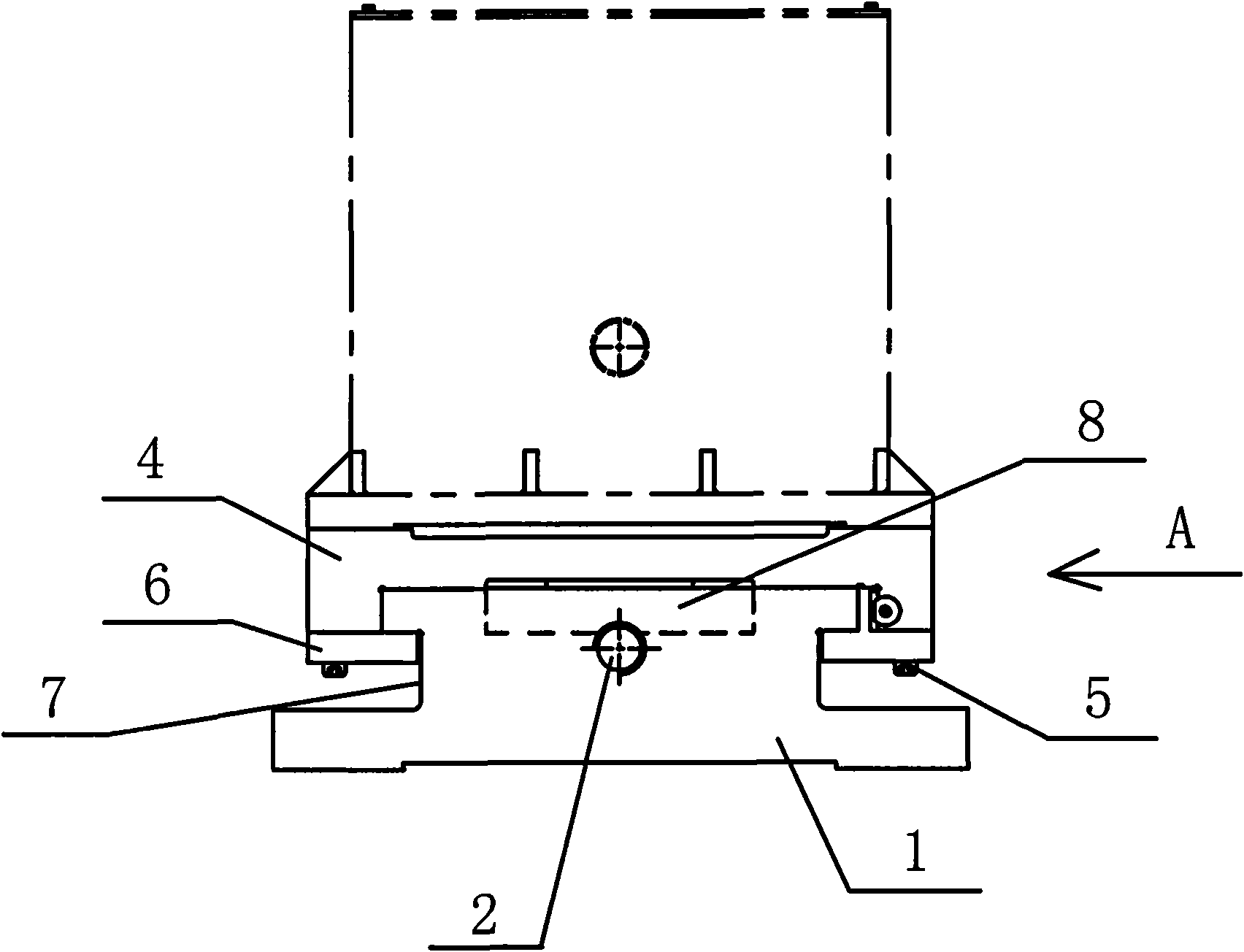

Fig. 1 is a structural representation of the present utility model;
Fig. 2 is that the A of Fig. 1 is to structural representation;
Number in the figure: 1-base, 2-screw mandrel, 3-motor, 4-slide plate, 5-nut, 6-nut seat, 7-groove, 8-movable block.
The specific embodiment:
In order to deepen understanding of the present utility model, the utility model is described in further detail below in conjunction with embodiment and accompanying drawing, and this embodiment only is used to explain the utility model, does not constitute the qualification to the utility model protection domain.
Show a kind of specific embodiment of the utility model packaged type feed system as Fig. 1, comprise base 1, base 1 is " worker " font, be provided with cannelure in the base 1, be provided with screw mandrel 2 in the cannelure, one end of screw mandrel 2 places base 1, the other end passes base 1 and is connected with motor 3, base 1 is provided with the slide plate 4 that matches with base 1, slide plate 4 is " door " font, the bottom, two ends of slide plate 4 all is connected with nut seat 6 by nut 5, the groove 7 that one end of two nut seats 6 places base 1 two ends to be provided with respectively, when work, slide plate 4 energy even runnings have been guaranteed, be provided with movable block 8 between screw mandrel 2 and the slide plate 4, when needs work, can on slide plate 4 unit head be installed, during system works, motor 3 drives screw mandrel 2 and rotates, and be provided with movable block 8 between screw mandrel 2 and the slide plate 4, the bottom of movable block is provided with the arc groove that is complementary with screw mandrel, when screw mandrel rotates, drives movable block 8 and moves, thereby driving slide plate 4 moves, be that unit head moves, this portable feed system can be used for the machining large workpiece, has saved production cost.

Claims (1)

1. packaged type feed system, it is characterized in that: described feed system comprises base (1), described base (1) is " worker " font, described base is provided with cannelure in (1), be provided with screw mandrel (2) in the described cannelure, one end of described screw mandrel (2) places base (1), the other end passes base (1) and is connected with motor (3), described base (1) is provided with the slide plate (4) that matches with base (1), described slide plate (4) is " door " font, the bottom, two ends of described slide plate (4) is all passed through nut (5) and is connected with nut seat (6), the groove (7) that one end of described two nut seats (6) places base (1) two ends to be provided with respectively, be provided with movable block (8) between described screw mandrel (2) and the slide plate (4), the bottom of described movable block (8) is provided with the arc groove that is complementary with screw mandrel (2).
