Abstract
The utility model discloses a multipurpose adjustable moxibustion cylinder, which is characterized in that the moxibustion cylinder is provided with a moxa stick (2), wherein stick cylinders (1.1, 1.2, 1.3) are sleeved outside the moxa stick, and handles (1.11, 1.21, 1.31) are arranged at rear ends of the stick cylinders. The handles are capable of rotating, and internal ends of the handles are movably connected with the moxa stick and can drive the moxa stick to extend to retract. Walls of the stick cylinders are provided with smoke vent holes (1.22). The multipurpose adjustable moxibustion cylinder is novel in structure and various in using methods, is simple and practical, is adaptable to moxibustion for the human body, and has fine healthcare and physiotherapy effects.
Description
Technical field
This utility model belongs to a kind of medical health apparatus, specifically is a kind of many with the adjustable treatment rod of processing, and have the effect of blood circulation promoting and blood stasis dispelling, dredge the meridian passage, blood circulation promoting especially, and occupation mode is various.
Background technology
At present, the medical apparatus and instruments of many kinds occurred, they all have different characteristics, in different ways, the different parts of health are carried out the treatment or the health care of machinery or physics mode, and great majority have effect in various degree.But, specially treat rod the skin of each suitable position of human body and muscle and acupuncture point are processed treatment by processing, play the effect of blood circulation promoting and blood stasis dispelling, dredge the meridian passage, blood circulation promoting, and be to use conveniently, the various medical apparatus and instruments of occupation mode is also few, particularly structure is more simple and practical, and health care and therapeutic effect are significantly still less.Therefore, need to propose this class medical apparatus and instruments.
The utility model content
The purpose of this utility model is in order to solve the problems of the technologies described above, and proposes a kind ofly manyly to treat tube with adjustable processing, and this is processed and treats the barrel structure novelty, and is easy to use flexible, and good health care and therapeutic effect are arranged
The purpose of this utility model is achieved through the following technical solutions: how to treat tube with adjustable processing, it is characterized in that: be provided with and process rod, be with the rod tube outside processing rod, be provided with handle in the rear end of rod tube.
This utility model further peace additional project kind and that implement is:
Described handle is rotating, and its inner end is treated rod and flexibly connected with processing, and is can drive to process to treat that rod stretches out and indentation ground flexibly connects.
Described excellent barrel is provided with the cigarette hole.
A described end of processing the treatment rod stretches out the outside at the rod tube.
Of the present utility modelly many treat excellently,, reach blood circulation promoting and blood stasis dispelling, dredge the meridian passage, blood circulation promoting effect, thereby play effect body-care and physical therapy by treatment is processed at the suitable position of human body and the skin and the muscle at acupuncture point with adjustable processing.Particularly have novel structure, simple and practical, flexible and convenient to use, the advantage of good health care and physiotherapy function can be arranged human body.
Description of drawings
Fig. 1, Fig. 2, Fig. 3 are structural representations of the present utility model.
Number in the figure 1.1,1.2,1.3 is a rod tube of the present utility model, and 1.11,1.21,1.31 is handle of the present utility model.
The specific embodiment
Below in conjunction with drawings and Examples this utility model is described further: embodiment 1: referring to accompanying drawing 1, how to treat tube with adjustable processing, be provided with and process rod 2, be with rod tube 1.1 outside processing rod, be provided with handle 1.11 in the rear end of rod tube.Described handle is rotating, and its inner end is treated rod and flexibly connected with processing, and is can drive to process to treat that rod stretches out and indentation ground flexibly connects.

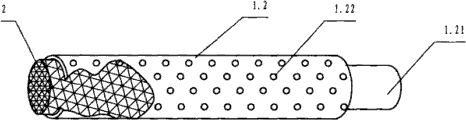

Embodiment 2: referring to accompanying drawing 2, how to treat tube with adjustable processing, be provided with and process rod 2, be with rod tube 1.2 outside processing rod, be provided with handle 1.21 in the rear end of rod tube.Described excellent barrel is provided with cigarette hole 1.22.
Above embodiment is very good through trial effect.
Claims (4)
1. treat tube with adjustable processing more than one kind, it is characterized in that: be provided with and process rod (2), outside processing rod, be with rod tube (1.1,1.2,1.3), be provided with handle (1.11,1.21,1.31) in the rear end of rod tube.
2. described the processing of root institute claim 1 treated tube, and it is characterized in that: described handle is rotating, and its inner end is treated rod and flexibly connected with processing, and is can drive to process to treat that rod stretches out and indentation ground flexibly connects.
3. described the processing of root institute claim 1 treated tube, and it is characterized in that: described excellent barrel is provided with cigarette hole (1.22).
4. described the processing of root institute claim 1 treated tube, it is characterized in that: a described end of processing the treatment rod stretches out the outside at the rod tube.
