Abstract

A practical and simple combination flowerpot, including a planting pot and a base, the planting pot is set on the upper end of the base, the bottom of the planting pot is provided with air holes and three tenons, the base is provided with a water storage tank and a card slot, and the planting pot passes through Rotate, the tenon and the card slot are fully engaged, the base can be provided with water-absorbing materials, and the water-absorbing materials can absorb excess water in the planting pots to the base through the vent holes, the base structure is equal in size up and down, and the planting pots are round Curved, lotus-shaped or conical basin structure. The flower pot of the utility model is mainly used for beautifying indoor and outdoor environments and cultivating ornamental plants.

Description

Practical and simple combination flower pot

technical field

The utility model relates to a flowerpot for beautifying the environment and cultivating ornamental plants, in particular to a flowerpot which can be easily assembled.

Background technique

With the development of society and the improvement of people's competitive level, the level of landscaping is also getting higher and higher. Flower pots play an important role in beautifying the environment, and are widely used in the beautification of homes, urban streets, squares, parks and other places. Ornamental plants such as potted flowers and trees have become a popular choice for people to beautify the environment and decorate their families because they are easy to move and form a variety of shapes. However, known flower pots are generally a conical or polygonal cylinder-shaped pot made of earthen pottery, pottery, plastics, fiberglass and other materials, and a drainage hole is provided at the bottom. This traditional flower pot Most of them are single or a kind of flowerpot is only suitable for one or several shapes, which cannot be used universally. Moreover, after planting plants in traditional flowerpots, regular watering is required for maintenance. Watering is generally done in the form of flooding, and the water is easy to overflow out of the pot , which has not only affected the clean and beautiful appearance of the environment, but also caused a waste of water resources. At the same time, the maintenance of a large number of potted flowers and trees has increased the labor level of the maintenance personnel and increased the labor cost.

Utility model content

The problem to be solved by the utility model is to overcome the disadvantages of the existing flower pots mentioned above, to provide a flower pot that can be easily assembled, and a flower pot that does not require frequent watering.

In order to achieve the above purpose, the utility model adopts the following technical scheme: the combined flowerpot includes an expanded planting pot and a base, the planting pot is arranged on the upper end of the base, the bottom of the planting pot has air holes and three mortises, and the base is provided with For the water storage tank and the card slot, a water-absorbing material can be arranged in the base, and the water-absorbing material can store excess water in the planting pot through the vent hole.

Wherein, the water-absorbing material is specifically: cotton sliver, acrylic fiber non-woven fabric, viscose fiber non-woven fabric.

Wherein, the connection surface between the base and the planting pot is a plane.

Wherein, there are grooves and card slots in the basin of the base to ensure the connection and stability of the planting pot and the base, and to store water.

Wherein, there are three notches on the upper side of the slot of the base, which are used to put in the three tenons at the bottom of the planting pot, and two notches are also arranged on the lower side of the slotting of the base, to ensure the ventilation of the planting pot.

Wherein, the basin structure of the base is equal in size up and down.

Wherein, there are three tenons at the bottom of the planting pot, which are used for connecting and stabilizing the planting pot with the base.

Wherein, the pot body of the planting pot is in the shape of a lotus leaf, an arc or a cone.

Wherein, the pot body of the planting pot is inclined to the outside.

Wherein, the diameter of the air hole is 1-6 mm.

The combined flower pot of the utility model has a beautiful shape and can be combined arbitrarily, and is suitable for beautifying the environment in various indoor and outdoor occasions, avoids frequent manual maintenance of plants, and reduces waste of labor and water resources.

Description of drawings

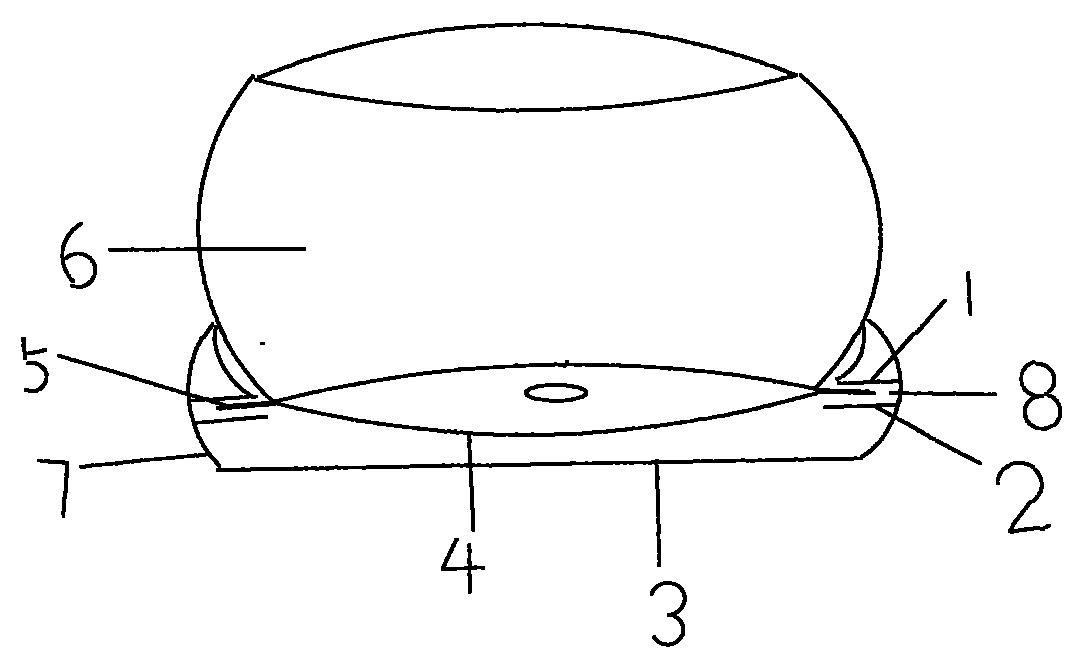

Fig. 1 is a schematic diagram of the structure of the utility model combination flowerpot. Fig. 2 is a structural schematic diagram of the combined flower pot base of the present invention.

Fig. 3 is a schematic diagram of the planting pot structure of the combined flowerpot of the present invention. Fig. 4 is a schematic diagram of the upper structure of the combined flower pot base of the present invention.

Fig. 5 is a schematic diagram of the cross-sectional structure of the base of the combined flowerpot of the present invention. Fig. 6 is a schematic diagram of the structure of the bottom surface of the planting pot of the combined flowerpot of the present invention.

Among them: 1: upper side of the card slot, 2: lower side of the card slot, 3: bottom surface of the base, 4: bottom surface of the planting pot, 5: tenon, 6: planting pot, 7: base, 8: card slot, 9: ventilation hole

Detailed ways

Below in conjunction with accompanying drawing and embodiment, the specific embodiment of the utility model is further described. The following examples are used to illustrate the utility model, but not to limit the scope of the utility model.

Any combination of flowerpots includes a planting pot 6 and a base 7. The planting pot 6 is arranged on the upper end of the base 7, and the two are connected by a slot. The bottom 4 of the planting pot 6 is provided with a tenon 5 and a ventilation hole 9. 7 is provided with draw-in groove 8 and water storage tank, and described base can be provided with water-absorbing material, and described water-absorbing material sucks excess moisture in the planting pot into the base water storage tank through air hole 9. Water-absorbing materials are usually: cotton slivers, acrylic fiber non-woven fabrics, viscose fiber non-woven fabrics.

The planting pot 6 is usually a lotus leaf-shaped, arc-shaped and conical pot body. There are air holes 9 at the bottom of the pot body, and the aperture is 1 to 6 millimeters. The planting pot body protrudes to the outside of the pot body.

The upper part of the base 7 shown in Figure 4 and the bottom surface of the planting pot 6 as shown in Figure 6 are flat surfaces, and the top 1 of the base 7's slot 8 has three gaps of equal size to ensure the insertion of the three tenon 5 at the bottom of the planting pot 6, and the insertion of the tenon 5 Finally, the planting pot is rotated, the base 7 does not move, and the slot 8 is fully engaged with the tenon 5 to form a three-dimensional structure. The lower edge 2 of the base 4 draw-in groove 8 also has two gaps, and the width of the lower edge 2 gaps of the draw-in groove 4 is less than the gap width of the upper edge 1, so as to ensure gas exchange with the outside world through the planting pot 6 stomata 9 . Air vent 9 is arranged between base 4 and planting pot 6, and water-absorbing material sucks excess moisture in the planting pot into the water storage tank of base 7 through vent hole.

The above description is only the preferred mode of the present utility model. It should be pointed out that for those of ordinary skill in the art, without departing from the technical principles of the present utility model, some improvements and modifications can also be made. These improvements and Retouching should also be regarded as the scope of protection of the present utility model.

Claims (9)

1. simple combination flowerpot, comprise plantation basin, base, it is characterized in that: described plantation basin is arranged on described base upper end, be provided with ventilation hole and three tenons at the bottom of the described plantation basin basin, base is provided with aqua storage tank and draw-in groove, base is provided with absorbent material, and described absorbent material will plant by described ventilation hole that superfluous water is adsorbed onto in the described base in the basin.

2. combined flower pot according to claim 1 is characterized in that: described absorbent material is specially: sliver, acrylic fiber nonwoven, viscose rayon nonwoven.

3. combined flower pot according to claim 1 is characterized in that: base is the plane with plantation basin joint face.

4. combined flower pot according to claim 1 is characterized in that: be provided with draw-in groove in the described base, be used to guarantee and plant being connected with firm of basin.

5. combined flower pot according to claim 1 is characterized in that: described understructure is for size is impartial up and down.

6. combined flower pot according to claim 4 is characterized in that: there are three breach described draw-in groove top, and also there are two breach in bottom, is used to guarantee to plant putting into and ventilating of basin bottom tenon.

7. combined flower pot according to claim 1 is characterized in that: the plantation basin body is circular arc, lotus leaf shape or taper shape.

8. combined flower pot according to claim 7 is characterized in that: the plantation basin body is outstanding to the outside.

9. combined flower pot according to claim 1 is characterized in that: the aperture of described ventilation hole is 1～6 millimeter.
