Abstract

The utility model relates to a portable computer, in particular to a portable computer with a portable display; it is mainly composed of a liquid crystal display, a display protection casing, a connection line, a battery, a host computer and a keyboard, and is characterized in that the liquid crystal display is built in the display protection casing, The battery is built in the host, and the protective shell of the display is connected to the host by a wire. The protective shell of the display is set as a hand-held device, and the host is installed in people's clothes or bags respectively; The weight of the computer will be greatly reduced. By holding the thin liquid crystal display in hand, one hand can hold the liquid crystal display to operate and read; people can sit, lean on, or even lie down to operate the portable computer, which greatly improves the convenience of operation.

Description

Laptops with lightweight monitors

Technical field:

The utility model relates to a portable computer, in particular to a portable computer with a portable display.

Background technique:

With the development of 3G and information technology, notebook computers have gradually become an important electronic product that people go out to surf the Internet and carry with them because of their portability. It is composed of a small computer motherboard, keyboard, battery and liquid crystal display; On your lap or on your lap, turn on the LCD and rotate it to a certain angle, click the keyboard and mouse to operate; the disadvantages of this kind of notebook computer: because the LCD and the computer motherboard, keyboard, and battery are connected together, the quality is relatively heavy when in use and large size, it is difficult to hold it with one hand for a long time; people cannot operate a laptop computer like holding a magazine or a book: hold a magazine or book with one hand, and draw lines and write on it with the other hand , People can sit, lean, or even lie down to read magazines or books; at the same time, the computer motherboard, keyboard, battery and LCD display are all connected together. If slipping, dripping, and bumping during operation will affect the life of the computer motherboard and hard disk Life is inconvenient.

Invention content:

Aiming at the deficiencies of the prior art, the purpose of this utility model is to provide a portable computer with a light display, which has all the functions of a common notebook computer, and can hold the liquid crystal display with one hand by holding the thin liquid crystal display. , and the other hand clicks on the LCD screen display, which provides a new way for people to use the portable computer, and the computer operation is more convenient and free.

The utility model is realized through the following technical solutions: the portable computer with a portable display is mainly composed of a liquid crystal display, a display protection shell, a connection line, a battery, a host computer, and a keyboard, and it is characterized in that the liquid crystal display is built into the display protection shell , the battery is built in the host, the display protective shell and the host are connected by a wire, the display protective shell is set as a hand-held, and the host is installed in people's clothes or bags respectively.

The display protective shell is a waterproof seal and a drop-proof buffer structure.

The liquid crystal display adopts a touch liquid crystal screen structure, and the liquid crystal display and the host are connected by wires, the host provides data and power, and the liquid crystal display provides operation signals.

The host shell is provided with a bayonet, which matches the notch of the protective shell of the display, and the bayonet is provided with a rotating shaft, and the bayonet rotates with the host shell in a certain direction.

There are grooves around the shell of the main unit for power cords and data lines to be wound. The side of the main unit is provided with a power switch button, a power reset button, and a charging interface.

A VGA interface, a USB interface, an audio input interface, an audio output interface, and a micro-speaker are arranged on the side of the display protective shell.

The display case has non-slip sleeves on both sides and feet on the back.

Significant advantages of the utility model:

A portable computer with a light display, which has all the functions of an ordinary notebook computer. Since the display is separated from the computer motherboard, keyboard, and battery, the weight of the liquid crystal display will be greatly reduced. By holding the thin liquid crystal display, you can use it with one hand. Holding the LCD monitor to operate and read; people can sit, lean on, or even lie down to operate the portable computer, which greatly improves the convenience of operation; at the same time, the computer motherboard, keyboard, battery and LCD monitor are separated, and accidentally slip or drip during operation. , bumps mainly only affect the liquid crystal display, which will reduce the maintenance and repair costs of the portable computer.

Description of drawings:

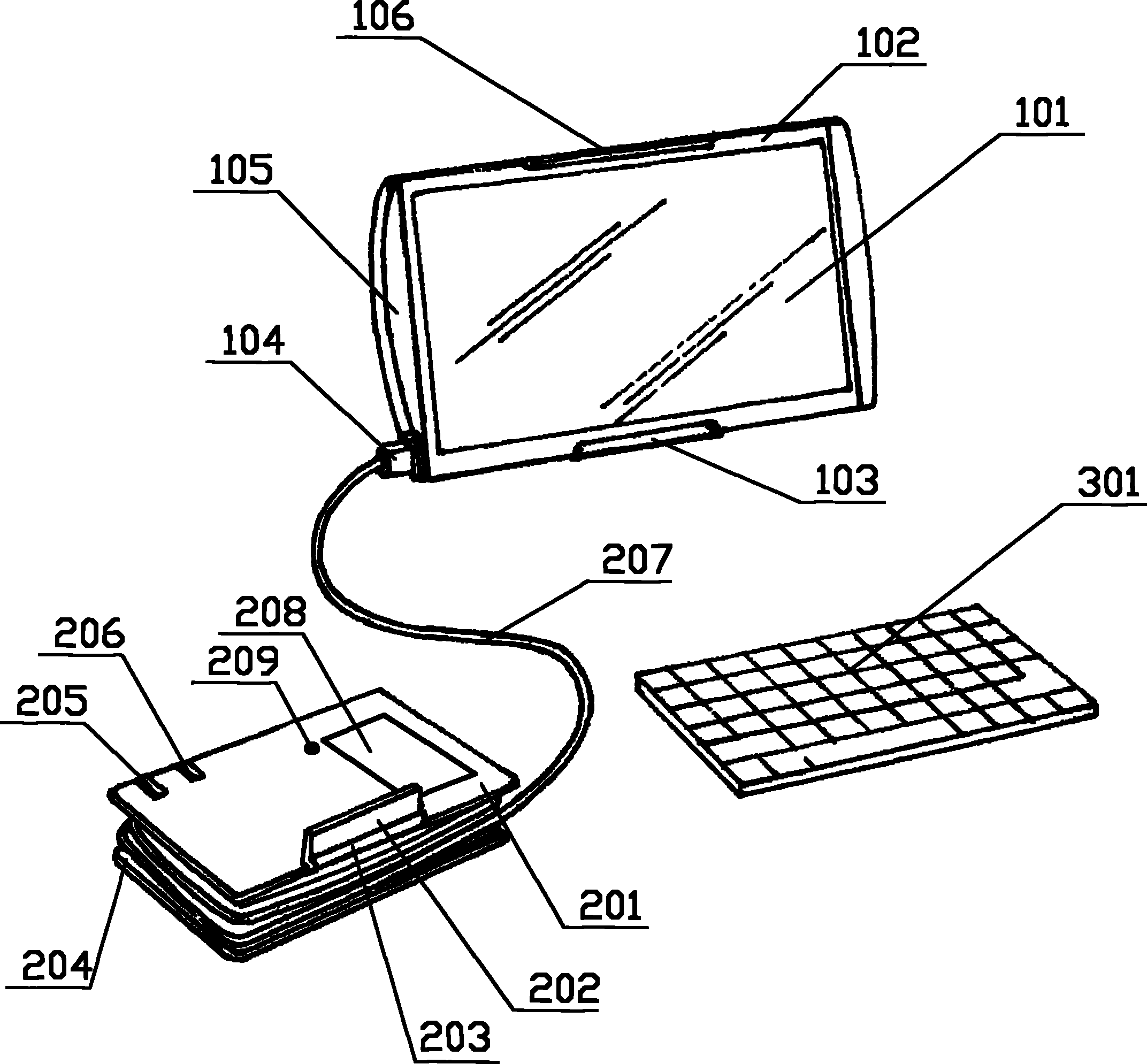

Accompanying drawing 1 is the appearance structure schematic diagram of the utility model.

Accompanying drawing 2 is the schematic diagram of another embodiment of the utility model.

Accompanying drawing 3 is the side schematic view of the display of the present invention.

Accompanying drawing 4 is the schematic diagram of the use status of the utility model.

Detailed ways:

Below in conjunction with accompanying drawing the utility model is further described.

Please refer to Attachment 1;

The utility model is realized through the following technical solutions: the portable computer with a portable display is mainly composed of a liquid crystal display 101, a display protection shell 102, a connection line 207, a battery 208, a host computer 201, and a keyboard 301; it is characterized in that the liquid crystal display 101 is built in the inside 102 of the display protection shell, and the battery 208 is built in the host 201. There is a connection line 207 between the display protection shell 102 and the host 201. The host 201 is respectively installed in people's clothes or bags. The display protection shell 102 is set to Handheld.

The display protection shell 102 is a waterproof seal and a drop-proof buffer structure, which can reduce and protect the display from accidental events such as being sprinkled or falling to the ground.

Described liquid crystal display 101 adopts touch liquid crystal screen structure, adopts wired mode to be connected between liquid crystal display 101 and host 201, host computer 201 provides data and power supply, liquid crystal display 101 provides operation signal; Separated from the liquid crystal display 101, the operation of holding the liquid crystal display 101 is easier; the liquid crystal display 101 adopts a touch screen, which makes handwriting and click input more convenient.

Please refer to Figure 2;

The shell of the host 201 is provided with a bayonet 202, which matches the notch 103 of the display protection shell. The bayonet 202 is provided with a rotating shaft 203. The bayonet 202 can rotate with the shell of the host 201. , the rotation angle range of the liquid crystal display 101 is more free.

Mainframe 201 casing is provided with groove 204 around, and power supply line, data line 207 are wound, and mainframe 201 side is provided with power switch key 205, power reset key 206, charging interface 209, when not needing portable computer, power line, data line 207 can Wrapping around the groove 204 of the shell of the host, it is convenient to carry.

Please refer to Figure 3 and Figure 4;

The display protection shell 102 side is provided with VGA interface 106, USB interface 107, audio input interface 109, audio output interface 110, micro-speaker 106, and common equipment such as people are using earphone, USB storage device can directly operate on LCD screen protection shell 102 sides.

Both sides of the display protective shell 102 are provided with non-slip sheaths, and the back is provided with supporting feet 108 to make the hand feel and friction better when held. Isoplane on the table.

To sum up, the utility model is convenient for users to use the portable computer, and the application is specially filed in accordance with the law under the premise of conforming to the utility model patent.

Claims (7)

1. A portable computer with a light display, mainly composed of a liquid crystal display, a display protective shell, a connection line, a battery, a host, and a keyboard. It is characterized in that the liquid crystal display is built in the display protective shell, the battery is built in the host, and the display The protective casing and the host are connected by a wire, the display protective casing is set as a hand-held device, and the host is respectively installed in people's clothes or bags. 2. A portable computer with a portable display according to claim 1, characterized in that the display protection shell is a waterproof sealing and drop-proof buffer structure. 3. A kind of portable computer with portable display according to claim 1, it is characterized in that described liquid crystal display adopts touch liquid crystal screen structure, adopts wired mode to link between liquid crystal display and host computer, host computer provides data and power supply, liquid crystal The display provides operating signals. 4. A portable computer with a portable display according to claim 1, characterized in that the housing of the host is provided with a bayonet, which matches the notch of the protective shell of the display, and the bayonet is provided with a rotating shaft, and the bayonet is the same as that of the host. The housing rotates in a certain direction. 5. A portable computer with a portable display according to claim 1, characterized in that grooves are arranged around the shell of the host for power cords and data cables to be wound, and a power switch button and a power reset button are provided on the side of the host , Charging interface. 6. A portable computer with a portable display according to claim 1, wherein a VGA interface, a USB interface, an audio input interface, an audio output interface, and a micro-speaker are provided on the side of the protective shell of the display. 7. A portable computer with a portable display according to claim 1, characterized in that the display protective shell is provided with anti-skid sheaths on both sides, and the back is provided with supporting feet.
