Abstract
一种新型暗藏式推拉窗，包括上滑道、下滑道和推拉窗扇，该推拉窗扇的上下两端分别滑动安装在上滑道和下滑道的窗扇凹槽内，该上滑道和下滑道的两端分别延伸到中空的窗户墙体的空隙内，所述的推拉窗扇为单层或两层以上的中空玻璃；在上滑道和下滑道的凹槽内的两侧分别设有多个弹簧孔，在该弹簧孔内装有弹簧，在所有该弹簧的外端连接一沿整个滑道长方向的密封压条，在相对的该密封压条之间安装所述的单层或两层以上的中空玻璃。本实用新型的优点是：玻璃不需要窗扇的边框，可将裸体玻璃直接安装在窗框的弹性夹内，结构简单，节省了大量的型材消耗，达到节能和节省资源，降低成本的目地；采用了弹性夹的设计，密封效果好，增强了它的抗震能力。
A new type of concealed sliding window, comprising an upper slide, a down slide and a sliding sash, the upper and lower ends of the push-pull sash are respectively slidably installed in the window sash grooves of the upper slide and the down slide, the upper slide and the down slide The two ends respectively extend into the gaps of the hollow window wall, and the sliding sash is a single-layer or more than two-layer hollow glass; multiple springs are respectively arranged on both sides of the grooves of the upper slideway and the lower slideway. A spring is installed in the spring hole, and a sealing bead along the long direction of the entire slideway is connected to the outer ends of all the springs, and the single-layer or more than two-layer insulating glass is installed between the opposite sealing bead . The utility model has the advantages that: the glass does not need the frame of the window sash, and the naked glass can be directly installed in the elastic clip of the window frame. The design of the elastic clip is improved, the sealing effect is good, and its shock resistance is enhanced.
Description
Technical field
The utility model relates to a kind of sliding sash, is a kind of novel concealed type sliding sash that does not need the sash frame.
Background technology
No matter be sliding window sash or fixed sash in the prior art, its glass all needs to be installed in the various section bar sash frames.Its shortcoming is not only to have wasted a large amount of section bars, has increased cost; And the installation of glass bothers very much, and the connection of glass between frame do not have elasticity, and anti-seismic performance is lower.In addition, the window in the on both sides of the Changjiang River owned building of China from south to the north all is the exposure formula, exposes the very big area that takies of formula, and dangerous, is subjected to the erosion of natural wind, light, rain easily.
Summary of the invention
The purpose of this utility model just provides a kind of novel novel sliding sash, and the cost height is installed trouble to solve the waste section bar that prior art exists, and anti-seismic performance is low; And the very big area that takies that exposes formula, and it is dangerous, be subjected to the problem of the erosion of natural wind, light, rain easily.
The technical solution of the utility model is: comprise sliding way, glide path and sliding window sash, the two ends up and down of this sliding window sash are slidingly mounted on respectively in the sash groove of sliding way and glide path, the two ends of this sliding way and glide path extend to respectively in the space of window body of wall of hollow, it is characterized in that: described sliding window sash is individual layer or two-layer above hollow glass; Both sides in the groove of described sliding way and glide path are respectively equipped with a plurality of spring eyes, in this spring eye, spring is housed, connect a seal trim strip along whole slideway length direction in the outer end of all these springs, install between the relative sealing press strip described individual layer or two-layer more than hollow glass.
Described sliding way and glide path also comprise shutter groove, burglary-resisting window groove and the screen window groove that sets gradually to the inboard from the outside, and described sash groove is located at the most inboard.
Fixed sash is equipped with in horizontal centre position at described sliding way and glide path, at the right and left of this fixed sash a described sliding window sash is housed respectively; This fixed sash adopts the mode identical with described sliding window sash to be installed in the sash groove of described sliding way and glide path.
Described seal trim strip is made up of base and rubber strip, base is made with long sheet metal, both sides are to the crooked draw-in groove that constitutes swallow-tail form in the same side, and described rubber strip one side and this draw-in groove close-fitting merge in this draw-in groove of insertion, and the both sides of this rubber strip opposite side are provided with fillet; The bottom surface of this base is connected with the outer end of described spring.
The utility model has the advantages that: glass does not need the frame of sash, bare glass can be directly installed in the elastic clip of window frame, and is simple in structure, saved a large amount of section bar consumption, reaches energy-conservation and the saving resource, the order ground that reduces cost; This window has adopted the design of elastic clip even more noteworthy, fixes and protects bare glass, and its sealing effectiveness is also better than the sealing of the window that framework was arranged originally, and has strengthened its shock resistance.The sliding sash of concealed type is saved and is taken up room, and the time spent can not place in the hollow cavity very easily, and easy to maintenance, security performance is good, avoids being subjected to the erosion of natural wind, light, rain.
Description of drawings
Fig. 1 is the example structure schematic diagram of concealed type of the present utility model;
Fig. 2 is the vertical view of Fig. 1;

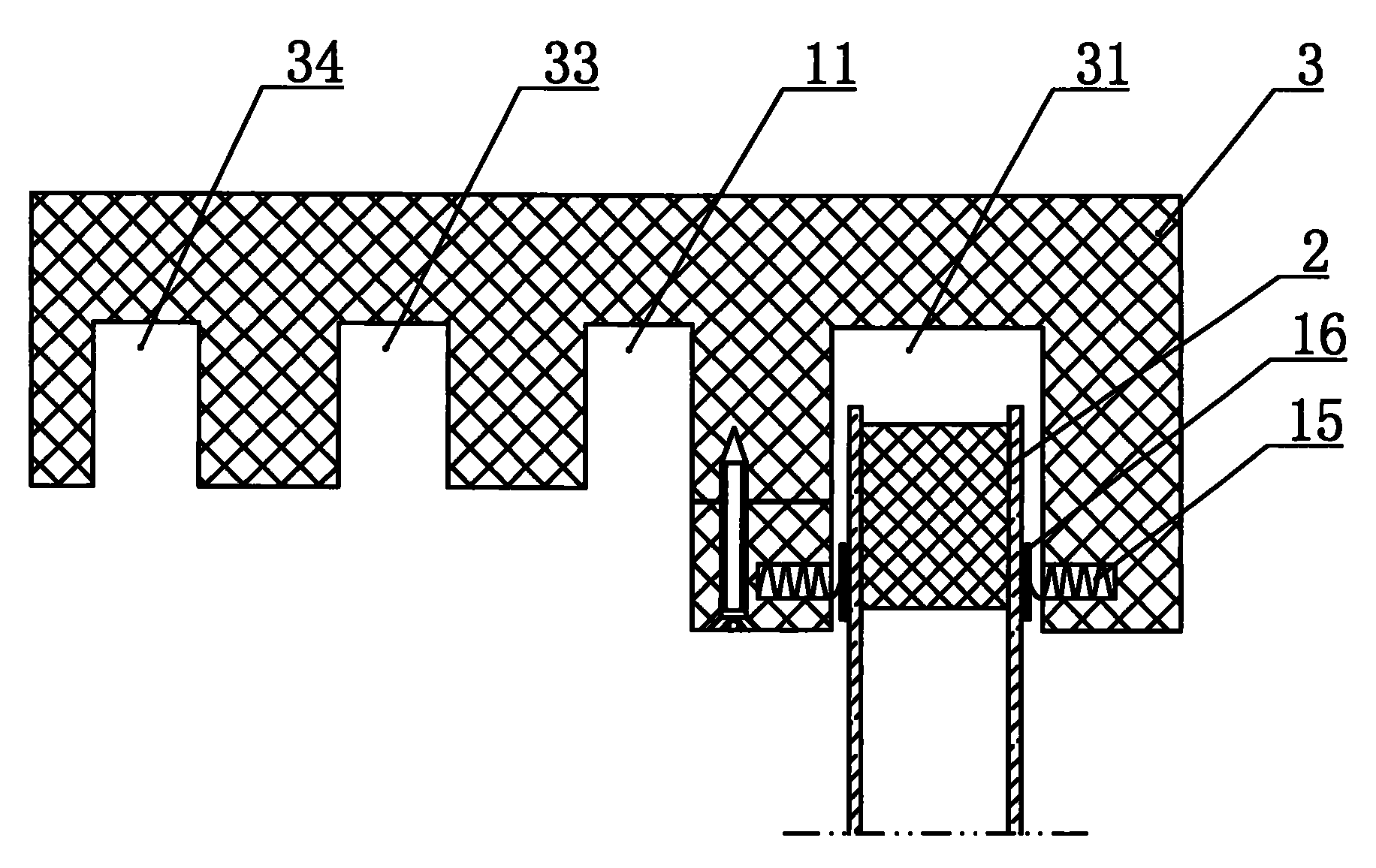

Fig. 3 is the cross section view on the utility model sliding way and sash top;
Fig. 4 is the cross section view of the utility model glide path and sash bottom;
Fig. 5 is the vertical view (half-twist) of Fig. 4;
Fig. 6 is the structural representation of seal trim strip cross section of the present utility model and spring.
The specific embodiment
Referring to Fig. 1～Fig. 6, the structure of the utility model embodiment comprises shutter 1, sliding window sash 2, sliding way 3, indoor wall 4, outside window sill 5, glide path 6, stool 7, wallboard 8, space 9, heat insulating material 10, outer body of wall 12, bumps pearl 13, fixed sash 14.Wallboard 8 is a rectangle, its the place ahead is connected to one with it by outside window sill 5, there is stool 7 at the rear of wallboard 8 with its flexible connection or fixedly connected, be hollow structure between indoor wall 4 and the outer body of wall 12, the space 9 of its hollow is used for hiding sliding window sash 2, above indoor wall 4, be connected with the shutter 1 that can slide up and down, the fixed casement window 14 of detachable is fixedly mounted on the horizontal centre position of sliding way 3 and glide path 6, at the right and left of this fixed sash 14 a described sliding window sash 2 is housed respectively; This fixed sash 14 adopts the mode identical with described sliding window sash 2 to be installed in the sash groove 11 of described sliding way 3 and glide path 6, with respect to the right and left of fixed sash 14 stopping means (as limited block, not shown) can be installed in this sash groove 11 horizontally slips with restriction fixed sash 14.The upper and lower side of this sliding window sash 2 is respectively charged in the sash groove 31 of sliding way 3 and glide path 6, is provided with screen window groove 11 in the outside of sash groove 31.
Of the present utility model being characterised in that: referring to Fig. 2～Fig. 4, described sliding window sash 2 is hollow glass (two-layer or layer glass constitutes, and also can be single-glass), does not need frame.Both sides in the groove of described sliding way 3 and glide path 6 are respectively equipped with a plurality of spring eyes, spring 15 is housed in this spring eye, connect a seal trim strip 16 along whole slideway length direction in the outer end of all these springs 15, install between the relative sealing press strip 16 described individual layer or two-layer more than hollow glass 2.
The outside at the screen window groove 11 of described sliding way 3 and glide path 6 is provided with burglary-resisting window groove 33 and shutter groove 34 successively.
Described seal trim strip is made up of base 161 and rubber strip 162, the long sheet metal of base 161 usefulness is made, both sides are to the crooked draw-in groove that constitutes swallow-tail form in the same side, one side of described rubber strip 162 and the draw-in groove close-fitting of this base 161 merge in this draw-in groove of insertion, the both sides of these rubber strip 162 opposite sides are provided with fillet, with the convenient glass that inserts.The bottom surface of this base 161 is connected with the outer end of described spring 15.
Characteristics of the present utility model are that its sash does not have frame, are made of bare casement.The structure of this no frame is one of core technology of the present utility model.No matter be movable sashes or fixed sash, all adopt elastic layering that " bare casement " is clipped in the middle on the window opening mouth that is installed in building.Its great advantage is to have saved a large amount of section bar consumption, reaches energy-conservation and the saving resource, the order ground that reduces cost.This window has adopted the design of " elastic layering " even more noteworthy, fixes and protects naked fan casement, and its sealing effectiveness is also better than the sealing of the window that framework was arranged originally, and has strengthened shock resistance.The utility model is with low cost, easy for operation, safe and reliable.
The utility model course of work is: when the sun comes out to think too hot, shutter 1 dragged get off to make to bump pearl 13 locking; When arriving mosquito is arranged summer, will pull out in the space 9 of screen window by the ducted body of wallboard 8, and sliding window sash 2 is placed ducted body space 9.Shutter 1 in the utility model, sliding window sash 2 all can be connected with the Radio infrared remote control, realize the lifting of remote control control shutter 1, laterally move about sliding window sash 2, screen window, thereby more convenient old man, disabled person adopt remote control mode to use.
Claims (4)
1. novel concealed type sliding sash, comprise sliding way, glide path and sliding window sash, the two ends up and down of this sliding window sash are slidingly mounted on respectively in the sash groove of sliding way and glide path, the two ends of this sliding way and glide path extend to respectively in the space of window body of wall of hollow, it is characterized in that: described sliding window sash is individual layer or two-layer above hollow glass; Both sides in the groove of described sliding way and glide path are respectively equipped with a plurality of spring eyes, in this spring eye, spring is housed, connect a seal trim strip along whole slideway length direction in the outer end of all these springs, install between the relative sealing press strip described individual layer or two-layer more than hollow glass.
2. novel concealed type sliding sash according to claim 1 is characterized in that: described sliding way and glide path also comprise shutter groove, burglary-resisting window groove and the screen window groove that sets gradually to the inboard from the outside, and described sash groove is located at the most inboard.
3. novel concealed type sliding sash according to claim 1 is characterized in that: fixed sash is equipped with in the horizontal centre position at described sliding way and glide path, at the right and left of this fixed sash a described sliding window sash is housed respectively; This fixed sash adopts the mode identical with described sliding window sash to be installed in the sash groove of described sliding way and glide path, and the right and left with respect to fixed sash in this sash groove is installed stopping means.
4. novel concealed type sliding sash according to claim 1, it is characterized in that: described seal trim strip is made up of base and rubber strip, base is made with long sheet metal, both sides are to the crooked draw-in groove that constitutes swallow-tail form in the same side, described rubber strip one side and this draw-in groove close-fitting merge in this draw-in groove of insertion, and the both sides of this rubber strip opposite side are provided with fillet; The bottom surface of this base is connected with the outer end of described spring.
