CN201484879U - a shampoo bottle - Google Patents
a shampoo bottle Download PDFInfo
- Publication number
- CN201484879U CN201484879U CN2009200878913U CN200920087891U CN201484879U CN 201484879 U CN201484879 U CN 201484879U CN 2009200878913 U CN2009200878913 U CN 2009200878913U CN 200920087891 U CN200920087891 U CN 200920087891U CN 201484879 U CN201484879 U CN 201484879U
- Authority
- CN
- China
- Prior art keywords
- bottle
- shampoo
- utility
- model
- flat
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 239000002453 shampoo Substances 0.000 title claims abstract description 19
- 230000009286 beneficial effect Effects 0.000 abstract description 2
- 239000012141 concentrate Substances 0.000 description 1
- 238000004806 packaging method and process Methods 0.000 description 1
Landscapes
- Stackable Containers (AREA)
- Containers Having Bodies Formed In One Piece (AREA)
Abstract
本实用新型提供一种洗发水瓶，所述洗发水瓶的瓶体上下两端均是可放置的平底，瓶体上方的平底设置在瓶盖的上面。本实用新型具有上下两端均可放置在桌面上的特点，特别有利于在瓶体内的洗发液存量过少时，通过倒置放置在桌面上，使内装较浓的洗发液能始终位于瓶口处，在使用时，能方便的倒出，具有方便使用和方便放置的特点。
The utility model provides a shampoo bottle, the upper and lower ends of the bottle body of the shampoo bottle are both flat bottoms that can be placed, and the flat bottom above the bottle body is arranged on the top of the bottle cap. The utility model has the characteristics that the upper and lower ends can be placed on the table, which is especially beneficial to place the shampoo upside down on the table when the shampoo in the bottle is too small, so that the thicker shampoo can always be located at the mouth of the bottle When in use, it can be poured out conveniently, and has the characteristics of convenient use and convenient placement.
Description
Technical field
The utility model relates to a kind of Packaging Bottle, a kind of specifically Shampoo bottle.
Background technology
The Shampoo bottle of the various patterns of present total length, all be that the below is the big bottle end, the top is a little bottleneck, can only place downwards at the bottom of the mono-bottle, placing conveniently when being unfavorable for using particularly used storage seldom the time at denseer shampoo, be not easy outwards to pour out very, need bottleneck is downward, stand upside down a period of time, allow shampoo concentrate on bottle mouth position and just can pour out.
Summary of the invention
The purpose of this utility model is to provide a kind of Shampoo bottle, has the advantages that two ends all can be placed, and very conveniently uses and places.
The utility model comprises bottle, and the technical scheme that is adopted is: the bottle of described Shampoo bottle two ends up and down all is can place flat.
Described bottle top flat be arranged on bottle cap above.
The beneficial effects of the utility model are: characteristics on the table all can be placed in two ends about having, be particularly conducive to shampoo storage in bottle when very few, by upside down on the table, the denseer shampoo of dress can be positioned at bottle mouth position all the time in making, in use, can easily pour out, have the advantages that conveniently use and make things convenient for placement.
Description of drawings
The utility model is described in further detail below in conjunction with drawings and Examples.

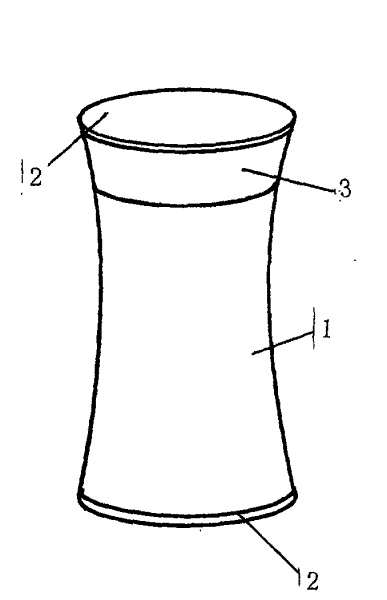

Accompanying drawing is the utility model structural representation.
The specific embodiment
Shown in the accompanying drawing embodiment: the bottle of Shampoo bottle about in the of 1 two ends all are can place flat 2, flat 2 of bottle 1 top be arranged on bottle cap 3 above.
Claims (2)
1. a Shampoo bottle comprises bottle (1), it is characterized in that: the bottle of described Shampoo bottle (1) two ends up and down all is flat (2) that can place.
2. a kind of Shampoo bottle according to claim 1 is characterized in that: flat (2) of described bottle (1) top be arranged on bottle cap (3) above.
