CN201468837U

CN201468837U - Cup

Info

Publication number: CN201468837U
Application number: CN2009201961674U
Authority: CN
Inventors: 徐珍珍
Original assignee: Hangzhou Electronic Science and Technology University
Current assignee: Hangzhou Electronic Science and Technology University
Priority date: 2009-09-10
Filing date: 2009-09-10
Publication date: 2010-05-19
Anticipated expiration: 2019-09-10

Abstract

The utility model relates to a cup with the function of warming hands. Advantages: First, it can warm hands and make full use of resources; second, when there is no need to warm hands, the cover can be used as a handle, and it can be held more stably.

Description

cup

技术领域technical field

本实用新型涉及一种具有暖手功能的杯子，属于日常生活用品制造领域。The utility model relates to a cup with the function of warming hands, which belongs to the field of daily necessities manufacturing.

背景技术Background technique

寒冷的冬天，人们通常会选择使用热水袋、暖宝宝等专门工具来取暖，但使用这些工具通常需要充电或换水，浪费资源。而通常所使用的杯子，只具有一个把手，若要使用杯子取暖，容易使杯子滑落。In the cold winter, people usually choose to use special tools such as hot water bags and baby warmers to keep warm, but using these tools usually requires charging or changing water, which wastes resources. And the usually used cup only has a handle, if you want to use the cup for heating, it is easy to make the cup slip.

发明内容Contents of the invention

设计目的：避免背景技术中的不足之处，设计一种具有暖手功能的杯子。Design purpose: to avoid the deficiencies in the background technology, and to design a cup with the function of warming hands.

设计方案：为了实现上述发明目的。杯子的外部设有左右相连通的套子的设计，这是本实用新型的技术特征。这样做的目的在于：当需要暖手时，只需将手伸入套子内，使手掌和手心都能接受来自杯子的热量，不仅节约资源，还能做到充分利用资源，当不需要暖手时，套子又能作为手柄使用。Design scheme: in order to realize the above-mentioned purpose of the invention. The outside of the cup is provided with the design of the left and right connected sleeves, which is the technical characterictic of the utility model. The purpose of doing this is: when you need to warm your hands, you only need to put your hands into the cover, so that both the palm and the palm can receive the heat from the cup, which not only saves resources, but also makes full use of resources. , the cover can also be used as a handle.

技术方案：一种杯子，它包括杯子，所述的杯子的外部设有左右相连通的套子。Technical solution: a cup, which includes a cup, and the outside of the cup is provided with a left and right connected sleeve.

本实用新型与背景技术相比：一是可以暖手，充分利用了资源；二是在不需要暖手时，套子可以作为手柄使用，而且可以拿的更稳。Compared with the background technology, the utility model has the following advantages: first, it can warm hands and fully utilizes resources; second, when there is no need to warm hands, the cover can be used as a handle, and can be held more stably.

附图说明Description of drawings

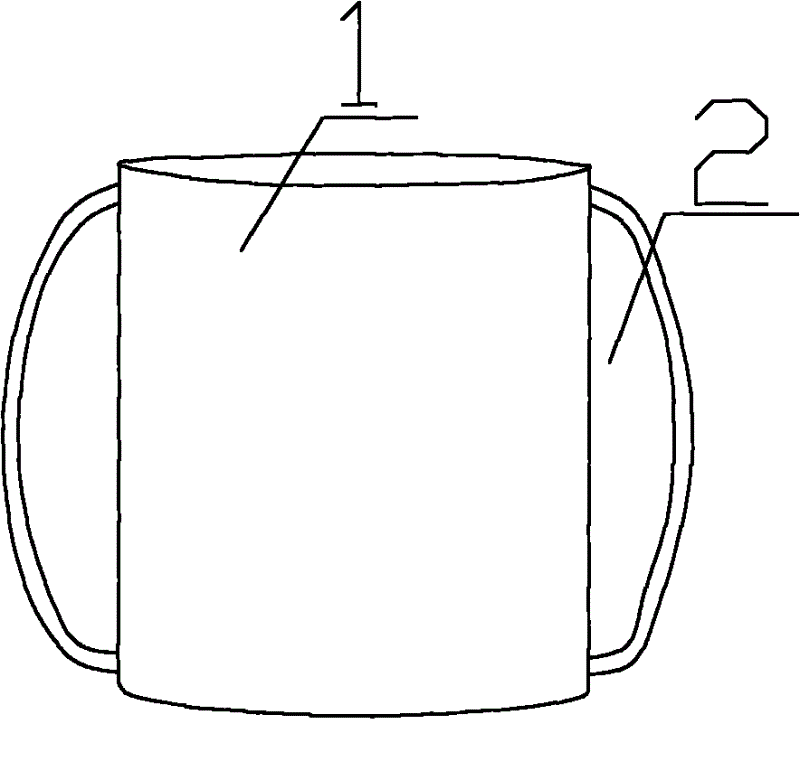

图1为杯子的主视图。Figure 1 is a front view of the cup.

图2为杯子的后视图。Figure 2 is a rear view of the cup.

具体实施方式Detailed ways

实施例1：参照附图1～2。一种杯子，它包括杯子1，所述的杯子1的外部设有左右相连通的套子2。Embodiment 1: with reference to accompanying drawing 1～2. A cup, which includes a cup 1, and the outside of the cup 1 is provided with a sleeve 2 connected left and right.

需要理解到的是：上述实施例虽然对本实用新型作了比较详细的文字描述，但是这些文字描述，只是对本实用新型设计思路的简单文字描述，而不是对实用新型设计思路的限制，任何不超出本实用新型设计思路的组合、增加或修改，均落入本实用新型的保护范围内。It should be understood that: although the above-mentioned embodiments have described the utility model in more detail, these text descriptions are only simple text descriptions of the design ideas of the utility model, rather than restrictions on the design ideas of the utility model. The combination, addition or modification of the design idea of the utility model all fall within the protection scope of the utility model.

Claims

1. cup, it comprises cup, it is characterized in that: the cover that is connected about the outside of described cup is provided with.
