A kind of LED street light

technical field

The utility model belongs to the technical field of semiconductor lighting, in particular to an LED street lamp with excellent heat dissipation performance.

Background technique

At present, the street lamps used on the road are generally 150W-400W fluorescent lamps or sodium lamps. This kind of street lamp arrangement generally extends a bracket horizontally above the street lamp pole, and sets the street lamp at the end of the bracket; or directly on the lamp pole. The upper part curves above the road surface, and the street light shines down towards the road surface. The problems of this type of street lamp are that the area of the light source is small, the luminous efficiency is not high, and the power consumption is very large. In practical applications, for the sake of power saving, the brightness of street lamps needs to be adjusted at different time periods. In the middle of the night, it is often necessary to dim the street lamps to save electricity. It is very easy to damage the lamp tube when working in this state, and the service life of the lamp is short, so that the replacement frequency of the lamp tube is too high, and the maintenance cost is greatly increased. Street lights are usually erected at high altitudes, and frequent replacement brings a lot of inconvenience to the inspection, maintenance and troubleshooting of circuit pipelines, which not only increases the maintenance cost of the lighting system, but also increases energy consumption. When the power supply is in short supply, the lighting of street lights will be restricted.

Because LED street lamps have the characteristics of long life, high light source, no radiation, and low power consumption, LED semiconductor light sources have been widely used in the field of lighting in recent years. However, due to the unidirectional nature of LED lights, they are basically vertical to the ground at a certain angle Due to the characteristics of light guide, there are problems such as small illumination range and too concentrated light beam.

Utility model content

The technical problem to be solved by the utility model is to overcome the deficiencies of the above-mentioned prior art and provide an improvement of an LED street lamp. The LED street lamp should have the characteristics of high luminous efficiency, large illumination range and energy saving.

The technical scheme adopted by the utility model is: an LED street lamp, which includes a lamp body and a layer of aluminum substrate inside it, the upper surface of the aluminum substrate is provided with several evenly distributed LED lamps, and the lower surface of the aluminum substrate is provided with The heat dissipation plate is characterized in that a layer of luminescent plate is provided on the upper surface of the lamp body, and the luminescent plate is integrally formed with the outer surface of the LED lamp.

Preferably, the LED lamp includes an aluminum substrate arranged on the lamp body, LED particles are arranged on the aluminum substrate, an optical lens is installed on the outer edge of the lamp holder, and the outer surface of the light-emitting plate and the optical lens is formed as One. When the luminous plate and the optical lens are integrally formed, the luminous plate can be used as a secondary lens, which not only improves the light output rate, but also increases the illumination range, and is especially suitable for road lighting.

Preferably, the aluminum substrate has a circular or elliptical structure. Setting a circular or elliptical aluminum base plate can not only increase the illumination range, but also simplify the processing technology.

Preferably, the lower surface of the aluminum base plate is integrally formed with a set of strip-shaped heat dissipation plates parallel to each other with the same spacing, and a set of ventilation openings with the same size and the same spacing are evenly opened on the heat dissipation plate. By joining the black aluminum heat sink on the lower surface of the aluminum substrate, it not only greatly enhances the heat dissipation function, so that it can meet the needs of high-power LED street lights, but also is durable and has a long service life; The heat dissipation performance of street lamps.

Preferably, a shading cover is provided between the luminous plate and the aluminum substrate. The function of the sunshade is to increase the light output rate of the light and increase the light intensity.

Preferably, a waterproof sealing ring is provided between the light-emitting board and the shading cover. By setting the waterproof sealing ring, the entire street lamp device has good waterproof performance, and even if it is windy or rainy, the street lamp will not be damaged due to water ingress. damage, increasing the service life.

Preferably, the lamp body is further provided with a power adapter and a constant current driving device, and the power adapter and the constant current driving device are arranged side by side on the lower surface of the aluminum substrate. Since the power supply is powered by a power adapter with high power factor and built-in microprocessor, the light slowly changes from dark to bright after power on, so that when all street lights are powered on at the same time, the impact on the grid is minimized. By arranging a constant current driving device in the lamp body, the current flowing through the LED lamp is kept constant, which not only increases the stability of the LED lamp, but also improves the service life of the LED lamp.

Preferably, a light pole connection hole is opened at the end of the lamp body, and the end of the lamp body is connected to the light pole through bolts and fixing splints.

The beneficial effects of the utility model are: 1. The service life is long, and the LED lamp with the same light effect can save 80% of energy consumption compared with the high-pressure sodium lamp, which can greatly save the electricity cost; in terms of service life, the LED lamp can reach more than 100,000 hours, which is a high-voltage The service life of sodium lamps is ten times that of sodium lamps, so the use of LED street lights not only reduces the replacement cost of light sources, but also reduces maintenance costs.

2. High brightness, high color rendering, and wide illumination range. Japan Citizen's high-color rendering and high-power series LEDs are used as the light source. The color reproduction is high, and it is suitable for road lighting that requires high color recognition. The arrangement of LEDs on the lamps is professionally designed. The light-emitting board and the optical lens are formed into one body. The light-emitting board can be used as a secondary lens. The light output rate is high and the illumination range is large. The light angle can exceed 45 degrees, especially suitable for road lighting.

3. Sturdy and durable, good heat dissipation, waterproof and dustproof. The lamp is cut from 6063 aluminum in one piece. The surface is oxidized and durable. The lower surface of the aluminum substrate is joined with a black aluminum heat sink. The heat sink has horizontal ventilation holes and has excellent heat dissipation performance. . The entire product has also been treated with water and moisture resistance, and the protection level is IP65.

4. Soft start function. The LED street lamp developed by our company also specially uses a power adapter, also called a switching power supply, for power supply. It has a high power factor and a built-in microprocessor. When energized at the same time, the impact on the grid is minimized.

Description of drawings

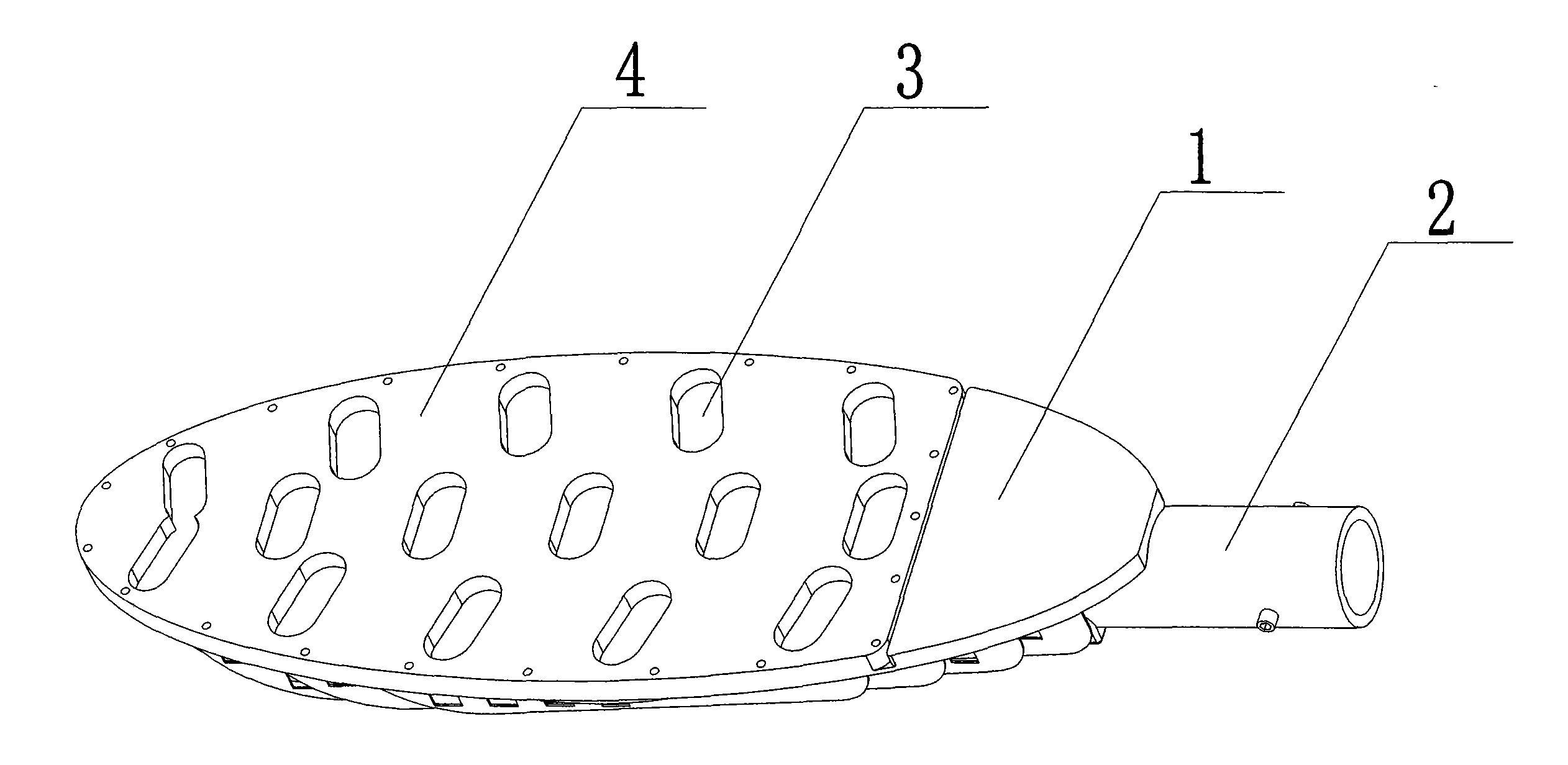

Fig. 1 is a perspective view 1 of the present utility model.

Fig. 2 is a perspective view 2 of the present utility model.

Fig. 3 is a sectional view of the utility model.

Detailed ways

The technical solution of the utility model is further described below through specific examples.

As shown in Figures 1 and 2, this specific embodiment includes a lamp body 1 and a layer of aluminum substrate 6 inside it. The aluminum substrate is circular or oval, and LED particles 7 are installed on the aluminum substrate. An optical lens 8 is installed on the outer edge of the seat; the lower surface of the aluminum substrate 5 is integrally formed with a set of strip-shaped cooling plates 5 parallel to each other with the same spacing, and a set of ventilation openings with the same size and the same spacing are evenly opened on the cooling plate 9. By joining the black aluminum heat sink on the lower surface of the aluminum substrate, not only the heat dissipation function is greatly enhanced, so that it can meet the needs of high-power LED street lights, but also it is durable and has a long service life. The heat dissipation performance of the street lamp can be further improved by providing the air vent. The upper surface of the lamp body 1 is provided with a layer of light-emitting board 4 , and the light-emitting board 4 is integrally formed with the outer surface of the optical lens 8 . When the luminous plate and the optical lens are integrally formed, the luminous plate can be used as a secondary lens, which not only improves the light output rate, but also increases the illumination range, and is especially suitable for road lighting.

As shown in FIG. 3 , a shading cover 10 is provided between the luminescent plate 4 and the aluminum substrate 5 , and the function of the shading cover is to increase the light extraction rate of light and increase the intensity of light.

A waterproof sealing ring 11 is provided between the light-emitting board 7 and the shading cover 10; by setting the waterproof sealing ring, the entire street lamp device has good waterproof performance, even if it is windy and rainy, the street lamp will not be damaged due to water ingress. Damage, increased service life.

The lamp body 1 is also provided with a power adapter 12 and a constant current driving device 13, and the power adapter and the constant current driving device are arranged side by side on the lower surface of the aluminum substrate. Since the power supply is powered by a power adapter with high power factor and built-in microprocessor, the light slowly changes from dark to bright after power on, so that when all street lights are powered on at the same time, the impact on the grid is minimized. By arranging a constant current driving device in the lamp body, the current flowing through the LED lamp is kept constant, which not only increases the stability of the LED lamp, but also improves the service life of the LED lamp.

The end of the lamp body 1 is provided with a lamp pole connecting hole, and the end of the lamp body is connected with the lamp pole 2 through a bolt 1-1 and a fixing splint 1-2.

The working principle of the utility model is: by integrally forming the light-emitting plate and the outer surface of the optical lens, the light output rate of the entire LED street lamp can be greatly improved, thereby achieving the effect of large-scale and high-brightness irradiation.

The specific embodiments described herein are only examples to illustrate the spirit of the present invention. Those skilled in the technical field to which the utility model belongs can make various modifications or supplements to the described specific embodiments or adopt similar methods to replace them, but they will not deviate from the spirit of the utility model or go beyond the appended claims defined range.

Claims (8)

1. An LED street lamp, comprising a lamp body (1) and a layer of aluminum substrate (6) inside it, the upper surface of the aluminum substrate is provided with several evenly distributed LED lamps (3), the lower surface of the aluminum substrate A heat dissipation plate (5) is provided, and it is characterized in that a layer of luminescent plate (4) is also provided on the upper surface of the lamp body, and the luminescent plate is integrally formed with the outer surface of the LED lamp. 2. The LED street lamp according to claim 1, characterized in that the LED lamp (3) comprises an aluminum substrate (6) arranged on the lamp body (1), and LED particles (7) are arranged on the aluminum substrate, An optical lens (8) is installed on the outer edge of the lamp holder, and the light-emitting plate (4) is integrally formed with the outer surface of the optical lens (8). 3. The LED street lamp according to claim 1 or 2, characterized in that the aluminum substrate (6) has a circular or elliptical structure. 4. The LED street lamp according to claim 1 or 2, characterized in that the lower surface of the aluminum base plate is integrally formed with a set of strip-shaped heat dissipation plates (5) parallel to each other and with the same spacing, and the heat dissipation plates are evenly spaced. A group of vents (9) with the same size and the same spacing are provided. 5. The LED street lamp according to claim 1, characterized in that a shading cover (10) is provided between the light-emitting board (4) and the aluminum substrate (6). 6. The LED street lamp according to claim 5, characterized in that a waterproof sealing ring (11) is provided between the light emitting board (4) and the lamp body (1). 7. The LED street lamp according to claim 1, characterized in that the lamp body (1) is also provided with a power adapter (12) and a constant current drive device (13), and the power adapter and the constant current drive The devices are arranged side by side on the lower surface of the aluminum substrate (6). 8. The LED street lamp according to claim 1, characterized in that the end of the lamp body (1) is connected to the lamp pole (2) through a bolt (1-1) and a fixing splint (1-2).
