Abstract
本实用新型提供一种节省空间、节约水资源、节约成本，防止交叉污染的防污节水蹲厕冲水装置。它是由蹲便器、控水器和冲洗器组成的，蹲便器连接控水器，控水器连接冲洗器。控水器包括放水连接管、活接、水箱、进水控制阀门和控水机构，放水连接管连接活接，活接连接水箱，进水控制阀门和控水机构位于水箱的内部。冲洗器包括洗手盆、盆内盖、冲水开关、水龙头和连接水管，洗手盆连接盆内盖，冲水开关位于洗手盆的底部，连接水管位于洗手盆外侧，连接水管连接水龙头。本实用新型一种防污节水蹲厕冲水装置，不改变人们的使用习惯，将洗手盆和冲水水箱合二为一，节省空间，节约用水，由于改变了供水排水结构而产生防止污染的效果。
The utility model provides a space-saving, water-saving, cost-saving and anti-fouling, water-saving squatting toilet flushing device which prevents cross-contamination. It is composed of a squatting pan, a water controller and a flusher, the squatting pan is connected to the water controller, and the water controller is connected to the flusher. The water control device includes a water discharge connecting pipe, a union, a water tank, a water inlet control valve and a water control mechanism. The water discharge connection pipe is connected with a union, and the union is connected with a water tank. The flusher includes a washbasin, a basin inner cover, a flushing switch, a faucet and a connecting water pipe. The washbasin is connected to the basin inner cover. The flushing switch is located at the bottom of the washbasin. The utility model is an anti-fouling, water-saving squatting toilet flushing device, which does not change people's usage habits, combines the washbasin and the flushing water tank into one, saves space, saves water, and prevents pollution due to the change of the water supply and drainage structure. Effect.
Description
(一)技术领域(1) Technical field
本实用新型涉及卫生洁具，具体说就是一种防污节水蹲厕冲水装置。The utility model relates to a sanitary ware, in particular to an antifouling and water-saving squat toilet flushing device.
(二)背景技术(2) Background technology
在日常生活中。蹲便器的使用非常普遍，尤其是企事业单位，政府部门，机关学校，每天需要用大量的清水来冲洗厕所。在卫生间的设计和使用中，都是洗面盆、蹲便器分离的比较远，各自都有自己独立的供排水系统，功能单一，所占空间大，用水也多。洗面盆就只能洗脸，蹲便器就是大小便。这样不但造价高，而且浪费水资源。卫生间面积大了，其他的面积自然就会小了。每增大一平米的卫生间就是几千到几万的代价。另外，公共卫生间部分都是1平米左右，里面就一个蹲便器，洗手区在另外的地方，占的地方较大。所以有必要对卫生间的洗面盆和蹲便器来个合二为一。现在市面上100％冲厕所用的存水箱因进水口和自来水管道是直接连接，中间没有防污染的功能。下水道是最脏的，当自来水停水或水压低的时候，各种细菌就会顺着连接管道进入自来水管而造成污染。in daily life. The use of squatting pan is very common, especially in enterprises and institutions, government departments, government agencies and schools, which need to flush the toilet with a large amount of clear water every day. In the design and use of the bathroom, the washbasin and the squatting pan are separated far away, and each has its own independent water supply and drainage system, which has a single function, takes up a lot of space, and uses a lot of water. The washbasin can only wash the face, and the squatting toilet is for defecation. This not only costs high, but also wastes water resources. The larger the bathroom area, the other areas will naturally be smaller. Every additional square meter of bathroom costs thousands to tens of thousands. In addition, the public toilets are about 1 square meter, and there is only a squatting toilet inside, and the hand washing area is in another place, which occupies a large area. Therefore, it is necessary to combine the washbasin and the squatting toilet in the bathroom. Now 100% of the water storage tanks used for flushing toilets on the market are directly connected to the water pipes because of the water inlet, and there is no anti-pollution function in the middle. The sewer is the dirtiest. When the tap water is cut off or the water pressure is low, various bacteria will enter the tap water pipe along the connecting pipe and cause pollution.
(三)发明内容(3) Contents of the invention
本实用新型提供一种节省空间、节约水资源、节约成本，防止交叉污染的防污节水蹲厕冲水装置。The utility model provides a space-saving, water-saving, cost-saving and anti-fouling, water-saving squatting toilet flushing device which prevents cross-contamination.
本实用新型的目的是这样实现的，它是由它是由蹲便器1、控水器12和冲洗器13组成的，蹲便器1连接控水器12，控水器12连接冲洗器13。The purpose of this utility model is achieved in that it is made up of squatting
本实用新型还有以下技术特征：The utility model also has the following technical characteristics:
(1)所述的控水器12包括放水连接管2、活接3、水箱4、进水控制阀门5和控水机构6，放水连接管2连接活接3，活接3连接水箱4，进水控制阀门5和控水机构6位于水箱4的内部。(1) The described
(2)所述的冲洗器13包括洗手盆7、盆内盖8、冲水开关9、水龙头10和连接水管11，洗手盆7连接盆内盖8，冲水开关9位于洗手盆7的底部，连接水管11位于洗手盆7外侧，连接水管11连接水龙头10。(2) The
本实用新型一种防污节水蹲厕冲水装置，不改变人们的使用习惯，将洗手盆和冲水水箱合二为一，节省空间，节约用水。由于改变了供水排水机构而产生防止污染的效果。The utility model is an antifouling and water-saving squatting toilet flushing device, which combines a washbasin and a flushing water tank into one without changing people's usage habits, thereby saving space and water. Due to the change of the water supply and drainage mechanism, the effect of preventing pollution is produced.
(四)附图说明(4) Description of drawings

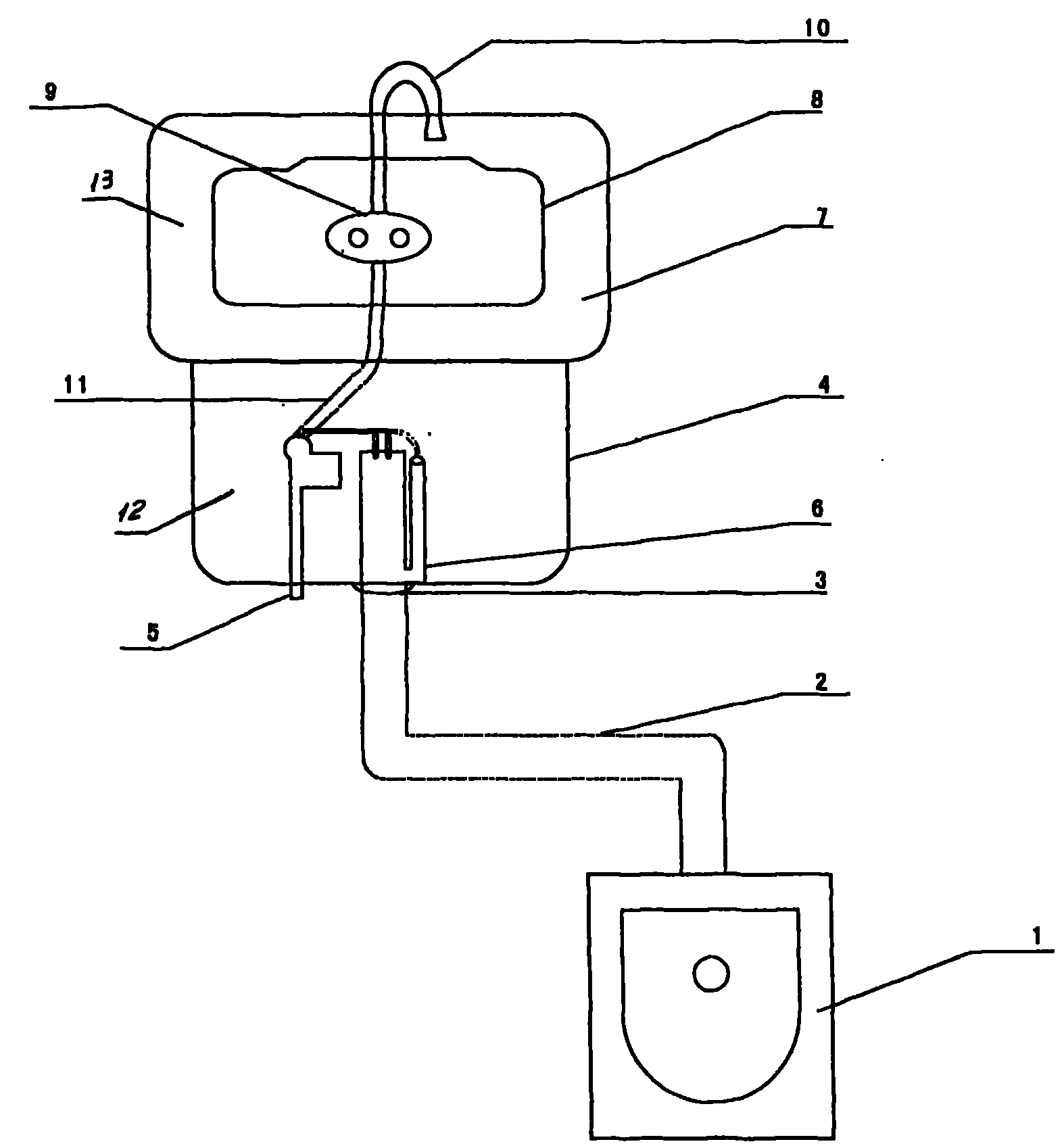

图1为本实用新型的结构示意图。Fig. 1 is the structural representation of the utility model.
(五)具体实施方式(5) Specific implementation methods
下面结合附图举例对本实用新型作进一步说明。Below in conjunction with accompanying drawing example the utility model is described further.
实施例1，结合图1，本实用新型一种防污节水蹲厕冲水装置，它是由蹲便器(1)、控水器(12)和冲洗器(13)组成的，蹲便器(1)连接控水器(12)，控水器(12)连接冲洗器(13).
本实用新型还有以下技术特征：The utility model also has the following technical characteristics:
所述的控水器(12)包括放水连接管(2)、活接(3)、水箱(4)、进水控制阀门(5)和控水机构(6)，放水连接管(2)连接活接(3)，活接(3)连接水箱(4)，进水控制阀门(5)和控水机构(6)位于水箱(4)的内部。The water control device (12) includes a water discharge connecting pipe (2), a union (3), a water tank (4), a water inlet control valve (5) and a water control mechanism (6), and the water discharge connecting pipe (2) is connected to The union (3), the union (3) is connected to the water tank (4), and the water inlet control valve (5) and the water control mechanism (6) are positioned at the inside of the water tank (4).
所述的冲洗器(13)包括洗手盆(7)、盆内盖(8)、冲水开关(9)、水龙头(10)和连接水管(11)，洗手盆(7)连接盆内盖(8)，冲水开关(9)位于洗手盆(7)的底部，连接水管(11)位于洗手盆(7)外侧，连接水管(11)连接水龙头(10)。Described washer (13) comprises washbasin (7), basin inner cover (8), flush switch (9), water tap (10) and connection water pipe (11), and washbasin (7) connects basin inner cover ( 8), the flushing switch (9) is positioned at the bottom of the washbasin (7), the connecting water pipe (11) is positioned at the outside of the washbasin (7), and the connecting water pipe (11) is connected to the faucet (10).
实施例2，结合图1，本实用新型一种防污节水蹲厕冲水装置，它的结构原理是这样的：
(1)将洗手盆和冲水用的存水箱设计为一体。洗手盆内开一个和存水箱内上口径同样大的口，以方便安装和连接箱内的供排水系统和水龙头的连接。也为以后维修提供方便。再做一个和盆内所开的口同样大小的盖子，盖在盆内，在盖的中心安上控制大小水流的冲水开关。予留洗手后的水由盆进到存水箱的通道。(1) The washbasin and the water storage tank for flushing are designed as one. A mouth with the same size as the upper diameter in the water storage tank is opened in the washbasin to facilitate the installation and connection of the water supply and drainage system in the box and the connection of the faucet. It also provides convenience for future maintenance. Make another lid with the same size as the opening in the basin, cover it in the basin, and install a flush switch for controlling the water flow in the center of the lid. The water after leaving to wash one's hands enters the passage of water storage tank by basin.
(2)将进水由常规的从水箱底部进水改为从进水控制阀门的顶部直接连接水龙头。(2) Change the water intake from the conventional water intake from the bottom of the water tank to directly connect the water tap from the top of the water intake control valve.
本实用新型的使用过程如下：使用者上完厕所，按下冲水开关，水在开始冲洗的同时往水龙头供水，洗完手后的水就会存到水箱里，水箱里的水到达设定水位时进水阀门就会自动关闭。这样，人们洗手后不必去关闭水龙头，给使用者带来极大方便。使用本实用新型可以养成便后洗手的好习惯。水箱里的水最高水位离给它供水的水龙头有很大距离，中间隔开了洗手盆。当自来水水压低或停水时，下水道的细菌也没有污染自来水的可能。排水原理和常规相同。The use process of the utility model is as follows: the user presses the flushing switch after using the toilet, and the water is supplied to the faucet at the same time as the flushing starts, and the water after washing hands will be stored in the water tank, and the water in the water tank reaches the set The water inlet valve will automatically close when the water level is reached. In this way, people do not need to turn off the water tap after washing their hands, which brings great convenience to users. Using the utility model can form a good habit of washing hands after going to the toilet. The highest water level of the water in the water tank is far away from the faucet that supplies water to it, and the washbasin is separated in the middle. When the tap water pressure is low or the water is cut off, there is no possibility of sewer bacteria contaminating the tap water. The drainage principle is the same as conventional.
