Abstract
一种反应釜根部阀结构，包括与反应釜相通的取压管路、压力测量器及设于取压管路中的根部阀，其特征在于所述的取压管路连接一三通接头，该三通接头一端口通过一管路与所述压力测量器相连，另一端口通过一球阀连接有一封环，该封环内密封式设有一能通过开启的根部阀和球阀而能直插到所述取压管路内以疏通取压管路的通条。与现有技术相比，操作简单，而且不影响在线生成，又由于通条来回移动密封性好，可以杜绝反应物漏出或空气吸入反应釜的现象发生。
A reactor root valve structure, comprising a pressure-taking pipeline communicated with the reactor, a pressure measuring device and a root valve arranged in the pressure-taking pipeline, characterized in that the pressure-taking pipeline is connected with a three-way joint, One port of the three-way joint is connected to the pressure measuring device through a pipeline, and the other port is connected with a sealing ring through a ball valve. The inner seal of the sealing ring is provided with a root valve and a ball valve that can be opened and can be directly inserted into the In the pressure-taking pipeline, the cleaning bar of the pressure-taking pipeline is dredged. Compared with the prior art, the operation is simple and does not affect the on-line production, and because the cleaning rod moves back and forth and has good sealing performance, it can prevent the leakage of reactants or the phenomenon of air inhalation into the reactor.
Description
Technical field
The utility model relates to a kind of parts of reactor, relates in particular to a kind of reactor root valve structure.
Background technology
Have now in chemical process, need detect and control the reactor gaseous pressure usually, generally be connected by pressure pipeline, root valve and Pressure gauge (or pressure transmitter).Yet; when producing volatile or thickness product (as the batch condensation polymerization reactor of production of polyester); pressure pipe root is prone to clogging; this just needs to shut down cleaning; or Hand scarf, shutting down cleaning influences the progress of work, and the thing that responds during Hand scarf spills or air sucting reaction still; when large-scale continuous production, can cause the product quality fluctuation or bring potential safety hazard.
The utility model content
Technical problem to be solved in the utility model is that a kind of energy Hand scarf pressure pipe plug plug and the good reactor root valve structure of sealing are provided at the above-mentioned state of the art.
The utility model solves the problems of the technologies described above the technical scheme that is adopted: a kind of reactor root valve structure, comprise pressure pipeline, the pressometer that communicates with reactor and be located at root valve in the pressure pipeline, it is characterized in that described pressure pipeline connects a three-way connection, this three-way connection one port links to each other with described pressometer by a pipeline, the another port is connected with a seal ring by a ball valve, this seal ring internal sealed be provided with one can be by the root valve opened and ball valve and can straight cutting in the described pressure pipeline with the poker of mediation pressure pipeline.
Sealing means is preferably as follows design: be provided with at least one sealing ring in the described seal ring, sealing circle inwall and described poker outer wall tight fit.
Be further enhanced leaktightness, described seal ring one side opening also communicates with a woven hose, has the sealing fluid that leads to the seal ring inner chamber in this woven hose.
Described sealing ring is at least two, and between described seal ring one side opening two sealing rings located therein.
Be convenient to control sealing fluid, the tank body that described woven hose and is deposited sealing fluid communicates, and woven hose is provided with a control valve that is used to control the sealing fluid break-make.
Described root valve is a Vacuum ball valve, in the pressure pipeline of this Vacuum ball valve between described three-way connection and reactor.
Compared with prior art, advantage of the present utility model is: when in the needs cleanings pressure pipeline during sediment, earlier pressure-dependent automatic control is changed manually, open root valve again, with the poker straight cutting on earth, repeatable operation several times, mediation finishes and poker is extracted on the ball valve again, close ball valve then, recover normal control and get final product; Simple to operate, and do not influence online generation, the good airproof performance because poker moves around again can stop that reactant spills or the phenomenon of air sucting reaction still takes place.
Description of drawings

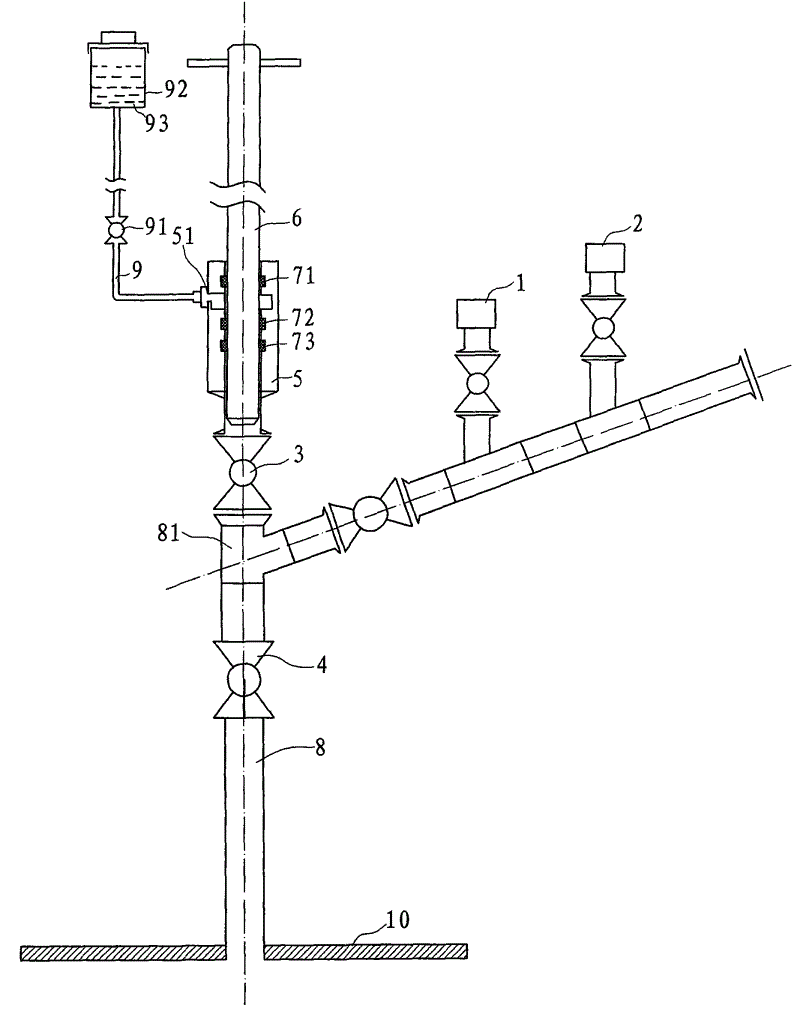

Fig. 1 is the example structure schematic diagram.
The specific embodiment
Embodiment describes in further detail the utility model below in conjunction with accompanying drawing.
As shown in Figure 1, reactor root valve structure in the present embodiment comprises pressure pipeline 8, pressometer 1 and pressure dynamometer 2 and be located at Vacuum ball valve 4 in the pressure pipeline, pressure pipeline 8 connects a three-way connection 81, these three-way connection 81 1 ports link to each other with pressure dynamometer 2 with pressometer 1 by a pipeline, the another port connects ball valve 3 by a flange and is connected with a seal ring 5, seal ring 5 has certain-length, be tubular, seal ring 5 internal sealeds are provided with a poker 6, pressure pipeline 8 communicates with reactor 10, in the pressure pipeline of Vacuum ball valve 4 between three-way connection 81 and reactor 10.
Poker 6 can be connected ball valve 3 by the Vacuum ball valve of opening 4 and can arrive in the pressure pipeline 8 with mediation pressure pipeline 8 by straight cutting with flange.Pressometer in the present embodiment can adopt Pressure gauge or pressure transmitter, and the pressure dynamometer can be provided with one or more, is provided with two in the present embodiment, is respectively pressometer 1 and pressure dynamometer 2.
Be provided with sealing ring 71, sealing ring 72 and sealing ring 73 in the seal ring 5, sealing ring 71, sealing ring 72 and sealing ring 73 inwalls and poker 6 outer wall tight fits.The opening 51 of seal ring 5 one sides also communicates with woven hose 9, has the sealing fluid 93 that leads to the seal ring inner chamber in the woven hose 9.Opening 51 is located between sealing ring 71 and the sealing ring 72, and woven hose 9 communicates with the bottom of the tank body 92 of depositing sealing fluid 93, and woven hose 9 is provided with a control valve 91 that is used to control sealing fluid 93 break-makes.
When in the needs cleanings pressure pipeline during sediment, earlier pressure-dependent automatic control is changed manually, open Vacuum ball valve again and be connected ball valve with flange, with the poker straight cutting on earth, repeatable operation several times, again poker is extracted into flange and connects on the ball valve, close flange connection ball valve, recover normal control and get final product.
