CN201411760Y - exhaust toilet - Google Patents

Abstract

The utility model relates to a sanitary ware, in particular to an exhaust toilet. The exhaust type toilet includes a toilet, a flushing pipe, and a water tank. An annular water channel is arranged on the upper edge of the toilet, and a flushing port is opened below the annular water channel. One end of the flushing pipe is connected to the annular water channel, and the other end is connected to the water tank. It also includes an exhaust pipe, a control switch, and an exhaust fan. The toilet is provided with a ring-shaped air exhaust channel above the annular water channel. There are multiple air exhaust ports along the inner wall of the toilet. The air exhaust port and the annular air exhaust channel Connected; one end of the exhaust pipe is connected to the circular exhaust duct, the other end is connected to the exhaust fan, and directly leads to the outside through the exhaust fan; the exhaust fan is installed inside the wall, and the control switch is fixedly installed on the wall and connected to the exhaust fan . After using the structure of the utility model, it is guaranteed that the peculiar smell will not overflow the range of the toilet, and a good toilet environment is provided for people.

Description

exhaust toilet

technical field

The utility model relates to a sanitary ware, in particular to an exhaust toilet.

Background technique

At present, when the traditional toilet is in use, it will inevitably produce some peculiar smell gas, which has a bad smell and bad smell, which seriously affects people's toilet environment. It is difficult for the exhaust equipment in the bathroom to completely remove all the gas, and the gas will inevitably pass through the human respiratory system in the process of being discharged from the bottom to the top, and the problem cannot be solved.

Contents of the invention

The utility model aims at the above-mentioned problems, and provides an exhaust toilet that can better eliminate the odorous gas produced by excrement.

The technical scheme of the utility model is as follows: the exhaust toilet includes a toilet, a flushing pipe, and a water tank. There is a ring-shaped water channel on the upper edge of the toilet, and a flushing port is opened under the ring-shaped water channel. One end of the flushing pipe is connected to the ring-shaped water channel. , the other end is connected to the water tank, which also includes an exhaust pipe, a control switch, and an exhaust fan. The toilet is provided with a ring-shaped exhaust channel above the annular water channel, and a plurality of air outlets are opened on the toilet along the inner wall. The exhaust port is connected with the circular exhaust duct; one end of the exhaust pipe is connected with the annular exhaust duct, and the other end is connected to the exhaust fan, which directly leads to the outside through the exhaust fan; the exhaust fan is installed inside the wall, and the control switch is fixed on the on the wall and connected to the exhaust fan.

The exhaust pipe can also be connected with the exhaust pipe of the bathroom through an exhaust fan.

Before going to the toilet, people turn on the fan through the control switch. Under the negative air pressure, the peculiar smell generated is sucked away by the fan before it is released, and then the fan is turned off after flushing the water.

After using the structure of the utility model, since there are a plurality of tuyere openings along the inner side wall on the toilet, sufficient air negative pressure can be generated, and the odorous gas can be sucked away in all directions, ensuring that the odor will not overflow the range of the toilet Inside, it provides a good toilet environment for people.

Description of drawings

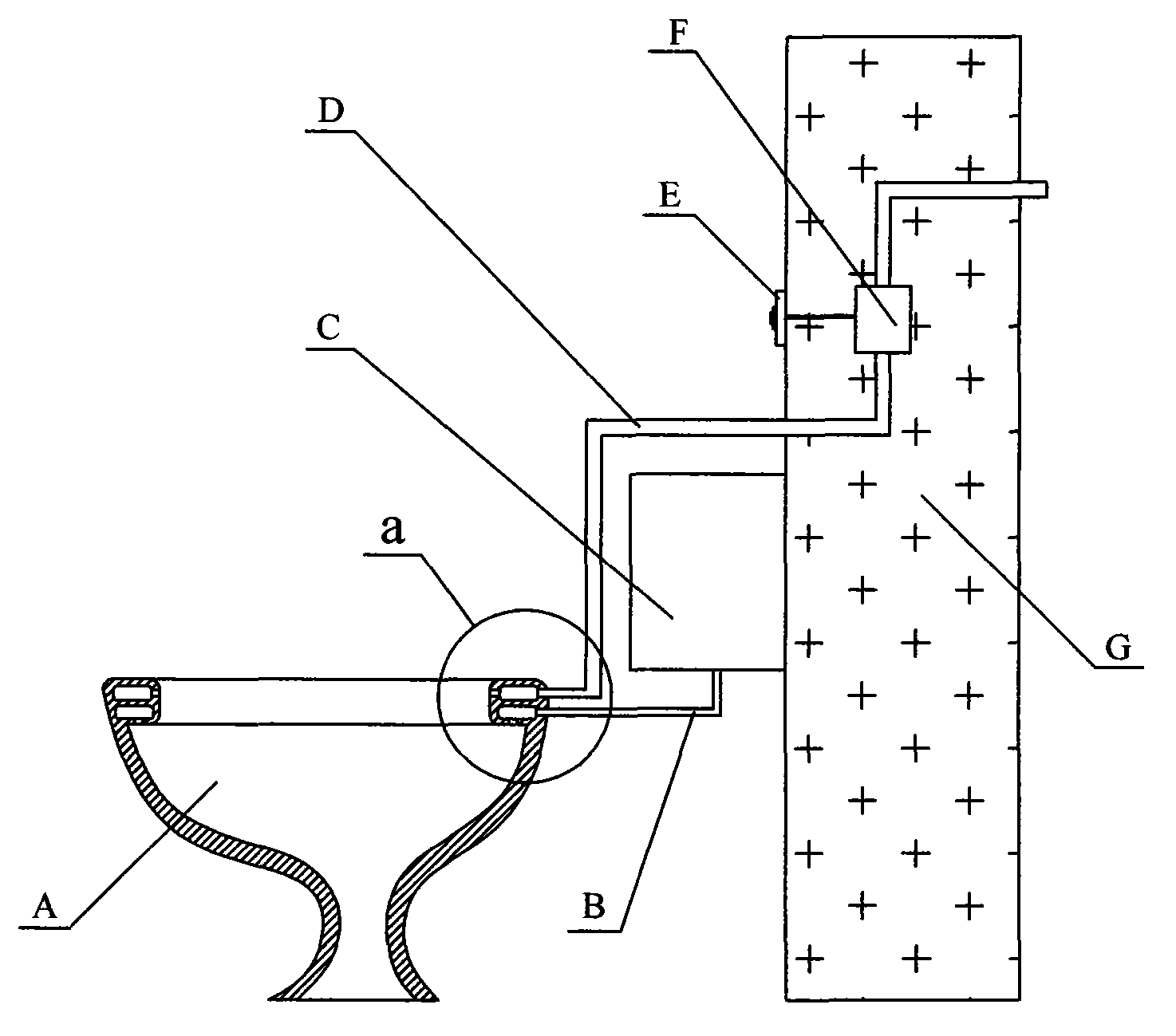

Figure 1 is a schematic diagram of the overall structure of the utility model.

Fig. 2 is an enlarged schematic diagram of part a in Fig. 1 of the present utility model.

In the figure, a toilet A, a flushing pipe B, a water tank C, an exhaust pipe D, a control switch E, an exhaust fan F, a wall G, an annular water channel A1, a flushing port A2, an annular air exhaust channel A3, and an air exhaust port A4.

Detailed ways

Below in conjunction with accompanying drawing and specific embodiment the utility model is described in further detail.

Embodiment one:

Exhaust toilet, including toilet A, flushing pipe B, and water tank C. A ring-shaped waterway A1 is arranged on the upper edge of the toilet A, and a flushing port A2 is opened below the ring-shaped waterway A1. One end of the flushing pipe B is connected to the ring-shaped waterway A1. The other end of the water tank C is connected, which also includes an exhaust pipe D, a control switch E, and an exhaust fan F. The toilet A is provided with a ring-shaped exhaust duct A3 above the annular water channel A1, and the toilet A is along the inner side. There are multiple exhaust outlets A4 on the wall, and the exhaust outlets A4 communicate with the annular exhaust duct A3; one end of the exhaust pipe D is connected to the annular exhaust duct A3, and the other end is connected to the exhaust fan F, and directly passes through the exhaust fan F. To the outside; the exhaust fan F is installed inside the wall G, and the control switch E is fixedly installed on the wall and connected with the exhaust fan F.

Embodiment two:

The exhaust pipe D can also be connected to the exhaust duct of the bathroom through the exhaust fan F. Other structures are the same as in Embodiment 1.

Claims (2)

1. Exhaust toilet, including toilet (A), flushing pipe (B), and water tank (C), the upper edge of the toilet (A) is provided with a ring-shaped waterway (A1), and the bottom of the ring-shaped waterway (A1) There is a flushing port (A2), one end of the flushing pipe (B) is connected to the annular water channel (A1), and the other end is connected to the water tank (C). It is characterized in that it also includes an exhaust pipe (D), a control switch (E), a drain The fan (F), the toilet (A) is provided with a ring-shaped exhaust duct (A3) above the annular water channel (A1), and the toilet (A) is provided with an air exhaust port (A4) along the inner wall. The outlet (A4) communicates with the annular exhaust duct (A3); one end of the exhaust pipe (D) is connected with the annular exhaust duct (A3), and the other end is connected to the exhaust fan (F), and is directly ventilated through the exhaust fan (F). To the outside; the exhaust fan (F) is installed inside the wall (G), and the control switch (E) is fixedly installed on the wall and connected with the exhaust fan (F). 2. The exhaust toilet according to claim 1, characterized in that: the exhaust pipe (D) can also be connected to the exhaust pipe of the bathroom through an exhaust fan (F).
