CN201408926Y - High and low voltage prefabricated mobile substation for oil drilling rig - Google Patents
High and low voltage prefabricated mobile substation for oil drilling rig Download PDFInfo
- Publication number
- CN201408926Y CN201408926Y CN2009200808450U CN200920080845U CN201408926Y CN 201408926 Y CN201408926 Y CN 201408926Y CN 2009200808450 U CN2009200808450 U CN 2009200808450U CN 200920080845 U CN200920080845 U CN 200920080845U CN 201408926 Y CN201408926 Y CN 201408926Y
- Authority
- CN
- China
- Prior art keywords
- transformer
- transformers
- oil
- power supply
- voltage
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02E—REDUCTION OF GREENHOUSE GAS [GHG] EMISSIONS, RELATED TO ENERGY GENERATION, TRANSMISSION OR DISTRIBUTION
- Y02E40/00—Technologies for an efficient electrical power generation, transmission or distribution
- Y02E40/30—Reactive power compensation
Landscapes
- Supply And Distribution Of Alternating Current (AREA)
Abstract
本实用新型涉及一种石油天然气钻机供配电及自动化控制技术，尤其是石油钻机用高低压预装式移动变电站。其特征在于：两个变压器上分别设置有有载开关和变压器有载调压装置；配电室配备有组合式真空断路器环网柜，变压器自动投切装置分别与两变压器连接。本实用新型的有益效果在于：降低钻井能源消耗成本40～60％，节省了宝贵的石油资源；和已有的其它厂家同类产品相比，降低了变压器的空载损耗及无功跨电压等级所传输引起的变压器铜损增加；系统供电的可靠性高；高压供电系统体积小、开断容量大、安全可靠，真正实现了额定寿命期限内免维护；供电电压稳定；无功潮流分配更合理，系统有很高的功率因数。
The utility model relates to an oil and gas drilling rig power supply and distribution and automatic control technology, in particular to a high and low voltage pre-installed mobile substation for the oil drilling rig. It is characterized in that: the two transformers are respectively equipped with on-load switches and transformer on-load voltage regulating devices; the power distribution room is equipped with a combined vacuum circuit breaker ring network cabinet, and the transformer automatic switching device is respectively connected with the two transformers. The beneficial effects of the utility model are: reducing the cost of drilling energy consumption by 40-60%, saving precious oil resources; The copper loss of the transformer caused by transmission increases; the reliability of the system power supply is high; the high-voltage power supply system is small in size, large in breaking capacity, safe and reliable, and truly realizes maintenance-free within the rated life; the power supply voltage is stable; the distribution of reactive power flow is more reasonable, The system has a high power factor.
Description
技术领域 technical field
本实用新型涉及一种石油天然气钻机供配电及自动化控制技术，尤其是石油钻机用高低压预装式移动变电站。The utility model relates to an oil and gas drilling rig power supply and distribution and automatic control technology, in particular to a high and low voltage pre-installed mobile substation for the oil drilling rig.
背景技术 Background technique
目前在石油天然气钻机基本上采用柴油机及柴油发电机作为动力，主要有一下问题：At present, diesel engines and diesel generators are basically used as power in oil and gas drilling rigs. There are mainly the following problems:
(1)世界范围的石油价格逐年攀升直接导致石油钻井成本的大幅度增加；(1) The year-by-year increase in oil prices worldwide directly leads to a substantial increase in the cost of oil drilling;
(2)石油天然气井位多处于中国西部这样交通不便的山区，巨额的运费使导致钻井成本进一步增加；(2) Oil and gas wells are mostly located in mountainous areas with inconvenient transportation like western China, and the huge freight costs further increase the drilling cost;
(3)柴油机和柴油发电机的噪音及污染物排放严重超标，影像了井位附近居民的生产生活，破坏环境；(3) The noise and pollutant emissions of diesel engines and diesel generators seriously exceed the standard, which affects the production and life of residents near the well site and damages the environment;
(4)柴油机及柴油发电机的维护成本高；(4) The maintenance cost of diesel engine and diesel generator is high;
(5)柴油机及柴油发电机的能源利用率明显低于电厂大型发电机组的能源利用率。(5) The energy utilization rate of diesel engines and diesel generators is significantly lower than that of large generator sets in power plants.
发明内容 Contents of the invention
本实用新型为了节约能源、提高系统供电的可靠性，采用的技术方案是：石油钻机用高低压预装式移动变电站，包括两台可以并列运行的变压器、10kV高压真空断路器环网柜、10kV封闭母线、变压器自动投切装置、变压器有载调压装置、动态无功补偿装置、低压智能式框架断路器，其特征在于：两个变压器上分别设置有有载开关和变压器有载调压装置；配电室配备有组合式真空断路器环网柜，变压器自动投切装置分别与两变压器连接。两台变压器可以通过高压真空断路器并在同一10kV的母线上，10kV动态无功补偿装置通过真空断路器连接至10kV封闭母线连接。两台变压器可以通过低压智能式框架断路器并在同一0.6kV的母线上，0.6kV动态无功补偿装置也连接到该0.6kV的母线。In order to save energy and improve the reliability of the system power supply, the utility model adopts the following technical proposal: a high and low voltage prefabricated mobile substation for oil drilling rigs, including two transformers that can run in parallel, a 10kV high voltage vacuum circuit breaker ring network cabinet, a 10kV Closed busbar, transformer automatic switching device, transformer on-load voltage regulating device, dynamic reactive power compensation device, low-voltage intelligent frame circuit breaker, characterized in that: two transformers are respectively equipped with on-load switch and transformer on-load voltage regulating device ; The power distribution room is equipped with a combined vacuum circuit breaker ring network cabinet, and the transformer automatic switching device is connected to the two transformers respectively. The two transformers can be connected to the same 10kV bus through the high-voltage vacuum circuit breaker, and the 10kV dynamic reactive power compensation device is connected to the 10kV closed bus through the vacuum circuit breaker. The two transformers can be connected to the same 0.6kV bus through the low-voltage intelligent frame circuit breaker, and the 0.6kV dynamic reactive power compensation device is also connected to the 0.6kV bus.
本实用新型的有益效果在于：降低钻井能源消耗成本40～60％，节省了宝贵的石油资源；和已有的其它厂家同类产品相比，降低了变压器的空载损耗及无功跨电压等级所传输引起的变压器铜损增加；系统供电的可靠性高；高压供电系统体积小、开断容量大、安全可靠，真正实现了额定寿命期限内免维护；供电电压稳定；无功潮流分配更合理，系统有很高的功率因数。降低了环境噪音及污染物排放，符合节能减排的基本国策。The utility model has the beneficial effects of reducing the cost of drilling energy consumption by 40% to 60%, saving precious oil resources; The copper loss of the transformer caused by transmission increases; the reliability of the system power supply is high; the high-voltage power supply system is small in size, large in breaking capacity, safe and reliable, and truly realizes maintenance-free within the rated life; the power supply voltage is stable; the distribution of reactive power flow is more reasonable, The system has a high power factor. Reduced environmental noise and pollutant emissions, in line with the basic national policy of energy conservation and emission reduction.
附图说明 Description of drawings

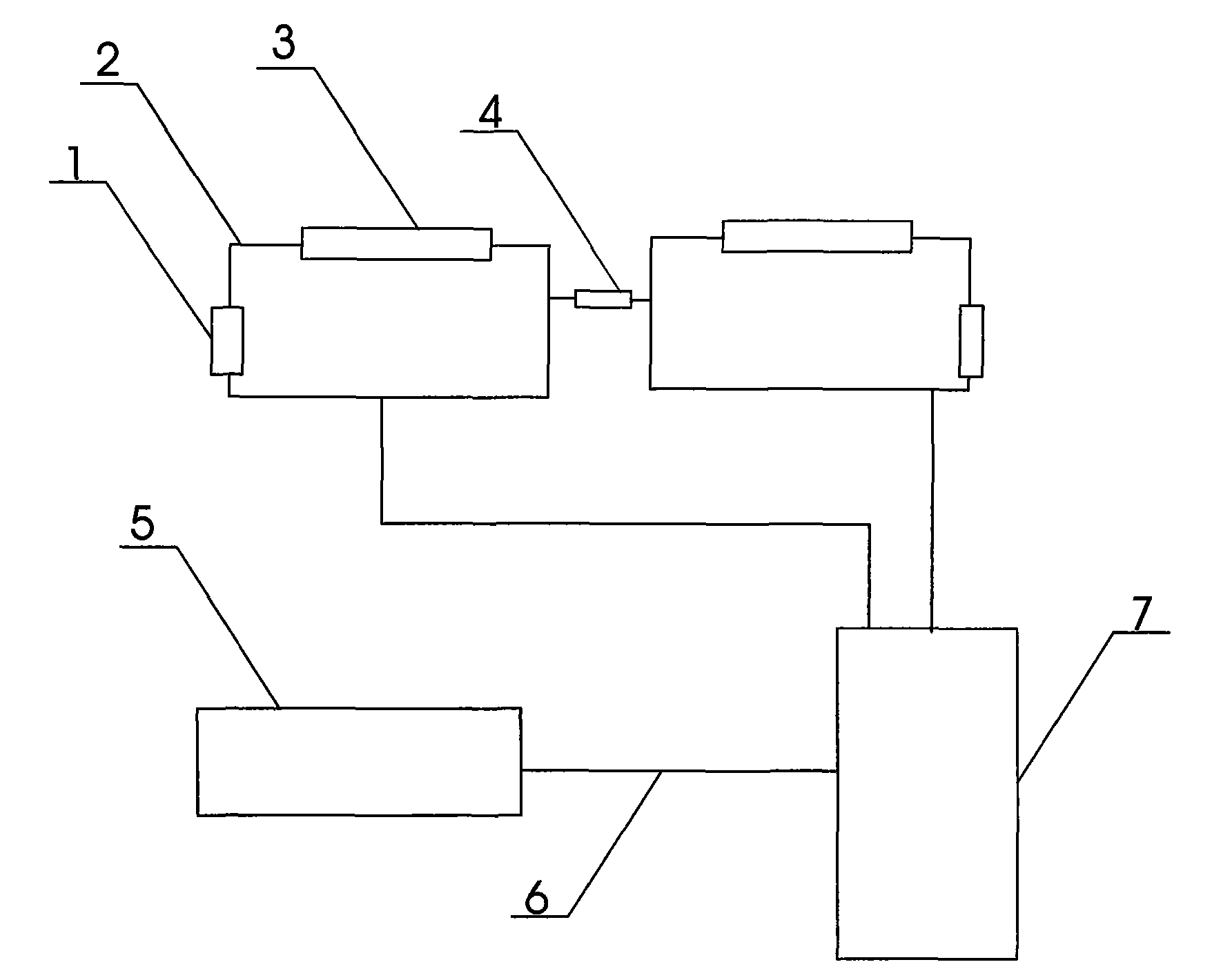

图1是本实用新型实施例的框图。Fig. 1 is the block diagram of the utility model embodiment.
具体实施方式 Detailed ways
石油钻机用高低压预装式移动变电站，包括两台可以并列运行的变压器2、10kV高压真空断路器环网柜7、10kV封闭母线6、变压器自动投切装置4、变压器有载调压装置1、动态无功补偿装置5，其特征在于：两个变压器2上分别设置有有载开关3和变压器有载调压装置1；配电室配备有组合式真空断路器环网柜7，变压器自动投切装置4分别与两变压器2连接。两台变压器2可以通过高压真空断路器7并在同一10kV的母线6上，10kV动态无功补偿装置5通过高压真空断路器与10kV封闭母线6连接。High and low voltage prefabricated mobile substation for oil drilling rigs, including two transformers that can operate in parallel 2, 10kV high voltage vacuum circuit breaker ring main unit 7, 10kV closed
