The utility model discloses a solar heating device. It includes a solar heat collection system and a boiler heating system. The temperature sensor installed in the water tank controls the action of the first three-way solenoid valve and the second three-way solenoid valve, so that the two systems can complement each other to achieve the purpose of energy saving and emission reduction. And provide users with domestic water with stable temperature.

Description

Solar heating boiler

(1) Technical field

The utility model relates to a solar heating equipment, in particular to a combination of a solar hot water system and traditional heating equipment.

(2) Background technology

As a clean energy source, solar energy has been widely used, but at present, its main application areas are mostly concentrated in solar power generation and domestic hot water supply. For the large energy-consuming area of heating in winter in the north, solar energy has not yet get involved.

Judging from the current heating methods in winter, it is mainly centralized heating and household heating. With the implementation of the national energy conservation and emission reduction policy and the reform of the heating mechanism, household heating occupies more and more market shares in the heating market. Based on the purpose of energy saving and emission reduction, among the current household heating equipment, the gas-fired wall-hung boiler heating system imported from Europe has the best effect and consumes less energy. Of course, energy saving and emission reduction are necessary for our big energy-consuming country. If gas-fired wall-hung boilers, which consume a lot of fossil fuels, are used, no matter from the perspective of energy consumption or the impact on the environment There are deficiencies.

In addition, solar energy is limited by seasons and weather factors. If the solar energy system is used alone as a heating device, there will be disadvantages of unstable or insufficient heating of the system. On the other hand, when solar energy is used as domestic water, there may be surplus heat collection when the sun is sufficient, and this surplus heat has not been fully utilized yet.

(3) Contents of the invention

Therefore, aiming at the above-mentioned defects of the prior art, the utility model provides a solar heating boiler, which integrates the solar heat collection system and the boiler to complement each other, so as to achieve the purpose of energy saving and emission reduction, and to provide users with a stable temperature life use water.

The technical scheme that the utility model adopts is:

The solar heating boiler of the utility model comprises:

Solar heat collector, mainly used to supply domestic hot water, connected with liquid inlet pipe and liquid outlet pipe;

Gas-fired boilers are mainly used to provide heat sources for heating systems, and are connected with heat medium outlet pipes and heat medium inlet pipes;

The water tank is connected with water source water pipes and domestic water pipes, and has a heat exchange coil for heat exchange, and the cool main pipe for heat medium outflow of the heat exchange coil is connected with the liquid inlet pipe and the heat medium inlet pipe ;

The first three-way solenoid valve, the three ports are respectively connected to the heat main pipe used for the inflow of the heat medium, the liquid outlet pipe and the heat medium inlet pipe of the heat exchange coil, and are used to realize the communication between the above heat main pipe and the liquid outlet pipe and the outlet pipe. The transition between the liquid pipe and the heat medium inlet pipe;

The second three-way solenoid valve, the three ports are respectively connected to the heat main pipe, the heat medium outlet pipe and the heat pipe for heating medium in the heating system, at least including controlling the on-off of the above-mentioned heat main pipe and the heat medium outlet pipe; and

Two temperature sensors, one of which is used to collect the lower limit of the temperature of the water tank, and its low temperature setting value triggers the communication between the heat main pipe and the heat medium outlet pipe, and triggers the first three-way solenoid valve to communicate with the heat medium inlet pipe through the liquid outlet pipe The state is converted to another state; the other is used to collect the upper limit of the temperature of the water tank, and its high temperature setting value triggers the first three-way solenoid valve to switch from the state in which the heat main pipe is connected to the liquid outlet pipe to another state.

In the above solar heating boiler, the temperature sensor for detecting low temperature is located at the bottom of the water tank, and the temperature sensor for detecting high temperature is located at the top of the water tank.

In the above solar heating boiler, the domestic water pipe is located at the upper part of the water tank, and the water source pipe is located at the lower part of the water tank.

In the above solar heating boiler, the liquid inlet pipe is provided with a solar station.

The above-mentioned solar heating boiler, the water tank, the gas boiler and the solar station are integrated in a cuboid cabinet.

In the above solar heating boiler, the water tank is fixed at the bottom of the cabinet, the gas boiler is hung on a corner inside the upper part of the cabinet, and the solar station is set in the space on one side of the gas boiler.

In the above solar heating boiler, a piping space is provided between the gas boiler and the water tank.

In the above solar heating boiler, a hole is opened on the top of the cabinet for passing through the exhaust pipe of the gas boiler, and a hole is opened on the back or on the top for external pipelines.

The utility model integrates the solar heat collection system and the gas boiler heating system together. When the temperature of domestic water is low, the gas boiler is incorporated into the solar heat collection system to obtain domestic hot water at a suitable temperature; When high, solar thermal systems are incorporated into the heating system to reduce the use of fossil fuels. The two systems complement each other to achieve suitable living needs and reduce the use of fossil fuels.

The realization of the above-mentioned functions is automatically controlled by using the temperature sensor and the solenoid valve, but the increase cost is not high for the two systems. On the other hand, we know that if solar energy alone is added to an auxiliary heating device such as electric heating, it will not only increase the cost, but also the electric heating device must be installed in the water tank to directly heat domestic hot water, resulting in a large amount of fouling and electric heating The heating device has a certain risk of electric shock; in addition, the system based on the utility model can also use the surplus heat of solar energy for the heating system, and its overall cost can be greatly reduced relatively.

Under normal circumstances, the gas boiler can basically meet the heating requirements when it is turned on for 4 to 5 hours a day. Of course, the current gas boiler heating system has its own automatic control system, which can meet the automatic control. The above-mentioned temperature sensor and solenoid valve or required input and output control points can be easily incorporated into the above-mentioned automatic control system.

(4) Description of drawings

Fig. 1 is a schematic diagram of the layout and structure of parts in the cabinet in the embodiment of the utility model.

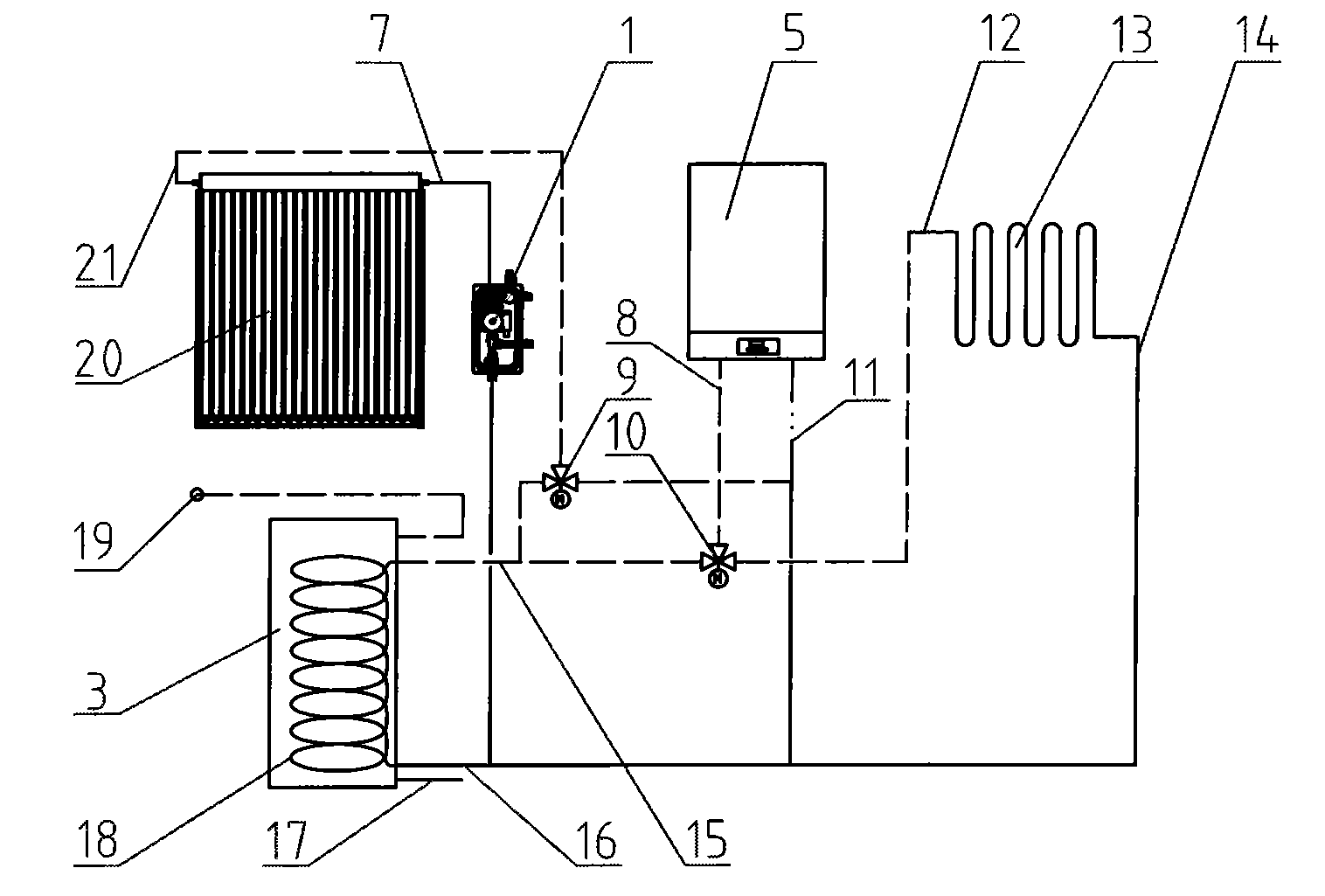

Fig. 2 is a schematic diagram of the operation of the solar heating boiler in the embodiment of the utility model.

In the figure: 1. Solar station, 2. Piping space, 3. Water tank, 4. Cabinet body, 5. Gas boiler, 6. Exhaust pipe, 7. Liquid inlet pipe, 8. Heat medium outlet pipe, 9. First Three-way solenoid valve, 10, second three-way solenoid valve, 11, heat medium inlet pipe, 12, heat pipe, 13, heating system, 14, cold pipe, 15, heat main pipe, 16, cool main pipe, 17, water source water pipe, 18. Heat exchange coil, 19. Domestic water pipe, 20. Solar collector, 21. Liquid outlet pipe.

(5) Specific implementation methods

The utility model will be described in detail below in conjunction with the accompanying drawings in the description. The names corresponding to the marks in the drawings are only used for distinction, and the protection scope of the utility model is not specifically limited.

With reference to the accompanying drawings 1 and 2, the solar heating boiler of this embodiment,

The solar heat collector 20 is mainly used for supplying domestic hot water, and is connected with a liquid inlet pipe 7 and a liquid outlet pipe 21;

The gas boiler 5 is mainly used to provide a heat source for the heating system 13, and is connected with a heat medium outlet pipe 8 and a heat medium inlet pipe 11;

The water tank 3 is connected with a water source water pipe 17 and a domestic water pipe 19, and has a heat exchange coil 18 for heat exchange, and the cool main pipe 16 of the heat exchange coil for heat medium outflow is connected with the liquid inlet pipe and the heat exchange coil. The media inlet pipe is connected;

The first three-way solenoid valve 9, the three ports are respectively connected to the main heat pipe 15 used for the inflow of the heat medium by the heat exchange coil, the liquid outlet pipe and the heat medium inlet pipe, and are used to realize the communication between the above-mentioned heat main pipe and the liquid outlet pipe And the transition between the two states of the liquid outlet pipe and the heat medium inlet pipe;

The second three-way solenoid valve 10, the three ports are respectively connected to the heat main pipe, the heat medium outlet pipe and the heat pipe 12 of the heating system for entering the heat medium, at least including controlling the on-off of the above-mentioned heat main pipe and the heat medium outlet pipe; and

Two temperature sensors, one of which is used to collect the lower limit of the temperature of the water tank, and its low temperature setting value triggers the communication between the heat main pipe and the heat medium outlet pipe, and triggers the first three-way solenoid valve to communicate with the heat medium inlet pipe through the liquid outlet pipe The state is converted to another state; the other is used to collect the upper limit of the temperature of the water tank, and its high temperature setting value triggers the first three-way solenoid valve to switch from the state in which the heat main pipe is connected to the liquid outlet pipe to another state.

Wherein the above-mentioned second three-way solenoid valve can not only control the on-off of the heat main pipe and the heat medium outlet pipe, but also control the on-off of the heat medium outlet pipe and the heat pipe. If the boiler is powered off and the temperature of the water in the water tank is low, the gas boiler can heat the water tank alone and no longer participate in the heating cycle.

Considering the effect of heat convection, the water in the water tank will naturally stratify according to the temperature, so the temperature sensor for detecting low temperature is located at the bottom of the water tank, and the temperature sensor for detecting high temperature is located at the top of the water tank, which can effectively control the above-mentioned state transition. In order to obtain a reasonable domestic water temperature and meet heating needs.

Then, according to the above-mentioned principle of natural stratification of water according to temperature, the domestic water pipe is located at the upper part of the water tank, and the water source water pipe is located at the lower part of the water tank, which facilitates the use of hot water with a higher temperature and reduces the impact of cold water from the water source on the water in the water tank. disturbance.

For some solar heat collectors without natural circulation function, solar stations are now configured, and the liquid inlet pipe is provided with solar station 1 as the power and control device for the heat medium circulation of the solar heat collection system. .

In order to facilitate furniture design, the water tank, the gas boiler and the solar station are integrated in a cuboid cabinet 4. Due to the specific structure of the water tank and the structure of the gas boiler commonly used at present, it is easy to be arranged in a cuboid cabinet, and This type of cabinet is also the style of many electrical furniture, which can be beneficial to the design of furniture.

In order to make the cabinet compact in structure, the water tank is fixed on the bottom of the cabinet, the gas boiler is hung on a corner inside the upper part of the cabinet, and the solar power station is arranged in the space on one side of the gas boiler. And because the gas boiler and the solar station are very small, they can be arranged in the radial space of the water tank. Further, a piping space 2 is provided between the gas boiler and the water tank. The top of the cabinet is provided with holes for passing through the exhaust pipe 6 of the gas boiler, and the back or top is provided with holes for external pipelines, so that the overall structure of the cabinet is compact. In addition, considering the aesthetics, the external piping is preferably arranged in the rear structural form. Of course, the current gas-fired boiler usually has the exhaust port on the top. The above-mentioned structure for the exhaust port is to reduce the number of bent pipes in the cabinet so as to make the cabinet compact. Correspondingly, considering the convenience of piping, all Corresponding to the exhaust pipe, all external pipes can be piped from above.

Claims (8)

1. solar heating boiler is characterized in that it comprises:

Solar thermal collector (20) is mainly used in the supply domestic hot-water, is connected to feed tube (7) and drain pipe (21);

Gas fired-boiler (5) is mainly used in to heating system (13) provides thermal source, is connected to heat medium produce hose (8) and heat medium enter hose (11);

Water tank (3) is connected to water source water pipe (17) and domestic water water pipe (19), and has the heat exchange coil (18) that is used for heat exchange, and the cold person in charge (16) who is used for the heating agent outflow of this heat exchange coil is joined with described feed tube and heat medium enter hose;

First three-way magnetic valve (9), three interfaces connect described heat exchange coil respectively and are used for the heat person in charge (15), described drain pipe and the heat medium enter hose that heating agent flows into, and are used to realize that the above-mentioned heat person in charge and drain pipe connected sum drain pipe are communicated with the conversion of two states with heat medium enter hose;

Second three-way magnetic valve (10), three interfaces connect the into heat pipe of heating agent (12) that is used to of the described hot person in charge, heat medium produce hose and heating system respectively, comprise that at least the above-mentioned heat of control is responsible for and the break-make of heat medium produce hose; And

Two temperatures sensor, one are used to gather the water tank temperature lower limit, trigger the described heat person in charge with its low temperature value of setting and are communicated with heat medium produce hose, and trigger first three-way magnetic valve and changed to another state by drain pipe and heat medium enter hose connected state; Another is used to gather the water tank temperature higher limit, triggers described first three-way magnetic valve with its high temperature value of setting and is changed to another state with the drain pipe connected state by the heat person in charge.

2. solar heating boiler according to claim 1 is characterized in that: the described temperature sensor that is used to detect low temperature is positioned at the water tank inner bottom part, and the temperature sensor that is used to detect high temperature is positioned at the water tank inner top.

3. solar heating boiler according to claim 2 is characterized in that: described domestic water water pipe is positioned at the top of described water tank, and described water source water pipe is positioned at the water tank bottom.

4. solar heating boiler according to claim 3 is characterized in that: described feed tube is provided with solar energy plant (1).

5. according to the described solar heating boiler of one of claim 1 to 4, it is characterized in that: described water tank, gas fired-boiler and solar energy plant are integrated in the rectangular build cabinet (4).

6. solar heating Boiler heating equipment according to claim 5, it is characterized in that: described water tank is fixed on described bottom of cabinet bulk, and described gas fired-boiler hangs over one jiao of cabinet upper inner, and solar energy plant is located in the gas fired-boiler one side space.

7. solar heating Boiler heating equipment according to claim 6 is characterized in that: be provided with pipe arrangement space (2) between described gas fired-boiler and water tank.

8. solar heating Boiler heating equipment according to claim 7 is characterized in that: described cabinet top has the hole that is used to pass gas fired-boiler blast pipe (6), the back or above have the hole that is used for external pipeline.
