Abstract

The utility model relates to a non-stop roll changing material receiving device, which includes a double-station receiving and unwinding mechanism, a material receiving pressure roller mechanism, a frame for installing the material receiving pressure roller mechanism, and a material cutting knife mechanism. The station receiving and unwinding mechanism includes the main frame, the rotating arm installed on the main frame and can be turned over 360 degrees, and the material roller shaft installed at both ends of the rotating arm for installing the material roll. Guide wheel, the frame is provided with a guide wheel, the material receiving roller mechanism is arranged between the guide wheel and the guide wheel, and the cutting knife mechanism is arranged between the guide wheel and the material receiving roller mechanism. The beneficial effect of the utility model is: when the coating machine and the composite machine use the device to change rolls, the whole process of changing rolls and feeding materials will not stop, and the speed of coating will not be affected.

Description

Non-stop roll changing material receiving device

technical field

The utility model relates to a non-stop roll change and material connection device, which is mainly used for automatic roll change and material connection of unwinding and winding in coating machines, compound machines and other equipment.

Background technique

In the current coating machine and laminating machine, when a roll needs to be replaced after being rewound, it is usually necessary to stop the machine and replace it manually. Obviously, this method greatly affects the production efficiency.

Utility model content

The purpose of the utility model is to solve the problem that the existing coating machines and compound machines need to be stopped when changing the rolls, and provide a non-stop roll changing material receiving device that does not need to be stopped when changing the materials so that the efficiency is higher .

The purpose of this utility model is achieved through the following technical solutions: a non-stop roll changing material receiving device, which is characterized in that it includes a double-station receiving and unwinding mechanism, a material receiving pressure roller mechanism, and a material receiving pressure roller The frame of the mechanism and the cutting knife mechanism, the double-station retracting and unwinding mechanism includes a main frame, a rotating arm installed on the main frame and capable of turning over 360 degrees, and two ends of the rotating arm for installing The material roller shaft of the material roll is also provided with a guide wheel between the two material roller shafts on the rotating arm. The frame is provided with a guide wheel. Between, the cutting knife mechanism is arranged between the guide wheel and the material receiving pressure roller mechanism.

Further, the material receiving and pressing roller mechanism includes a first swing arm pivotally connected to the frame, a first air cylinder mounted on the frame to drive the first swing arm to swing, and a first swing arm pivotally connected to the first swing arm. The second swing arm, the second cylinder installed on the first swing arm to drive the second swing arm to swing, and the pressure roller installed at the end of the second swing arm, the cutting knife mechanism includes a cutter, The cutter frame and the third cylinder, the cutter frame is pivotally connected to the end of the first swing arm, the third cylinder is installed on the first swing arm, and the third cylinder drives the cutter frame to swing along the pivot .

Still further, the cylinder body of the first cylinder is pivotally connected to the frame, the end of the telescopic rod of the first cylinder is pivotally connected to the connecting rod, the other end of the connecting rod is fixedly connected to the pivot, and the pivot is connected to the first The swing arm is fixedly connected; the second cylinder block is pivotally connected to the first swing arm, the end of the telescopic rod of the second cylinder is pivotally connected to the connecting rod, the other end of the connecting rod is fixedly connected to the pivot, and the pivot It is fixedly connected with the second swing arm; the cylinder block of the third cylinder is pivotally connected to the end of the first swing arm close to the frame, and the end of the telescopic rod of the third cylinder is pivotally connected to a connecting rod. The other end of the rod is rotatably sleeved on the pivot, and a connecting rod is arranged between the connecting rod and the cutter frame. Frame pivot.

Furthermore, the connecting rod and the pivot are fixedly connected through a tensioning sleeve, the pivot is fixedly connected with the first swing arm through a tensioning sleeve, the connecting rod and the pivot are fixedly connected through a tensioning sleeve, and the pivot and the second swing arm are fixedly connected through a tensioning sleeve. The arms are fixedly connected by radial locking screws.

Still further, the guide wheel is coaxially connected with the pivot shaft.

The beneficial effect of the utility model is: when the material roll on one material reel is about to be unrolled or rewound, the material roll on the other material reel can enter the waiting state by rotating the rotating arm 180 degrees, and the material roll on the other material reel can enter the waiting state by cutting the material. The cutting knife mechanism cuts off the material tape and the raw material roll, and at the same time connects the working material tape to the material roll to be worked by the material receiving and pressing roller mechanism, and then the coating work can be continued. The whole process of changing materials does not stop, Does not affect the speed of coating.

Description of drawings

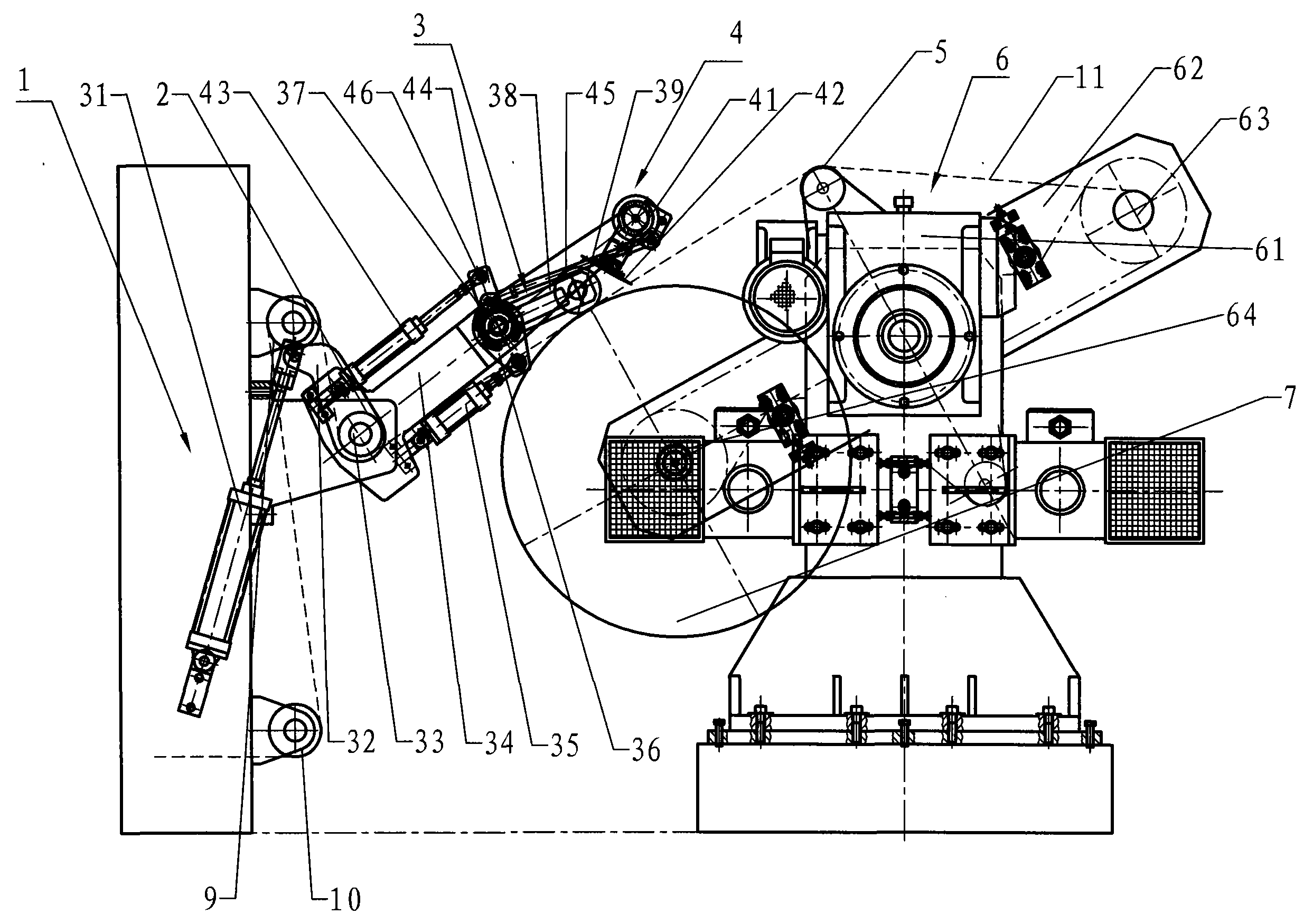

Fig. 1 is the working state schematic diagram of the utility model embodiment

Fig. 2 is the structural representation of the material receiving press roller mechanism and the cutting knife mechanism in the utility model

Detailed ways

Now in conjunction with accompanying drawing, the embodiment of the present utility model is further described:

As shown in Figure 1 and Figure 2, the embodiment of the utility model is a non-stop refueling device, which includes a double-station retracting and unwinding mechanism 6, a material receiving roller mechanism 3, and a machine for installing the material receiving roller mechanism 3. frame 1 and cutting knife mechanism 4, the double-station retracting and unwinding mechanism 6 includes a main frame 61, a rotating arm 62 mounted on the main frame 61 and capable of turning 360 degrees, and two rotating arms mounted on the rotating arm 62 The material roll shaft 63,64 that is used to install the material roll at the end is also provided with a guide wheel 5 between the two material roll shafts 63,64 on the rotating arm 62, and the described frame 1 is provided with a guide wheel 2, so The material receiving press roller mechanism 3 is arranged between the guide wheel 2 and the guide wheel 5, and the cutting knife mechanism 4 is arranged between the guide wheel 5 and the material receiving press roller mechanism 3.

As shown in the figure, the receiving and pressing roller mechanism 3 of this embodiment includes a first swing arm 34 pivotally connected to the frame 1, and a first air cylinder 31 installed on the frame 1 to drive the first swing arm 34 to swing. , the second swing arm 38 pivoted on the first swing arm 34, the second cylinder 35 mounted on the first swing arm 34 to drive the second swing arm 38 to swing, and the second cylinder 35 installed at the end of the second swing arm 38 Pressure roller 39, said cutting knife mechanism 4 includes a cutter 42, a cutter frame 41 and a third air cylinder 43, the cutter frame 41 is pivotally connected to the end of the first swing arm 34, the first The three cylinders 43 are installed on the first swing arm 34, and the third cylinder 43 drives the cutter frame 41 to swing along the pivot. When needing to receive material, the first swing arm 34, the second cylinder 35, the second swing arm 38 and the cutting knife mechanism 4 that are mounted on the first swing arm 34 are moved closer to the material roll by the first cylinder 31. To a certain extent, the second swing arm 38 drives the pressure roller 39 through the second cylinder 35 to completely bond the material tape to the new material roll 7, and at the same time, the third cylinder 43 works to drive the cutter frame 41 to swing to make the cutter Knife 42 cuts off the material strip between the pressure roller 39 and the material roll on the material roller shaft 63 . The utility model certainly also can not establish the first swing arm 34 and the first cylinder 31, and when needing to change the connection material, directly utilize the second cylinder 35 to drive the second swing arm 38 to push the material belt to the new material coil 7 places and It is close to bonding, but the first swing arm is provided to increase the working distance of the material receiving roller mechanism 3, which can be applied to the occasions of various material rolls with large diameter differences. Of course, the pressure roller and the cutter frame in the utility model can also be driven without the swing arm. The arm type undoubtedly makes its structure more compact and reasonable.

As shown in the figure, the cylinder usually drives the swing arm to swing through the connecting rod, that is, the cylinder body of the first cylinder 31 is pivotally connected to the frame 1, and the end of the telescopic rod of the first cylinder 31 is pivotally connected to the connecting rod 32. The other end of the connecting rod 32 is fixedly connected with the pivot 33 through the tension sleeve 8, and the pivot 33 is fixedly connected with the first swing arm 34 through the tension sleeve 8; the second cylinder 35 is pivotally connected to the first On the swing arm 34, the end of the telescopic rod of the second cylinder 35 is pivotally connected with the connecting rod 36, and the other end of the connecting rod 36 is fixedly connected with the pivot 37 through the tension sleeve 8, and the pivot 37 is connected with the second swing arm 38 through The radial locking screw is fixedly connected and fixedly connected: the cylinder body of the third cylinder 43 is pivotally connected to the end of the first swing arm 34 close to the frame, and the end of the telescopic rod of the third cylinder 43 is connected with a connecting rod 44 is pivotally connected, the other end of the connecting rod 44 is rotatably sleeved on the pivot 37, a connecting rod 45 is arranged between the connecting rod 44 and the cutter frame 41, and one end of the connecting rod 45 is pivotally connected to the pivot of the connecting rod 44. Between the shaft 46 and the pivot 37 , the other end is pivotally connected to the cutter frame 41 .

In the illustration, the guide wheel (2) is coaxially connected with the pivot (33).

The working process of the present embodiment is as follows: when the roll is not changed, the material tape of the material roll on the left enters the coating production line by directly passing through the rollers 2, 9, 10. When the material roll is about to be unwound, The sensor gets a signal so that the motor moves and drives the rotating arm 62 to turn clockwise 180 degrees, so that the unrolled material roll is rotated to the upper right position, and the material belt 11 of the material roll passes through the rollers 5, 2, 9, 10 and enters the coating In the production line, the new material roll is rotated to the lower left position (that is, at the raw material roll exchange position). The axis of the pivot shaft rotates clockwise, and the rotation of the pivot shaft 33 drives the first swing arm 34 to rotate clockwise to make its end close to the material roll 7. When it closes to a certain degree, the first cylinder 31 stops moving, and the second cylinder 31 stops when receiving the material. 35 starts to move and pulls the connecting rod 36 to rotate clockwise along the axis of the pivot 37. At the same time, the pivot 37 drives the second swing arm 38 to rotate clockwise, thus driving the pressure roller 39 to press down so that the material tape is closely bonded to the new material. On the tape head of roll 7, at the same time, the third cylinder 43 starts to work to drive the connecting rod 44 to rotate clockwise along the pivot 37, and the clockwise rotation of the connecting rod 44 pushes the connecting rod 45 to move to the right, and the connecting rod 45 drives the cutter The frame 41 rotates counterclockwise along the pivot, so it drives the cutter to cut off the material tape downwards, so the material tape in the coating production line is provided by a new material roll, that is, the action of changing rolls and feeding is completed, and the whole process does not need to stop. Does not affect the speed of coating.

Of course, the above-mentioned embodiments in conjunction with the accompanying drawings are only to better illustrate the present utility model, and are not intended to limit the protection scope of the present utility model. within the scope of protection of utility models.

Claims (5)

1. A non-stop roll changing material receiving device, characterized in that: it includes a double station receiving and unwinding mechanism (6), a material receiving pressure roller mechanism (3), and a machine for installing the material receiving pressure roller mechanism (3) Frame (1) and cutting knife mechanism (4), described double-station retracting and unwinding mechanism (6) includes main frame (61), is installed on the main frame (61) and can turn over 360 degrees Arm (62) and the material roller shaft (63,64) that is used to install the material roll that is installed on the two ends of rotating arm (62), also set between two material roller shafts (63,64) on rotating arm (62) There is a guide wheel (5), the frame (1) is provided with a guide wheel (2), and the material receiving roller mechanism (3) is arranged between the guide wheel (2) and the guide wheel (5) , The cutting knife mechanism (4) is located between the guide wheel (5) and the material receiving roller mechanism (3). 2. The non-stop roll change and material receiving device according to claim 1, characterized in that: the material receiving pressure roller mechanism (3) includes a first swing arm (34) pivotally connected to the frame (1) , the first air cylinder (31) that drives the first swing arm (34) swing that is installed on the frame (1), the second swing arm (38) that is pivotally connected on the first swing arm (34), is installed on The second cylinder (35) that drives the second swing arm (38) to swing on the first swing arm (34) and the pressure roller (39) installed on the end of the second swing arm (38), the cutting Cutter mechanism (4) comprises cutter (42), cutter frame (41) and the 3rd cylinder (43), and this cutter frame (41) is pivotally connected to the end of first swing arm (34), so The third air cylinder (43) described above is installed on the first swing arm (34), and the third air cylinder (43) drives the cutter frame (41) to swing along the pivot. 3. The non-stop roll changing and feeding device according to claim 2, characterized in that: the cylinder body of the first cylinder (31) is pivotally connected to the frame (1), and the expansion and contraction of the first cylinder (31) The end of the bar is pivotally connected to the connecting rod (32), the other end of the connecting rod (32) is fixedly connected to the pivot (33), and the pivot (33) is fixedly connected to the first swing arm (34); The second cylinder (35) cylinder body is pivotally connected on the first swing arm (34), and the end of the telescopic link of the second cylinder (35) is pivotally connected with the connecting rod (36), and the other end of the connecting rod (36) is connected with the connecting rod (36). The pivot (37) is fixedly connected, and the pivot (37) is fixedly connected with the second swing arm (38); the third cylinder (43) cylinder is pivotally connected to the first swing arm (34) near the frame. On the end, the end of the telescopic rod of the third cylinder (43) is pivotally connected with a connecting rod (44), and the other end of the connecting rod (44) is rotatably sleeved on the pivot (37), and the connecting rod ( 44) and the cutter frame (41) are provided with a connecting rod (45), and one end of the connecting rod (45) is pivotally connected between the pivot (46) and the pivot (37) of the connecting rod (44). One end is pivotally connected with the cutter frame (41). 4. The non-stop roll changing and feeding device according to claim 3, characterized in that: the connecting rod (32) is fixedly connected to the pivot (33) through a tensioning sleeve (8), and the pivot (33) It is fixedly connected with the first swing arm (34) through the tension sleeve (8), the connecting rod (36) is fixedly connected with the pivot (37) through the tension sleeve (8), and the pivot (37) is connected with the second swing arm ( 38) Secure the connection with radial locking screws. 5. The non-stop roll changing and feeding device according to claim 2, 3 or 4, characterized in that: the guide wheel (2) is coaxially connected with the pivot (33).
