Abstract

A direct-drinking water canteen provided with a residual organic matter-removing structure relates to a water canteen, in particular to a water canteen with a comprehensive filtering function. The water canteen comprises a plurality of filter modules and a water storage canister; wherein the filter modules include a water-receiving canister and a plurality of secondary filter modules; the water-receiving canister, the secondary filter modules and the water storage canister are arrange from the top down, detachably and firmly connected with one another and communicated with one another, and water-proof gaskets are arranged at the joints; and each secondary filter module consists of a pH value-regulating filter modules containing pH value-regulating resin. In the whole water treatment process, water flow is smooth, and an additional driving unit is not needed. While the device is simplified, the water-producing efficiency is increased. The requirement on the quality of the outside water source is low, and the filter material can be conveniently replaced. During use, water can be smoothly infused, so use is convenient. Meanwhile, the pH value of the drinking water can be effectively regulated, and can be regulated into alkalescence, the taste of the drinking water is improved, and the drinking water has a certain health-caring effect on users.

Description

The direct drink water bottle of removing the residual organic matter structure is housed
Technical field
The utility model relates to a kind of kettle, relates in particular to a kind of portable kettle with synthetic filter function.
Background technology
Natural water source is owing to exist microorganism and other objectionable impuritiess, and most water can't directly be drunk.Natural water source can't directly be drunk, and is the major issue of puzzlement people existence and life always.Especially in army's field operations, ground observation, navigation, and in the outdoor camping, people are subjected to the puzzlement that the nature water source can't directly be drunk always.
People's treating water source problem, generally adopt following method:
One, carries enough tap water.When camping, army's field operations and people often adopt this method.This method is for people, and it is limited that load is heavy, the water yield can not be regenerated, be drunk to tap water.The problems referred to above have brought inconvenience for the army in the field operations, the personnel that camp etc.
Two, natural water is boiled in the open air.When camping for a long time, the long-time field operations of army and people often adopt this method.This method, higher to nature water source specification of quality, need that burning things which may cause a fire disaster, spended time are long, inconvenient operation, and be subjected to multiple condition restriction.The problems referred to above have brought inconvenience for the army in the field operations, the personnel that camp etc.
Three, utilize RO film system water.Because this method needs power supply, equipment huge,, when army's field operations and people camp, can not adopt substantially so be difficult to carry.
Four, utilize portable direct drink water bottle.Direct drink water bottle is low to nature water source specification of quality, light weight, and the system water yield is big.But existing direct drink water bottle is still higher to nature water source specification of quality, can not be adapted to severe environment.Existing direct drink water bottle is not easy to change filtering material, causes access times very limited.Also there is the problem that is not easy to water filling in direct drink water bottle.In the injecting process,, cause water filling smoothly because the gas in the direct drink water bottle can not happyly be discharged.
All there is the limitation that can not adjust the tap water pH value in aforesaid method.There is material impact in mouthfeel when the pH value of tap water is drunk water for people.People quote the water of meta-alkalescence, can feel that mouthfeel is better.Medically verified, the water of long-term drinking meta-alkalescence is favourable to HUMAN HEALTH.Water as the long-term drinking meta-alkalescence helps to clear up the enteron aisle oil stain, helps to regulate human acid-base balance etc.The long-term drinking alkalescent water gains universal acceptance to the benefit of body-care aspect.The books and the electronic bits of data of related fields are numerous, therefore no longer describe in detail.
The water treating equipment that tap water can be adjusted to suitable substance P H value are also rarely found.If a kind of direct drink water bottle that can regulate the tap water pH value can be provided, can effectively improve the drinking water quality in people's daily life.Can also effectively improve drinking water quality for the army in the field operations, the personnel etc. that camp especially.
The utility model content
The purpose of this utility model is to provide a kind of direct drink water bottle of removing the residual organic matter structure that is equipped with.Water filling smoothly is easy to use in the use.The water source specification of quality is low to external world, is convenient to change filtering material.Thereby solve drinking-water problem and the direct drink water bottle access times limited problem of people under severe environment.Simultaneously can effectively regulate the tap water pH value, the tap water pH value can be adjusted to weakly alkaline, improve the tap water mouthfeel, the user of service is played certain function of health care.
The technical problem that the utility model solved can realize by the following technical solutions:
The direct drink water bottle of removing the residual organic matter structure is housed, comprises a plurality of filtration modules and water storing tank, it is characterized in that described a plurality of filtration modules comprise, water tank, plurality of secondary filtration module; Described water tank, plurality of secondary filtration module, water storing tank are arranged from top to bottom successively, and be detachably fixedly connected each other, and be interconnected, and the junction is provided with waterproof washer;
Described secondary filtration modules comprises that one contains the pH value adjusting filtration module that pH value is regulated resin;
Described pH value is regulated filtration module, comprises pH value adjusting resin, a smart filter core, and described smart filter core contains 5 μ m sintered carbon.It is prior art that pH value is regulated resin, so concrete structure is not done detailed description.
The direct drink water bottle of removing the residual organic matter structure is housed, also comprises a vapor pipe, described vapor pipe is provided with an internal opening and outside opening;
Described water storing tank top is provided with venting port, the internal opening of described venting port UNICOM vapor pipe.
Described outside opening is positioned at the direct drink water bottle top of removing the residual organic matter structure is housed.
Described water tank, plurality of secondary filtration module, water storing tank, fixedly connected by dismountable fixed link each other.
Based on technique scheme, the utility model makes the inner and extraneous UNICOM of water storing tank by a vapor pipe is set, and then makes the inner and extraneous maintenance air pressure balance of the direct drink water bottle that removal residual organic matter structure is housed.Thereby reach the purpose of water filling smoothly in the use.Be specially, when water filling in the direct drink water bottle of removing the residual organic matter structure is housed, gas exhaust duct is discharged gas, and water is flowed into smoothly.When water intaking, vapor pipe sucks gas, and water is flowed out smoothly.
The utility model by dismountable fixed link with described water tank, plurality of secondary filtration module, water storing tank, fixedly connected up and down successively, and be provided with waterproof washer, prevent to leak.In this design since each module arrange up and down, and conducting successively, thus water under action of gravity from top to bottom spontaneous current filter the generation drinkable water through described water tank, plurality of secondary filtration module, water storing tank.Current are smooth and easy in the whole process, do not need extra driving arrangement.In simplified apparatus, improved system water efficient.
Described a plurality of filtration module is based on the reason of structure and mode of operation.When access times reached predetermined number of times, needing of having cleaned, and needing of having changed.Adopted modular design among the design, described water tank, plurality of secondary filtration module, water storing tank, fixedly connected by dismountable fixed link each other, and be interconnected, the junction is provided with waterproof washer.This design has solved following problem: described a plurality of filtration modules can freely be changed very easily, do not need to change whole direct drink water bottle.Therefore in easy to use, reduced waste.
The water inlet of water tank top is provided with dismountable stainless steel filtering net.Solid matter in can the filtering extraneous water source of stainless steel filtering net is as silt, stone, pasture and water etc.After the stainless steel filtering net is dirty, can pull down cleaning.
The outside opening place of described vapor pipe is provided with dust filtering device, as sponge.When airiness, the airborne dust of filtering.
Described outside opening is provided with lid.Further preventing to deposit has foreign material to enter in the process.Described lid is provided with the sealing mechanism that can open.When depositing the utility model,, prevent from there are flowing out with sealing of lid.In use, uncap is convenient to water filling or water intaking.
Described water tank, plurality of secondary filtration module, the water storing tank that the direct drink water bottle of removing the residual organic matter structure is housed, successively by the water outlet conducting, each water outlet position is staggered from top to bottom.
The described right side, water tank below that the direct drink water bottle of removing the residual organic matter structure is housed is provided with water outlet, by water outlet and secondary filtration modules conducting, left side, secondary filtration modules below is provided with water outlet, secondary filtration modules conducting by water outlet and below, the conducting successively of each secondary filtration modules is finally by water outlet and water storing tank conducting.
Because each water outlet position is staggered in the utility model, so water is not directly to flow to the water storing tank of lower from eminence simply, but walks " z " font route.Contact with a plurality of filtration modules fully, filter.Such design helps improving the water treatment quality.
Described water storing tank below is provided with depotition cock, and depotition cock is provided with valve.Be used for discharging the tap water of water storing tank.Do not need to tilt direct drink water bottle kettle body in the use.The accessibility of its use is mainly reflected in, and volume is bigger, on the heavier direct drink water bottle of weight.In addition because water tap is arranged on water storing tank below, thus the tap water of handling well can be discharged comparatively thorough.
Described plurality of secondary filtration module, comprise being arranged in order from top to bottom, the solid particulate filtration module of filtering solid particles, carry sterilant disinfection filtering module, carry the clean resin that is used for the filtering harmful ion the harmful ion filtration module, contain pH value and regulate the pH value of resin and regulate filtration module.
Based on above-mentioned design, in water treatment procedure, at first by the stainless steel filtering net of the water inlet above the water tank, the solid matter in the extraneous water source of filtering is as silt, stone, pasture and water etc. for the utility model.Carry out the most preliminary filtration treatment.
Pass through the solid particulate filtration module then.Described solid particulate filtration module is disposed with bright and beautiful logical sequence filter screen, PP cotton, sintered carbon by water (flow) direction.Brocade logical sequence filter screen is used for coarse filtration, and the PP cotton is used for smart the filtration, and sintered carbon is used for removing has part machine thing and security personnel to filter (preventing to filter halfway filtration together).
The solid particulate filtration module makes the coarse filtration of having passed through bright and beautiful logical sequence filter screen in water treatment procedure successively, and the essence of PP cotton is filtered, and has removed partial organic substances by sintered carbon at last, and has carried out security personnel and filtered.Solid particulate in the water has been able to filtering basically, and partial organic substances also has been able to filtering.
Pass through disinfection filtering module then, described disinfection filtering module comprises that one carries the resin filter element of sterilant.Water is when flowing through disinfection filtering module, and the sterilant in the resin filter element is killed microorganism and bacterium in the water to the water generates effect.
Pass through the harmful ion filtration module more then, described harmful ion filtration module comprises that one is used for the clean resin that filtering comprises the heavy metal ion of dichromate ion, MnO4.Current when the harmful ion filtration module, unnecessary sterilant in the harmful ion filtration module filtering water, and the heavy metal ion that comprises dichromate ion, MnO4.
Regulate filtration module through pH value at last, described pH value is regulated filtration module, comprises pH value adjusting resin, a smart filter core, and described smart filter core contains 5 μ m sintered carbon.When current are regulated filtration module through pH value, heavy metals such as filtering lead, mercury, copper, and regulate pH value and remove hard temporarily.The pH value of water quality is adjusted to weakly alkaline.Finally obtain potable tap water.
Based on above-mentioned design, the utility model process successively in water treatment, filtering solid particles, sterilization, carry be used for the filtering harmful ion, pH value is regulated, etc. step.Carried out multi-filtering for solid particulate, harmful ion, material for core consumption is few according to having, and good filtration effect is handled to such an extent that the tap water mouthfeel is good and have characteristics of certain function of health care.
Description of drawings

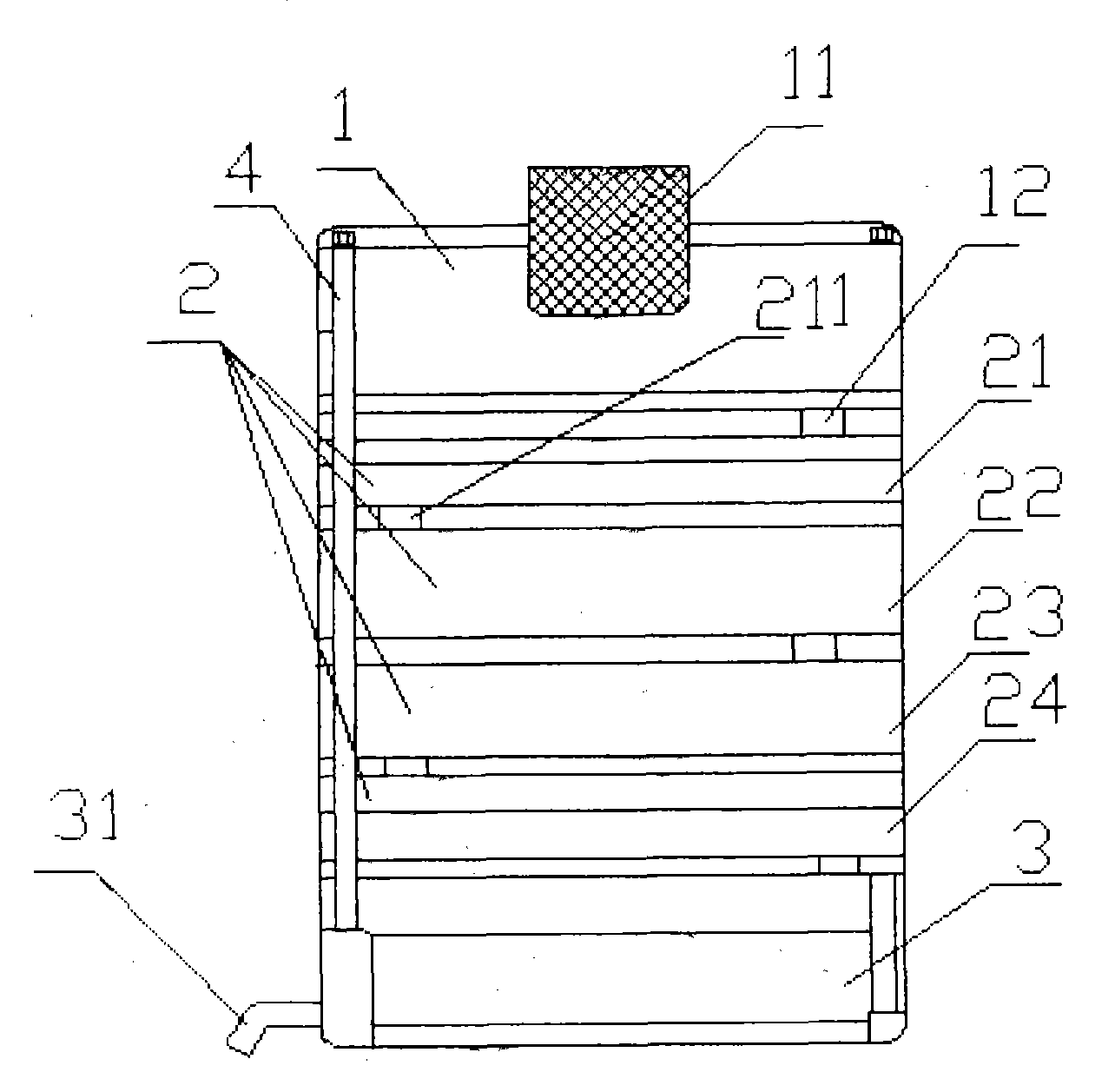

Fig. 1 is a side-looking status architecture synoptic diagram of the present utility model;
Fig. 2 is the status architecture synoptic diagram of facing of the present utility model;
Fig. 3 is the status architecture synoptic diagram of overlooking of the present utility model;
Fig. 4 is the solid particulate filtration module structural representation in the utility model.
Embodiment
For technique means, creation characteristic that the utility model is realized, reach purpose with effect is easy to understand, below in conjunction with the further elaboration the utility model of concrete diagram.
With reference to Fig. 1, Fig. 2, Fig. 3, the direct drink water bottle of removing the residual organic matter structure is housed, comprise a plurality of filtration modules and water storing tank 3.Also comprise a vapor pipe 6, vapor pipe 6 is provided with an internal opening 61 and outside opening 62.Water storing tank 3 tops are provided with venting port, the internal opening 61 of venting port UNICOM vapor pipe.That is, internal opening 61 is arranged on water storing tank 3 tops.Outside opening 62 is positioned at the direct drink water bottle top of removing the residual organic matter structure is housed.A plurality of filtration modules comprise, water tank 1, plurality of secondary filtration module 2.Water tank 1, plurality of secondary filtration module 2, water storing tank 3 are arranged from top to bottom successively, and be fixedly connected by dismountable fixed link 4 each other, and be interconnected, and the junction is provided with waterproof washer 5.Water storing tank 3 belows are provided with depotition cock 31, and depotition cock 31 is provided with valve.Be used for discharging the tap water of water storing tank 3, for the user supplies drinking water.Do not need to tilt direct drink water bottle kettle body in the use.The accessibility of its use is mainly reflected in, and volume is bigger, on the heavier direct drink water bottle of weight.In addition because water tap 31 is arranged on water storing tank 3 belows, thus the tap water handled well can be discharged comparatively thorough.
With reference to Fig. 1, Fig. 2, water storing tank 3 connects vapor pipe 6, and when water filling in the direct drink water bottle of removing the residual organic matter structure is housed, vapor pipe 6 is discharged gas, reduces air pressure inside, and water is flowed into smoothly.By depotition cock 31 water intakings the time, vapor pipe 6 sucks gas, increases air pressure inside, and tap water is flowed out smoothly.
The internal opening 61 of vapor pipe 6 is positioned at water storing tank 3 tops, makes water be not easy to enter gas exhaust duct 6, makes exhaust unobstructed.The outside opening 62 of vapor pipe 6 is positioned at water tank 1 top.Can guarantee when water is full of or almost is full of the direct drink water bottle that removal residual organic matter structure is housed, not have water and flow out from outside opening 62.Can prevent that especially water storing tank 3 is full of water, when gas in the direct drink water bottle of removing the residual organic matter structure being housed discharging smoothly, in the process that continues water filling, water be arranged from outside opening 62 effusive situations.
By above-mentioned simple proposal, make the direct drink water bottle of removing the residual organic matter structure is housed, increase waterflood injection rate and gone out water speed.Improved the accessibility when using greatly.
Outside opening 62 places of vapor pipe 6 are provided with dust filtering device 63, and dust filtering device 63 can adopt sponge.Be used for when airiness the airborne dust of filtering.Outside opening 62 is provided with lid 64.Further preventing to deposit has foreign material to enter in the process.Lid 64 is provided with the sealing mechanism that can open, as the employing thread seal, and can install gasket additional.When depositing the utility model,, prevent from there are flowing out with lid 64 sealings.In use, uncap 64 is convenient to water filling or water intaking.Lid 64 is connected by flexible connecting member with the direct drink water bottle that removal residual organic matter structure is housed, and loses to prevent lid 64.
Preferred design is that lid 64 is connected with dust filtering device 63 by flexible connecting member.So both can prevent that lid 64 from losing, and can dust filtering device 63 have been taken out by pulling lid 64 again and clean or change.At this moment, lid 64 is easy to adopt the lid of pegging graft and sealing, as the lid of rubber material.Flexible connecting member is frequently back and forth driven the use inconvenience and the lost of life that cause in can avoiding using.
The water inlet of water tank 1 top is provided with dismountable stainless steel filtering net 11.After the water-in of water tank 1 is put into stainless steel filtering net 11, screw on, stainless steel filtering net 11 is fixed by screw thread fixed lid.Stainless steel filtering net 11 also can directly be fixed on the water inlet of water tank 1 top by screw thread or bayonet socket.Stainless steel filtering net 11 is mainly used in the solid matter in the extraneous water source of filtering, as silt, stone, pasture and water etc.After stainless steel filtering net 11 is dirty, can pull down cleaning.
Right side, water tank 1 below is provided with water outlet 12, by water outlet 12 and secondary filtration modules 21 conductings.This left side, secondary filtration modules 21 belows is provided with a water outlet 211, by water outlet 211 and next secondary filtration modules 22 conductings.Extraneous water source after stainless steel filtering net 11 preliminary filtrations, enters water tank 1, from water outlet 12, flows into secondary filtration modules 21, flows into next secondary filtration modules 22 through water outlet 211 again.Do not need external power set in the whole process.Because water outlet 211 and water outlet 12 are staggered, transverse flow was through uppermost secondary filtration modules 21 when the water source flow to water outlet 211 from water outlet 12.Abundant contact has taken place in transverse flow each other when secondary filtration modules 21, the water treatment effect is better.
The water outlet arrangement mode of following secondary filtration modules 22 also adopts said structure, and promptly each water outlet position is staggered, until water storing tank 3.Because be mainly transverse flow in the flow process, water is not directly to flow to the water storing tank 3 of lower from eminence simply, but walks " z " font route.So the medium full contact in water source and each secondary filtration modules, the integral filter effect is better.
The mode of connection of water tank 1, plurality of secondary filtration module 2 and water storing tank 3 is for removably connecting.Adopt thru-bolt to carry out fixedly connected in the present embodiment as fixed link 4.Thru-bolt adopts 304 stainless steel bolt core bolts.Adopt the fixed link 4 of this material to have, be difficult for flexural deformation, sound construction, portable characteristics.
Water tank 1, plurality of secondary filtration module 2 and water storing tank 3 peripheries are respectively equipped with corresponding fixed orifices, and fixed link 4 passes the fixed orifices of same axis, fixes by nut.Four angles of water tank 1, plurality of secondary filtration module 2 and water storing tank 3 can be respectively equipped with fixed orifices, and then four angles that fixed link 4 can pass direct drink water bottle are fixed.3 of water tank 1, plurality of secondary filtration module 2 and water storing tanks are equipped with waterproof washer 5, in case leak-stopping water.
Fix by thru-bolt, have well-set characteristics, can produce enough big pressure control simultaneously and leak; Have the advantages that to be convenient to disassembly and assembly, be convenient to change level filtration module 2 or increase and decrease level filtration module 2; Using method is easy to grasp, and is convenient to operation.
Plurality of secondary filtration module 2 comprises and being arranged in order from top to bottom, the solid particulate filtration module 21 of filtering solid particles, carry sterilant disinfection filtering module 22, carry the clean resin that is used for the filtering harmful ion harmful ion filtration module 23, contain pH value and regulate the pH value of resin and regulate filtration module 24.
Based on above-mentioned design, in water treatment procedure, the utility model at first passes through the stainless steel filtering net 11 of the water inlet of water tank 1 top, and the solid matter in the extraneous water source of filtering is as silt, stone, pasture and water etc.Carry out the most preliminary filtration treatment.Pass through solid particulate filtration module 21 then.
With reference to Fig. 4, described solid particulate filtration module 21 is disposed with bright and beautiful logical sequence filter screen 2101, PP cotton 2102, sintered carbon 2103 by water (flow) direction.Brocade logical sequence filter screen 2101 is used for coarse filtration, and PP cotton 2102 is used for smart the filtration, and sintering 2103 carbon are used for removing has part machine thing and security personnel to filter (preventing to filter halfway filtration together).Solid particulate filtration module 21 makes water pass through the coarse filtration of bright and beautiful logical sequence filter screen 2101 successively in treating processes, and the essence of PP cotton 2102 is filtered, and has removed partial organic substances by sintered carbon 2103 at last, and has carried out security personnel and filtered.Solid particulate in the water has been able to filtering basically, and partial organic substances also has been able to filtering.At first suspended substance, the partial organic substances in the filtering water, and other solid particulates, the secondary filtration modules after can effectively protecting in the flow process, and the material for core consumption that can reduce in the secondary filtration modules is few.
Pass through disinfection filtering module 22 then, described disinfection filtering module 22 comprises that one carries the resin filter element of sterilant.Carry the resin filter element of sterilant, can adopt the model of Hai Min Industrial Co., Ltd.'s production forever is the resin filter element that carries sterilant of AR65.Water is when flowing through disinfection filtering module 22, and the sterilant in the resin filter element is killed microorganism and bacterium in the water to the water generates effect.
Pass through harmful ion filtration module 23 more then, described harmful ion filtration module 23 comprises that one is used for the clean resin that filtering comprises the heavy metal ion of dichromate ion, MnO4.It is the clean resin of AR66 that this clean resin can adopt the model of Hai Min Industrial Co., Ltd.'s production forever.Current when harmful ion filtration module 23, unnecessary sterilant in the harmful ion filtration module 23 filtering water, and the heavy metal ion that comprises dichromate ion, MnO4.Water quality safety when drinking water with the guarantee people.
Regulate filtration module 24 through pH value at last, described pH value is regulated filtration module 24, comprises pH value adjusting resin, a smart filter core, and described smart filter core contains 5 μ m sintered carbon.When current are regulated filtration module 24 through pH value, heavy metals such as filtering lead, mercury, copper, and regulate pH value and remove hard temporarily.Finally obtain potable tap water.
Because the hole in the 5 μ m sintered carbon is little, can play smart filtering effect, can improve the water quality of tap water greatly, water quality is held last pass together.Final step adopt 5 μ m sintered carbon still be one as the structure that ensures, even when other links in use have problems, 5 μ m sintered carbon still can be handled out than the fine tap water.The model that pH value adjusting resin can adopt the luxuriant and rich with fragrance trade Co., Ltd of Hangzhou fine horse to produce is that the pH value of D1150 is regulated resin.It is meta-alkalescence that water quality is reconciled.
Based on above-mentioned design, the utility model process successively in water treatment, filtering solid particles, sterilization, carry be used for the filtering harmful ion, pH value is regulated, etc. step.Carried out multi-filtering for solid particulate, harmful ion, material for core consumption is few according to having, and good filtration effect is handled to such an extent that the tap water mouthfeel is good and have characteristics of certain function of health care.
More than show and described ultimate principle of the present utility model and principal character and advantage of the present utility model.The technician of the industry should understand; the utility model is not restricted to the described embodiments; that describes in the foregoing description and the specification sheets just illustrates principle of the present utility model; under the prerequisite that does not break away from the utility model spirit and scope; the utility model also has various changes and modifications, and these changes and improvements all fall in claimed the utility model scope.The claimed scope of the utility model is defined by appending claims and equivalent thereof.

Claims (9)

1. the direct drink water bottle of removing the residual organic matter structure is housed, comprises a plurality of filtration modules and water storing tank, it is characterized in that described a plurality of filtration modules comprise, water tank, plurality of secondary filtration module; Described water tank, plurality of secondary filtration module, water storing tank are arranged from top to bottom successively, and be detachably fixedly connected each other, and be interconnected, and the junction is provided with waterproof washer;
Described secondary filtration modules comprises that one contains the pH value adjusting filtration module that pH value is regulated resin;
Described pH value is regulated filtration module, comprises pH value adjusting resin, a smart filter core, and described smart filter core contains 5 μ m sintered carbon.
2. the direct drink water bottle of removing the residual organic matter structure that is equipped with according to claim 1, it is characterized in that, described plurality of secondary filtration module, comprise being arranged in order from top to bottom, the solid particulate filtration module of filtering solid particles, carry sterilant disinfection filtering module, carry the clean resin that is used for the filtering harmful ion the harmful ion filtration module, contain pH value and regulate the pH value of resin and regulate filtration module.
3. the direct drink water bottle of removing the residual organic matter structure that is equipped with according to claim 2 is characterized in that described solid particulate filtration module is disposed with bright and beautiful logical sequence filter screen, PP cotton, sintered carbon by water (flow) direction.
4. the direct drink water bottle of removing the residual organic matter structure that is equipped with according to claim 2 is characterized in that described disinfection filtering module comprises that one carries the resin filter element of sterilant.
5. the direct drink water bottle of removing the residual organic matter structure that is equipped with according to claim 2 is characterized in that described harmful ion filtration module comprises that one is used for the clean resin that filtering comprises the heavy metal ion of dichromate ion, MnO4.
6. according to claim 5, the described direct drink water bottle of removing the residual organic matter structure that is equipped with is characterized in that, described water tank, plurality of secondary filtration module, water storing tank are fixedly connected by dismountable fixed link each other.
7. the direct drink water bottle of removing the residual organic matter structure that is equipped with according to claim 6 is characterized in that, the described direct drink water bottle of removing the residual organic matter structure that is equipped with also comprises a vapor pipe, and described vapor pipe is provided with an internal opening and outside opening;
Described water storing tank top is provided with venting port, the internal opening of described venting port UNICOM vapor pipe, and described outside opening is positioned at the direct drink water bottle top of removing the residual organic matter structure is housed.
8. the direct drink water bottle of removing the residual organic matter structure that is equipped with according to claim 7, it is characterized in that, the outside opening of described vapor pipe is provided with lid, and the outside opening place of described vapor pipe is provided with dust filtering device, and described lid is connected with described dust filtering device by flexible connecting member.
9. the direct drink water bottle of removing the residual organic matter structure that is equipped with according to claim 6, it is characterized in that, the described right side, water tank below that the direct drink water bottle of removing the residual organic matter structure is housed is provided with water outlet, by water outlet and secondary filtration modules conducting, left side, secondary filtration modules below is provided with water outlet, by the secondary filtration modules conducting of water outlet and below, the conducting successively of each secondary filtration modules is finally by water outlet and water storing tank conducting.
