Abstract

The utility model provides a solar compression dustbin capable of disposing rubbish in a classifying way, which is characterized in that rubbish-throwing openings are arranged at the upper lateral side of a dustbin body which is internally provided with two or more separate spaces which are not communicated with each other and aim at different types of rubbish; the separate spaces are internally provided with compression devices arranged below the rubbish-throwing openings and collection devices arranged at the bottom of the dustbin; movable door panels are respectively arranged at the lower ends outside the dustbin body; cavities are arranged between the rubbish-throwing openings and the compression devices, and an opening is arranged at the bottom of each cavity; and sensing devices for controlling the opening and the closing of the cavities are arranged at the openings arranged at the bottom of the cavities. The dustbin can classify the rubbish simply; the rubbish is compressed by the dustbin to enough small size when the rubbish falling into the compression devices reaches to a certain weight, thus not only being convenient for the recycle of recoverable rubbish and removing the process that sanitation workers classify the rubbish, but also saving the space of the dustbin and improving the use efficiency of the dustbin.

Description

The solar power compression dustbin
Technical field
The utility model relates to a kind of solar power compression dustbin, the definite a kind of rubbish container that refuse classification can be handled and utilized the automatic compressed garbage of solar power energy supply of saying so.
Background technology
Rubbish is the accompaniment of human being's production and life activity, and along with the development of society, the output of domestic waste is increasing, and the domestic waste problem has become the focus and the difficult point of puzzlement global various countries urban development, also more and more comes into one's own.And house refuse is tool potentiality to be exploited, never exhausted " city mineral reserve ", is " resource that mislays ".According to statistics, about 70% is organic wastes such as rubbish from cooking, pericarp in the present house refuse, and 20% is waste paper, plastics class, and about 4% is glass, and remaining is metal, dry goods etc.Wherein paper, glass, metal, plastics etc. can recycle, and organic perishable rubbish carries out compost or biological treatment, burning disposal such as cloth, paper handkerchief, damaged tire, bamboo wood.Therefore, most of material wherein all has by the possibility of recycling.
Existing automatic compressed garbage bucket mainly is to solve traditional sewage disposer of placing the public place can not satisfy rubbish too much and rubbish is scattered in the problem around the sewage disposer.Chinese patent CN201040655 (Granted publication day is on March 26th, 2008) provides a kind of multifunctional garbage bucket, adopts the solar power function, and in time the rubbish in the sewage disposer is compressed collecting and baling automatically, saves the usage space of sewage disposer.But it can not realize refuse classification is handled.The sanitationman still needs once more rubbish to be classified processing, and labor intensity is quite big, and this is the prior art weak point just.
The utility model content
The utility model is exactly in order to address the above problem, and overcomes the problem that existing automatic compressed garbage bucket can not be classified and handle rubbish, and a kind of solar power compression dustbin of the disposal of refuse of classifying is provided.This utility model is applicable to urban environmental protection.
The technical matters of the required solution of the utility model can be achieved through the following technical solutions:
A kind of solar power compression dustbin comprises casing, solar panel, rubbish dispensing port, compression set and gathering-device, it is characterized in that, described casing side top is provided with the dispensing port at dissimilar rubbish; Be provided with two or more not connected partition type spaces in the described casing at dissimilar rubbish; Gathering-device at the bottom of being provided with the compression set that is positioned at rubbish dispensing port below in the described partition type space and being positioned at case; Described solar panel is the power supply that compresses automatically; Lower end, the described casing outside is respectively arranged with door-plate.
Between described rubbish dispensing port and the compression set cavity that a bottom is provided with opening is set, and is provided with the induction installation that is used to control the cavity switching at cavity bottom end opening place.
The described not connected partition type space at dissimilar rubbish can be divided into recyclable refuse collection space and not recyclable refuse collection space, can also be divided into recyclablely utilizing refuse collection space, organic perishable refuse collection space and being suitable for the collection space of burning away the refuse.
The profile of described rubbish container can be circular or square.
When the rubbish through classification falls into rubbish container, to be compressed into enough small sizes automatically by rubbish container after reaching constant weight, the sort processing program of sanitationman to rubbish saved in both recovery of convenient recyclable rubbish, can save the space of rubbish container again, improve the service efficiency of rubbish container.
Owing to adopted technique scheme, the utlity model has simple in structurely, save the urban sanitation cost, the advantage of energy-conserving and environment-protective simultaneously.
Description of drawings
Further specify the utility model below in conjunction with the drawings and specific embodiments.

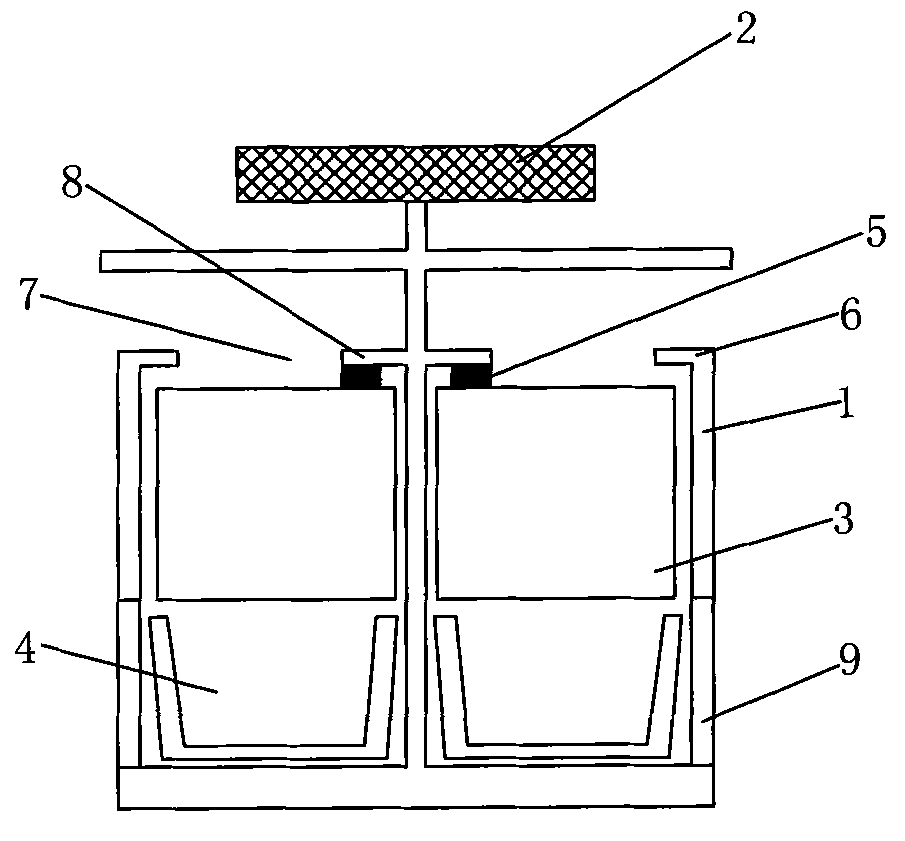

Fig. 1,2,3,4 is for the utlity model has the structural representation in two partition type spaces.
Number in the figure: 1 is casing, and 2 is solar panel, and 3 is compression set, and 4 is gathering-device, and 5 is induction installation, and 6 is the rubbish dispensing port, and 7 is cavity, and 8 is the bottom end opening of cavity, and 9 is dodge gate.
Fig. 5,6 is for the utlity model has the structural representation in three partition type spaces.
Number in the figure: 10 is casing, and 11 is solar panel, and 12 is compression set, and 13 is gathering-device, and 14 is induction installation, the bottom end opening of 15 cavitys, and 16 is dodge gate, and 17 is the rubbish dispensing port, and 18 is cavity.
The specific embodiment
In order to make technological means of the present utility model, creation characteristic, to reach purpose and effect is easy to understand,, further set forth the utility model below in conjunction with concrete diagram.
Embodiment 1
As shown in Figure 1, 2, a kind of solar power compression dustbin of the utility model, comprise casing 1, solar panel 2, rubbish dispensing port 6, compression set 3 and gathering-device 4, it is characterized in that described casing 1 side top is provided with the dispensing port 6 at dissimilar rubbish; Be provided with two not connected partition type spaces in the described casing 1 at dissimilar rubbish; Gathering-device 4 at the bottom of being provided with the compression set 3 that is positioned at rubbish dispensing port 6 belows in the described partition type space and being positioned at case; Described solar panel 2 is the power supply that compresses automatically; Lower end, described casing 1 outside is respectively arranged with dodge gate 9.
The cavity 7 that one bottom is provided with opening 8 is set between described rubbish dispensing port 6 and the compression set 3, and is provided with the induction installation 5 that is used to control the cavity switching at cavity bottom end opening 8 places.
The described not connected partition type space at dissimilar rubbish can be divided into recyclable refuse collection space and not recyclable refuse collection space.
Described solar power compression dustbin profile is circular.
A kind of solar power compression dustbin of the utility model is by the solar panel 2 supply electric energy that are installed on the case top.Be respectively arranged with two rubbish dispensing ports 6 on the casing, corresponding dissimilar rubbish containers can be divided into recyclable rubbish container and not recyclable rubbish container.People drop into rubbish container cavity 7 by rubbish dispensing port 6 by type with rubbish, fall into refuse compressor 3 again.When it reaches the weight threshold of setting, induction installation 5 starts, conversion is transmitted through signal, close the bottom end opening 8 of rubbish container cavity 7, start compression set 3 beginning compressed garbages simultaneously, after compression was finished, the compression set bottom opening was opened, the rubbish that compression is good enters gathering-device 4 and stores, and compression set 3 bottom openings are closed; When compression set 3 starts, having rubbish to fall in the case again, can only be retained in the cavity and finish up to the compression set operation.After compression set 3 operations stopped, cavity bottom end opening 8 self-openings continued to receive unpressed rubbish, wait for and compress operation next time.
Embodiment 2
Shown in Fig. 3,4, a kind of solar power compression dustbin of the utility model, comprise casing 1, solar panel 2, rubbish dispensing port 6, compression set 3 and gathering-device 4, it is characterized in that described casing 1 side top is provided with the dispensing port 6 at dissimilar rubbish; Be provided with two not connected partition type spaces in the described casing 1 at dissimilar rubbish; Gathering-device 4 at the bottom of being provided with the compression set 3 that is positioned at rubbish dispensing port 6 belows in the described partition type space and being positioned at case; Described solar panel 2 is the power supply that compresses automatically; Lower end, described casing 1 outside is respectively arranged with dodge gate 9.
The cavity 7 that one bottom is provided with opening 8 is set between described rubbish dispensing port 6 and the compression set 3, and is provided with the induction installation 5 that is used to control the cavity switching at cavity bottom end opening 8 places.
The described not connected partition type space at dissimilar rubbish can be divided into recyclable refuse collection space and not recyclable refuse collection space.
Described solar power compression dustbin profile is square.
A kind of solar power compression dustbin of the utility model is by the solar panel 2 supply electric energy that are installed on the case top.Be respectively arranged with two rubbish dispensing ports 6 on the casing 1, corresponding dissimilar rubbish containers can be divided into recyclable rubbish container and not recyclable rubbish container.People drop into rubbish container cavity 7 by rubbish dispensing port 6 by type with rubbish, fall into refuse compressor 3 again.When it reaches the weight threshold of setting, induction installation 5 starts, conversion is transmitted through signal, close rubbish container cavity bottom end opening 8, start compression set 3 beginning compressed garbages simultaneously, after compression was finished, compression set 3 bottom openings were opened, the rubbish that compression is good enters gathering-device 4 and stores, and compression set 3 bottom openings are closed; When compression set 3 starts, having rubbish to fall in the case again, can only be retained in the cavity 7 and finish up to compression set 3 operations.After compression set 3 operations stopped, cavity bottom end opening 8 self-openings continued to receive unpressed rubbish, wait for and compress operation next time.
Embodiment 3
Shown in Fig. 5,6, a kind of solar power compression dustbin of the utility model, comprise casing 10, solar panel 11, rubbish dispensing port 17, compression set 12 and gathering-device 13, it is characterized in that described casing 10 sides top is provided with the dispensing port 17 at dissimilar rubbish; Be provided with three not connected partition type spaces in the described casing 10 at dissimilar rubbish; Gathering-device 13 at the bottom of being provided with the compression set 12 that is positioned at rubbish dispensing port 17 belows in the described partition type space and being positioned at case; Described solar panel 11 is the power supply that compresses automatically; Lower end, described casing 10 outside is respectively arranged with dodge gate 16.
The cavity 18 that one bottom is provided with opening 15 is set between described rubbish dispensing port 17 and the compression set 12, and is provided with the induction installation 14 that is used to control the cavity switching at cavity bottom end opening 15 places.
The described not connected partition type space at dissimilar rubbish can be divided into and recyclablely utilizes refuse collection space, organic perishable refuse collection space and be suitable for the collection space of burning away the refuse.
Described solar power compression dustbin profile is circular.
A kind of solar power compression dustbin of the utility model is by the solar panel 11 supply electric energy that are installed on the case top.Be respectively arranged with three rubbish dispensing ports 17 on the casing, corresponding collect dissimilar rubbish, as recyclable rubbish, organic perishable rubbish be suitable for burning away the refuse.
During use, people drop into rubbish container cavity 18 by rubbish dispensing port 17 by type with rubbish, fall into refuse compressor 12 again.When it reaches the weight threshold of setting, induction installation 14 starts, conversion is transmitted through signal, close rubbish container cavity bottom end opening 15, start compression set 12 beginning compressed garbages simultaneously, after compression was finished, compression set 12 bottom openings were opened, the rubbish that compression is good enters gathering-device 13 and stores, and compression set 12 bottom openings are closed; When compression set 12 starts, having rubbish to fall in the case again, can only be retained in the cavity 18 and finish up to the compression set operation.After compression set 12 operations stopped, cavity bottom end opening 15 self-openings continued to receive unpressed rubbish, wait for and compress operation next time.
Embodiment described in the utility model only is the description that preferred implementation of the present utility model is carried out; be not that the utility model design and scope are limited; under the prerequisite that does not break away from the utility model design philosophy; engineering staff make the technical solution of the utility model in this area various modification and improvement; all should fall into protection domain of the present utility model; the technology contents that the utility model is asked for protection all is documented in claims.

Claims (6)

1, a kind of solar power compression dustbin comprises casing, solar panel, rubbish dispensing port, compression set and gathering-device, it is characterized in that, is provided with two or more not connected partition type spaces at dissimilar rubbish in the described casing; Be provided with the compression set that is positioned at the gathering-device at the bottom of the case and is positioned at the gathering-device top in the described partition type space; Described casing side top is provided with the dispensing port at dissimilar rubbish; Lower end, the described casing outside is respectively arranged with movable doorboard.
2, solar power compression dustbin according to claim 1 is characterized in that, between described rubbish dispensing port and the compression set cavity that a bottom is provided with opening is set.
3, solar power compression dustbin according to claim 2 is characterized in that, described cavity bottom end opening place is provided with and is used to control the induction installation that cavity opens and closes.
4, solar power compression dustbin according to claim 1 is characterized in that, the described not connected partition type space at dissimilar rubbish can be two, is respectively recyclable refuse collection space and not recyclable refuse collection space.
5, solar power compression dustbin according to claim 1, it is characterized in that, the described not connected partition type space at dissimilar rubbish can also be three, is respectively recyclable refuse collection space, organic perishable refuse collection space and is suitable for the collection space of burning away the refuse.
6, solar power compression dustbin according to claim 1 is characterized in that, described rubbish container profile can be circular or square.
