Abstract
本实用新型涉及一种外加热立式活性炭活化炉，该活化炉的外筒(13)在下端用电机驱动旋转；外筒(13)的外侧面与炉墙(15)之间设有加热通道(14)，外筒加热板(3)和内筒加热板(6)沿轴向依次交错布置；外筒抄板(4)和内筒抄板(5)分别用铰链安装在外筒加热板(3)和内筒加热板(6)的下侧并呈螺旋分布；分气管(7)深入到内筒加热板(6)的下侧，分气通孔分布在内筒加热板(6)下侧；内筒(16)在对应燃烧室(1)的侧壁上开有出气口(17)。本外加热立式活性炭活化炉，不仅结构紧凑，能以各种原料连续生产活性炭，而且活性炭的得率、质量、强度和表面光泽度高，活化炉的寿命长。
The utility model relates to an external heating vertical activated carbon activation furnace. The outer cylinder (13) of the activation furnace is driven and rotated by a motor at the lower end; a heating channel is arranged between the outer surface of the outer cylinder (13) and the furnace wall (15) (14), the outer cylinder heating plate (3) and the inner cylinder heating plate (6) are arranged alternately along the axial direction; the outer cylinder lifting plate (4) and the inner cylinder lifting plate (5) are respectively hinged on the outer cylinder heating plate ( 3) and the lower side of the heating plate (6) of the inner cylinder and are distributed in a spiral; the air distribution pipe (7) goes deep into the lower side of the heating plate (6) of the inner cylinder, and the air distribution holes are distributed under the heating plate (6) of the inner cylinder Side; the inner cylinder (16) has an air outlet (17) on the side wall corresponding to the combustion chamber (1). This external heating vertical activated carbon activation furnace not only has a compact structure, but also can continuously produce activated carbon with various raw materials, and the yield, quality, strength and surface gloss of activated carbon are high, and the activation furnace has a long service life.
Description
Affiliated technical field
The utility model relates to a kind of activation equipment of making gac.
Background technology
Gac is mainly used in the processing to trade effluent, city trowel used for plastering water, thermal power generation flue gas.Along with country is more and more higher to environmental protection requirement, the demand of gac is also increasing.
China's activation furnace commonly used at present mainly contains: " Si Liepu " stove of USSR (Union of Soviet Socialist Republics) and the pierce smith converter of introducing from the U.S. and Japan in recent years.Stepple furnace; because of the refractory brick of its activation zone is saddle-shape; so claim the saddle stove again; its main drawback: complex structure, cost height, big to advancing stove ingredient requirement height, technical requirements height, maintenance cost, particularly can not production lightweight gac and the macrobead gac of thermal power generation flue gas greater than Φ 8mm.Pierce smith converter, because of its material advances by body of heater self angle of inclination and oblique flight, the rate of advance of the bad control material of production lightweight charcoal, soak time and activation quality are difficult for assurance, therefore also are not suitable for production lightweight gac; In addition, above-mentioned activation furnace all is an internal heating, and combustion gases directly contact with material, can cause the raw material surface combustion inevitably, reduces the yield and the quality of gac.
The raw material of manufacturing gac has multiple, and nearly all carbonaceous material---timber, sawdust, coal, shell, bamboo, agricultural crop straw etc. can be as the raw materials of producing gac.Country advocates wood substituted by bamboo, and activated carbon from bamboo belongs to the lightweight gac, and production lightweight gac can only be used vertical rotary kiln.The Chinese invention patent specification sheets discloses a kind of " activation method of producing activated carbon by chemical method and activation furnace " (notification number CN 1038495C on May 27th, 1998, application number 92103113.0), it is characterized in that: combustion chamber is formed apart from one another by overlapping by activating chamber and the heating chamber that furnace bed board constitutes, odd-level is a heating chamber from bottom to top, even level is an activating chamber, be provided with the stirring rake teeth of being close to furnace bed board automatically that drives by central rotating shaft in the activating chamber, adjacent two-layer heating chamber is up and down connected by the burning gas passage, adjacent up and down two-layer activating chamber is connected by tremie pipe, the material in the activating chamber be subjected to adjacent on, the continuously stirring of the two-sided heating of following heating chamber bed board and rake teeth formula agitator.This activation furnace is vertical externally heated oven, but production lightweight gac can be avoided the scaling loss of raw material and gac, can realize serialization production simultaneously.But this activation furnace has the following disadvantages: 1. combustion chamber is formed apart from one another by overlapping by activating chamber and heating chamber, needs body of heater enough high, otherwise can cause the soak time deficiency under the situation that does not reduce production efficiency, and activation effect is undesirable; In addition, structure is complicated.2. this activation furnace will be made activator with zinc chloride or phosphoric acid, can bring the problem of zinc chloride or phosphoric acid corrosion activation equipment; 3. rake teeth is fixed on the same straight line, turns over that to copy material inhomogeneous; 4. because central shaft cools off hollow because of blowing air in the needs, rotate again simultaneously to drive the rake arm and rotate, so central shaft damages easily.
Summary of the invention
The purpose of this utility model provides a kind of external heating vertical active carbon activation furnace, and this activation furnace can not only be with various raw material continuous production gacs, and the yield of gac and quality height, and the life-span of activation furnace is long.
For achieving the above object, the utility model external heating vertical active carbon activation furnace comprises combustion chamber, furnace wall, inner core, hot-plate, flight, hopper, feed-pipe, discharge nozzle, be provided with urceolus between inner core and furnace wall, the lower end of this urceolus is connected with step-down gear, motor by transmitting gear; Be provided with heat tunnel between the outer side of urceolus and the furnace wall, the upper and lower of urceolus is sealed by furnace wall, and heat tunnel is communicated with vapor pipe through flue tube; Described hot-plate is divided into urceolus hot-plate and inner core hot-plate, and urceolus hot-plate and inner core hot-plate are separately fixed on the outer side of the medial surface of urceolus and inner core, vertically staggered arrangement successively; Described flight is divided into urceolus flight and inner core flight, urceolus flight and inner core flight are installed on the downside of urceolus hot-plate and inner core hot-plate with hinge respectively, and urceolus flight and inner core flight are in spiral distribution on the downside of urceolus hot-plate and inner core hot-plate respectively; Vapour pipe is communicated with gas-distributing pipe, gas-distributing pipe be positioned at body of heater epimere, be deep into the downside of inner core hot-plate, divide vent hole to be distributed on the gas-distributing pipe tube wall of inner core hot-plate downside; Inner core has the air outlet on the sidewall of respective combustion chamber.
Because after material enters body of heater of the present utility model, under copying of urceolus flight and inner core flight turned over, passed, successively fall from top to bottom, the soak time of material, can control automatically by the speed of rotation of urceolus easily, therefore the utility model is compared with pierce smith converter with " Si Liepu " stove, can produce the lightweight gac that they are not suitable for producing.The utility model only carries out outer heating with urceolus hot-plate and inner core hot-plate to material, therefore the utility model is compared with internally heated oven, can avoid burning of material and gac, reduce the ashes of product, improve yield, quality, intensity and the surface gloss of gac.Because the utility model does not need to establish in addition heating chamber, simultaneously the flight that distributes of spiral make material turning more even, be heated more abundant, do not need to use chemical activating agent in addition, flight is driven by rotation urceolus but not inner core, therefore the utility model is compared with aforementioned " activation method of producing activated carbon by chemical method and activation furnace ", more compact structure, converter life is longer.
Description of drawings

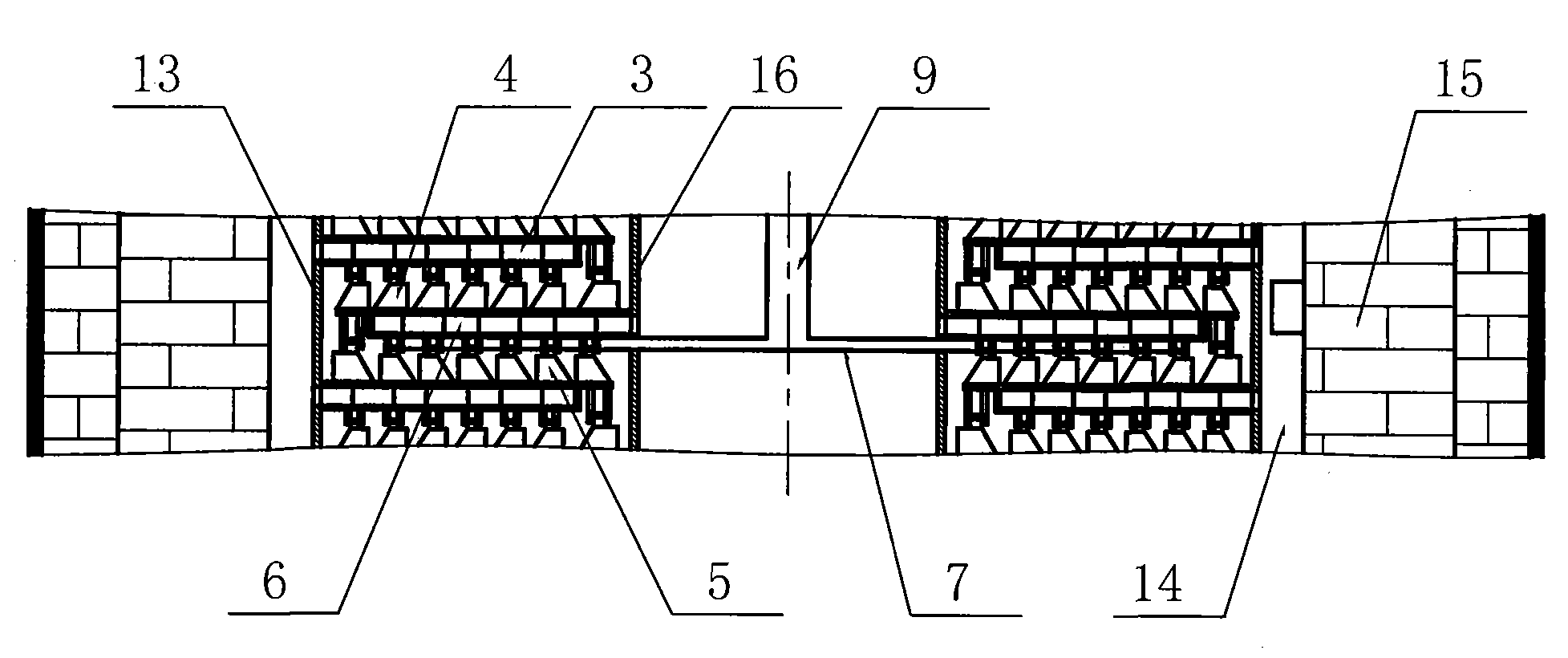

Fig. 1 is the structural representation of this external heating vertical active carbon activation furnace.
Fig. 2 is the A place partial enlarged view of Fig. 1.
Fig. 3 is the urceolus flight layout drawing of this external heating vertical active carbon activation furnace.
Fig. 4 is the inner core flight layout drawing of this external heating vertical active carbon activation furnace.
Embodiment
Below in conjunction with drawings and Examples the utility model is described.
As shown in Figure 1 and Figure 2, the utility model comprises combustion chamber 1, furnace wall 15, inner core 16, hot-plate, flight, hopper 10, feed-pipe 8, discharge nozzle 2, between inner core 16 and furnace wall 15, be provided with urceolus 13, the lower end of this urceolus 13 is connected with step-down gear, motor 19 by transmitting gear 18, so that urceolus is around its central axis rotation.Be provided with heat tunnel 14 between the outer side of urceolus 13 and the furnace wall 15, its upper and lower is sealed by furnace wall 15, and heat tunnel 14 is communicated with vapor pipe 11 through flue tube 12.Inner core 16 has air outlet 17 on the sidewall of respective combustion chamber 1, so that inner core has heat effect.Described hot-plate is divided into urceolus hot-plate 3 and inner core hot-plate 6, and urceolus hot-plate 3 and inner core hot-plate 6 are separately fixed on the outer side of the medial surface of urceolus 13 and inner core 16, vertically staggered arrangement successively.Vapour pipe 9 is communicated with gas-distributing pipe 7, gas-distributing pipe 7 be positioned at body of heater epimere, be deep into the downside of inner core hot-plate 6, divide vent hole to be distributed on the gas-distributing pipe tube wall of inner core hot-plate 6 downsides.As Fig. 2, Fig. 3, shown in Figure 4, described flight is divided into urceolus flight 4 and inner core flight 5, urceolus flight 4 and inner core flight 5 are installed on the downside of urceolus hot-plate 3 and inner core hot-plate 6 with hinge respectively, so that the heater plate surface that flight is close to below it is automatically copied.Urceolus flight 4 and inner core flight 5 are in spiral distribution on the downside of urceolus hot-plate 3 and inner core hot-plate 6 respectively, the distance that is flight and inner core central axis is gradually far away successively, compare with aforementioned patent, like this layout can make stir more evenly, material contacts more abundant with hot-plate.
As improvement of the present utility model, as shown in Figure 1 and Figure 2, urceolus hot-plate 3 and inner core hot-plate 6 are hollow structure, and the hollow area of urceolus hot-plate 3 communicates with heat tunnel 14, and the hollow area of inner core hot-plate 6 communicates with the inner chamber of inner core.The structure of hollow can make hot-plate be easier to be heated.
The utility model is material cooling zone and discharge zone below 17 from the air outlet on the inner core, and the scope of air outlet 17 above 10 floor left and right sides hot-plates is the material activating district, up is the material preheating zone again.Material is after the body of heater upper end enters activation furnace, under copying of urceolus flight 4 and inner core flight 5 turned over, passed, successively fall from top to bottom, during 17 positions, air outlet to inner core, the achromachia gas that material produces in reactivation process is 17 ejections from the air outlet, owing to the temperature that sprays gas has reached point of ignition, ejection gas can burn at inner core after meeting air, thereby inner core 16 is heated.Outer heat effect when being subjected to urceolus hot-plate 3 and inner core hot-plate 6, material through the preheating zone, the region of activation is preheated, activates, and generates gac.After the gac that generates entered the cooling zone cooling of inner core air outlet below 17, the discharge nozzle 2 from furnace bottom drew off automatically.The soak time of material in activation furnace can be controlled automatically by the speed of rotation of urceolus 13.
But this external heating vertical active carbon activation furnace continuous production granularity 80 orders are to 12mm, gac more than the iodine number 1000mg/g, and ature of coal, bamboo matter, wooden, shell etc. all can be used as raw materials for production, and be pollution-free at aspects such as water, air, dust, noises during use.In addition, the utility model less investment, it is fast to found the factory, and builds and produces 1000 tons of Activated Carbon Production lines per year, only needs just can be constructed and put into operation in 60 days, and " Si Liepu " stove production line of building equal scale then needs 8 months.
Claims (2)
