Abstract
The utility model provides a plastic steel hinge for connecting the doors of refrigerator and ice chest, which is composed of a shaped steel body and a plastic layer, wherein the shaped steel body is coated by a plastic layer with certain thickness. The utility model has the advantages that the plastic steel hinge applied on the doors of refrigerator and ice chest can provide good corrosion resistance to refrigerator and chest.
Description
Technical field
The utility model relates to a kind of hinge, is a kind of plastic-steel hinge that refrigerator is connected with the freezer door body that is used for specifically.
Background technology
Be connected the hinge great majority that use with the freezer door body be to be made by steel or zinc alloy material to refrigerator in the market, its major defect is that product surface need carry out zinc-plated or chromium plating is handled, problems such as these technologies produce environment to be polluted, and also exists the cost height simultaneously, not corrosion-resistant.
Summary of the invention
The purpose of this utility model provides a kind of plastic-steel hinge that refrigerator is connected with the freezer door body that is used for, and this hinge is not only at the bottom of the cost of production, and has good anti-corrosion.
The purpose of this utility model is achieved in that it comprises: become shaped steel body, plastic layer, will become the shaped steel body to put into corresponding injection mould,, make into the external table of shaped steel and coat certain thickness plastic layer the plastic injection-moulded moulding steel body surface that arrives with injection machine.
Plastic layer H 〉=the 0.5mm of above-mentioned plastic-steel hinge.
The beneficial effects of the utility model are: by use the plastic-steel hinge on refrigerator and freezer door body, make it have good anti-corrosion resistance, and reduced cost of production, also reduce the pollution that environment is produced simultaneously.
Description of drawings

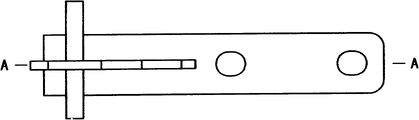

Fig. 1 is a front view of the present utility model.
Fig. 2 is this practical A-A sectional view.
The specific embodiment
As shown in Figure 1, 2, plastic-steel hinge of the present utility model comprises: become shaped steel body 1, plastic layer 2, it is to become shaped steel body 1 to put into corresponding injection mould, with injection machine with plastic injection-moulded to becoming shaped steel body 1 surface, the appearance that makes into shaped steel body 1 coats certain thickness plastic layer 2.
Thickness H 〉=the 0.5mm of the plastic layer 2 of above-mentioned plastic-steel hinge.
Claims (2)
1, a kind of plastic-steel hinge is characterized in that by becoming shaped steel body (1), plastic layer (2) to form: become the appearance of shaped steel body (1) to coat certain thickness plastic layer (2).
2, plastic hinge according to claim 1 is characterized in that: described plastic layer (2) thickness H 〉=0.5mm.
