Abstract
本实用新型公开了一种测温装置，它包括温度计(1)，和一根由弹性金属材料构成的测温带(2)，所述的温度计(1)和测温带(2)连接。该测温装置能准确测量杯子或瓶子内液体的温度且通用性高。
The utility model discloses a temperature measuring device, which comprises a thermometer (1) and a temperature measuring belt (2) made of elastic metal material, and the thermometer (1) is connected with the temperature measuring belt (2). The temperature measuring device can accurately measure the temperature of the liquid in the cup or the bottle and has high versatility.
Description
技术领域 technical field
本实用新型涉及一种测温装置，具体讲是专门用于测量杯子或瓶子等圆柱形容器内液体的温度的测温装置。The utility model relates to a temperature measuring device, in particular to a temperature measuring device specially used for measuring the temperature of liquid in cylindrical containers such as cups or bottles.
背景技术 Background technique
传统的杯子或瓶子是不带温度计的，在日常使用中，用户一般用手触摸或用眼睛观察，通过经验来判断容器内液体的温度。但这种判断并不准确，无法得到确切的温度值。这样会给用户带来不便，如婴儿的口腔比较敏感，成人用手触摸奶瓶而判断的温度，不一定适合婴儿的口腔，又如某些茶叶，需要在一定的温度范围内的水中浸泡才能达到最佳的饮用效果，而通过触摸或眼观察判断的温度不一定符合茶叶浸泡的要求。用户也可以采用传统的温度计来测量杯子或瓶子内液体的温度，但将温度计置于水中可能会污染水源，用手一直拿着则麻烦费力。Traditional cups or bottles do not have a thermometer. In daily use, users generally use their hands to touch or observe with their eyes to judge the temperature of the liquid in the container through experience. But this kind of judgment is not accurate, and the exact temperature value cannot be obtained. This will cause inconvenience to the user. For example, the baby’s mouth is sensitive, and the temperature judged by adults touching the feeding bottle may not be suitable for the baby’s mouth. For example, some tea leaves need to be soaked in water within a certain temperature range to achieve the desired temperature. The best drinking effect, and the temperature judged by touch or eye observation may not meet the requirements of tea steeping. Users can also use a traditional thermometer to measure the temperature of the liquid in the cup or bottle, but putting the thermometer in the water may pollute the water source, and it is troublesome to hold it by hand all the time.
为避免上述情况发生，现在市面上出现了直接安装在杯子或瓶子壁上的温度计，但由于这种温度计直接固定在的杯子或瓶子上，因此只能测出温度计所在的杯子或瓶子内液体的温度，而别的杯子或瓶子内液体的温度无法测量，故通用性低。In order to avoid the above situation, there are thermometers installed directly on the wall of the cup or bottle on the market, but because the thermometer is directly fixed on the cup or bottle, it can only measure the temperature of the liquid in the cup or bottle where the thermometer is located. temperature, and the temperature of the liquid in other cups or bottles cannot be measured, so the versatility is low.
实用新型内容 Utility model content
本实用新型要解决的技术问题是，提供一种能准确测量杯子或瓶子内液体的温度且通用性高的测温装置。The technical problem to be solved by the utility model is to provide a temperature measuring device which can accurately measure the temperature of the liquid in the cup or bottle and has high versatility.
本实用新型的技术解决方案是，提供一种具有以下结构的测温装置，它包括温度计和一根由弹性金属材料构成的测温带，所述的温度计和测温带连接。The technical solution of the utility model is to provide a temperature measuring device with the following structure, which includes a thermometer and a temperature measuring belt made of elastic metal material, and the thermometer is connected to the temperature measuring belt.
采用以上结构后，本实用新型测温装置与现有技术相比，具有以下优点：After adopting the above structure, compared with the prior art, the temperature measuring device of the present invention has the following advantages:
由于本实用新型的测温装置包括一根由弹性金属材料构成的测温带，所述的温度计和测温带连接，故由弹性材料构成的测温带可以紧箍在杯子或奶瓶外侧的圆周面上，热的传动性使得容器内液体、容器表面和测温带的温度一致，故与测温带连接的温度计能直观的显示出温度，同样，由于测温带由弹性材料构成，故可以紧箍在不同直径的杯子或瓶子的表面，故该测温装置能测量不同直径的瓶子和杯子内液体的温度，通用性高。Since the temperature measuring device of the present invention includes a temperature measuring belt made of elastic metal material, the thermometer is connected with the temperature measuring belt, so the temperature measuring belt made of elastic material can be tightly bound on the outer peripheral surface of the cup or feeding bottle In fact, the transmission of heat makes the temperature of the liquid in the container, the surface of the container and the temperature measuring belt consistent, so the thermometer connected with the temperature measuring belt can display the temperature intuitively. Similarly, because the temperature measuring belt is made of elastic material, it can be tightly It is hooped on the surface of cups or bottles of different diameters, so the temperature measuring device can measure the temperature of liquids in bottles and cups of different diameters, and has high versatility.
附图说明 Description of drawings
图1是本实用新型的测温装置未安装温度计和感温片时的正视剖视结构示意图。Fig. 1 is a front view sectional structural schematic diagram of the temperature measuring device of the present invention when no thermometer and temperature sensing sheet are installed.

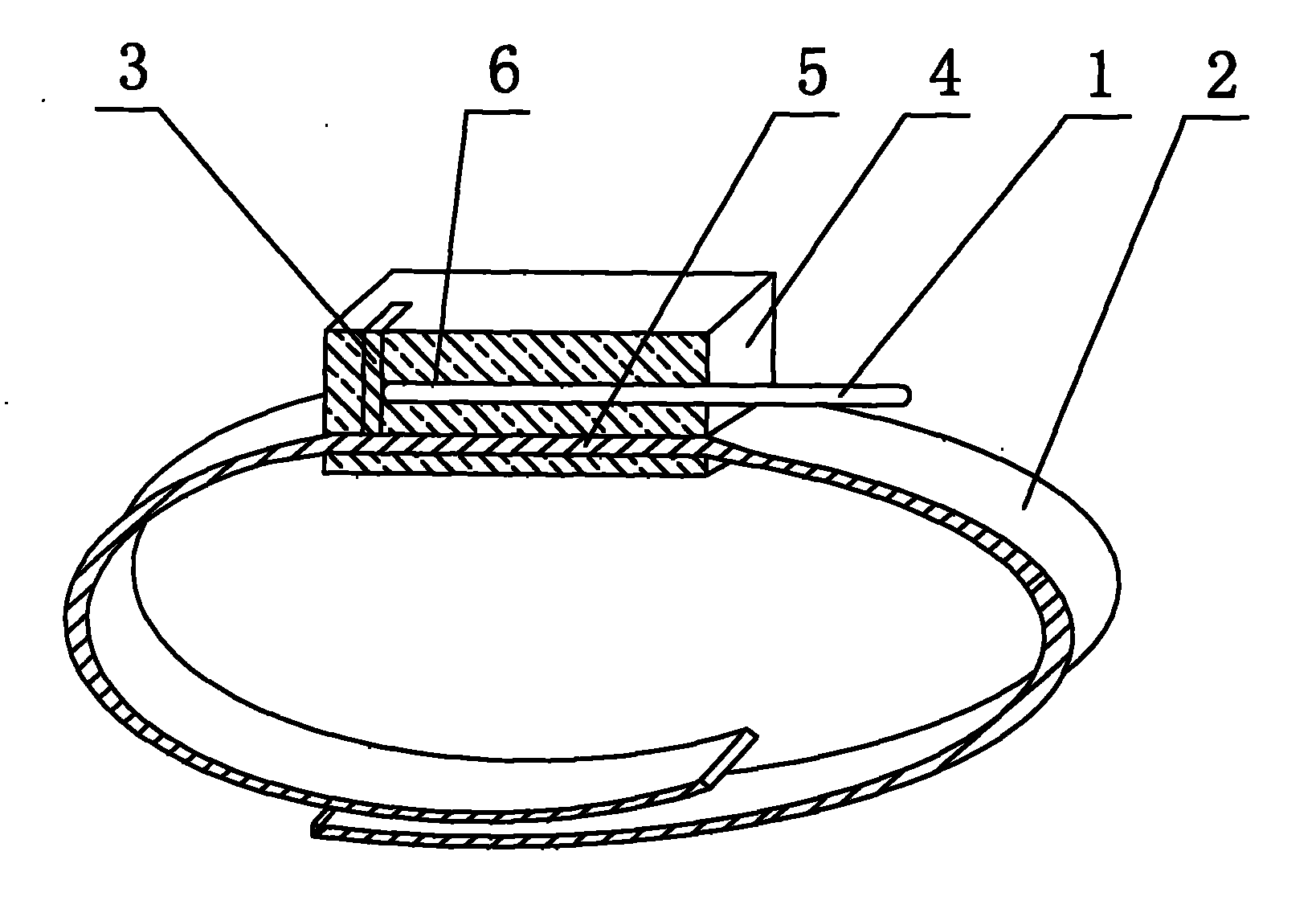

图2是本实用新型的测温装置的正视剖视结构示意图。Fig. 2 is a front view sectional structural schematic diagram of the temperature measuring device of the present invention.
图中所示1、温度计，2、测温带，3、感温片，4、连接块，5、槽道，6、通孔。As shown in the figure 1, thermometer, 2, temperature measuring belt, 3, temperature sensing sheet, 4, connection block, 5, channel, 6, through hole.
具体实施方式 Detailed ways
下面结合附图和具体实施例对本实用新型作进一步说明。Below in conjunction with accompanying drawing and specific embodiment the utility model is further described.
如图1、图2所示，本实用新型的测温装置，它包括温度计1和一根由弹性金属材料构成的测温带2，所述的温度计1和测温带2连接。As shown in Figures 1 and 2, the temperature measuring device of the present invention includes a
本实用新型的测温装置还包括一块感温片3和一个连接块4，所述的温度计1是指玻璃管温度计，所述的温度计1和测温带2连接是指，所述的玻璃管温度计的玻璃泡紧靠在感温片3上，所述的感温片3紧靠在测温带2上。所述的连接块4内设有安装测温带2的槽道5、安装温度计1的通孔6和安装感温片3的空间，所述的槽道5和通孔6通过安装感温片3的空间连通。The temperature measuring device of the present utility model also includes a
以上仅就本实用新型较佳的实施例作了说明，但不能理解为是对权利要求的限制。本实用新型不仅局限于以上实施例，其具体结构允许有变化，如：所述的温度计还可以采用指针式温度计、电阻温度计等；所述的测温装置可以不包括连接片，而是直接将感温片3焊接在测温带2上，而后将温度计固定在测温带上；等。凡在本实用新型独立权利要求的保护范围内所作的各种变化均在本实用新型的保护范围内。The above is only a description of the preferred embodiments of the present utility model, but should not be construed as a limitation on the claims. The utility model is not limited to the above embodiments, and its specific structure is allowed to be changed, such as: the thermometer can also use a pointer thermometer, a resistance thermometer, etc.; the temperature measuring device can not include a connecting piece, but directly The
