CN201279706Y - Core rod sander - Google Patents

Abstract

The utility model discloses a mandrel grinding machine, which includes a rod feeding platform and a grinding rod platform. The rod feeding platform is provided with two rod feeding driven wheels and a rod feeding driving wheel arranged horizontally up and down, the rod feeding driving wheel and the rod feeding motor. Belt connection, the surface of the rod feeding driving wheel has rotating threads, and the cross section of the rod feeding composed of the two rod feeding driven wheels and the rod feeding driving wheel is an inverted isosceles triangle; The driving wheel and the grinding rod driving wheel, the grinding rod driving wheel is connected with the rod feeding motor, the grinding rod driven wheel and the grinding rod driving wheel are roller grinding wheels, and the grinding rod cross section formed by the two grinding rod driven wheels and the grinding rod driving wheel is inverted The isosceles triangle; the cross-section of the feeding rod is parallel to the cross-section of the grinding rod and the center of the cross-section is on the same straight line. The utility model has high degree of automation, stable product quality, low labor intensity, and eliminates most safety hazards. After adding an outer cover, the working environment is sealed, and most dust is collected, ensuring the health of workers and environmental sanitation.

Description

Mandrel grinder

Technical field:

The utility model relates to an insulator used in a power system, in particular to an auxiliary device for surface treatment of an insulator mandrel.

Background technique:

The equipment structure of the existing grinding mandrel is generally: a self-made workbench, drives a gearbox (1/5 speed) with a motor to connect a chuck, welds on its side (that is, the front of the operator) A support bracket with a length of two meters and a height of 1.2 meters is equipped with a movable support frame (used to ensure the level of the mandrel). The tool for grinding the mandrel is to split the steel pipe corresponding to the diameter of the mandrel along the axis, weld the handle up and down in the horizontal direction, and weld the rotating hinge on the other end along the axial direction. When the workers are grinding, they first put the cut emery cloth up and down into the inner circle of the grinding tool, clamp the mandrel, turn on the motor, press the handle firmly, and move along the support bracket from the chuck to the other end to complete the grinding. Mandrel work. Such self-made grinding mandrel device, though its structure is simple and cheap, has very serious potential safety hazards, and the working environment is also extremely bad. , one person to monitor) in cooperation, the quality is difficult to strictly guarantee due to human factors, and the working condition is on the mandrel with a relatively high speed (500r/min), and the personnel are basically working in an environment without any safety measures. Once tired or Any negligence will lead to accidents; and the mandrel dust made of glass fiber and epoxy resin materials will cause great damage to the body of employees who work for a long time. The protective measures are only wearing masks, and the environmental hygiene in the workshop is difficult to guarantee.

Utility model content:

The technical problem to be solved by the utility model is to provide a mandrel grinder for the above deficiencies. The mandrel grinder is fully enclosed and automatic, which not only greatly reduces labor intensity, but also greatly eliminates potential safety hazards. , To ensure the health of the staff, the grinding quality of the mandrel is also improved.

In order to reduce the labor intensity of workers, eliminate potential safety hazards, and ensure the health of workers, the technical solution adopted by the utility model is:

A mandrel grinding machine, comprising a rod feeding platform and a grinding rod platform, two rod feeding driven wheels and a rod feeding driving wheel arranged horizontally up and down on the rod feeding platform, the driving rod feeding wheel is connected with a rod feeding motor belt, The surface of the rod driving wheel has a rotating thread, and the cross-section of the rod feeding composed of the two rod feeding driven wheels and the rod feeding driving wheel is an inverted isosceles triangle; the grinding rod platform is equipped with two grinding rod driven wheels and a grinding rod The driving wheel, the grinding rod driving wheel is connected with the rod feeding motor belt, the grinding rod driven wheel and the grinding rod driving wheel are roller grinding wheels, the cross section of the grinding rod formed by the two grinding rod driven wheels and the grinding rod driving wheel is an inverted isosceles triangle ; The cross-section of the feeding rod is parallel to the cross-section of the grinding rod and the center of the cross-section is on the same straight line.

In order to achieve precision and adjustable size, the rod feeding driving wheel is set on the rod feeding sliding table, the bottom of the rod feeding sliding table is connected to the rod feeding platform through the rod feeding guide rail, and the rod feeding screw is connected to the side of the rod feeding sliding table, the screw The screwing in and out drives the rod feeding driving wheel to approach and move away from the rod feeding driven wheel; the grinding rod driving wheel is set on the grinding rod sliding table, and the bottom of the grinding rod sliding table is connected with the grinding rod platform through the grinding rod guide rail, and the grinding rod sliding table The side is connected with a grinding rod lead screw, and the screw-in and withdrawal of the leading screw drive the grinding rod driving wheel to approach and move away from the grinding rod driven wheel.

There are human-shaped lines on the surface of the driving wheel for sending rods, and it is crimped with neoprene and processed with positive threads. This is because the mandrel is round and has a smooth surface. Conducive to the conveying of the mandrel, it may only rotate in situ but not move forward, and it is processed into a surface with positive threads. Under the extrusion (moderate) rotation of the driving wheel, the mandrel will borrow its pressure and rotation along the direction of the driving wheel. Rotate the positive direction to move forward, so as to better complete the process of automatic rod feeding.

In order to achieve a clean environment and a good working environment for the workers, the rod feeding platform and the grinding rod platform are set on the frame. There is an outer cover on the outside of the frame, and a rod feeding port and a rod outlet port on the outer cover. , The clapboard is provided with a rod passing port, and the center of the rod feeding port, the center of the cross-section of the rod feeding, the center of the rod passing port, the center of the cross-section of the grinding rod, and the center of the rod outlet are on the same straight line in turn.

In order to facilitate the observation of the rod grinding process, there is an observation window on one side of the outer cover.

The outer cover is also provided with a ventilation fan, and the top of the outer cover is also provided with a lighting device.

In order to reduce dust flying, there is a dust funnel on the rack below the grinding rod platform, and the dust funnel is connected with a dust collection bag.

The beneficial effect that the utility model can reach is:

1. The utility model has reasonable structure, high degree of automation, stable product quality, greatly reduced labor intensity, and eliminates most of the safety hazards due to the reduction of human operations.

2. The working environment of the utility model is airtight, and most of the dust is collected, which ensures the physical health and environmental sanitation of workers.

3. The utility model is not affected by factors such as the site and the length and thickness of the mandrel, and has a wide range of applications.

Description of drawings:

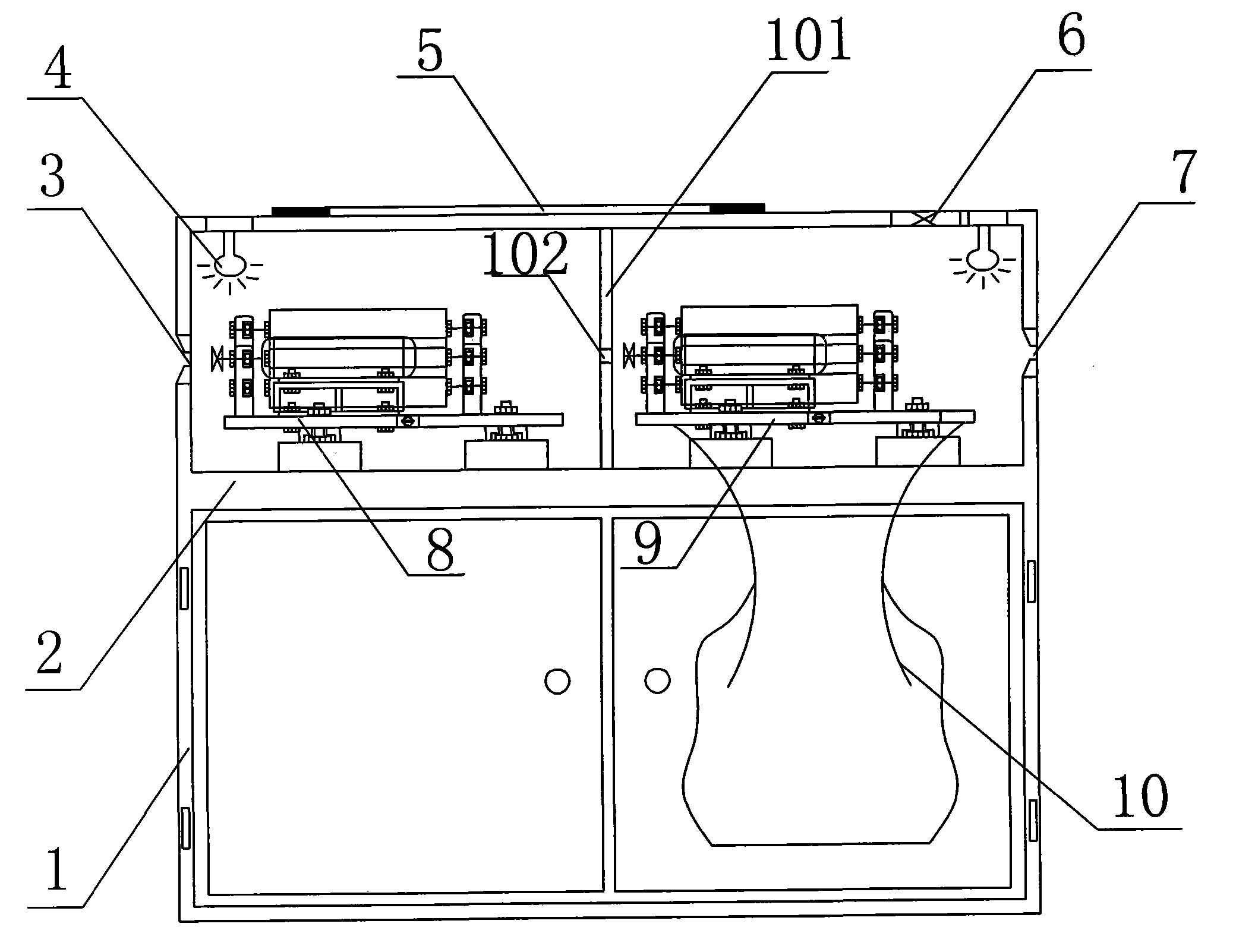

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the top view structural representation that the utility model removes outer cover;

Fig. 3 is the schematic diagram of feeding rod cross-section and grinding rod cross-section;

Fig. 4 is a structural schematic diagram of the rod feeding driving wheel.

Detailed ways:

Below in conjunction with accompanying drawing, the utility model is further described:

As shown in Fig. 1, Fig. 2, Fig. 3 and Fig. 4: this kind of mandrel grinding machine includes a rod feeding platform 8 and a grinding rod platform 9 on the outer cover 1 and the frame 2, and the outer cover 1 is provided with a rod feeding platform. Port 3 and rod outlet 7, the middle part of the outer cover 1 has a partition 101, and the partition 101 is provided with a rod passing port 102; the rod feeding platform 8 is provided with two rod feeding driven wheels 11 and a rod feeding driving wheel 12 arranged horizontally up and down , the rod feeding driving wheel 12 is connected with the rod feeding motor 13, and the rod feeding cross-section A formed by the two rod feeding driven wheels 11 and the rod feeding driving wheel 12 is an inverted isosceles triangle; The two mill rod driven wheels 17 and the mill rod driving wheel 18 are arranged, the mill rod driving wheel 18 is connected with the rod feeding motor 19, the mill rod driven wheel 17 and the mill rod driving wheel 18 are roller type grinding wheels, and the two mill rod driven wheels 17 The grinding rod cross section B formed by the grinding rod driving wheel 18 is an inverted isosceles triangle; the center of the rod feeding port 3, the center of the rod feeding cross section A, the center of the rod passing port 102, the center of the grinding rod cross section B, and the rod outlet The 7 centers are successively on the same straight line. The rod feeding driving wheel 12 is arranged on the rod feeding sliding table 14, the bottom of the rod feeding sliding table 14 is connected with the rod feeding platform 8 through the rod feeding guide rail 15, and the rod feeding screw 16 is connected to one side of the rod feeding sliding table 14, and the rod wire feeding The screwing and withdrawing of the bar 16 drives the rod feeding driving wheel 12 to approach and move away from the rod feeding driven wheel 11; the grinding rod driving wheel 18 is arranged on the grinding rod sliding table 20, and the bottom of the grinding rod sliding table 20 passes through the grinding rod guide rail 21 and the grinding rod. Platform 9 is connected, and grinding rod sliding table 19 side is connected with grinding rod leading screw 22, and the screwing of grinding rod leading screw 22 and withdrawing drive grinding rod driving wheel 18 approaches and moves away from grinding rod driven wheel 17. There are human-shaped lines on the surface of the rod-feeding driving wheel 12, and neoprene is crimped and processed with positive buckle thread 1201, so as to achieve better rod-feeding effect. One side of the outer cover 1 is provided with an observation window 5, and the outer cover 1 is also provided with a ventilation fan 6, and the top of the outer cover 1 is also provided with a lighting device 4, and the frame 2 below the grinding rod platform 9 has a dust funnel 10, and the dust funnel 10 The live connection has a dust collection bag.

When working, the mandrel is manually sent to the rod feeding platform 8 through the rod feeding port 3, and is sent horizontally to the rod grinding platform 9 through the rod feeding port 102 under the joint action of the two rod feeding driven wheels 11 and the rod feeding driving wheel 12. Then two grinding rod driven wheels 17 and grinding rod driving wheel 18 are polished into qualified finished products, and the finished product is rotated and taken out by the rod outlet 7. The whole process is carried out in a closed space, and the body of the staff It will not touch the rotating parts, so the working environment is clean, the working conditions are safe and reliable, the working efficiency is high, and the product quality is guaranteed.

Claims (7)

1. A mandrel grinding machine, including a rod feeding platform and a grinding rod platform, characterized in that: two rod feeding driven wheels and a rod feeding driving wheel arranged horizontally up and down are arranged on the rod feeding platform, and the rod feeding driving wheel and the feeding rod Rod motor belt connection, the surface of the rod feeding driving wheel has rotating threads, and the rod feeding cross section formed by the two rod feeding driven wheels and the rod feeding driving wheel is an inverted isosceles triangle; The rod driven wheel and the rod driving wheel, the rod driving wheel is connected with the rod feeding motor, the rod driven wheel and the rod driving wheel are roller grinding wheels, the cross section of the rod composed of the two rod driven wheels and the rod driving wheel It is an inverted isosceles triangle; the cross-section of the feeding rod is parallel to the cross-section of the grinding rod and the center of the cross-section is on the same straight line. 2. The mandrel grinding machine according to claim 1, characterized in that: the rod feeding driving wheel is set on the rod feeding sliding table, the bottom of the rod feeding sliding table is connected with the rod feeding platform through the rod feeding guide rail, and the rod feeding sliding table The side is connected with a rod feeding screw, and the screw's screwing in and out drives the rod feeding driving wheel to approach and move away from the rod feeding driven wheel; the grinding rod driving wheel is set on the grinding rod sliding table, and the bottom of the grinding rod sliding table passes through the grinding rod guide rail and The grinding rod platform is connected, and the grinding rod sliding table side is connected with a grinding rod screw, and the screw advances and withdraws to drive the grinding rod driving wheel to approach and move away from the grinding rod driven wheel. 3. The mandrel grinding machine according to claim 1 or 2, characterized in that: there is a "human" pattern on the surface of the driving wheel for feeding the rod. 4. The mandrel grinding machine according to claim 3, characterized in that: the rod feeding platform and the grinding rod platform are arranged on the frame, and an outer cover is provided on the outside of the frame, and a rod feeding port and a rod outlet are provided on the outer cover , There is a partition in the middle of the outer cover, and there is a rod passing port on the partition. The center of the rod feeding port, the center of the cross section of the rod feeding, the center of the rod passing port, the center of the cross section of the grinding rod, and the center of the rod outlet are on the same straight line. 5. The mandrel grinding machine according to claim 4, characterized in that: one side of the outer cover is provided with an observation window. 6. The mandrel grinding machine according to claim 4, characterized in that: the top of the outer cover is also provided with an illuminating device. 7. The mandrel grinding machine according to claim 4, characterized in that: there is a dust funnel on the frame below the grinding rod platform, and the dust funnel is connected with a dust collection bag.
