Abstract

The utility model discloses a shock-absorbing racket, comprising a head frame, a connecting portion extending from the head frame, and a handle arranged at the end of the connecting portion, wherein the head frame has at least one through-hole for a shock-absorbing body to be arranged, so that the racket of the utility model can absorb the vibration generated when hitting the ball through the shock-absorbing body, thereby providing a good shock-absorbing effect and preventing the user's arm from being injured by sports.

Description

Suspension racket

technical field

The utility model relates to sports equipment, in particular to a shock-absorbing racket with good shock-absorbing effect.

Background technique

A general racket such as a tennis racket has a head frame, a connecting portion extending from the head frame, and a handle at the end of the connecting portion. When the racket face hits the ball, the vibration generated by the ball will be directly transmitted to the user's arm through the head frame, connecting part and handle in sequence. With the accumulation of playing time, the user's arm is prone to vibration. sports injury. Therefore, how to increase the shock-absorbing effect of the racket has always been the direction of continuous research and development in the industry.

Utility model content

The main purpose of the utility model is to provide a shock-absorbing racket, which has a good shock-absorbing effect.

In order to achieve the purpose of disclosure, the shock-absorbing racket provided by the utility model includes a head frame, a connecting portion extending from the head frame, and a handle at the end of the connecting portion, wherein the head frame has at least one Through the perforation, a shock-absorbing body is accommodated.

The utility model is a shock-absorbing racket, which comprises:

a frame having at least one through-hole;

At least one shock absorber is accommodated in the through hole of the head frame;

a connecting portion extending from the head frame; and

A handle is attached to the end of the connecting portion.

In the shock-absorbing racket, the head frame has a plurality of threading holes for passing a net cable, and a plurality of the perforating holes, and the perforating holes and the threading holes are arranged in a staggered manner.

In the shock-absorbing racket, the perforation of the head frame runs through the top and bottom sides of the head frame.

In the shock-absorbing racket, the perforation of the head frame runs through the inner and outer sides of the head frame.

In the above-mentioned shock-absorbing racket, there are two shock-absorbing bodies, which are respectively inserted from the two ends of the perforation and bonded to each other at the ends.

The beneficial effect of the utility model is that the shock-absorbing racket provided can make the racket absorb the shock generated when hitting the ball through the shock-absorbing body, and greatly reduce the force transmitted to the user's arm, so as to provide Good shock absorption effect, avoiding sports injuries to the user's arm.

In order to better understand the features of the present utility model, the following two preferred embodiments are given together with the accompanying drawings for description.

Description of drawings

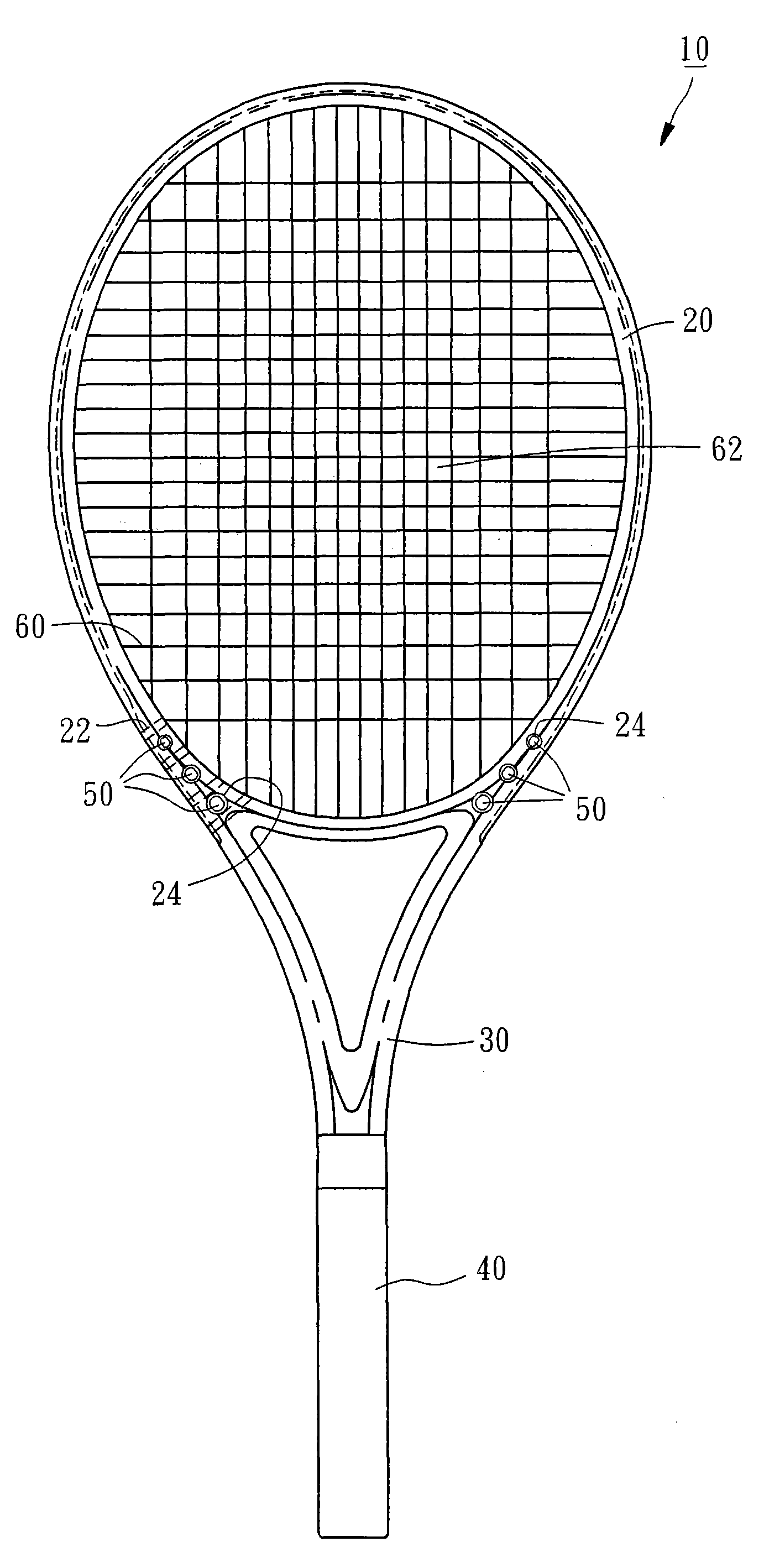

Fig. 1 is the front view of the first preferred embodiment of the utility model;

Figure 2 is a partially enlarged view of Figure 1;

Fig. 3 is a sectional view of Fig. 2 along section line 3-3;

Fig. 4 is the front view of the second preferred embodiment of the utility model;

Figure 5 is a partially enlarged view of Figure 4;

Fig. 6 is a cross-sectional view along line 6-6 in Fig. 5 .

[Description of main component symbols]

"First Embodiment"

Shock-absorbing racket 10 Head frame 20

Threading hole 22 Piercing 24

Connecting part 30 Handle 40

Shock absorber 50 Network cable 60

Pat face 62

"Second Embodiment"

Shock-absorbing racket 70 Head frame 80

perforation 82 shock absorber 90

Detailed ways

Referring to Fig. 1, the shock-absorbing racket 10 provided by the first preferred embodiment of the present utility model includes a head frame 20, a connecting portion 30 extending from the head frame 20, and a handle 40 connected to the connecting portion 30. end, and twelve shock absorbers 50.

The peripheral edge of the head frame 20 has a plurality of threading holes 22, which are used to pass through a network cable 60 to form a racket surface 62 for hitting the ball; The positions of the connecting parts 30 respectively have three through holes 24 . In this embodiment, the through holes 24 pass through the top and bottom sides of the head frame 20 and are arranged alternately with the thread holes 22 .

The shock absorbers 50 are made of elastic plastic or rubber materials, such as soft thermoplastic rubber (thermoplastic rubber), polyurethane (PU), block polyetheramide (PEBAX), etc. shock. These shock-absorbing bodies 50 are arranged in pairs in each perforation 24 of the head frame 20. When assembling, the two shock-absorbing bodies 50 are respectively inserted into the perforation 24 from the top and bottom ends of the perforation 24, and respectively with their The ends are glued together.

When the shock-absorbing racket 10 of the present utility model hits the ball, the shock wave formed by the racket surface 62 will be transmitted to the head frame 20 via the net cable 60, but because the head frame 20 is equipped with a shock-absorbing body 50 made of elastic material, The shock wave is absorbed or buffered by the shock absorber 50 when it is transmitted to the head frame 20 . In this way, the force on the user's arm will be greatly reduced and the occurrence of sports injuries can be effectively avoided.

Based on the creative spirit of the present utility model, the structure of the present utility model can have many variations, as shown in Figure 4 to Figure 6, which is the shock-absorbing racket 70 provided by the second preferred embodiment of the utility model, its head frame Each perforation 82 of 80 runs through the inner and outer sides of the head frame 80, and each perforation 82 accommodates a shock-absorbing body 90, as shown in FIG. 6, which can also provide a good shock-absorbing effect.

Of course, the number of shock absorbers can be changed and is not limited to the above two embodiments. In other words, the perforation of the first embodiment can accommodate one shock absorber, while the perforation of the second embodiment can accommodate two shock absorbers. As long as at least one shock-absorbing body is accommodated in each through-hole. All these structural changes that are easy to think about should be covered by the patent scope of the utility model.

Claims (5)

1. Shock-proof racket is characterized in that including:

A frame has at least one perforation that runs through;

At least one shock suction body is located in the perforation of this frame;

A junction is extended by this frame; And

One lever connects the end of this connecting portion.

2. the described Shock-proof racket of claim 1 is characterized in that, this frame has a plurality of through wires holes and wears for a netting twine, and a plurality of should the perforation, and these perforation are interlaced arrangement with these through wires holes.

3. the described Shock-proof racket of claim 1 is characterized in that, the perforation of this frame runs through the top of this frame, two sides, the end.

4. the described Shock-proof racket of claim 1 is characterized in that, the perforation of this frame runs through the inside and outside two sides of this frame.

5. the described Shock-proof racket of claim 1 is characterized in that, the quantity of this shock suction body is two, insert by the two ends of this perforation respectively, and adhered to one another with its end.
