Abstract

The utility model relates to a display rack, in particular to a hexagonal display rack, which belongs to tools for exhibition. In the current exhibition, some small products are difficult to achieve the expected display effect, which requires a new display stand. The utility model comprises a hexagonal frame, a horizontal railing, a bottom frame and a vertical railing, wherein the horizontal railing and the bottom frame are connected with the hexagonal frame, and the horizontal railing and the bottom frame are connected through the vertical railing, It is characterized in that: the hexagonal frame is provided with a top hanging opening and a bottom hanging opening. The utility model can be displayed in a long series through a plurality of S-shaped hooks, the display effect is even better, and it does not occupy the ground in the exhibition hall, the structure is firm, the production cost is low, and the manufacturing process is simple.

Description

A hexagonal display stand

technical field

The utility model relates to a display rack, in particular to a hexagonal display rack, which belongs to tools for exhibition.

Background technique

In an exhibition, in order to increase the effect of the products on display, the products are generally displayed on the relevant display racks. In some exhibitions, there will be many small products that need to be displayed, such as small dolls. The traditional way of display is to directly hang the products or put them directly on some planes for display, and it is often difficult to display the best results. This requires a brand new display rack to add better display for these small products. Effect.

Utility model content

The purpose of the utility model is to overcome the above-mentioned shortcomings existing in the prior art, and provide a hexagonal display rack with reasonable structural design, simple process, and can greatly increase the display effect of products.

The technical scheme adopted by the utility model to solve the above problems is: a hexagonal display frame, including a hexagonal frame, a horizontal railing, a bottom frame and a vertical railing, wherein the horizontal railing and the bottom frame are all connected with the hexagonal frame The horizontal rails and the bottom frame are connected through the vertical rails, and the feature is that: the hexagonal frame is provided with a top hanging opening and a bottom hanging opening.

The shape of the hexagonal frame described in the utility model is a regular hexagon.

The top hanging opening and the bottom hanging opening on the hexagonal frame described in the utility model are center-symmetric.

Compared with the prior art, the utility model has the following advantages and effects: when a small product such as a small doll is put on display in a hexagonal display rack, it can be placed in various postures, which further increases the product quality. Show effect. When in use, as long as the S-shaped hook is used, the bottom hanging port and the top hanging port of the two hexagonal display racks can be connected, so that the two hexagonal display racks are connected. According to this method, multiple With S-shaped hooks, you can connect the hexagonal display racks into a long string for display, and the display effect will be even better. The utility model does not occupy the ground in the exhibition hall, has firm structure, low production cost and simple manufacturing process.

Description of drawings

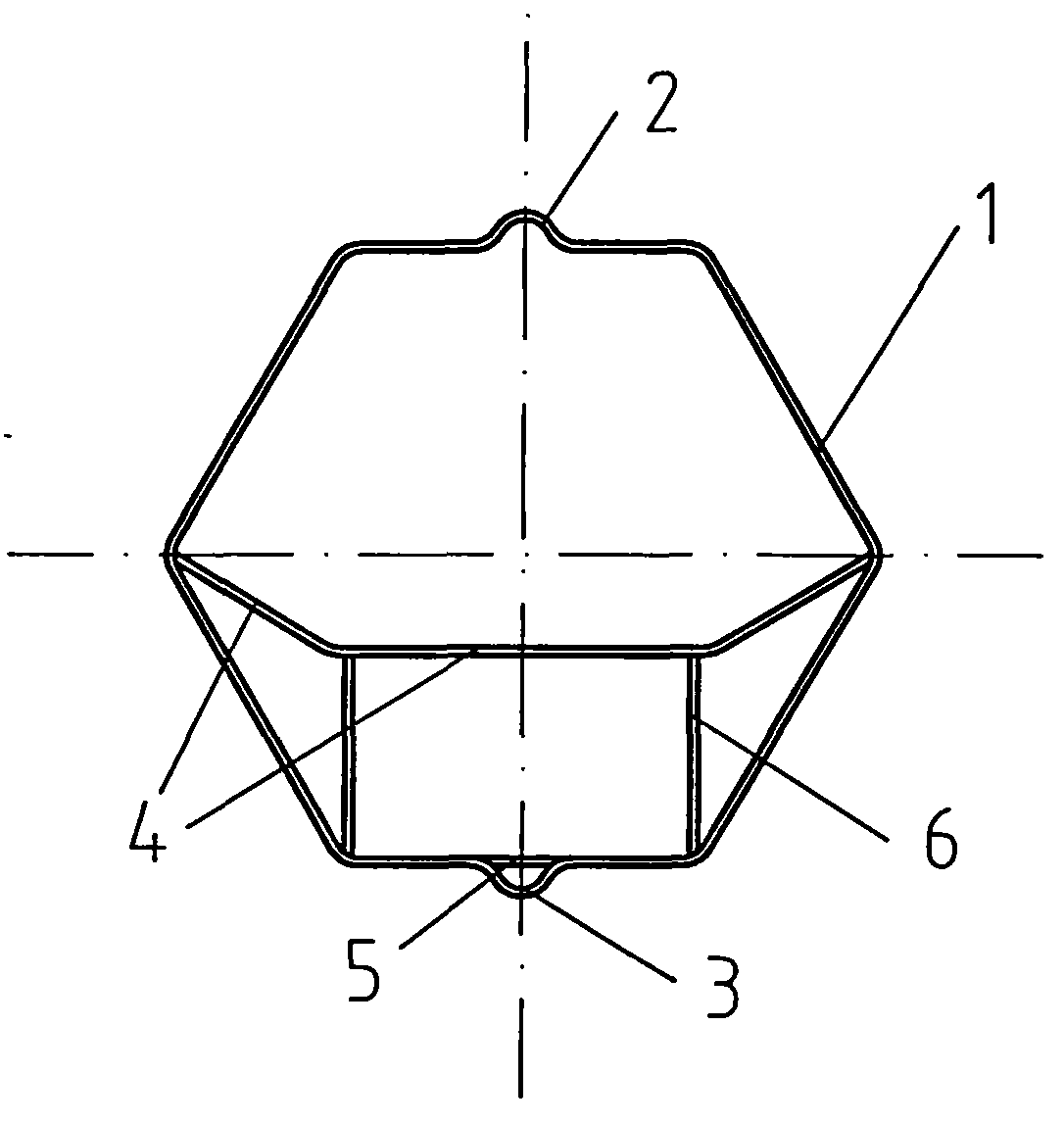

Fig. 1 is a front structural schematic view of the utility model.

Fig. 2 is a right-view structure diagram of the utility model.

Fig. 3 is a top view structural diagram of the utility model.

Detailed ways

Below in conjunction with accompanying drawing and through embodiment the utility model is further described.

Referring to Fig. 1-Fig. 3, the utility model comprises hexagonal frame 1, horizontal railing 4, underframe 5 and vertical railing 6, and wherein hexagonal frame 1 is a regular hexagon, two pairs of hexagonal frame 1 At the midpoint of the side, there are respectively a top hanger 2 and a bottom hanger 3, the shape and size of the top hanger 2 and the bottom hanger 3 are all the same, and the shape of the railing 4 is the same as that of the hexagonal frame 1 side. The three sides intercepted on the equal regular hexagon, the underframe 5 is an "X" shape shelf welded by two V-shaped stainless steels at the tip, and the two ends of the railing 4 are respectively welded on the hexagonal frame 1, Adjacent two ends of underframe 5 are respectively welded on the hexagonal frame 1, and the other two ends of underframe 5 are welded with the end points of two vertical railings 6 respectively, and the other end of vertical railing 6 is welded on the horizontal railing 4.

When in use, hang the top hanging port 2 of the hexagonal display rack on the hook in the exhibition hall, so that the products to be exhibited can be placed in the hexagonal display rack. When there are multiple products to be exhibited, you can use the S The S-shaped hook connects the bottom hanging opening 3 and the top hanging opening 2 of the two hexagonal display racks respectively. According to this method, a long series of hexagonal display racks can be connected by S-shaped hooks.

Claims (3)

1, a kind of hexagon Display Rack, comprise hexagon frame, horizontal bar bar, underframe and perpendicular railing, wherein said horizontal bar bar all is connected with the hexagon frame with underframe, and described horizontal bar bar is connected by perpendicular railing with underframe, and it is characterized in that: described hexagon frame is provided with top mouth hanging and end mouth hanging.

2, hexagon Display Rack according to claim 1 is characterized in that: described hexagon frame be shaped as regular hexagon.

3, hexagon Display Rack according to claim 1 is characterized in that: top mouth hanging and end mouth hanging on the described hexagon frame are centrosymmetric.
