CN201249379Y - Irregular glass edging machine - Google Patents
Irregular glass edging machine Download PDFInfo
- Publication number
- CN201249379Y CN201249379Y CNU2008200516388U CN200820051638U CN201249379Y CN 201249379 Y CN201249379 Y CN 201249379Y CN U2008200516388 U CNU2008200516388 U CN U2008200516388U CN 200820051638 U CN200820051638 U CN 200820051638U CN 201249379 Y CN201249379 Y CN 201249379Y
- Authority
- CN
- China
- Prior art keywords
- rocker arm
- small rocker
- shaft hole
- small
- edging machine
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 239000011521 glass Substances 0.000 title claims abstract description 16
- 238000007688 edging Methods 0.000 title claims abstract 6
- 230000001788 irregular Effects 0.000 title 1
- 238000012423 maintenance Methods 0.000 abstract description 5
- 230000009286 beneficial effect Effects 0.000 abstract description 2
- 238000005516 engineering process Methods 0.000 description 2
- 238000006243 chemical reaction Methods 0.000 description 1
- 238000009434 installation Methods 0.000 description 1
- 238000004519 manufacturing process Methods 0.000 description 1
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02P—CLIMATE CHANGE MITIGATION TECHNOLOGIES IN THE PRODUCTION OR PROCESSING OF GOODS
- Y02P40/00—Technologies relating to the processing of minerals
- Y02P40/50—Glass production, e.g. reusing waste heat during processing or shaping
- Y02P40/57—Improving the yield, e-g- reduction of reject rates
Landscapes
- Re-Forming, After-Treatment, Cutting And Transporting Of Glass Products (AREA)
Abstract
本实用新型的目的在于提供一种小摇臂的连接轴孔具有可拆分结构的玻璃异形磨边机。玻璃异形磨边机，包括底座、大摇臂、转盘、小摇臂、弯臂和磨头机构，小摇臂上设有分别与大摇臂和弯臂实现可转动连接的连接轴孔，所述小摇臂上的至少一个连接轴孔由小摇臂端的半轴孔以及与该半轴孔相对应的轴瓦上的半轴孔构成，轴瓦紧固连接在小摇臂上。本实用新型的有益效果是：小摇臂上的连接轴孔采用可拆装的连接结构替代原有的闭合式的结构，使得该部件的装配与维修都变得更为简便、快捷，有效降低设备的后期维护成本。
The purpose of the utility model is to provide a glass special-shaped edging machine in which the connecting shaft hole of the small rocker arm has a detachable structure. The special-shaped glass edging machine includes a base, a large rocker arm, a turntable, a small rocker arm, a curved arm and a grinding head mechanism. The at least one connecting shaft hole on the small rocker arm is composed of a half shaft hole at the end of the small rocker arm and a half shaft hole on the bearing bush corresponding to the half shaft hole, and the bearing bush is tightly connected to the small rocker arm. The beneficial effects of the utility model are: the connecting shaft hole on the small rocker arm adopts a detachable connecting structure to replace the original closed structure, making the assembly and maintenance of the part easier and faster, effectively reducing the Equipment maintenance costs.
Description
Technical field
The utility model relates to a kind of glass abnormity edge polisher, relates in particular to the detachable glass abnormity edge polisher of a kind of its small rocker.
Background technology
Glass abnormity edge polisher is a kind of glass working machine, is used for the edge of glass implemented manufacturing procedures such as mill is straight, rounding, finishing.Glass abnormity edge polisher mainly comprises base, big rocking arm, rotating disk, small rocker, curved boom, grinding head mechanism etc.Its big rocking arm and small rocker link together, and small rocker can rotate relative to big rocking arm, to realize curved boom and grinding head mechanism moving in the horizontal direction.In the prior art, being connected between small rocker and the big rocking arm is to connect rotationally between them realizing by the connection axis hole that connecting axle passes on big rocking arm and the small rocker separately simultaneously.As Fig. 2, shown in Figure 3, the closure that traditional small rocker is provided with respectively 2 circles that are connected with curved boom 5 with big rocking arm 2 connects axis hole 8 and is connected axis hole 9.But, the suitable weight and be the cantilevered installation because small rocker, curved boom, grinding head mechanism are added up, so, for the purpose of assembling fast or being convenient to keep in repair with small rocker, curved boom, grinding head mechanism should integral body when big rocking arm is pulled down, because the connection axis hole on the small rocker is a lipostomous, must big rocking arm and small rocker could be split extracting out the connection axis hole of connecting axle from small rocker.Especially when there were rusty stain or burr in the position of the connection axis hole that passes small rocker on the connecting axle, small rocker will be difficult to or not tear open not get off at all, caused the prolongation of maintenance time even the miscellaneous part that is connected with these parts is scrapped in advance.
Summary of the invention
The purpose of this utility model is to provide a kind of glass abnormity edge polisher that detachable structure connects the small rocker of axis hole that has.
For achieving the above object, the utility model is taked following technical scheme:
Glass abnormity edge polisher, comprise base, big rocking arm, rotating disk, small rocker, curved boom and grinding head mechanism, small rocker is provided with respectively with big rocking arm and curved boom and realizes the axis hole that is connected that is rotatably connected, on the described small rocker at least one connects axis hole and constitutes by the semiaxis hole of small rocker end and with semiaxis hole on this corresponding bearing shell in semiaxis hole, and bearing shell is fastenedly connected on small rocker.
Below the technical solution of the utility model is elaborated:
Usually, the radian in the semiaxis hole of small rocker end is 180 °, and correspondingly, the radian in the semiaxis hole on the bearing shell also is 180 °.Like this after both link together by removable modes of being fastenedly connected such as screw or bolts, with constituting a complete connection axis hole, to realize being rotatably connected between big rocking arm and the small rocker.
Usually, the length direction of the semiaxis hole of small rocker end and the plane that the line of demarcation constituted in the semiaxis hole on the bearing shell and small rocker is perpendicular, and described length direction is the direction of the distance of the centreline space of 2 connection axis holes on the small rocker.Such design can make the power of being fastenedly connected (as screw or bolt) be evenly distributed on the length direction of both sides, small rocker of connecting axle, thereby when small rocker bears the weight of other members, be unlikely to introduce the deformation except that vertical direction.
The beneficial effects of the utility model are: the connection axis hole on the small rocker adopts removable syndeton to substitute the structure of original closed type, makes the assembling of these parts and maintenance all become more easy, quick, effectively reduces the later maintenance cost of equipment.
Description of drawings

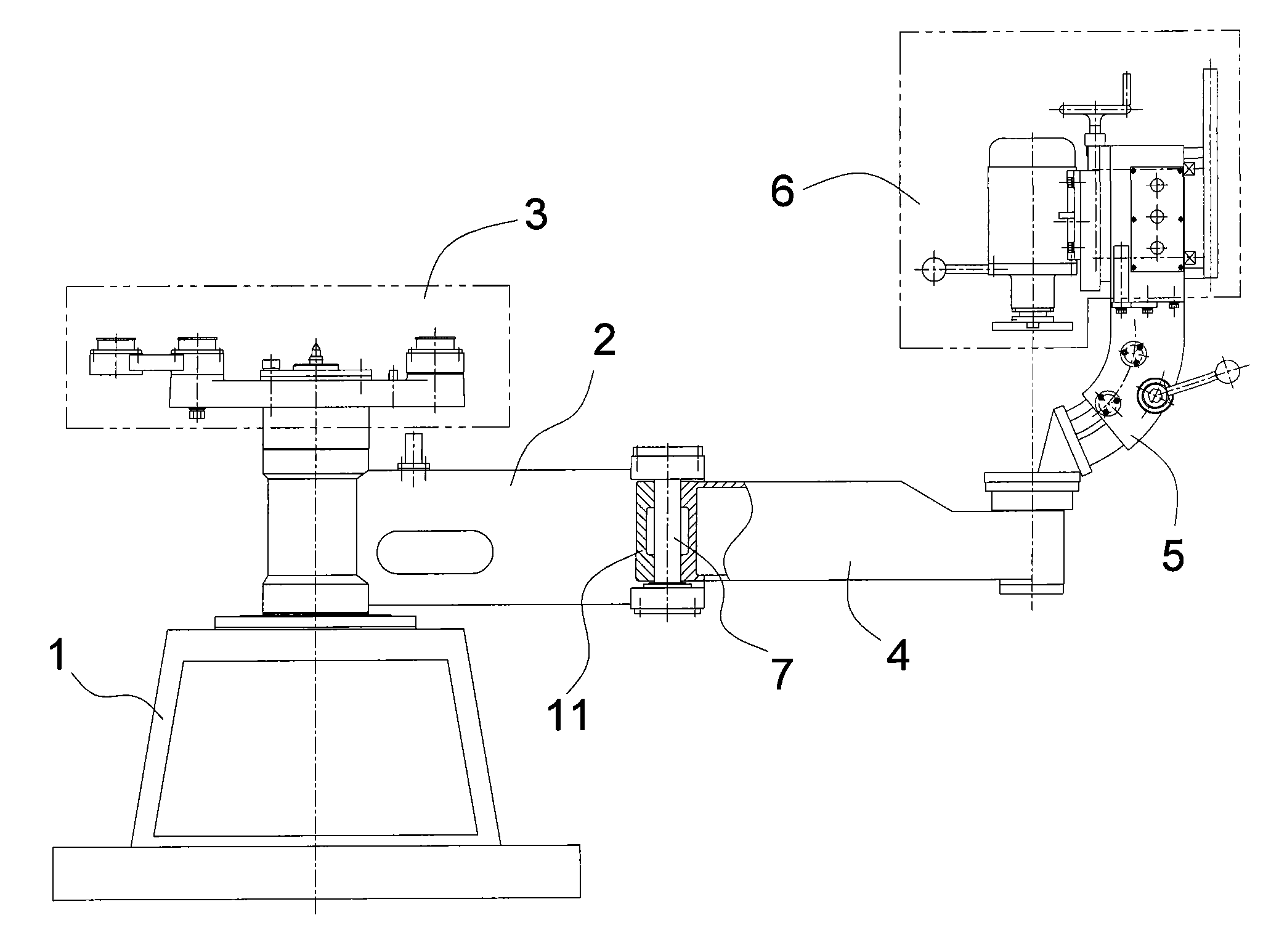

Fig. 1 is the structural representation of the utility model embodiment;
Fig. 2 is the front view of small rocker in the prior art;
Fig. 3 is the vertical view of small rocker in the prior art;

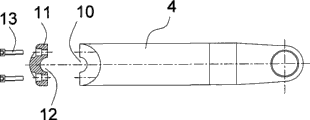

Fig. 4 is the structural representation of facing of small rocker among the utility model embodiment;
Fig. 5 is the structural representation of overlooking of small rocker among the utility model embodiment.
Description of reference numerals: 1-base; The big rocking arm of 2-; The 3-rotating disk; The 4-small rocker; The 5-curved boom; The 6-grinding head mechanism; The 7-connecting axle; 8-connects axis hole; 9-connects axis hole; 10-semiaxis hole; The 11-bearing shell; 12-semiaxis hole; The 13-screw.
The specific embodiment
Below in conjunction with drawings and Examples the utility model content is described further.
As shown in Figure 1, glass abnormity edge polisher is made of base 1, big rocking arm 2, rotating disk 3, small rocker 4, curved boom 5 and grinding head mechanism 6, is rotatably connected by connecting axle 7 between big rocking arm 2 and the small rocker 4.As Fig. 4, shown in Figure 5, the axis hole that is connected between small rocker 4 of the present utility model and the big rocking arm 2 is to constitute after being fastenedly connected by the semiaxis hole 10 of small rocker 4 ends and the semiaxis hole 12 on the bearing shell 11.The radian of half and half axis hole is all 180 °, and the length direction of plane that the line of demarcation constituted between them and small rocker 4 is perpendicular.Bearing shell 11 is fastenedly connected on the small rocker 4 by 4 screws 13, and formed connection axis hole matches with connecting axle 7, thereby has realized rotating connection the between big rocking arm 2 and the small rocker 4.
What this specification was enumerated is better embodiment of the present utility model only, and all equivalent technologies conversion of being done under operation principle of the present utility model and thinking all are considered as protection domain of the present utility model.
