CN201249377Y - Double-straight-edge precise polishing device - Google Patents

Abstract

The utility model relates to a double-straight-edge precision polishing device, which includes a high-speed grinding wheel motor, an abrasive liquid box, a stirring device, a hydraulic pump, and a switch valve. The abrasive liquid is transported to the outlet of the abrasive liquid through the pipeline and the hydraulic pump, the stirring device stirs the abrasive liquid, and the switch valve controls the flow of the abrasive liquid in the pipeline; a liquid return tank is installed under the polishing wheel of the double straight edge precision polishing machine, and the liquid return tank takes back the used The liquid abrasive returns to the tank through the return pipe. The utility model has the advantages of reasonable structure, convenient use and high glass processing efficiency.

Description

Double straight edge precision polishing device

technical field

The utility model relates to a double straight edge precision polishing device.

Background technique

The demand for glass products in the market is increasing day by day, and the requirements for the quality of glass products are also getting higher and higher. Traditional processing equipment and processing methods can no longer meet the needs of the market.

Utility model content

In order to overcome the above defects, the purpose of this utility model is to provide a double straight edge precision polishing device for the glass deep processing device machinery manufacturing industry.

In order to achieve the above object, the utility model adopts the following technical solutions:

Double straight-edge precision polishing device, which includes a high-speed grinding wheel motor, an abrasive fluid box, a stirring device, a hydraulic pump, and a switch valve. The outlet of the abrasive fluid is set at the polishing wheel of the high-speed grinding wheel motor. The abrasive fluid is transported to the abrasive material through pipelines and hydraulic pumps. The liquid outlet, the stirring device stirs the abrasive liquid, and the switch valve controls the flow of the abrasive liquid in the pipeline.

A liquid return tank is provided at the lower part of the polishing wheel of the above-mentioned double straight edge precision polishing device, and the used liquid abrasive is recovered from the liquid return tank and returned to the abrasive liquid tank through the return water pipe.

The design principle of the utility model: through the rotation of the special grinding wheel driven by the high-speed electric device, and the flexible thrust of the cylinder, under the action of the relevant abrasive medium, the glass to be processed is ground. A grinding wheel can also be called an abrasive tool, and the abrasive medium takes over the role of the cutting tool.

The working process of the utility model design: the volume of a special box is equipped with liquid abrasives, stirred by a stirring device, and then transported to the high-speed rotating grinding wheel and glass grinding place through a water pump, the flow of liquid abrasives is controlled by a stop valve, and the liquid returns The box takes back the used liquid abrasive, and returns to the box through the return pipe for the next cycle.

The utility model has the advantages of reasonable structure, convenient use and high glass processing efficiency.

Description of drawings

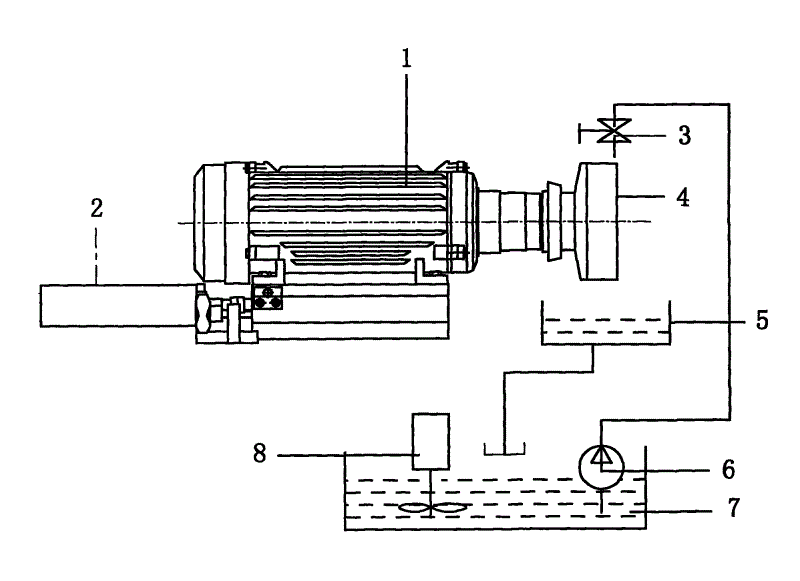

Fig. 1 is the structural representation of the utility model.

specific implementation plan

Below in conjunction with embodiment the utility model is further described:

Referring to Fig. 1, the double-straight-edge precision polishing device includes a grinding wheel high-speed motor 1, an abrasive liquid box 7, a stirring device 8, a hydraulic pump 6, and a switch valve 3, and the abrasive liquid outlet is arranged on the polishing wheel of the grinding wheel high-speed motor 1 4, the abrasive liquid is transported to the abrasive liquid outlet through the pipeline and the hydraulic pump 6, the stirring device 8 stirs the abrasive liquid in the abrasive liquid box 7, and the liquid return tank 5 is set at the lower part of the polishing wheel 4 of the double straight edge precision polishing device 1, The liquid return tank 5 takes back the used liquid abrasive and returns to the abrasive liquid tank 7 through the water return pipeline. The grinding wheel high-speed motor 1 drives the rotation of the polishing wheel 4 and the flexible thrust of the cylinder 2.

Finally, it should be pointed out that the above embodiments are only representative examples of the present utility model. Apparently, the technical solutions of the present invention are not limited to the above-mentioned embodiments, and many variations are possible. All deformations that a person skilled in the art can derive or associate directly from the content disclosed in the utility model shall be considered as the protection scope of the utility model.

Claims (2)

1, the precise polished device of two straight flanges, it comprises emery wheel high-speed electric expreess locomotive, abrasive fluid casing, agitating device, hydraulic pump, controlled valve, it is characterized in that: the abrasive fluid outlet is arranged on the polishing wheel place of emery wheel high-speed electric expreess locomotive, abrasive fluid is transported to the abrasive fluid outlet by pipeline and hydraulic pump, agitating device stirs the abrasive fluid in the abrasive fluid casing, the flow of abrasive fluid in the controlled valve control pipeline.

2, according to claim 1 pair of precise polished device of straight flange, it is characterized in that: the polishing wheel bottom at the precise polished machine of two straight flanges is provided with liquid-return box, and liquid-return box is regained the used liquid abrasive material and is got back in the casing by water return pipeline.
