Abstract
本申请涉及给排水领域，具体涉及一种节水箱。储水箱的位置高于马桶，储水箱进水口连接上层住户的排水管，储水箱的出水口连接马桶进水管，储水箱的上部有一溢水管，溢水管连接下层住户的储水箱。这样上一层楼洗衣服后的废水和厨房使用过后的废水就可以用来冲洗下一层楼的卫生间里的马桶。以达到节约用水的目的。
The application relates to the field of water supply and drainage, in particular to a water-saving tank. The position of the water storage tank is higher than the toilet, and the water storage tank water inlet connects the drainpipe of the upper-floor resident, and the water outlet of the water storage tank connects the toilet water inlet pipe. In this way, the waste water after washing clothes on the upper floor and the waste water after using the kitchen can be used to flush the toilet in the bathroom on the next floor. In order to achieve the purpose of saving water.
Description
Technical field:
The application relates to the plumbing field, is specifically related to a kind of water-saving cistern.
Background technology:
Lacking fresh water is a worldwide problem.Thereby problem of water saving is just more and more important.Waste water after after our domestic water is washed clothes at present or culinary waste water all are directly to drain by water pipe and no longer repeated use.And the water that the toilet of washroom uses and the water of cooking all are clean tap water without any difference.Having quite in the water of our every day, most is to be used in the flushing of washroom.Prior art as shown in Figure 1, the washroom of two buildings up and down, the following grid of the washroom 1 of upper floor is represented washroom downstairs.Waste water after washing clothes and culinary waste water are drained by gutter 2.
Summary of the invention:
The purpose of this utility model is to use the waste water after washing clothes and kitchen waste water later to be used for flush toilet, to reach water-saving purpose.
Concrete scheme is: water-saving cistern comprises storage tank, the position of storage tank is higher than toilet, and the water inlet of storage tank connects the gutter of upper strata resident family, and the delivery port of storage tank connects the toilet water inlet pipe, one overflow pipe is arranged at the top of storage tank, and overflow pipe connects the storage tank of resident family of lower floor.
Its effect be in a building except top layer, every layer of waste water that can use the last layer room.
Description of drawings:
Fig. 1 is the prior art schematic diagram

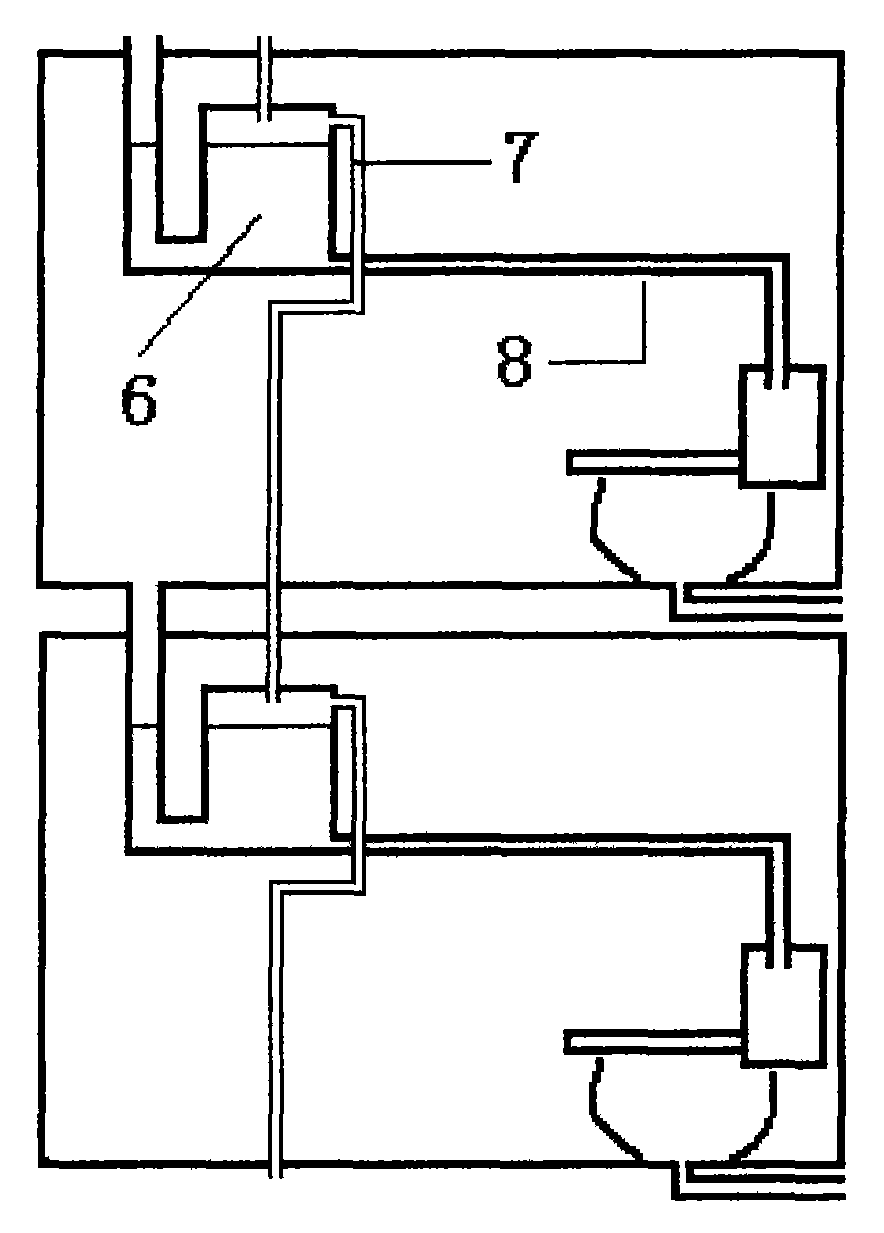

Fig. 2 is the utility model schematic diagram
1 washroom, 2 gutters, 3 water-closet tanks, 4 toilets, 5 toilet gutters, 6 storage tanks, 7 overflow pipes, 8 toilet water inlet pipes
The specific embodiment:
Referring to Fig. 2, the waste water of upper floor is flow to down the storage tank 6 of first floor in the washroom by gutter 2, the position of storage tank 6 should be higher than toilet 4, the waste water that storage tank is 6 li enters water-closet tank 3 for flush toilet 4 by toilet water inlet pipe 8, after having washed toilet 4, drain by toilet gutter 5, if the water level in the storage tank exceeds 6 li of the storage tanks that certain water level just can flow to down one deck by overflow pipe 7, prevent that waste water from overflowing.
