Abstract

The utility model relates to an umbrella-shaped clothes hanger that can be opened like an umbrella when in use and can be closed like an umbrella when it is idle. The other end is hinged with the slip ring on the main pole, and there are multiple hooks on each pole, and a ring buckle at the bottom of each pole. Advantages: first, it increases the number of clothes that can be hung and reduces the space occupied by hangers; second, it is easy to use and brings convenience to life; third, its structural design is novel, unique, simple, practical, safe, and low in manufacturing cost.

Description

umbrella hanger

technical field

The utility model relates to an umbrella-shaped clothes hanger which can be opened like an umbrella when in use and can be closed like an umbrella when idle, belonging to the field of clothes hanger manufacturing.

Background technique

With the existing clothes hangers on the market, the clothes that can be hung on a single clothes hanger are very limited. When there are too many clothes, the number of clothes hangers will increase accordingly, which takes up a lot of wardrobe space and wastes a lot of money and space.

Contents of the invention

Design purpose: To avoid the shortcomings in the background technology, to design an umbrella-shaped hanger that can hang a lot of clothes when opened, and takes up little space when folded.

Design scheme: In order to achieve the above purpose. 1. The main body of the hanger adopts the skeleton structure of an umbrella. One end of the pole is hinged with the pole, and the other end is hinged with the slip ring on the main pole. There are multiple hooks on each pole, and there is a ring buckle at the bottom of each pole , is one of the technical characterictics of the present utility model. The purpose of doing like this is: the clothes hanger can be opened like an umbrella when in use, so that a large number of hooks can be used normally, and can be closed like an umbrella when idle, reducing the occupied space, easy to use, and the opened support rod can Hang bulky garments, hooks for regular garments, and loops for smaller garments. 2. The hook on the pole can rotate freely, which is the second technical feature of the present utility model. The purpose of doing like this is: the hook that can rotate freely can not only make the surface of hanging clothes wider to increase the quantity of hanging clothes, but also make it convenient and simple to hang clothes. 3. The hook is hinged to the bottom of the main rod and can rotate freely, which is the third technical feature of the present utility model. The purpose of doing like this is: after the hook is fixed, the relative main rod can rotate freely, so that only need to rotate the main rod when accessing clothes, very convenient. 4. The main constituent material of the umbrella hanger is stainless steel or aluminum alloy, which is the fourth technical feature of the present utility model. The purpose of doing like this is: improve the bearing performance of the clothes hanger, prolong the service life, improve economic benefit.

Technical solution: Umbrella hanger, which includes a hanger, the main body of the hanger is an umbrella skeleton structure, one end of the pole is hinged with the pole, and the other end is hinged with the slip ring on the main pole. There are multiple hooks on each pole, and each There is a ring buckle at the bottom of each pole.

Compared with the background technology, the utility model has the advantages of increasing the number of clothes that can be hung and reducing the space occupied by the hangers; second, it is easy to use and brings convenience to life; third, the structural design is novel, unique, simple, practical and safe , Low manufacturing cost.

Description of drawings

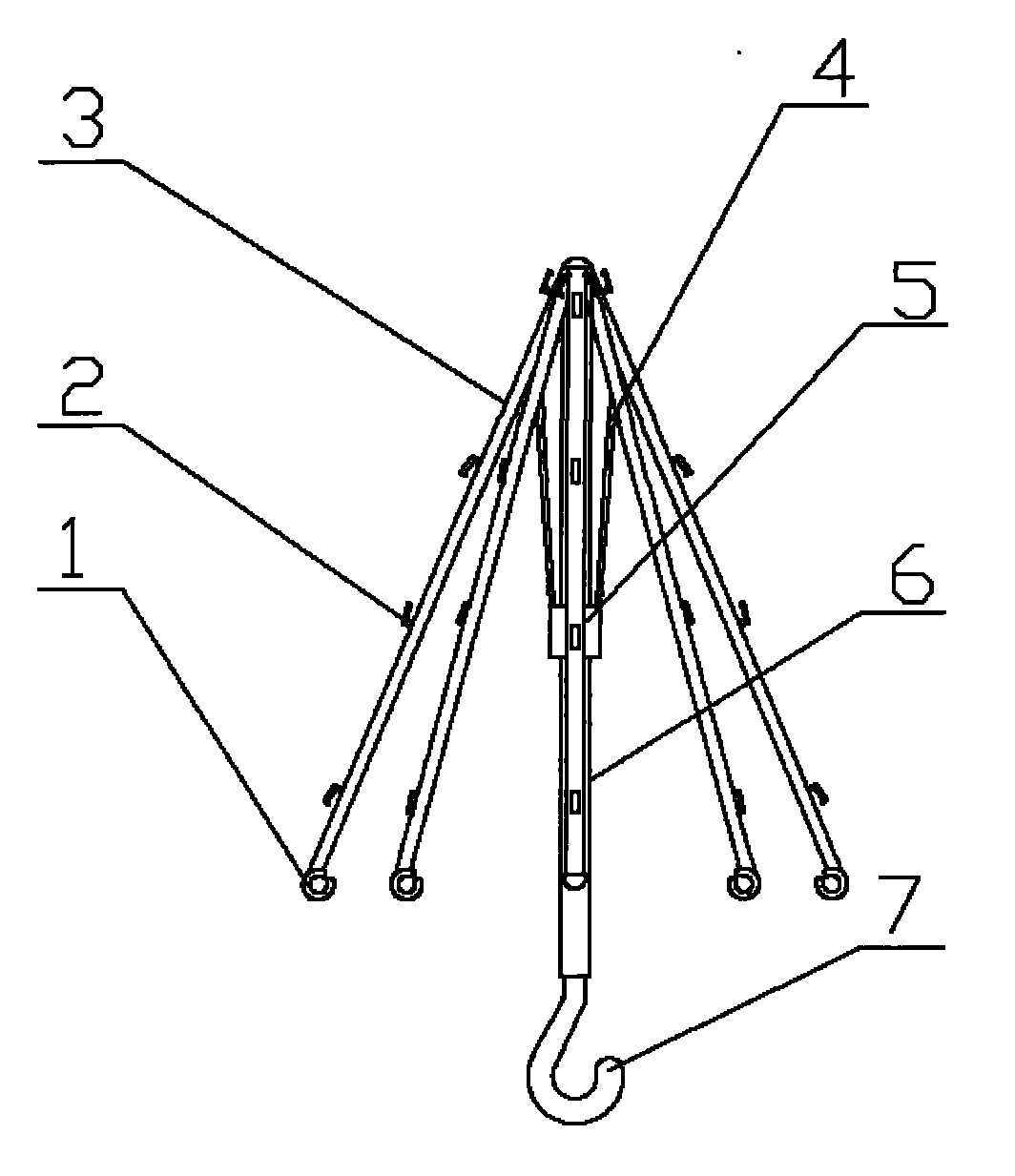

Fig. 1 is the structural representation of umbrella hanger.

Detailed ways:

Embodiment 1: With reference to Fig. 1, the umbrella hanger comprises a clothes hanger, the main body of the clothes hanger adopts the skeleton structure of an umbrella, one end of the strut 4 is hinged with the pole 3, and the other end is hinged with the slip ring 5 on the main rod 6, and the slip ring Slide up and down to control the opening and closing of the hanger, and there are 4 hooks 2 on each pole, which can rotate freely. There is an annular buckle 1 at the bottom of each pole, and the hook 7 is hinged with the bottom of the main pole 6 and can rotate freely by 360°. The main constituent material of the umbrella hanger is stainless steel or aluminum alloy. The production of all parts is the prior art, so it will not be described here.

What needs to be understood is that although the above-mentioned examples have described the utility model in more detail, these text descriptions are only a simple description of the design idea of the utility model, rather than restrictions on the design idea of the utility model. The combination, addition or modification of the design idea of the utility model all fall within the protection scope of the utility model.

Claims (3)

1, a kind of umbrella shape clothes hanger, it comprises clothes hanger, it is characterized in that: hanger body is the skeleton structure of umbrella, and strut one end and pole are hinged, and the slip ring on the other end and the mobile jib is hinged, and a plurality of hooks are arranged on the every pole, and a ring buckle is arranged at the bottom of each pole.

2, umbrella shape clothes hanger according to claim 1, it is characterized in that: the hook on the described pole can freely rotate.

3, umbrella shape clothes hanger according to claim 1 is characterized in that: mobile jib bottom-hinged hook and free to rotate
