CN201236036Y

CN201236036Y - Container floor structure

Info

Publication number: CN201236036Y
Application number: CNU2008201144908U
Authority: CN
Inventors: 廖志远
Original assignee: 黄庆邦
Priority date: 2008-05-21
Filing date: 2008-05-21
Publication date: 2009-05-13
Anticipated expiration: 2018-05-21

Abstract

The utility model relates to a container floor structure, which relates to the technical field of plates. Based on the key technology of "wooden/Abidon bottom and panel layer, bamboo bottom and upper filling layer, wooden middle layer, phenolic film organically connected new structure", its wood/Abidon bottom layer, bamboo The lower filling layer of wood, the middle layer of wood, the upper filling layer of bamboo, and the panel layer of wood/Abidon are connected by glue in sequence, and the panel layer of wood/Abidon and the phenolic film are sprayed. connected by bonding. Used in containers, doors and windows, furniture, automobiles, and boats. Low cost, low energy consumption, high density, high strength, strong compression resistance, wide range of material selection and application, and reduced board imports; wood lying nails have good performance, easy processing, good surface smoothness after processing, and bamboo fiber has high fiber strength , Strong mechanical properties, good waterproof performance, firm bonding of phenolic film, smooth surface, beautiful appearance, stable product performance, and easy control of production process.

Description

The container floor structure

Technical field

The utility model container floor structure relates to the sheet material technical field; Be particularly related to the sheet material technical field that is applied to freight container; Relate in particular to the sheet material technical field that not only can be applicable to container bottom board but also can be applicable to the each side such as special veneer sheet that furniture, automobile case uses with base plate, vessel; Be specifically related to the container floor technical field of structures.

Background technology

With regard to sheet material, everybody is not strange, just is applied to the sheet material of freight container, though be to be made of multilayer, all is to be made by the A Bidong material of single variety or clone's wood material of single variety yet; It exists needs import and cost height, energy consumption is big, density is low, intensity is low, pressure resistance is poor, field of application is little deficiency, defective and drawback.In view of applicant and designer's expertise with the many years of experience of being engaged in industry work and to the excelsior unremitting pursue of cause, the utility model is exactly on conscientious and sufficient investigation, understanding, analysis, the above-mentioned existing known technology present situation of summary basis, with " the following and last packed layer of the end of wooden/A Bidong and panel layer, bamboo matter, wooden the organic bonded assembly new construction of interlayer, phenolic aldehyde film " key problem in technology, many deficiencies, defective and drawback that existing known technology exists succeed in developing in order to overcome and to solve.Of the present utility model succeeding in developing also can be applicable to the various aspects such as special veneer sheet that furniture, automobile case are used with base plate, vessel, can effectively enlarge field of application, can effectively reduce the container plate import, can effectively reduce cost.

The utility model content

The purpose of this utility model provides a kind of container floor structure.This container floor structure, the last packed layer of the following packed layer of the backplane level of its wooden/A Bidong, bamboo matter, wooden interlayer, bamboo matter, the panel layer of wooden/A Bidong are connected in bonded assembly mode by glue successively, and the panel layer of wooden/A Bidong is connected in the bonded assembly mode of spray film with the phenolic aldehyde film; The purpose that reaches by the utility model is: with " the following and last packed layer of the end of wooden/A Bidong and panel layer, bamboo matter, wooden the organic bonded assembly new construction of interlayer, phenolic aldehyde film " key problem in technology, the sheet material new construction is provided, both can be applicable to freight container, can be applicable to various aspects such as door and window, furniture, automobile, vessel again, both but actv. enlarged field of application, but actv. reduces the import of container plate again, also can effectively reduce cost.

The utility model can accomplish the end in view.

For achieving the above object, the technical scheme that provides of the utility model is:

A kind of container floor structure mainly is made of jointly the backplane level of wooden/A Bidong, the following packed layer of bamboo matter, wooden interlayer, the last packed layer of bamboo matter, the panel layer of wooden/A Bidong, phenolic aldehyde film;

Described container floor structure, the last packed layer of the following packed layer of the backplane level of its wooden/A Bidong, bamboo matter, wooden interlayer, bamboo matter, the panel layer of wooden/A Bidong are connected in bonded assembly mode by glue successively, and the panel layer of its wooden/A Bidong is connected in the bonded assembly mode of spray film with the phenolic aldehyde film.

Described container floor structure, described wooden/panel layer of the backplane level of A Bidong, wooden interlayer, wooden/A Bidong is schistose texture, the following packed layer of described bamboo matter, the last packed layer of bamboo matter are the structure of selecting one of bamboo curtain splint or bamboo mat, and described phenolic aldehyde film is a film like structures.

Described container floor structure, described wooden/backplane level of A Bidong, the panel layer of wooden/A Bidong be a kind of structure of selecting in the wooden schistose texture of wooden schistose texture, A Bidong.

Described container floor structure, described wooden/panel layer of the backplane level of A Bidong, the following packed layer of bamboo matter, wooden interlayer, the last packed layer of bamboo matter, wooden/A Bidong is a kind of mode of selection in being connected, being connected, being connected in the perpendicular mode of ridge orientation each other in the opposite mode of ridge orientation each other in the corresponding to mode of ridge orientation each other and is connected.

Described container floor structure, described wooden/backplane level of A Bidong, the panel layer of wooden/A Bidong be the 1-5 layer.

Described container floor structure, the following packed layer of described bamboo matter, the last packed layer of bamboo matter are layer 1-7.

Described container floor structure, described wooden interlayer is the 1-21 layer.

Described container floor structure, described wooden/thickness of every layer of the panel layer of the backplane level of A Bidong, the following packed layer of bamboo matter, wooden interlayer, the last packed layer of bamboo matter, wooden/A Bidong is 1.3-1.8mm.

Described container floor structure, total number of plies of described container floor structure is the 6-35 layer.

Owing to adopted technical scheme provided by the utility model; Because the backplane level of its wooden/A Bidong of the utility model, the following packed layer of bamboo matter, wooden interlayer, the last packed layer of bamboo matter, the panel layer of wooden/A Bidong are connected in bonded assembly mode by glue successively, the panel layer of wooden/A Bidong is connected in the bonded assembly mode of spray film with the phenolic aldehyde film; Make the utility model compare, obtained beneficial effects such as cost is low, energy consumption is little, density is high, intensity is big, pressure resistance is strong, applied range with existing known technology; Be exactly in particular: the end that the utility model is used the wooden/A Bidong comprise various timber, is with panel layer and science has been brought into play its timber cleverly and crouched that to follow closely performance good, easily processing, processing rear surface planeness is good, save the advantage of import A Bidong, it is low that using bamboo-based following and last packed layer and science have been brought into play its price cleverly, the fibre strength height, mechanical property is strong, the advantage that water resistance is good, use various materials and be the described wooden interlayer of base material and science to have brought into play its price cleverly low, scope of selecting material is advantage extensively and easily, use the phenolic aldehyde film and science to have brought into play the bonding that reaches gummed after its panel layer with wooden/A Bidong is connected cleverly firm, surfacing, elegant in appearance, properties of product are stable, production technology is the purpose of control easily; Structure described in the utility model has good Dent resistance, resistance to abrasion, resistance tocrocking, environmental protection and wholesome outstanding feature, both can be applicable to freight container, can be applicable to the various aspects such as special veneer sheet that furniture, automobile case are used with base plate, vessel again, both but actv. had enlarged field of application, actv. has reduced the import to container plate again, has also effectively reduced the freight container cost of manufacture.

Description of drawings

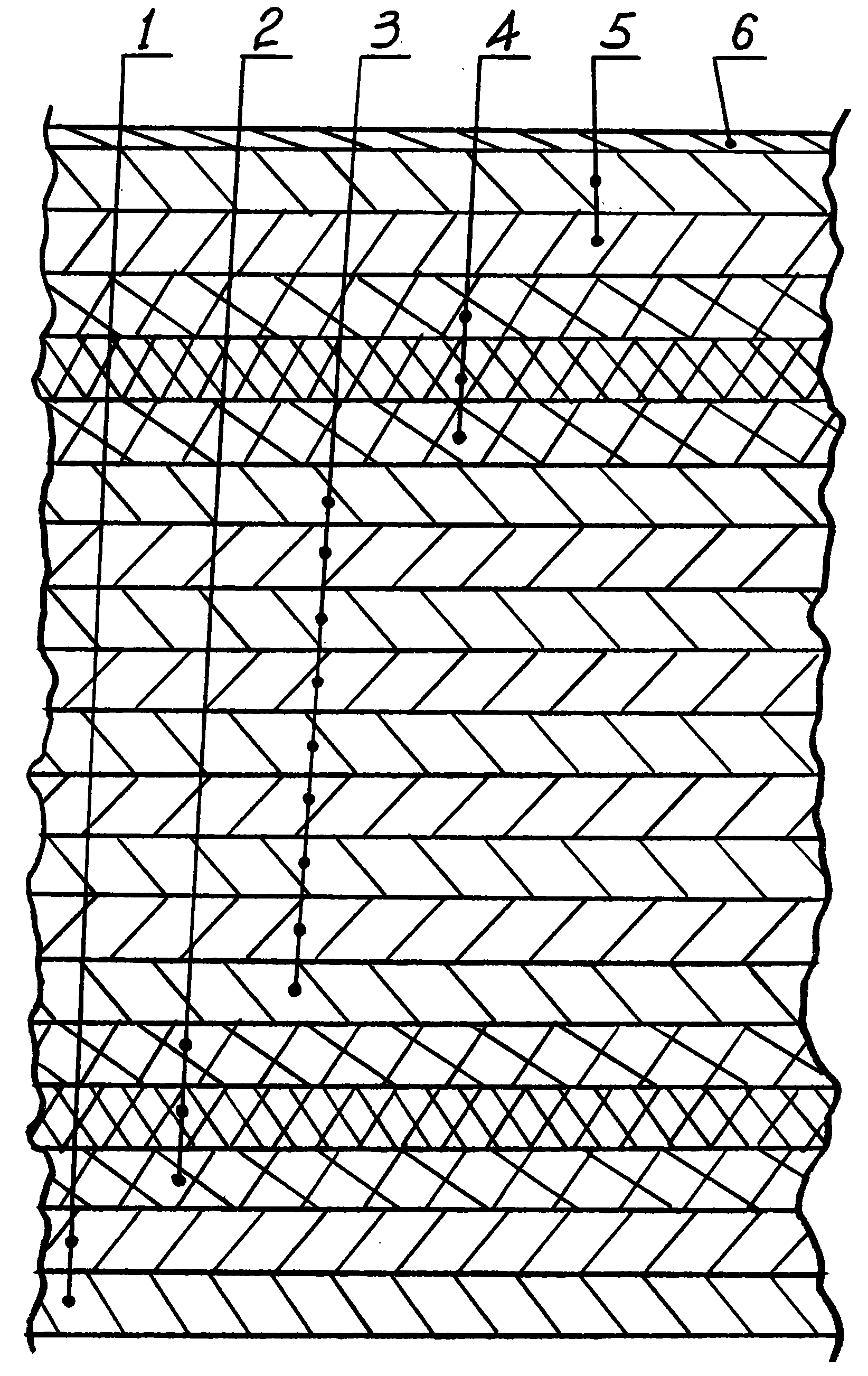

Figure of description is the generalized section of the utility model specific embodiment structure.

Label among the figure: 1, the backplane level of wooden/A Bidong, 2, the following packed layer of bamboo matter, 3, wooden interlayer, 4, the last packed layer of bamboo matter, 5, the panel layer of wooden/A Bidong, 6, the phenolic aldehyde film.

The specific embodiment one

Below in conjunction with Figure of description, the utility model is described in detail.Shown in Figure of description:

A kind of container floor structure mainly is made of jointly the backplane level 1 of wooden/A Bidong, the following packed layer 2 of bamboo matter, wooden interlayer 3, the last packed layer 4 of bamboo matter, the panel layer 5 of wooden/A Bidong, phenolic aldehyde film 6;

Described container floor structure, the backplane level 1 of its wooden/A Bidong, the following packed layer 2 of bamboo matter, wooden interlayer 3, the last packed layer 4 of bamboo matter, the panel layer 5 of wooden/A Bidong are connected in bonded assembly mode by glue successively, and the panel layer 5 of its wooden/A Bidong is connected in the bonded assembly mode of spray film with phenolic aldehyde film 6.

Described container floor structure, described wooden/panel layer 5 of the backplane level 1 of A Bidong, wooden interlayer 3, wooden/A Bidong is schistose texture, the following packed layer 2 of described bamboo matter, the last packed layer 4 of bamboo matter are the structure of selecting one of bamboo curtain splint or bamboo mat, and described phenolic aldehyde film 6 is a film like structures.

Described container floor structure, described wooden/backplane level 1 of A Bidong, the panel layer 5 of wooden/A Bidong be a kind of structure of selecting in the wooden schistose texture of wooden schistose texture, A Bidong.

Described container floor structure, described wooden/panel layer 5 of the backplane level 1 of A Bidong, the following packed layer 2 of bamboo matter, wooden interlayer 3, the last packed layer 4 of bamboo matter, wooden/A Bidong is a kind of mode of selection in being connected, being connected, being connected in the perpendicular mode of ridge orientation each other in the opposite mode of ridge orientation each other in the corresponding to mode of ridge orientation each other and is connected.

Described container floor structure, described wooden/backplane level 1 of A Bidong, the panel layer 5 of wooden/A Bidong be the 1-5 layer.

Described container floor structure, the following packed layer 2 of described bamboo matter, the last packed layer 4 of bamboo matter are layer 1-7.

Described container floor structure, described wooden interlayer 3 is the 1-21 layer.

Described container floor structure, described wooden/panel layer of the backplane level 1 of A Bidong, the following packed layer 2 of bamboo matter, wooden interlayer 3, the last packed layer 4 of bamboo matter, wooden/A Bidong 5 every layer thickness are 1.3-1.8mm.

In above-mentioned specific implementation process: to described wooden/backplane level 1 of A Bidong, the panel layer 5 of wooden/A Bidong implement with various wooden schistose textures, the schistose texture of A Bidong matter respectively; To described wooden/panel layer 5 of the backplane level 1 of A Bidong, the following packed layer 2 of bamboo matter, wooden interlayer 3, the last packed layer 4 of bamboo matter, wooden/A Bidong is respectively to be connected, to be connected, to be connected in the perpendicular mode of ridge orientation each other and to implement in the opposite mode of ridge orientation each other in the corresponding to mode of ridge orientation each other; To described wooden/backplane level 1 of A Bidong, the panel layer 5 of wooden/A Bidong implement with 1,2,3,4,5 layer respectively; The following packed layer 2 of described bamboo matter, the last packed layer 4 of bamboo matter are implemented with 1,2,3,4,5,6,7 layer respectively; Described wooden interlayer 3 is implemented with 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21 layer respectively; To described wooden/panel layer of the backplane level 1 of A Bidong, the following packed layer 2 of bamboo matter, wooden interlayer 3, the last packed layer 4 of bamboo matter, wooden/A Bidong 5 every layer thickness respectively with 1.3,1.4,1.5,1.6,1.7,1.8mm implements; Total number of plies to described container floor structure is implemented with 6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35 layers respectively; All received the good result of expection.

The specific embodiment two

Implement by the specific embodiment one, just to described wooden/material of the backplane level 1 of A Bidong, the panel layer 5 of wooden/A Bidong, respectively to select various timber to implement; All received the good result of expection.

The specific embodiment three

Implement by the specific embodiment one, just to described wooden/material of the backplane level 1 of A Bidong, the panel layer 5 of wooden/A Bidong, all implement with the A Bidong material; Received the good result of expection equally.

The utility model has carried out property on probation examination after making and finishing, through trying out the various aspects of using with base plate, vessel in container bottom board, furniture, automobile case such as special veneer sheet, actv. enlarges the cost of manufacture that field of application, actv. have reduced import to container plate, effectively reduced freight container; By to of the present utility model on probation, reached international fully to making the requirements for quality of sheet material that freight container uses, also reached the requirements for quality of each sheet material such as special veneer sheet that making furniture, automobile case are used with base plate, vessel fully; Through examination on probation, obtained the good result of expection.

The above is preferred embodiment of the present utility model only, is not that the utility model is done any pro forma restriction; The those of ordinary skill of all industry, but all shown in the by specification accompanying drawing and the above, and implement the utility model swimmingly; But all those skilled in the art in not breaking away from the technical solutions of the utility model scope, when can utilizing the above technology contents that discloses, and a little change of making, modify the equivalent variations with differentiation, are equivalent embodiment of the present utility model; Simultaneously, all foundations essence technology of the present utility model all still belongs in the scope of the technical solution of the utility model change, modification and the differentiation etc. of any equivalent variations that above embodiment did.

Claims

1. A container floor structure, characterized in that: it mainly consists of a wooden/abidong bottom layer (1), a bamboo lower filling layer (2), a wooden middle layer (3), and a bamboo upper filling layer (4), the panel layer (5) of wood/abidon, and the phenolic film (6) are jointly formed;

The container floor structure has a wooden/abidong bottom layer (1), a bamboo lower filling layer (2), a wooden middle layer (3), a bamboo upper filling layer (4), a wooden/Abitong The panel layers (5) of Bidong are connected in a bonding manner by glue in turn, and the panel layers (5) of wood/Abidong are connected with the phenolic film (6) in a mode of spraying film bonding.

2. The container floor structure according to claim 1, characterized in that: the wooden/Abidon bottom layer (1), the wooden middle layer (3), and the wooden/Abidon panel layer (5) Both are sheet-like structures, the lower filling layer (2) of bamboo and the upper filling layer (4) of bamboo are all structures selected from bamboo curtains or bamboo mats, and the phenolic film (6) is film-like structure.

3. The container floor structure according to claim 1 or 2, characterized in that: the wooden/Abidon floor layer (1) and the wooden/Abidon panel layer (5) are all made of selected wood A structure in the sheet structure of Abidon wood.

4. The container floor structure according to claim 1 or 2, characterized in that: the wooden/abidon bottom layer (1), the bamboo lower filling layer (2), and the wooden middle layer (3) , the upper filling layer (4) made of bamboo, and the panel layer (5) of wood/abidong are selected to be connected with each other in a manner consistent with the direction of the grain, and connected with each other in a manner in which the direction of the grain is opposite. They are connected in one of the ways in which the grain direction is perpendicular to each other.

5. The container floor structure according to claim 1, characterized in that: the wood/Abidon bottom layer (1) and the wood/Abidon panel layer (5) are both 1-5 layers.

6. The container floor structure according to claim 1, characterized in that: the lower bamboo filling layer (2) and the upper bamboo filling layer (4) are both 1-7 layers.

7. The container floor structure according to claim 1, characterized in that: the wooden middle layer (3) is 1-21 layers.

8. The container floor structure according to claim 1, characterized in that: the wooden/abidon bottom layer (1), the bamboo lower filling layer (2), the wooden middle layer (3), the bamboo The thickness of each layer of the quality upper filling layer (4) and the wooden/abidon panel layer (5) is 1.3-1.8mm.

9. The container floor structure according to claim 1, characterized in that: the total number of layers of the container floor structure is 6-35 layers.
