CN201227327Y - Ultrasonic atomization hand sterilizer - Google Patents

Abstract

An ultrasonic atomizing hand sterilizer belongs to the technical field of sanitation and disinfection. The utility model comprises an ultrasonic atomizer, a liquid storage tank, a fan, a pipeline, a deflector, a foot switch, and a box body. Contact, the ultrasonic atomizer and the liquid storage tank are fixed at the bottom of the box; the pipeline includes a straight pipe and a 180-degree elbow, which are respectively fixed on the side and top of the box, wherein the straight pipe is located on the ultrasonic atomizer Directly above, one end of the 180-degree elbow is connected to the straight pipe, and the edge of the other end is connected to the first deflector. The fan is installed inside the straight pipe, and the vertical height is lower than that of the first deflector on the side of the box wall. , with an opening, a second deflector is provided below the opening, the ultrasonic atomizer is connected in parallel with the fan, and then connected in series with the foot switch. The utility model can effectively reduce the waste of disinfectant and stimulate the respiratory tract, and increase the proportion of disinfectant microdroplets sticking to hands.

Description

Ultrasonic atomizing hand sanitizer

technical field

The utility model relates to a sanitation and disinfection appliance, in particular to an ultrasonic atomization hand sanitizer, which belongs to the technical field of sanitation and disinfection.

Background technique

At present, there are two main methods of disinfection for outpatient doctors. One is washing hands, which achieves the purpose of cleaning hands through decontamination; the disadvantage of hand washing is that it takes a long time to wash hands and after washing (it cannot be dried with a towel, which will cause secondary pollution), it takes a long time to dry hands. The other is to spray disinfectant on the hands to achieve the purpose of cleaning hands by directly killing bacteria; it still takes a long time to rub hands, although it takes less time than washing hands, it does more damage to the skin. Therefore, a disinfection device that is fast and less harmful to the skin is needed.

In the prior art, the Chinese patent CN03218206.6 discloses a hand sanitizer, which is characterized in that, "a housing, an ultrasonic atomizer and a fan are arranged in the composition, wherein an ultrasonic atomization chamber is arranged in the housing, The ultrasonic nebulizer is located in the disinfectant in the ultrasonic atomization chamber, the exhaust port of the fan leads to the disinfection port of the housing through the pipeline, and the fan is fixed in the housing.” But the disadvantage of this patent is: the disinfectant after atomization The small droplet size (generally a few microns to tens of microns) is very easy to diffuse with the airflow. As a result of the open structure, only a small part of the disinfectant droplets are adsorbed on the hands, and the rest are all diffused into the air. The low proportion of drops on hands (that is, the poor efficiency of the atomizer) will also cause a great waste of disinfectant; what is more serious is that the characteristics of disinfectant droplets are easy to diffuse with the air, so that they can irritate the respiratory tract and cause the user's body to be damaged. discomfort.

Contents of the invention

The utility model aims at the deficiencies of the prior art, and provides an ultrasonic atomization hand sterilizer which can effectively reduce the waste of disinfectant and stimulate the respiratory tract and increase the proportion of disinfectant droplets on hands (that is, improve the actual efficiency of the atomizer).

In order to achieve the above object, the utility model includes an ultrasonic atomizer, a liquid storage tank, a fan, a pipeline, a deflector, a foot switch, and a casing. The foot switch is located outside the box, and the rest are all located in the box. The outer edge of the vibrating plate of the ultrasonic nebulizer is sealed and connected with the liquid storage tank, and the surface of the vibrating plate is in contact with the disinfectant. Both the ultrasonic atomizer and the liquid storage tank are fixed at the bottom of the box. The pipeline includes a section of straight pipe and a section of 180-degree elbow, which are respectively fixed on the side and top of the box. Among them, the straight pipe is located directly above the ultrasonic atomizer, and there is a certain vertical distance between the liquid storage tank; one end of the 180-degree elbow is connected with the straight pipe, and the edge of the other end is connected with the first deflector, and the first deflector The flow plate is slightly inclined downward toward the straight pipe, and its edge is glued to the box or pipe. A fan (motor and fan blade) is installed inside the straight pipe, and the fan shaft is fixed at the center of the cross section of the straight pipe with a rigid bracket. On one side of the box wall whose vertical height is slightly lower than the first deflector, there is an opening for reaching out. A second deflector is provided at a place slightly lower than the opening, which is slightly inclined downward toward the liquid storage tank, and its edge is glued to the edge of the box body or the liquid storage tank. The ultrasonic atomizer is connected in parallel with the fan, and then connected in series with the foot switch, so that the foot switch controls the start and stop of both at the same time.

The utility model adopts a circulation spraying structure of disinfectant liquid droplets, which can effectively reduce the waste of disinfectant liquid and stimulate the respiratory tract and increase the proportion of disinfectant liquid droplets on hands. The foot switch is used to simultaneously control the start and stop of the ultrasonic atomizer and the fan. It has the advantages of simple structure, low cost and high reliability.

Description of drawings

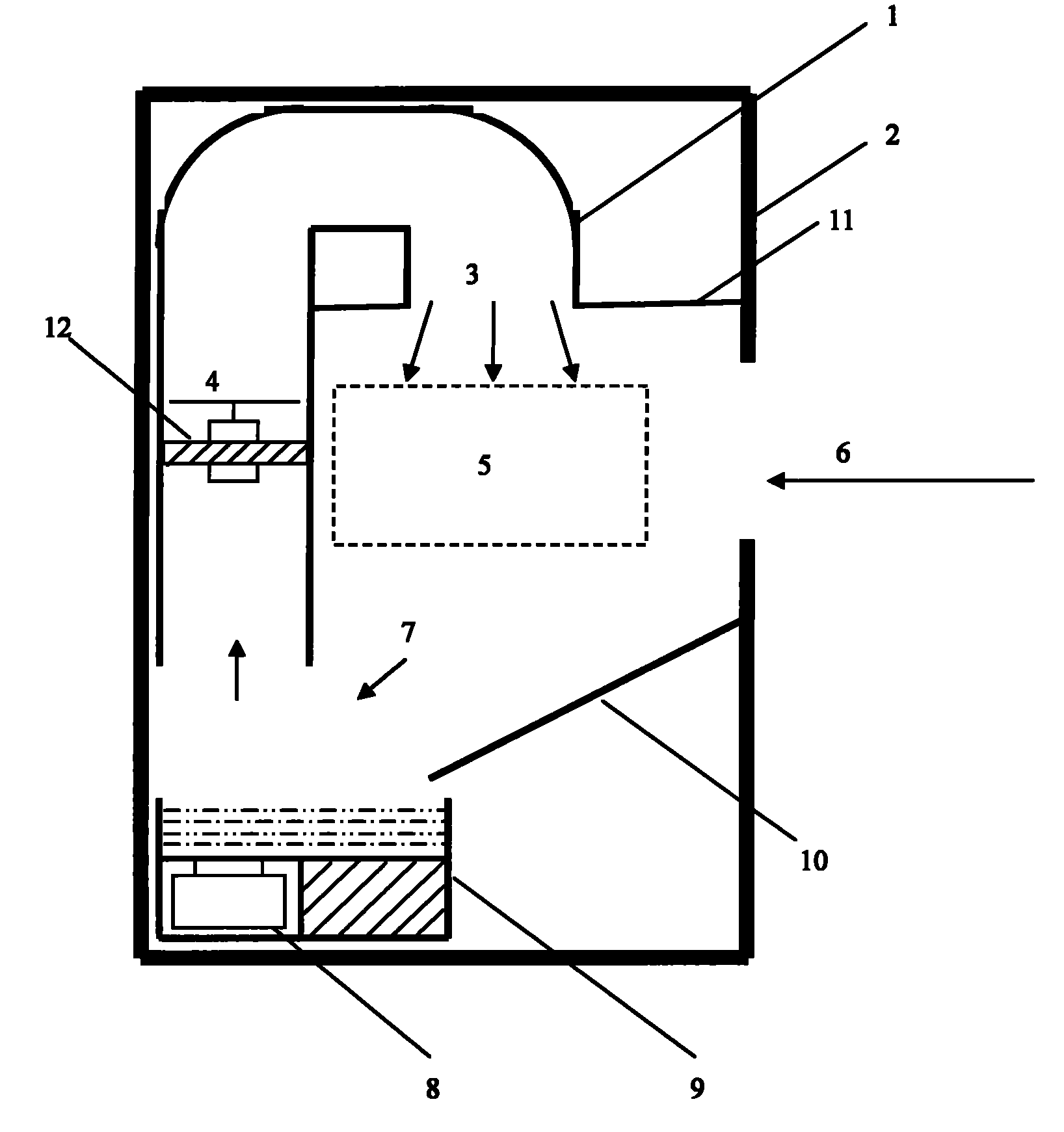

Fig. 1 is the structural representation of the utility model

Figure 2 is a schematic diagram of the utility model foot switch control structure

Detailed ways

Below in conjunction with accompanying drawing, the utility model is further described.

As shown in Figure 1 , the utility model includes a pipeline 1, a box body 2, a fan 4, an ultrasonic atomizer 8, a liquid storage tank 9, two deflectors 10, 11, and a foot switch 13. The foot switch 13 is located outside the casing 2, and the remaining parts are all positioned in the casing 2.

The outer edge of the vibrating plate of the ultrasonic atomizer 8 is in sealing connection with the liquid storage tank 9, and the surface of the vibrating plate is in contact with the disinfectant. Both the ultrasonic atomizer 8 and the liquid storage tank 9 are fixed on the bottom of the casing 2 .

The pipeline 1 includes a section of straight pipe and a section of 180-degree elbow, which are respectively fixed on the side and top surface of the box body 2 . Wherein, the straight pipe is located directly above the ultrasonic atomizer 8, and has a certain vertical distance between the liquid storage tank 9; one end of the 180-degree elbow is connected with the straight pipe, and the edge of the other end is connected with the first deflector 11, The first baffle 11 is slightly obliquely downward toward the direction of the straight pipe, and its edge is glued to the box body 2 or the pipeline 1 . The fan 4 is housed inside the straight pipe, and the fan 4 axis is fixed on the center of the cross section of the straight pipe with a rigid support 12 . On one side of the box body 2 wall whose vertical height is slightly lower than the first deflector 11, there is an opening 6 for reaching out. A second deflector 10 is provided slightly lower than the opening 6, slightly obliquely downward toward the liquid storage tank 9, and its edge is glued to the edge of the box body 2 or the liquid storage tank 9. The ultrasonic nebulizer 8 is connected in parallel with the fan 4, and then connected in series with the foot switch 13, so that the foot switch 13 controls the start and stop of both.

As shown in Figure 2, in the figure, the transformer 15 of the ultrasonic atomizer 8, the transformer rectifier 14 of the fan 4, the ultrasonic atomizer 8 is connected in series with its transformer 15, the fan 4 is connected in series with its transformer rectifier 14, and these two parts are connected in parallel The rear is connected in series with the foot switch 13, and the power supply is AC220V.

Ultrasonic nebulizer 8 is used to atomize the disinfectant solution, and fan 4 is used to spray the atomized disinfectant solution on hands through pipeline 1 . The fan 4 is built in the pipeline 1, and the air inlet 7 and the spout 3 of the pipeline 1 are all located in the box body 2, so that the disinfectant droplets can form a circulation in the box body 2 with the air flow, and improve the flow rate of the disinfectant droplets in the airflow. Concentration and hand-sticking ratio.

When disinfecting, hands are stretched from the opening 6 into the interior of the device (area 5) for disinfection. The first deflector 11 can prevent the spout from dripping and recycle the disinfectant. The second deflector 10 can recover the disinfectant and be used as a channel for rehydration. Manual rehydration is adopted, and the disinfectant flows into the liquid storage tank 9 from the opening 6 through the second deflector 10 .

The utility model adopts the foot switch 13 to simultaneously control the start and stop of the ultrasonic atomizer 8 and the fan 4, and has the advantages of simple structure, low cost and high reliability. The foot switch 13 is used to control to ensure that the hands are not in contact during the disinfection process. The box body 2 can effectively reduce the leakage of the mist disinfectant, reduce the waste of the disinfectant and the irritation to the respiratory tract.

The medicament used in the utility model is a commercially available water-based disinfectant or skin disinfectant, and the bactericidal effect depends on the disinfectant.

The utility model makes the disinfectant cover the whole hand more quickly and evenly by physical means, reduces the disinfection time, and reduces the consumption of the disinfectant (thereby reducing the damage to the hand skin). In the process of using the utility model, there is no contact between the hands and the device, and there is no need to rub hands. The function of this sterilizer is only limited to sterilization and does not have the ability to decontaminate.

The utility model is suitable for medical institutions and other places where frequent hand disinfection is required.

Claims (5)

1, a kind of ultrasonic atomizatio hand sanitizer, comprise pipeline (1), casing (2), fan (4), soniclizer (8), hopper (9), two deflectors (10,11), foot switch (13), it is characterized in that: foot switch (13) is positioned at outside the casing (2), remainder all is positioned at casing (2), soniclizer (8) vibrating reed outer rim and hopper (9) are tightly connected, this vibrating reed surface contacts with disinfectant solution, and soniclizer (8) all is fixed on casing (2) bottom with hopper (9); Pipeline (1) comprises straight-run of pipe and one section 180 degree bend pipe, be separately fixed at the side and the end face of casing (2), wherein, straight tube be positioned at soniclizer (8) directly over, and between the hopper (9) vertical dimension is arranged, 180 degree bend pipes, one end is connected with straight tube, the edge of the other end is connected with first deflector (11), first deflector (11) is oblique slightly down to the straight tube direction, fan (4) is equipped with in straight tube inside, side at casing (2) wall that vertically highly is lower than first deflector (11) has opening (6), the place that is lower than opening (6) is provided with second deflector (10), second deflector (10) is oblique down to hopper (9) direction, and soniclizer (8) is connected in parallel with fan (4), is connected in series with foot switch (13) then.

2, ultrasonic atomizatio hand sanitizer as claimed in claim 1 is characterized in that: the axle center of described fan (4) is fixed on the straight tube cross-section center by rigid support (12).

3, ultrasonic atomizatio hand sanitizer as claimed in claim 1 is characterized in that: described first deflector (11) edge and casing (2) or pipeline (1) are bonding.

4, ultrasonic atomizatio hand sanitizer as claimed in claim 1 is characterized in that: described second deflector (10) edge and casing (2) or hopper (9) edge are bonding.

5, ultrasonic atomizatio hand sanitizer as claimed in claim 1 is characterized in that: described pipeline (1) is provided with air inlet (7) and spout (3), and air inlet (7) and spout (3) all are positioned at casing (2).
