CN201223876Y - Six-roller cold rolling mill - Google Patents
Six-roller cold rolling mill Download PDFInfo
- Publication number
- CN201223876Y CN201223876Y CNU2008200979587U CN200820097958U CN201223876Y CN 201223876 Y CN201223876 Y CN 201223876Y CN U2008200979587 U CNU2008200979587 U CN U2008200979587U CN 200820097958 U CN200820097958 U CN 200820097958U CN 201223876 Y CN201223876 Y CN 201223876Y
- Authority
- CN
- China
- Prior art keywords
- roll
- roller
- calender rolls
- intermediate calender
- memorial archway
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Lifetime
Links
Images
Abstract
The utility model belongs to the forming technical field and relates to the cold-rolled machinery, in particular to a six-roller cold rolling mill. In the utility model, an axial locking device and a bearing roller are connected and respectively arranged on the operating sides at the upper and lower parts of a torii; a bearing roller balance device is connected with an upper bearing roller; a hydraulic press upper fine-adjustment device is arranged on the bottom part of the torii, and a lower bearing roller is directly placed on the top part of the hydraulic press upper fine-adjustment device; an axial moving device is arranged outside the transmission side of the torii and is connected with a middle roller through the axial moving device; the axial locking device is arranged on a bending roller block at the transmission side; and a roller system compensation device is arranged on the upper part of the torii. The utility model increases the dimensional accuracy of cold-rolled steel products and improves the automation degree of the production process; an equipment press upper mechanism is simple and has a compact layout, so as to improve the service life of the bearings; and the roller replacement is fast, flexible, stable and reliable and is easy to operate. Therefore, the six-roller cold rolling mill is suitable for rolling plain carbon steel, high-quality carbon steel, low alloy steel, stainless steel and other steel-related products.
Description
Technical field
The utility model belongs to field shaping technique, relates to a kind of cold rolling plant equipment, relates in particular to the six-roll cold mill that is used for reversible cold-rolling steel rolling equipment, aluminium rolling equipment or copper material rolling equipment.
Background technology
Along with the rapid development of modern industry, fields such as industry, building and civilian household electrical appliances flourish proposed higher better requirement to the product of cold-strip steel, and dimensional accuracy and the plate shape to cold-strip steel had higher requirement especially.As electroplate zinc-aluminium the requirement of the raw materials size tolerance of cold-strip steel is not more than ± 8 μ m.Compare with electronic four rollers or the six-high cluster mill of depressing in the modern production field, adopt vertical tolerance that the electronic milling train of depressing basically can not online adjustment band steel, this class milling train is when producing, at first adjust roll gap under the electricity consumption dynamic pressure, no longer regulate in the operation of rolling, thereby, can not realize well that to the factors such as variation of the variation of the raw thickness variation, mill speed and the tension force that occur in the operation of rolling and roll forming of the roll online feedback compensation regulates, so its gauge precision of the band steel of producing like this is lower, plate shape is relatively poor, does not reach the requirement of high quality of products.Though present reversible four-high mill develops into the hydraulic pressure pressuring upper device by the electric screw down gear of turbine worm formula, its performance improves constantly, and uses comparatively general.Roll bending was scurried the milling train that jointly controls in the middle of six-high cluster mill developed at present simultaneously, and such milling train is known, and for example Japan Patent 66307/1981.Its work roll diameter is less, but the Influence from Eccentric of bending roller force breaker roll bearing is bigger during this its play of class milling train, be unfavorable for rolling control, top roll need be carried on the back out by lower roll during its roll change of six-high cluster mill of use at present simultaneously, because be subjected to the restriction of local size, top roll falls to being placed on the less cushion effect that advances that is difficult for overcoming roll of the degree of depth on the lower roll pin, roll release when causing roll to advance, fall roller, influence roll change rhythm, be unfavorable for producing.Along with the rapid development of the modern industry demand to cold rolling high quality of products improves, existing four rollers and common six-high cluster mill can not satisfy the requirement of plate shape ability of regulation and control.
Summary of the invention
The object of the invention is to provide a kind of six-roll cold mill, can satisfy the requirement of plate shape ability of regulation and control, and can produce high accuracy, high-quality cold-rolled products.
The utility model is realized in the following way:
Axial locking device is connected with backing roll and is installed on the fore side of memorial archway upper and lower; The backing roll bascule is connected with top backing up roll; Hydraulic pressure presses micromatic setting and is installed in the bottom of memorial archway and the lower support roller is directly fallen to being placed on the top that hydraulic pressure presses micromatic setting; The transmission side that axial moving device is installed in memorial archway is connected with intermediate calender rolls outward and by axial moving device; Move axially on the roller bending block that locking device is installed in transmission side, roller is the top that compensation arrangement is installed in memorial archway.
The utility model has improved the dimensional accuracy of cold-rolled steel strip products, and has strengthened plate shape control ability; Improved the automaticity in the production process; It is simple that equipment presses mechanism, arranges compact; Roller is stable and precision is high to rolling control, and the service life of having improved bearing; Roll change is quick, flexible, reliable and stable, and easy to operate.The utility model is applicable to belt steel products such as rolling straight carbon steel, Fine Steel Casting iron, low-alloy steel and stainless steel.
Description of drawings

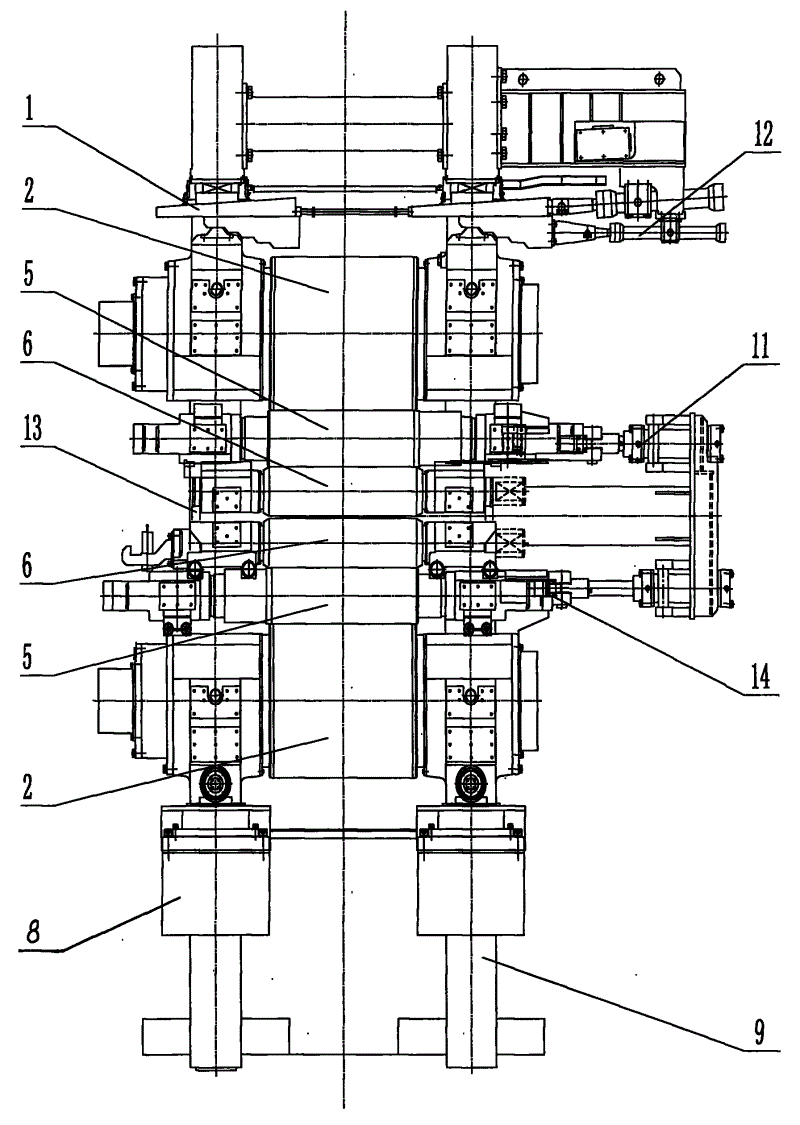

Accompanying drawing 1 is a schematic top plan view of the present utility model.
Accompanying drawing 2 is that A of the present utility model is to schematic diagram.
Accompanying drawing 3 cuts open to schematic diagram for B-B of the present utility model.
Among the figure, part 1 is a compensation arrangement for roller, and part 2 is a backing roll, part 3 is an axial locking device, and part 4 is the backing roll bascule, and part 5 is an intermediate calender rolls, part 6 is a working roll, and part 7 is a hydraulic roller-bending device, and part 8 presses micromatic setting for hydraulic pressure, part 9 is a memorial archway, part 10 is the roll change hydraulic cylinder, and part 11 is an axial moving device, and part 12 is a cooling and lubricating device, part 13 top working roll roll change automatic clutch pins, part 14 is for moving axially locking device.
Roller is that compensation arrangement 1 is by mechanical ladder block, tapered wedges, Crown control hydraulic cylinder and sensor Deng composition; Backing roll bascule 4 is made up of backing roll balance weight, hydraulic cylinder and control element etc.; Hydraulic roller-bending device 7 is made up of roller bending block, hydraulic cylinder and control element etc.; Hydraulic pressure presses micromatic setting 8 by pressing hydraulic cylinder and sensor forms; Move axially device 11 by support, mobile hydraulic cylinder with Reach compositions such as detecting control element; Cooling and lubricating device 12 is made up of support, spray beam, cylinder etc.; Moving axially locking device 14 is made up of hydraulic cylinder, locking pin, support and sensor.
The specific embodiment
The utility model is described in further detail according to accompanying drawing 1-3:
The roller system that roll (backing roll 2, intermediate calender rolls 5, working roll 6) is formed is installed in the vertical plane, and supports intermediate calender rolls 5, intermediate calender rolls 5 support works rollers 6 by backing roll 2; Simultaneously each is used to the working roll 6 accepting to drive by one between two intermediate calender rolls 5, and intermediate calender rolls 5 can move along its axis.
Hydraulic roller-bending device 7 is used for the bending of working roll 6 and intermediate calender rolls 5; Backing roll bascule 4 is used for the balance of top backing up roll 2; Axial moving device 11 is used for moving axially of intermediate calender rolls 5; Axle moves the axial locking that locking device 14 is used for axial moving device 11 and intermediate calender rolls 5; Upper working rolls and lower working rolls 6 is a live-roller, the rotation of intermediate calender rolls 5 and backing roll 2 about driving respectively.
Be installed in the roller hydraulic cylinder in the hydraulic roller-bending device 7, the same moved further in the time of can realizing intermediate calender rolls 5 operate as normal.
Hydraulic pressure presses the vertical and horizontal tolerance that micromatic setting 8 is mainly used in On-line Control band steel, in the operation of rolling On-line Control is carried out in the varied in thickness of raw material, the variation of tension force and the variation of mill speed etc., the vertical and horizontal tolerance that makes the band steel after rolling is in the target control scope.Hydraulic roller-bending device 7 is mainly used in the plate shape and the horizontal tolerance of control band steel, by applying the convexity that bending roller force is adjusted intermediate calender rolls 5 at intermediate calender rolls 5 two ends, to improve the plate shape of rolled band steel.Backing roll bascule 4 is mainly used in the balance top backing up roll.Axial moving device 11 is mainly used in the strip edge portion convexity that control is caused by the rolled band steel wide variety.Roller system sews and mend and repays device 1 and be made up of mechanical ladder block, tapered wedges and sensor etc., roller system sew and mend repay device 1 be mainly used in by after the reconditioning of roll to compensate rolling height, satisfy the normal reference range of mill milling.Hydraulic axial locking device 3 is mainly used in the axial location of roll, to keep the normal duty of roll.Roll change hydraulic cylinder 10 is mainly used in and lifts intermediate calender rolls 5, is beneficial to roll change buggy and changes the interior intermediate calender rolls 5 of frame.Top working roll roll change pin 13 adopts automatic clutch, is supported on the bottom working roll, to satisfy the requirement of the paired fast roll changing of working roll.
The utility model makes this mill roll-gap setting, online roll gap fine setting, roller and balance, roll reconditioning compensation and axial locking etc. all adopt hydraulic control, its roll is stressed evenly simultaneously, do not change with the variation of roll location, thus the stability of assurance rolling mill characteristic.Thereby the vertical and horizontal dimensional accuracy of rolled products and the stability of plate shape have been improved.
During top working roll roll change automatic clutch pin operate as normal, upper working rolls and lower working rolls separates automatically, engages automatically during roll change, and top working roll is carried on the back out bottom working roll, effectively prevents roller, roll release.
Remove during roll change top working roll need the bottom working roll back of the body out all the other each rollers all can independently change roll fast.
The utlity model has following advantage:
A has improved the dimensional accuracy of cold-rolled steel strip products, and has strengthened plate shape control ability. Because Adopt hydraulic pressure to press micromatic setting so that with steel vertically and the transverse gage allowance control at the high accuracy model In enclosing. Adopt simultaneously to move axially device, so that the convexity that is caused by change width with steel can better Controlled. And then so that can be in high-precision scope to the plate shape control of rolled band steel.
B has improved the automaticity in the production process. Because the compensation of roller system, backing roll bascule, Changing rig and axial locking device all adopt hydraulic control, have realized the Automatic Control pattern, fortune Row is steady, control accuracy is high, thereby has improved the control level.
It is simple that c equipment presses mechanism. Owing to adopt hydraulic pressure to push to fast system, big stroke height only be set The precision hydraulic cylinder can be realized, characteristics of compact layout is simple in structure.
The d roller is stable and precision is high to roll control. Because bowed roller hydraulic cylinder is mobile with roll, So that the bending roller force that imposes on roll is because the change in location of roll changes, thereby roller control pair The active position of roll bearing remains unchanged, thereby the Influence from Eccentric of bending roller force breaker roll is littler, thereby Improved the stability of roller control, and the service life of having improved bearing.
The e roll change is quick, flexible, reliable and stable.Because working roll and intermediate calender rolls adopt independently roll change track respectively, and being provided with independently on last intermediate calender rolls roller bending block, fast railway promotes hydraulic cylinder, make working roll and intermediate calender rolls independently to change respectively, thereby improved the flexibility of roll change, and easy to operate.
The f top working roll is carried on the back out by bottom working roll, and the automatic clutch pin is set on bottom working roll, and the groove of slip-off preventing is set, to prevent roller, roll release.
The utility model has improved the dimensional accuracy of cold-rolled steel strip products, and has strengthened plate shape control ability; Improved the automaticity in the production process; It is simple that equipment presses mechanism, arranges compact; Roller is stable and precision is high to rolling control, and the service life of having improved bearing; Roll change is quick, flexible, reliable and stable, and easy to operate.The utility model is applicable to belt steel products such as rolling straight carbon steel, Fine Steel Casting iron, low-alloy steel and stainless steel.
Claims (4)
1, a kind of six-roll cold mill, it comprises backing roll (2), intermediate calender rolls (5), working roll (6) and memorial archway (9), backing roll (2), intermediate calender rolls (5) and working roll (6) are installed in the memorial archway (9), intermediate calender rolls (5) is installed in respectively between backing roll (2) and the working roll (6), cooling and lubricating device (12) is installed between the inner both sides of memorial archway (9) and is close to backing roll (2), intermediate calender rolls (5) and working roll (6), and it is characterized in that: axial locking device (3) is connected with backing roll (2) and is installed on the fore side of memorial archway (9) upper and lower; Backing roll bascule (4) is connected with top backing up roll (2); Hydraulic pressure presses micromatic setting (8) and is installed in the bottom of memorial archway (9) and the lower support roller is directly fallen to being placed on the top that hydraulic pressure presses micromatic setting (8); The outer axial moving device (11) that also passes through of transmission side that axial moving device (11) is installed in memorial archway (9) is connected with intermediate calender rolls (5); Move axially on the roller bending block (7) that locking device (14) is installed in transmission side, roller is the top that compensation arrangement (1) is installed in memorial archway (9).
2, six-roll cold mill according to claim 1 is characterized in that top working roll roll change automatic clutch pin (13) is installed on bottom working roll (6) bearing block.
3, six-roll cold mill according to claim 1 is characterized in that hydraulic roller-bending device (7) and intermediate calender rolls (5) and working roll (6) are connected and are installed in the middle part of memorial archway (9); Roll change hydraulic cylinder (10) is connected with last intermediate calender rolls (5).
4, six-roll cold mill according to claim 1, it is characterized in that being in working roll vertical support roller, by the intermediate calender rolls (5) of supporting working roll (6) with forms, respectively be used to the working roll (6) accepting to drive between two intermediate calender rolls (5) by one by the backing roll (2) that intermediate calender rolls (5) is supporting.
