CN201198562Y - Intelligent anti-collision automatic railing - Google Patents

Abstract

The utility model discloses an intelligent anti-collision automatic railing, which comprises a cross bar (2) arranged on a box body (1), and a photoelectric sensor (3) is arranged under the cross bar (2). The utility model installs a photoelectric sensor in the cross bar. When the cross bar is lowered, when the photoelectric sensor detects that there is an object under the cross bar, the signal is sent into the box body, and the box body stops putting down the cross bar. Compared with the prior art, the utility model has the following advantages: it eliminates potential safety hazards, has a simple structure, is convenient to use, and can also modify existing railings.

Description

Intelligent anti-collision automatic railing

technical field

The utility model relates to an intelligent anti-collision automatic railing, which belongs to the technical field of traffic management railings.

Background technique

When pedestrians or vehicles pass under the automatic railing, due to the misoperation of the automatic railing operator or the irregular actions of pedestrians and vehicles, car lifting railings often cause injuries to people and vehicles, resulting in personal injury and vehicle damage. There are also some automatic lifting railings and patented lifting railings on the market, but the old automatic railings with greater safety hazards are still being used in most of these occasions, which pose a greater safety hazard to personnel and vehicles.

Contents of the invention

The purpose of the utility model is to provide an intelligent anti-collision automatic railing with simple structure and convenient transformation, so as to overcome the deficiencies of the prior art.

The utility model is constituted as follows: it includes a cross bar arranged on the box body, and a photoelectric sensor is arranged under the cross bar.

For the above-mentioned intelligent anti-collision automatic railing, the photoelectric sensor is arranged in the cross bar, and the control circuit of the photoelectric sensor is connected into the box body.

The utility model installs a photoelectric sensor in the cross bar. When the cross bar is lowered, when the photoelectric sensor detects that there is an object under the cross bar, the signal is sent into the box body, and the box body stops putting down the cross bar. Compared with the prior art, the utility model has the following advantages: it eliminates potential safety hazards, has a simple structure, is convenient to use, and can also modify existing railings.

Description of drawings

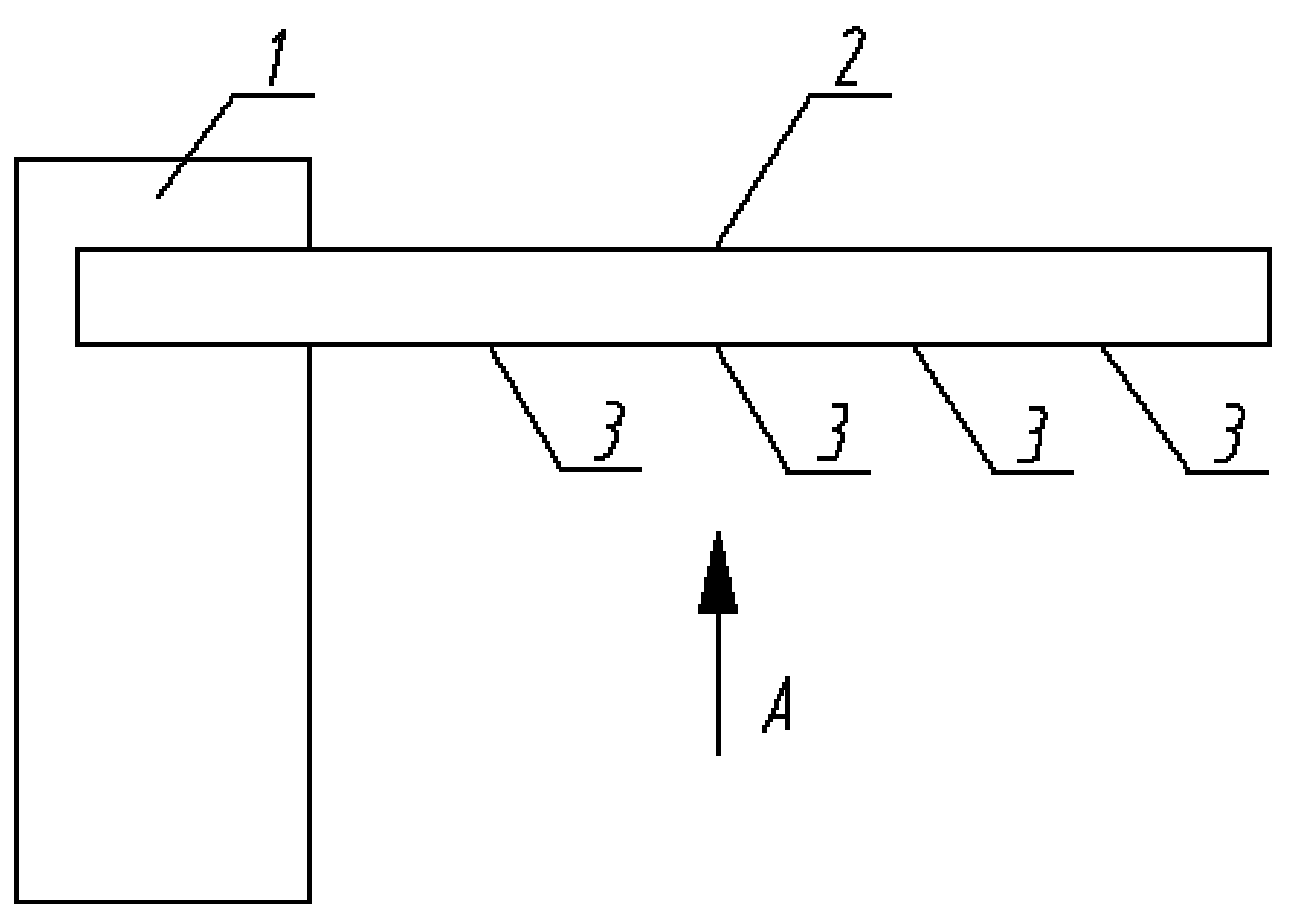

Accompanying drawing 1 is the structural representation of the utility model;

Accompanying drawing 2 is the schematic diagram of A in accompanying drawing 1.

Detailed ways

Embodiment of the present utility model: the photoelectric sensor 3 is installed in the cross bar 2, the photoelectric sensor 3 is arranged under the cross bar 2, the control circuit of the photoelectric sensor 3 is connected in the box body 1, and then the cross bar 2 is installed in the Just put it on the box body 1.

Claims (2)

1. [Claim 1] An intelligent anti-collision automatic railing, which includes a crossbar (2) arranged on the box (1), characterized in that: a photoelectric sensor (3) is provided under the crossbar (2). 2. [Claim 2] The intelligent anti-collision automatic railing according to claim 1, characterized in that: the photoelectric sensor (3) is set in the cross bar (2), and the control circuit of the photoelectric sensor (3) is connected into the box (1) inside.
