一种折叠童床，包括一带纵撑杆(11)与横撑杆(12)的床框架(1)，该床框架通过折叠件(3)连接一带架杆(21)的底架(2)，折叠件设置有带铰链轴(4)的折叠体(31)，铰链轴与底架(2)可折叠铰接，折叠体的纵横方向还各连接一与纵撑杆(11)相连接纵连接件(5)以及与横撑杆(12)相连接的横连接件(6)，所述折叠体设置有架杆锁紧钮销(7)，纵连接件连接一接套(8)，它的另一端与纵撑杆相套接，横连接件的一侧设置有小轴(61)，它连接一带弹性开口套(91)的横连套(9)，它又与横撑杆相套接；本实用新型优点是可实现该童床快捷而轻便地折叠，而且折叠后可改变其童床高度，以扩大使用范围；其次是结构简单轻巧、造型美观、操作简便灵活。
A folding crib, comprising a bed frame (1) with a vertical strut (11) and a cross strut (12), the bed frame is connected to a base frame (2) with a frame bar (21) through a folding piece (3) , the folding part is provided with a folding body (31) with a hinge shaft (4), the hinge shaft and the bottom frame (2) can be folded and hinged, and the vertical and horizontal directions of the folding body are also respectively connected to one vertically connected with the vertical strut (11) (5) and the horizontal connecting piece (6) connected with the cross brace (12), the folded body is provided with a pole locking button pin (7), and the vertical connecting piece is connected with a socket (8), which The other end is socketed with the vertical strut, and a small shaft (61) is arranged on one side of the horizontal connector, which is connected to a horizontal connecting sleeve (9) with an elastic split sleeve (91), which is also set with the horizontal strut Then; the utility model has the advantages that the crib can be folded quickly and lightly, and the height of the crib can be changed after folding to expand the scope of use; secondly, the structure is simple and light, the shape is beautiful, and the operation is simple and flexible.
Description
Technical field
The utility model relates to a kind of Children, relates in particular to a kind of Children that can fold.
Background technology
The Children kind that can fold in the market is more, as disclosed a kind of in the Chinese patent specification 01239273.1 " folding Children ", it comprises that framework, cloth enclose and mattress, framework is made up of cross tube, upper vertical bar, sheer pole, each two of lower vertical bars and four montants, and the montant two ends are connected with cross tube and sheer pole respectively; Upper vertical bar and cross tube are hinged, and lower vertical bar and sheer pole are hinged; The middle part of upper vertical bar, lower vertical bar and montant disconnects, and connects by folded piece.This Children can be folded into very little volume, so be convenient to deposit collection by its framework of bending.Simple to operation in folding process, be suitable for the less family of living space and use.
Above-mentioned yet " folding Children " only has the folder function of described framework, and do not have the Children function that folding back can be used as differing heights simultaneously, so its function singleness is not suitable for again using in some occasion.
Also have a kind of at present as disclosed in the Chinese patent specification 96247161.5 " Foldable multifunctional Children ", it both can make infant's doss, can roll over again to put and become big child or sleeping bed for adult, it mainly is made of bed head frame, bed underframe, bed side rail, leg, cramp bar and flexible connection hand, its bed head frame flexibly connects with the bed underframe, bed head frame side bar when the flexible connection hand that the bed side rail is installed by its termination can be with folding up flexibly connects, the bed head frame back side be equipped with can turn over to the bed head frame top do the mosquito net peg with.It has a underframe and leg can turn over the Children use that can be used as differing heights to folding back simultaneously again; But turning over to folding structure of it is complicated, and the folding operation inconvenience, and it is attractive in appearance that profile is owed again.
Summary of the invention
Technical problem to be solved in the utility model is exactly the present situation at above-mentioned prior art, provide a kind of have can change its Children height to enlarge the scope of application, light and handy, handsome in appearance, the convenient and flexible folding Children of folding operation simple in structure.
The utility model solves the problems of the technologies described above the technical scheme that is adopted: a kind of folding Children, the bed frame that comprises vertical strut of a band and singletree, this bed frame connects the underframe of a tape holder bar by folded piece, it is characterized in that: described folded piece is made up of the folded formation of a door assembly with hinge and glass in right hand and left axle and the vertical connector that is connected with this folded formation, horizontal connector; The underframe collapsible hinge of described hinge axis and described tape holder bar, described vertical connector is connected with described vertical strut, and described horizontal connector is connected with described singletree.
Above-mentioned bed frame and underframe turn over to foldable structure by hinge axis, can realize that this Children is fast and easily folding, have the Children function that can be used as differing heights simultaneously, convenient and flexible operation after folding again.
The direction in length and breadth of described folded formation also respectively connects a vertical connector and a horizontal connector; Described vertical connector is connected with described vertical strut, and described horizontal connector is connected with described singletree; This syndeton is folding with making up and dismantling of assurance bed frame speed and conveniencely.
Described hinge axis can match with the pan of described hack lever; To realize turning over to jackknife action flexibly and fast between its bed frame and the underframe.
Described folded formation preferably is provided with hack lever locking button pin being positioned at described hinge axis parallel direction, and this locking button pin matches with the locking hole of described hack lever; Its effect be bed frame with underframe between vertically be connected or turn over usefulness to folding back locking positioning.
Described vertical connector can connect one and connect cover, and this other end and described vertical strut that connects cover socket-connects; This connects the cover effect is to make between vertical connector and the described vertical strut that quick-mounting is rolled over soon.
One side of described horizontal connector is provided with little axle, and this little axle connects the horizontal connected set of a band elastic opening cover, and this elastic opening cover socket-connects with described singletree; This horizontal connected set effect is to make between horizontal connector and the described singletree quick-mounting folding soon.
The utility model is owing to adopt turning folding between bed frame and the underframe, and compared with prior art its advantage is to realize that this Children is fast and easily folding, and can change its Children height after folding, to enlarge the scope of application; Next is light and handy, handsome in appearance a, convenient and flexible operation simple in structure, practicality rational in infrastructure.
Description of drawings

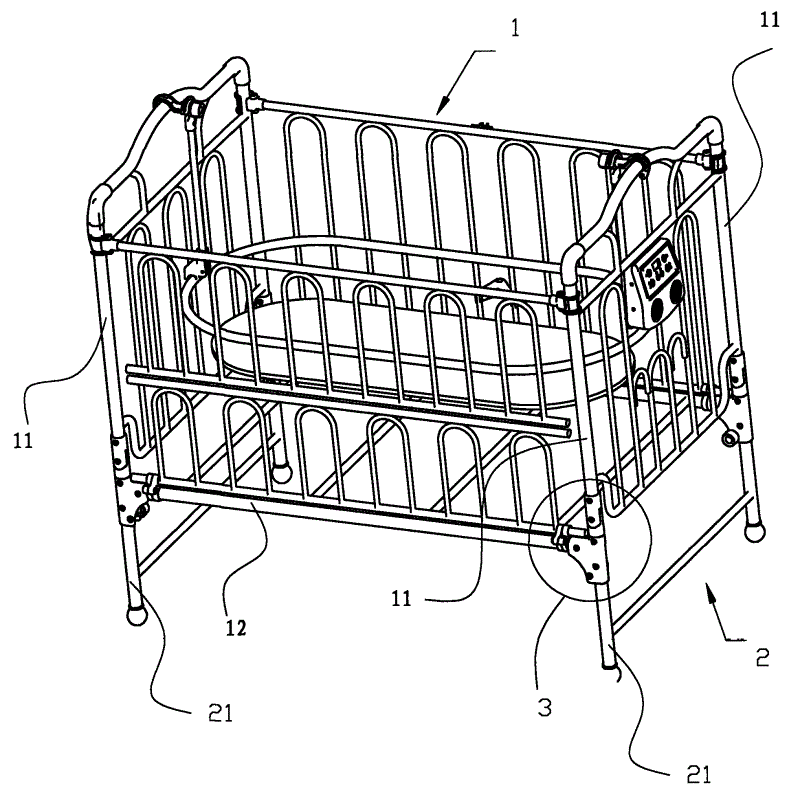

Fig. 1 is a structural representation of the present utility model;
Fig. 2 is the partial enlarged drawing of Fig. 1;
Fig. 3 is the left side view of Fig. 2;
Fig. 4 is a folded piece three-dimensional exploded view of the present utility model.
The specific embodiment
Embodiment describes in further detail the utility model below in conjunction with accompanying drawing.
Fig. 1 to Fig. 4 shows an embodiment of the utility model disc type folding seat.It comprises a bed frame 1, and bed frame includes vertical strut 11 and singletree 12; This bed frame respectively connects a underframe 2 that has two hack levers 21 by four folded pieces 3 again at the two ends of bed frame 1; As shown in Figure 1.
Described folded piece is provided with the folded formation 31 of door assembly with hinge and glass in right hand and left axle 4, and the hack lever of this hinge axis and described underframe 2 21 is turning folding hinged; As shown in Figure 3.
The direction in length and breadth of described folded formation 31 also respectively connects a vertical connector 5 and horizontal connector 6; Described method of attachment can be that screw 81 connects or pin connects; Vertical connector 5 is connected with described vertical strut 11, and described horizontal connector 6 is connected with described singletree 12; Shown in Fig. 2,4.
Above-mentioned bed frame and underframe are by the turned to foldable structure of hinge axis, can realize fast and easily folding 90 degree that turn to of this Children, have the Children function that has reduced height after folding again the turning to, use with baby and the children that are applicable to all ages and classes section, to enlarge its range of application; Operate easy again flexible.
The direction in length and breadth of described folded formation also respectively connects a vertical connector 5 and horizontal connector 6; Should vertical connector 5 can be that screw is connected or pin connects with the method for attachment of horizontal connector 6; Described vertical connector 5 is connected with described vertical strut 11, and described horizontal connector 6 is connected with described singletree 12; This syndeton is folding with making up and dismantling of assurance bed frame speed and conveniencely.
Described hinge axis 4 matches with the pan 22 of described hack lever 21; Shown in Fig. 1,4; It is rational in infrastructure simple and easy, to impel turning over to jackknife action flexibly and fast between bed frame and the underframe.
Described folded formation 31 is provided with hack lever locking button pin 7 in the parallel direction that is positioned at described hinge axis 4, and this locking button pin matches with the locking hole 23 of described hack lever; Shown in Fig. 3,4; To guarantee that vertical between bed frame and the underframe is connected or turns over to folding back locking positioning, safe and reliable.
Described vertical connector 5 connects one and connects cover 8, and this other end and described vertical strut 11 that connects cover 8 socket-connects, and vertical connector 5 is connected indirectly with described vertical strut 11.One side of described horizontal connector 6 is provided with little axle 61, and this little axle 61 connects the horizontal connected set 9 of a band elastic opening cover 91, and this horizontal connected set and described singletree 12 socket-connect, and horizontal connector 6 is connected indirectly with described singletree 12.This connect cover with horizontal connected set effect be make between vertical connector and the vertical strut, between horizontal connector and the described singletree soon quick-mounting roll over.Thereby, the utility model light and handy, convenient and flexible operation simple in structure.
Can install cradle or swing in the Children of the present utility model.
Claims (6)
1. folding Children, the bed frame (1) that comprises vertical strut (11) of a band and singletree (12), this bed frame connects the underframe (2) of a tape holder bar (21) by folded piece (3), it is characterized in that: described folded piece (3) is provided with the folded formation (31) of door assembly with hinge and glass in right hand and left axle (4), underframe (2) collapsible hinge of described hinge axis (4) and described tape holder bar (21).
2. folding Children according to claim 1 is characterized in that: the direction in length and breadth of described folded formation (31) also respectively connects a vertical connector (5) and horizontal connector (6); Described vertical connector (5) is connected with described vertical strut (11), and described horizontal connector (6) is connected with described singletree (12).
3. folding Children according to claim 2 is characterized in that: described hinge axis (4) matches with the pan (22) of described hack lever (21).
4. according to claim 2 or 3 described folding Childrens, it is characterized in that: described folded formation (31) is provided with hack lever locking button pin (7) in the parallel direction that is positioned at described hinge axis (4), and this locking button pin (7) matches with the locking hole (23) of described hack lever (21).
5. folding Children according to claim 4 is characterized in that: described vertical connector (5) connects one and connects cover (8), and this other end and described vertical strut (11) that connects cover (8) socket-connects.
6. folding Children according to claim 5, it is characterized in that: a side of described horizontal connector (6) is provided with little axle (61), this little axle (61) connects the horizontal connected set (9) of a band elastic opening cover (91), and this elastic opening cover (91) socket-connects with described singletree (12).
